Alignment of buttons

5 posts, 1 answers
  1. Daniel
    Daniel avatar
    175 posts
    Member since:
    Feb 2009

    Posted 11 Mar 2010 Link to this post

    Hi. I'm using RadControls_for_ASP.NET_AJAX_2009_3_1314_dev. I have multiple RadToolBarDropDown's and RadToolBarButton's. When I change the font family the buttons aren't vertically aligned and appear all over the place. This doesn't happen with the default font that toolbar uses. Thanks.

    .rtbText { fontnormal 11px verdanasans-serif !important; color#333333 !important; }
  2. Yana
    Admin
    Yana avatar
    4564 posts

    Posted 15 Mar 2010 Link to this post

    Hi Daniel,

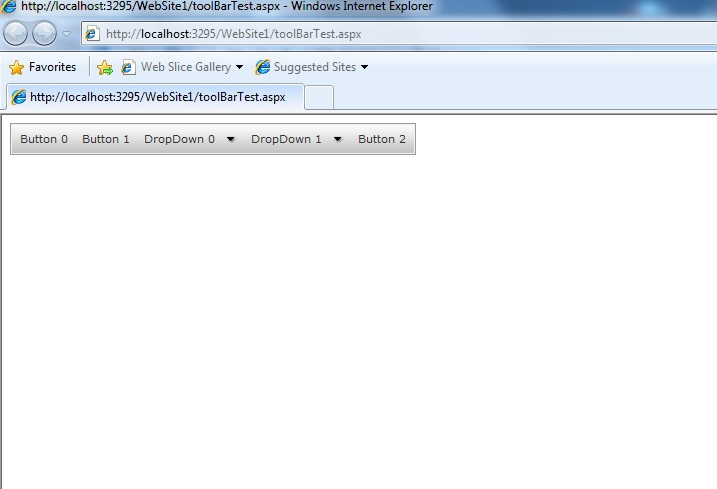

    I couldn't observe this issue, please check the attached screenshot. Can you send us a live url or a simple page demonstrating the problem? Thanks

    Regards,
    Yana
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  3. Daniel
    Daniel avatar
    175 posts
    Member since:
    Feb 2009

    Posted 15 Mar 2010 Link to this post

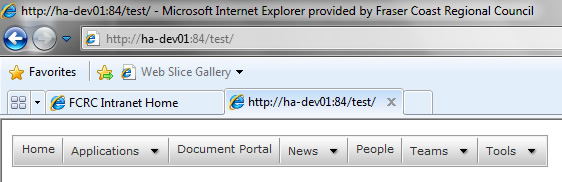

    Thanks for the response Yana. I don't have a live URL but I'll give you exactly what I'm trying plus a screen shot. The weird thing is, this happens with IE6 on XP as well as IE8 on Win7. Thanks.

    <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="test_Default" %>

    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
    <head runat="server">
        <title></title>
        <style type="text/css">
            .rtbText
            {
                font: normal 11px verdana, sans-serif !important;
                color: #333333 !important;
            }
        </style>
    </head>
    <body>
        <form id="form1" runat="server">
        <div>
            <telerik:RadToolBar ID="rtbMain" runat="server" Skin="Default">
                <Items>
                    <telerik:RadToolBarButton runat="server" NavigateUrl="/" Checked="true" Text="Home">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarButton IsSeparator="true">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarDropDown Text="Applications">
                        <Buttons>
                            <telerik:RadToolBarButton Text="Applications">
                            </telerik:RadToolBarButton>
                            <telerik:RadToolBarButton Text="Links">
                            </telerik:RadToolBarButton>
                        </Buttons>
                    </telerik:RadToolBarDropDown>
                    <telerik:RadToolBarButton IsSeparator="true">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarButton runat="server" NavigateUrl="/docs/" Text="Document Portal">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarButton IsSeparator="true">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarDropDown Text="News">
                        <Buttons>
                            <telerik:RadToolBarButton Text="Add news">
                            </telerik:RadToolBarButton>
                            <telerik:RadToolBarButton Text="View archive">
                            </telerik:RadToolBarButton>
                        </Buttons>
                    </telerik:RadToolBarDropDown>
                    <telerik:RadToolBarButton IsSeparator="true">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarButton runat="server" NavigateUrl="/people/" Text="People">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarButton IsSeparator="true">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarDropDown Text="Teams">
                        <Buttons>
                            <telerik:RadToolBarButton Text="Customer Service">
                            </telerik:RadToolBarButton>
                            <telerik:RadToolBarButton Text="Human Resources">
                            </telerik:RadToolBarButton>
                            <telerik:RadToolBarButton Text="Information Management">
                            </telerik:RadToolBarButton>
                            <telerik:RadToolBarButton Text="WH&S">
                            </telerik:RadToolBarButton>
                        </Buttons>
                    </telerik:RadToolBarDropDown>
                    <telerik:RadToolBarButton IsSeparator="true">
                    </telerik:RadToolBarButton>
                    <telerik:RadToolBarDropDown Text="Tools">
                        <Buttons>
                            <telerik:RadToolBarButton Text="Organisational Health Check">
                            </telerik:RadToolBarButton>
                            <telerik:RadToolBarButton Text="Workbench">
                            </telerik:RadToolBarButton>
                        </Buttons>
                    </telerik:RadToolBarDropDown>
                </Items>
            </telerik:RadToolBar>
            <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
            </telerik:RadScriptManager>
        </div>
        </form>
    </body>
    </html>



  4. Answer
    Yana
    Admin
    Yana avatar
    4564 posts

    Posted 16 Mar 2010 Link to this post

    Hi Daniel,

    Thank you for providing the additional information. I managed to observe the issue in IE7 and IE6 only.  Please set the styles like this in order to fix it:

    .rtbText
        font-family: verdana, sans-serif !important
        font-size: 11px !important;
        color: #333333 !important
    }

    Best wishes,
    Yana
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  5. Daniel
    Daniel avatar
    175 posts
    Member since:
    Feb 2009

    Posted 16 Mar 2010 Link to this post

    That worked-- should have tried that! Thanks heaps for your help.

    Daniel
