Aligning markers and labels

[Julian]

Hi, I've a standard line chart. It is possible to align the markers so that they are on the grid lines. And also, so that the date labels on the X-axis match up to the grid lines instead of being in between lines. Thanks.

[Julian]

Perhaps I'm not explaining myself too well. See the line chart below. The grid lines are inbetween the markers.

http://demos.telerik.com/aspnet-ajax/chart/examples/skinning/lines/defaultcs.aspx

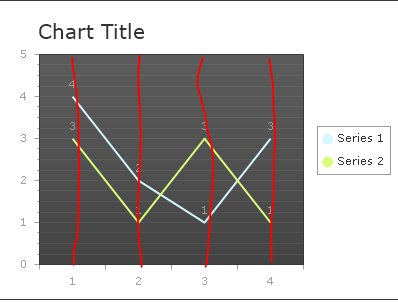

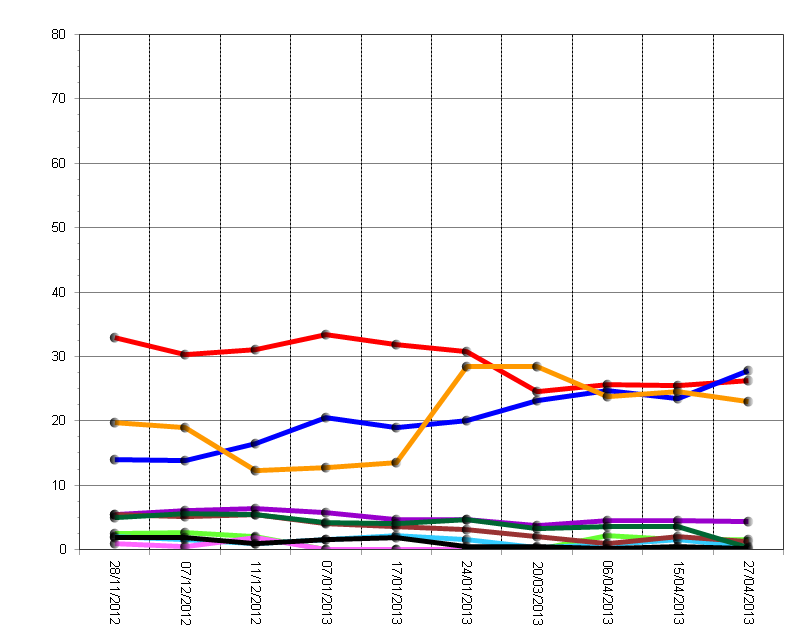

I'd like them to line up with the markers, as per image attached.

[Rosko]

Hello Julian,

To achieve the desired effect you can the LayoutMode property to Inside. It can be done either
declaratively:

<telerik:RadChart ID="RadChart1" runat="server" PlotArea-XAxis-LayoutMode="Inside">
</telerik:RadChart>

or programmatically:

RadChart1.PlotArea.XAxis.LayoutMode = Telerik.Charting.Styles.ChartAxisLayoutMode.Inside;

Also, you can read the relevant online documentation.

Regards,
Rosko
Telerik

[Julian]

Excellent. Thanks a lot!

[Julian]

Hi, actually, one thing. Is there a reason why the lines do not cover the first and last columns though? Can this be altered?

[Rosko]

Hello Julian,

This behavior is related to the LayoutMode property. Did you try setting the property to Between?

Regards,
Rosko
Telerik

[Julian]

Hi, ah, I see. I played around with that setting. Working as required now. Thanks!
