Align diagram root nodes one under the other

[Iuliana Maria]

Hello,

We have a diagram with layered layout, aligned to right. The diagram can have one or more root nodes.

The problem is that when we have multiple roots, we want to align them one under another, instead, if they are not very long, they are aligned to the right of each other.

Is there a way to achieve this alignment? We searched documentation but didn't find any specific property.

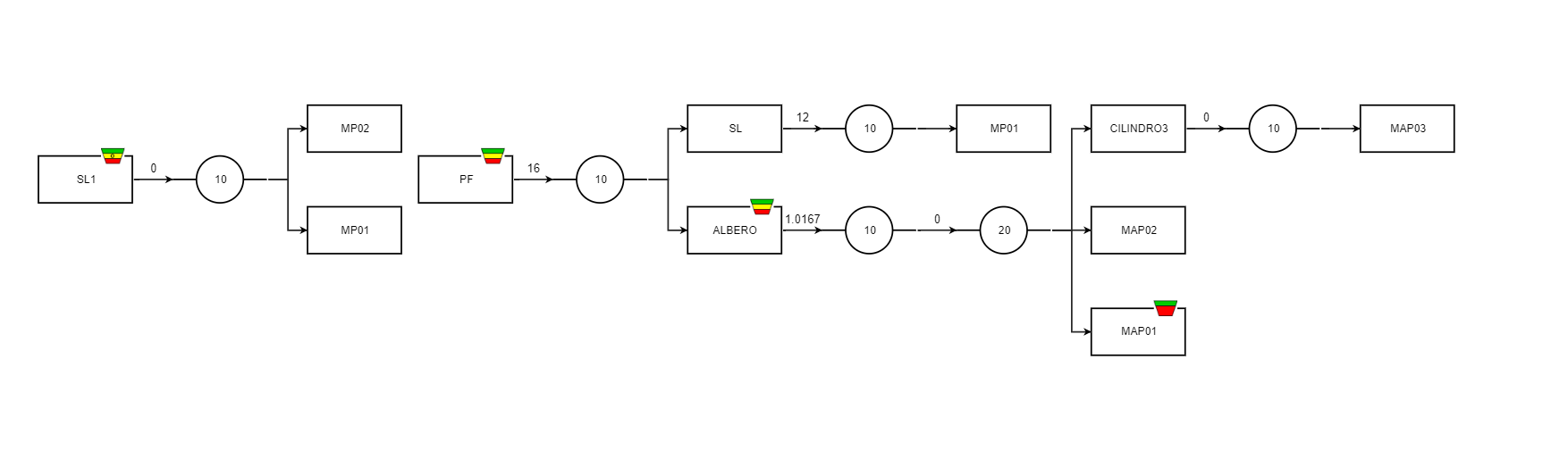

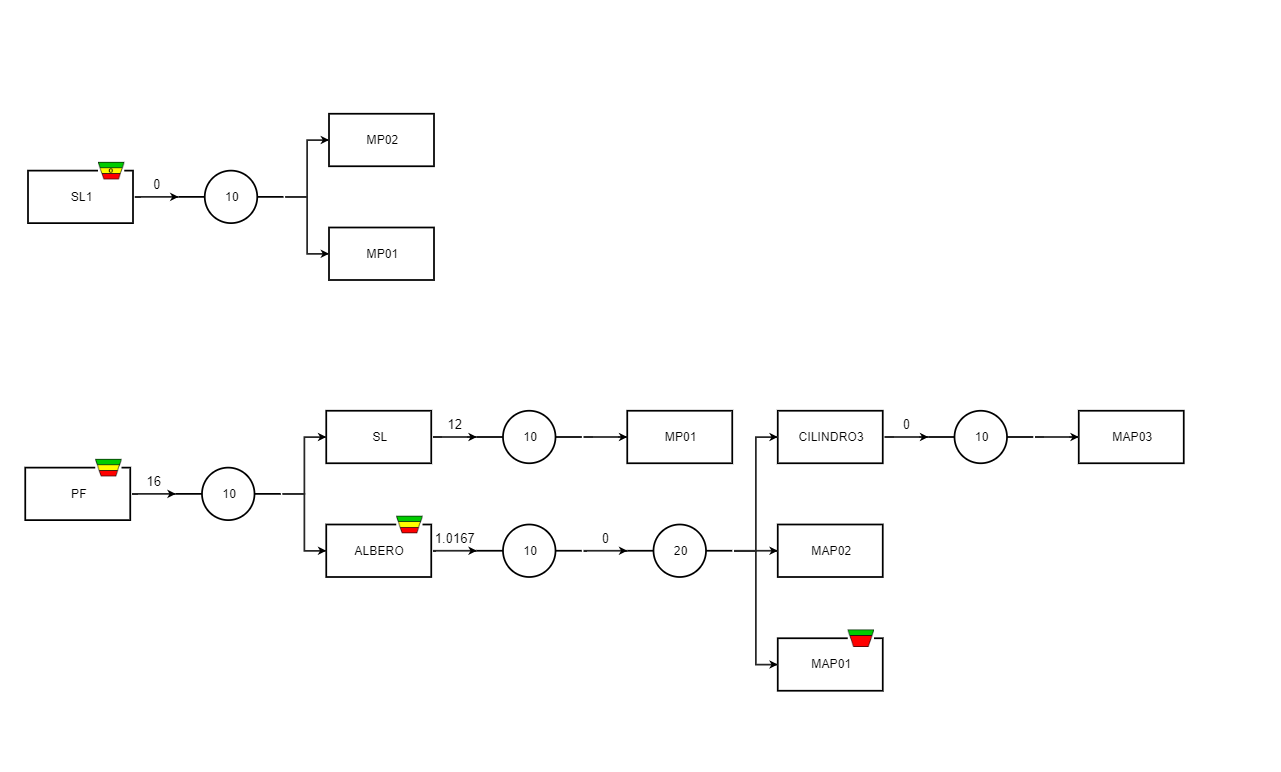

I attach images of how the diagram looks now and how we need it to look.



Thanks,

Iuliana

[Nikolay]

Hello Iuliana,

The most straightforward approach would be to split this Diagram with multiple roots to separate Diagrams and alight them next to each other.

Dojo demo: https://dojo.telerik.com/OXUVIjoy

Alternatively, I can suggest using the shapes position method to rearrange the outlying shapes after the layout is completed.

https://docs.telerik.com/kendo-ui/api/javascript/dataviz/diagram/shape/methods/position

Keep in mind this will require manual positioning of all Diagram shapes and will generate a huge code snippet.

Regards,
Nikolay
Progress Telerik

[Iuliana Maria]

Hi Nikolay,

Thank you!
