Adding a column dynamically with mvvm pattern

4 posts, 0 answers
  1. Darryl
    Darryl avatar
    6 posts
    Member since:
    Apr 2013

    Posted 16 Apr 2013 Link to this post

    Hi guys

    Ok two basic classes:

    using System;
    using System.Collections.Generic;
    using System.Collections.ObjectModel;
    using System.Linq;
    using System.Text;

    namespace ProjectMaster.Core.Business
    {
        public class Project
        {
            #region Fields

            private string _name;
            private double _budget;
            private DateTime _startDate;
            private DateTime _finishDate;
            private int _duration;
            private ObservableCollection<Phase> _phases;

            #endregion

            #region Properties

            public string Name
            {
                get { return _name; }
                set { _name = value; }
            }

            public double Budget
            {
                get { return _budget; }
                set { _budget = value; }
            }

            public DateTime StartDate
            {
                get { return _startDate; }
                set { _startDate = value; }
            }

            public DateTime FinishDate
            {
                get { return _finishDate; }
                set { _finishDate = value; }
            }

            public int Duration
            {
                get
                {
                    _duration = (_finishDate - _startDate).Days;
                    return _duration;
                }
                set { _duration = value; }
            }

            public ObservableCollection<Phase> Phases
            {
                get { return _phases; }
                set { _phases = value; }
            }

            #endregion

            public Project(string name, int budget, DateTime startDate, DateTime finishDate)
            {
                this._name = name;
                this._budget = budget;
                this._startDate = startDate;
                this._finishDate = finishDate;
                _phases = new ObservableCollection<Phase>();
            }
        }
    }

    using System;
    using System.Collections.Generic;
    using System.Collections.ObjectModel;
    using System.Linq;
    using System.Text;

    namespace ProjectMaster.Core.Business
    {
        public class Phase
        {
            #region Fields

            private string _name { get; set; }
            private double _budget { get; set; }
            private DateTime _startDate { get; set; }
            private DateTime _finishDate { get; set; }
            private int _duration { get; set; }
            private ObservableCollection<Task> _tasks { get; set; }

            #endregion

            #region Properties

            public string Name
            {
                get { return _name; }
                set { _name = value; }
            }

            public double Budget
            {
                get { return _budget; }
                set { _budget = value; }
            }

            public DateTime StartDate
            {
                get { return _startDate; }
                set { _startDate = value; }
            }

            public DateTime FinishDate
            {
                get { return _finishDate; }
                set { _finishDate = value; }
            }

            public int Duration
            {
                get
                {
                    _duration = (_finishDate - _startDate).Days;
                    return _duration;
                }
                set { _duration = value; }
            }

            public ObservableCollection<Task> Tasks
            {
                get { return _tasks; }
                set { _tasks = value; }
            }

            public Phase(string name, int budget, DateTime startDate, DateTime finishDate)
            {
                this._name = name;
                this._budget = budget;
                this._startDate = startDate;
                this._finishDate = finishDate;

                _tasks = new ObservableCollection<Task>();
            }

            #endregion
        }
    }

    And the xaml that binds these classes to a RadTreeListView to get the expected output:

    <telerik:RadTreeListView Grid.Row="2" VerticalAlignment="Top" HorizontalAlignment="Left" Margin="6,0,0,0" AutoGenerateColumns="True" ItemsSource="{Binding Project, Mode=TwoWay}" SelectedItem="{Binding Item}">

         <telerik:RadTreeListView.ChildTableDefinitions>
             <telerik:TreeListViewTableDefinition ItemsSource="{Binding Phases}"/>
             <telerik:TreeListViewTableDefinition ItemsSource="{Binding Tasks}"/>
         </telerik:RadTreeListView.ChildTableDefinitions>

         <telerik:RadTreeListView.Columns>
             <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}" Header="Name" />

             <telerik:GridViewDataColumn Header="Start Date" DataType="{x:Type System:DateTime}">
                 <telerik:GridViewDataColumn.CellTemplate>
                     <DataTemplate>
                         <telerik:RadDatePicker SelectedValue="{Binding StartDate, Mode=TwoWay}" />
                     </DataTemplate>
                 </telerik:GridViewDataColumn.CellTemplate>
             </telerik:GridViewDataColumn>

             <telerik:GridViewDataColumn Header="Finish Date" DataType="{x:Type System:DateTime}">
                 <telerik:GridViewDataColumn.CellTemplate>
                     <DataTemplate>
                         <telerik:RadDatePicker SelectedValue="{Binding FinishDate, Mode=TwoWay}" />
                     </DataTemplate>
                 </telerik:GridViewDataColumn.CellTemplate>
             </telerik:GridViewDataColumn>

             <telerik:GridViewDataColumn Header="Duration" DataMemberBinding="{Binding Duration}" DataType="{x:Type System:Int32}" />

             <telerik:GridViewDataColumn Header="Budget (Hrs)" DataMemberBinding="{Binding Budget}" DataType="{x:Type System:Double}" />

         </telerik:RadTreeListView.Columns>

     </telerik:RadTreeListView>

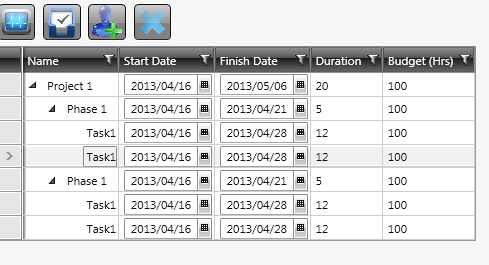

    I've attached an image to show what the output is like.

    Not what I want to be able to do is if the user clicks on a button, a new column is added to the TreeListVIew for eg a Resource column. Im really not sure how to go about this so any help/tips to get me in the right direction will be greatly appreciated!!

    Thanking you in Advance!
  2. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 17 Apr 2013 Link to this post

    Hello,

    You can check how to add an additional column in code behind in our online documentation

    Kind regards,
    Didie
    the Telerik team

    Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

  3. UI for WPF is Visual Studio 2017 Ready
  4. Darryl
    Darryl avatar
    6 posts
    Member since:
    Apr 2013

    Posted 14 May 2013 Link to this post

    Hi Didie

    Thank you for your response. However the documentation does not provide the information I am looking for.

    Basically, I need to add a column dynamically at run-time when the user clicks a button. That's easy enough when using code-behind. However, I am using Prism Unity and the Mvvm pattern which I did not mention in my initial question. I do apologise for that.

    Do you have any ideas/pointers in the direction I could take to achieve this?

    Regards
    Darryl Chetty

  5. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 14 May 2013 Link to this post

    Hello Darryl,

    What I can suggest you in order to dynamically add columns with the MVVM pattern, would be to use a Behavior for setting the Columns. This is demonstrated on the "ComboBox Column" example with the WPF Demos.

    I hope this helps.

    All the best,
    Didie
    the Telerik team
