90 rotated text in Internet Explorer

5 posts, 1 answers
  1. Dr.YSG
    Dr.YSG avatar
    210 posts
    Member since:
    Dec 2009

    Posted 07 May 2012 Link to this post

    I have a chart with 90-degree rotated category axis.
    categoryAxis:{
        categories:names,
        labels:{rotation:90}
    },

    This works fine in FireFox 12, but in IE9 (64 bit) running on Windows7 I am getting hierogliphics. I have done nothing special with the font settings in the browser, so it seems the default for charts is an Arial or Verndana type font.

    Horizontal labeling is working fine. (the data is remotely driven, so creating a JsFiddle would take a little work).

  2. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2592 posts

    Posted 08 May 2012 Link to this post

    Hello Yechezkal,

    Indeed, this is unknown issue. Could you please provide some screenshots, which illustrate the described problem? Thank you in advance.

    Also, here is my test jsFiddle example

    Kind regards,
    Iliana Nikolova
    the Telerik team
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  3. Kendo UI is VS 2017 Ready
  4. Dr.YSG
    Dr.YSG avatar
    210 posts
    Member since:
    Dec 2009

    Posted 14 May 2012 Link to this post

    I am not seeing this with your JsFiddle, Since it is only showing up in my project, I suspect if is font related. I will see if I can create a JsFiddle that duplicates this.

    Screen shot is attached.

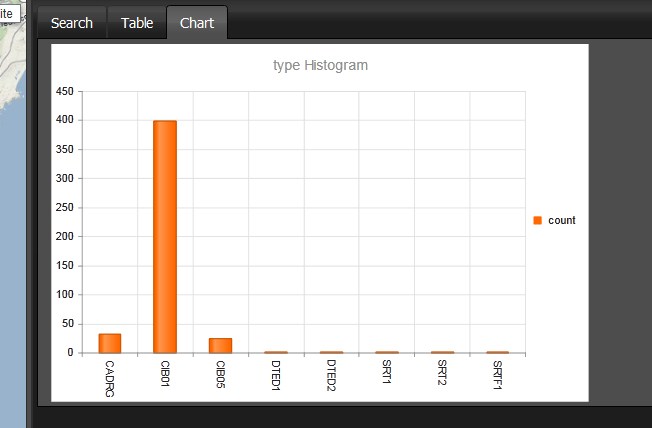

    The first one is FireFox the second is IE..
  5. Answer
    Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2592 posts

    Posted 16 May 2012 Link to this post

    Hi Yechezkal,

    Thank you for the screenshots. Could you please check the mode of the browser in which you render the chart - it is possible to render it in the Compatibility mode? If you need the chart to be correctly rendered in this mode you could use the following code snippet:

    <meta http-equiv="X-UA-Compatible" content="IE=edge" >


      Regards,
    Iliana Nikolova
    the Telerik team
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  6. Dr.YSG
    Dr.YSG avatar
    210 posts
    Member since:
    Dec 2009

    Posted 16 May 2012 Link to this post

    Wow, you are really sharp!

    Until you mentioned it, I had no idea that our I.T. department had modified everyone's IE browser to use compatibility mode for all intranet sites. (there is no reason for this). I turned it off and things are working perfectly.
