Duration Column

10 posts, 0 answers
  1. Mohammad
    Mohammad  avatar
    11 posts
    Member since:
    Dec 2014

    Posted 30 Dec 2014 Link to this post

    How to display duration column in radgantt treeview.
  2. Mohammad
    Mohammad  avatar
    11 posts
    Member since:
    Dec 2014

    Posted 30 Dec 2014 in reply to Mohammad Link to this post

    Duration text is not appearing in radgantt column.
    I have used following code to create Duration column:

    <Columns>
    <telerik:GanttBoundColumn DataField="Title"></telerik:GanttBoundColumn>
    <telerik:GanttBoundColumn DataField="Duration" ></telerik:GanttBoundColumn>
    </Columns>



  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Nencho
    Admin
    Nencho avatar
    1457 posts

    Posted 02 Jan 2015 Link to this post

    Hello Mohammad,

    Please make sure that the suggestion approach in the following article for the custom fields creation are correctly applied at your end:

    http://www.telerik.com/help/aspnet-ajax/gantt-custom-tasks-field.html

    Note that you need to define the GanttCustomField in the CustomTaskFields collection as demonstrated in the article above.

    Regards,
    Nencho
    Telerik
  5. Felix
    Felix avatar
    42 posts
    Member since:
    Sep 2014

    Posted 17 Feb 2015 Link to this post

    Hello,

    I tried to add a custom column to show the duration of a task. I already have created a custom column for a description which works. But if I try the same for the custom column duration I get the javascript error:
    TypeError: this.duration is not a function
    },isMilestone:function(){return this.duration()===0;

    So I wonder if this is a bug or my code is buggy.

    My code looks like this:

    public class CustomGanttTaskFactory : ITaskFactory
        {
            Task ITaskFactory.CreateTask()
            {
                return new CustomTask();
            }
        }

        public class CustomTask : Task
        {
            public string Description
            {
                get { return (string)(ViewState["Description"] ?? ""); }
                set { ViewState["Description"] = value; }
            }

            public double Duration
            {
                get { return (double)(ViewState["Duration"]); }
                set { ViewState["Duration"] = value; }
            }

            protected override IDictionary<string, object> GetSerializationData()
            {
                var dict = base.GetSerializationData();
                dict["Description"] = Description;
                dict["Duration"] = Duration;
                return dict;
            }

            public override void LoadFromDictionary(IDictionary values)
            {
                base.LoadFromDictionary(values);
                Description = (string)values["Description"];
                Duration = (double) values["Duration"];
            }
        }

    public class GanttCustomProvider : GanttProviderBase
        {
            public override ITaskFactory TaskFactory
            {
                get { return new CustomGanttTaskFactory(); }
            }

            #region Tasks
            public override List<ITask> GetTasks()
            {
                var tasks = new List<ITask>();
                foreach (var task in GetTasks())
                {
                    tasks.Add(new CustomTask
                    {
                        ID = task.Id,
                        ParentID = task.ParentID,
                        OrderID = task.OrderID,
                        Start = task.StartDate,
                        End = task.EndDate,
                        Summary = task.IsSummary,
                        Title = task.Name,
                        Description = task.Description,
                        Duration = (task.EndDate - task.StartDate).TotalDays
                    });

                }
                return tasks;
            }

    So I hope you can help me with my duration problem. Thanks.

    Regards,
    Felix

  6. Nencho
    Admin
    Nencho avatar
    1457 posts

    Posted 20 Feb 2015 Link to this post

    Hello Felix,

    In the attachment you can find a runnable sample, demonstrating the implementation of the RadGantt with a custom Duration column.

    Note : telerik dll files are removed from the attachment.

    Regards,
    Nencho
    Telerik
  7. Felix
    Felix avatar
    42 posts
    Member since:
    Sep 2014

    Posted 20 Feb 2015 in reply to Nencho Link to this post

    Hi Nencho,

    finally I got it to work. Didn't know that I'm not allowed to set the ClientPropertyName of the CustomField Duration to
    "duration" and that I have to give the Datafield of the GanttBoundColumn for the duration the same value as the value of the ClientPropertyName. Thats kind of confusing but now it works. Thank you.

    Regards,
    Felix
  8. Felix
    Felix avatar
    42 posts
    Member since:
    Sep 2014

    Posted 04 Mar 2015 Link to this post

    Hi Nencho,

    it seems that I was to premature regarding your
    runnable example. Because as I tried to implement your solution into my
    software I recognized that when I try to insert (same for delete or
    update task) a task the page load method is called instead of the insert

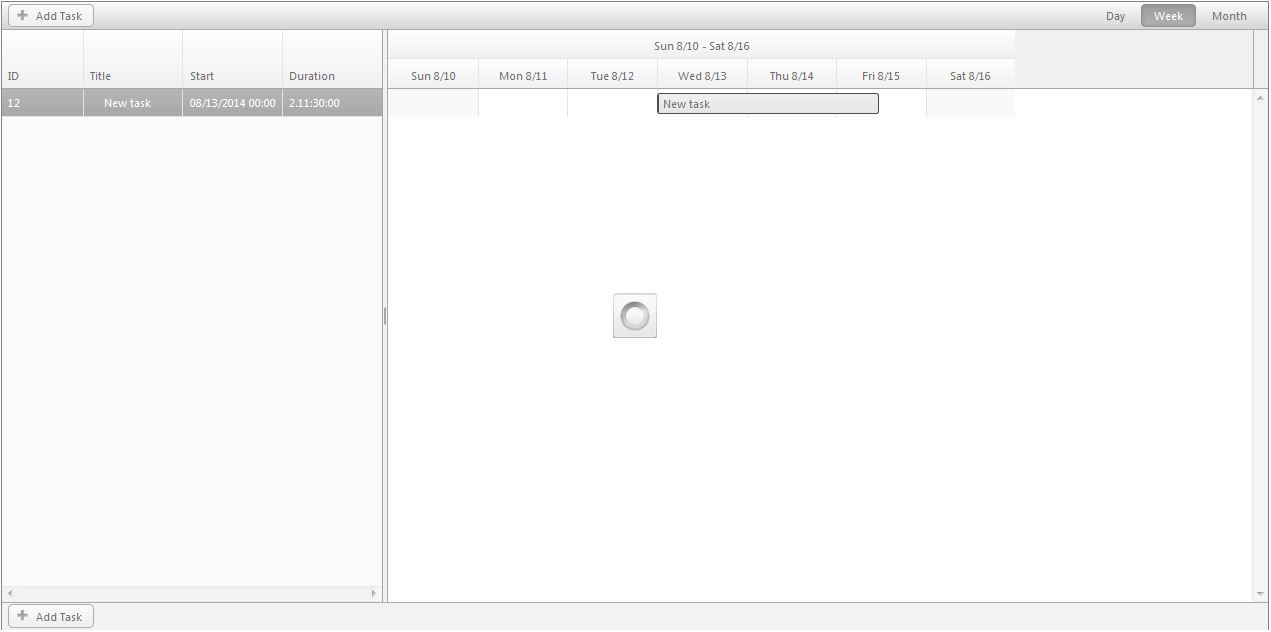

    method implemented inside the gantt custom provider. After that nothing
    more happens except that the browser only shows the loading icon of the
    script manager (see attached screenshot). At the moment I'm using the
    new Q1 2015 Telerik version. I attach the sp as well and hope you
    get the same behavour as I do ;-).



    01.<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="Default" %>
    02.
    03.<!DOCTYPE html>
    04.
    06.<head id="Head1" runat="server">
    07.    <title></title>
    08.</head>
    09.<body>
    10.    <form id="form1" runat="server">
    11.        <telerik:RadScriptManager ID="RadScriptManager1" runat="server"></telerik:RadScriptManager>
    12.    <div>
    13.
    14.        <telerik:RadGantt runat="server" ID="RadGantt1" SelectedView="WeekView"
    15.            AutoGenerateColumns="false">
    16.            <Columns>
    17.                <telerik:GanttBoundColumn DataField="ID" Width="90px"></telerik:GanttBoundColumn>
    18.                <telerik:GanttBoundColumn DataField="Title"></telerik:GanttBoundColumn>
    19.                <telerik:GanttBoundColumn DataField="Start" HeaderText="Start"></telerik:GanttBoundColumn>
    20.                <telerik:GanttBoundColumn DataField="TaskDuration" HeaderText="Duration" UniqueName="TaskDuration"></telerik:GanttBoundColumn>
    21.            </Columns>
    22.            <CustomTaskFields>
    23.                <telerik:GanttCustomField PropertyName="TaskDuration" ClientPropertyName="taskDuration" Type="String" />
    24.            </CustomTaskFields>
    25.        </telerik:RadGantt>
    26.
    27.    </div>
    28.    </form>
    29.</body>
    30.</html>

    1.public partial class Default : System.Web.UI.Page
    2.{
    3.    protected void Page_Load(object sender, EventArgs e)
    4.    {
    5.        RadGantt1.Provider = new GanttCustomProvider();
    6.    }
    7.}

    001.public class GanttCustomProvider : GanttProviderBase
    002.{
    003.    public override ITaskFactory TaskFactory
    004.    {
    005.        get
    006.        {
    007.            return new CustomGanttTaskFactory();
    008.        }
    009.    }
    010.
    011.    #region Tasks
    012.
    013.    public override List<ITask> GetTasks()
    014.    {
    015.        var tasks = new List<ITask>();
    016.        using (var db = new GanttEntities())
    017.        {
    018.            tasks.AddRange(db.GanttTasks.ToList().Select(task => new CustomTask
    019.            {
    020.                ID = task.ID,
    021.                ParentID = task.ParentID,
    022.                OrderID = task.OrderID,
    023.                Start = task.Start,
    024.                End = task.End,
    025.                PercentComplete = task.PercentComplete,
    026.                Summary = task.Summary,
    027.                Title = task.Title,
    028.                Expanded = task.Expanded.HasValue && task.Expanded.Value,
    029.                TaskDuration = task.End - task.Start
    030.            }));
    031.        }
    032.        return tasks;
    033.    }
    034.
    035.    public override ITask UpdateTask(ITask task)
    036.    {
    037.        using (var db = new GanttEntities())
    038.        {
    039.            ((CustomTask)task).TaskDuration = task.End - task.Start;
    040.            GanttTask entityTask = ToEntityTask(task);
    041.            db.GanttTasks.Attach(entityTask);
    042.            db.Entry(entityTask).State = EntityState.Modified;
    043.            db.SaveChanges();
    044.        }
    045.
    046.        return task;
    047.    }
    048.
    049.    public override ITask DeleteTask(ITask task)
    050.    {
    051.        using (var db = new GanttEntities())
    052.        {
    053.            GanttTask entityTask = ToEntityTask(task);
    054.            db.GanttTasks.Attach(entityTask);
    055.            db.GanttTasks.Remove(entityTask);
    056.            db.SaveChanges();
    057.        }
    058.
    059.        return task;
    060.    }
    061.
    062.    public override ITask InsertTask(ITask task)
    063.    {
    064.        using (var db = new GanttEntities())
    065.        {
    066.            task.ID = 0; // Value will be updated from DB
    067.            GanttTask entityTask = ToEntityTask(task);
    068.            db.GanttTasks.Add(entityTask);
    069.            db.SaveChanges();
    070.
    071.            task.ID = entityTask.ID;
    072.        }
    073.
    074.        return task;
    075.    }
    076.
    077.    #endregion
    078.
    079.    #region Dependencies
    080.
    081.    public override List<IDependency> GetDependencies()
    082.    {
    083.        var dependencies = new List<IDependency>();
    084.        using (var db = new GanttEntities())
    085.        {
    086.            dependencies.AddRange(db.GanttDependencies.ToList().Select(dependency => new Dependency()
    087.            {
    088.                ID = dependency.ID,
    089.                PredecessorID = dependency.PredecessorID,
    090.                SuccessorID = dependency.SuccessorID,
    091.                Type = (DependencyType)dependency.Type
    092.            }));
    093.        }
    094.        return dependencies;
    095.    }
    096.
    097.    public override IDependency DeleteDependency(IDependency dependency)
    098.    {
    099.        using (var db = new GanttEntities())
    100.        {
    101.            GanttDependency entityDependency = ToEntityDependency(dependency);
    102.            db.GanttDependencies.Attach(entityDependency);
    103.            db.GanttDependencies.Remove(entityDependency);
    104.            db.SaveChanges();
    105.        }
    106.
    107.        return dependency;
    108.    }
    109.
    110.    public override IDependency InsertDependency(IDependency dependency)
    111.    {
    112.        using (var db = new GanttEntities())
    113.        {
    114.            dependency.ID = 0; // Value will be updated from DB
    115.            GanttDependency entityDependency = ToEntityDependency(dependency);
    116.            db.GanttDependencies.Add(entityDependency);
    117.            db.SaveChanges();
    118.
    119.            dependency.ID = entityDependency.ID;
    120.        }
    121.
    122.        return dependency;
    123.    }
    124.
    125.    #endregion
    126.
    127.    #region Helpers
    128.
    129.    private GanttTask ToEntityTask(ITask srcTask)
    130.    {
    131.        return new GanttTask
    132.            {
    133.                ID = (int)srcTask.ID,
    134.                ParentID = (int?)srcTask.ParentID,
    135.                OrderID = (int)srcTask.OrderID,
    136.                Start = srcTask.Start,
    137.                End = srcTask.End,
    138.                PercentComplete = srcTask.PercentComplete,
    139.                Summary = srcTask.Summary,
    140.                Title = srcTask.Title,
    141.                Expanded = srcTask.Expanded
    142.            };
    143.    }
    144.
    145.    private GanttDependency ToEntityDependency(IDependency srcDependency)
    146.    {
    147.        return new GanttDependency
    148.        {
    149.            ID = (int)srcDependency.ID,
    150.            PredecessorID = (int)srcDependency.PredecessorID,
    151.            SuccessorID = (int)srcDependency.SuccessorID,
    152.            Type = (int)srcDependency.Type
    153.        };
    154.    }
    155.
    156.    #endregion
    157.}
    158.
    159.public class CustomGanttTaskFactory : ITaskFactory
    160.{
    161.    Task ITaskFactory.CreateTask()
    162.    {
    163.        return new CustomTask();
    164.    }
    165.}
    166.
    167.public class CustomTask : Task
    168.{
    169.    public CustomTask()
    170.        : base()
    171.    {
    172.    }
    173.
    174.    public TimeSpan TaskDuration
    175.    {
    176.        get { return (TimeSpan)(ViewState["TaskDuration"] ?? TimeSpan.MinValue); }
    177.        set { ViewState["TaskDuration"] = value; }
    178.    }
    179.
    180.    protected override IDictionary<string, object> GetSerializationData()
    181.    {
    182.        var dict = base.GetSerializationData();
    183.
    184.        dict["TaskDuration"] = TaskDuration.ToString();
    185.
    186.        return dict;
    187.    }
    188.
    189.    public override void LoadFromDictionary(System.Collections.IDictionary values)
    190.    {
    191.        base.LoadFromDictionary(values);
    192.
    193.        TaskDuration = TimeSpan.Parse(values["TaskDuration"].ToString());
    194.    }
    195.}

    Regards,
    Felix
  9. Felix
    Felix avatar
    42 posts
    Member since:
    Sep 2014

    Posted 04 Mar 2015 Link to this post

    Hi,

    additionally to my post before I figuered out that a customganttprovider doesn't work properly if the managed pipeline mode is set to "Integrated". As soon as i set the mode to "Classic" the behaviour is as expected. But if I add an gantt custom field such as description or duration I get an error inside the output view. See below:

    A first chance exception of type 'System.FormatException' occurred in mscorlib.dll
    A first chance exception of type 'System.FormatException' occurred in mscorlib.dll
    A first chance exception of type 'System.FormatException' occurred in mscorlib.dll
    A first chance exception of type 'System.NullReferenceException' occurred in App_Code.mms9agcy.dll
    A first chance exception of type 'System.NullReferenceException' occurred in System.Web.Extensions.dll
    A first chance exception of type 'System.NullReferenceException' occurred in Telerik.Web.UI.dll
    'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/13/ROOT-1-130699372019781403): Loaded 'C:\Windows\assembly\GAC_MSIL\Microsoft.SqlServer.Types\11.0.0.0__89845dcd8080cc91\Microsoft.SqlServer.Types.dll'. Cannot find or open the PDB file.


    I hope this helps to find a solution for my problem. Thanks.

    Regards,
    Felix
  10. Nencho
    Admin
    Nencho avatar
    1457 posts

    Posted 09 Mar 2015 Link to this post

    Hello Mohammad,

    Regarding the managed pipeline mode - indeed there is such issue, which the developer team already investigates. However, I am afraid that I was unable to replicate the issue that you mentioned. I have used the custom provided implementation that you have demonstrated, but the behavior seems to  be correct at my end.

    This is why, I would suggest you to submit a support ticket and attach a runnable sample, demonstrating the problematic behavior at your end. Thus we will be able to inspect it locally and troubleshoot the problem for you.

    Regards,
    Nencho
    Telerik
  11. Felix
    Felix avatar
    42 posts
    Member since:
    Sep 2014

    Posted 09 Mar 2015 in reply to Nencho Link to this post

    Hello Nencho,

    as I mentioned in my second post the example with the duration works as expected if I set the managed pipeline mode to "Classic".
    additionally to my post before I figuered out that a customganttprovider
    doesn't work properly if the managed pipeline mode is set to
    "Integrated". As soon as i set the mode to "Classic" the behaviour is as
    expected.

    I have had a problem if I wanted to use e.g. a custom field for a description which I forgot to insert into my example. But in the meantime I figured out what went wrong. Instead of casting my value to a string I wrote "values["Description"].toString()" inside the LoadFromDictionary-method which resulted to my mentioned error. But thanks for your answer.

    Regards,
    Felix
Back to Top
UI for ASP.NET Ajax is Ready for VS 2017
