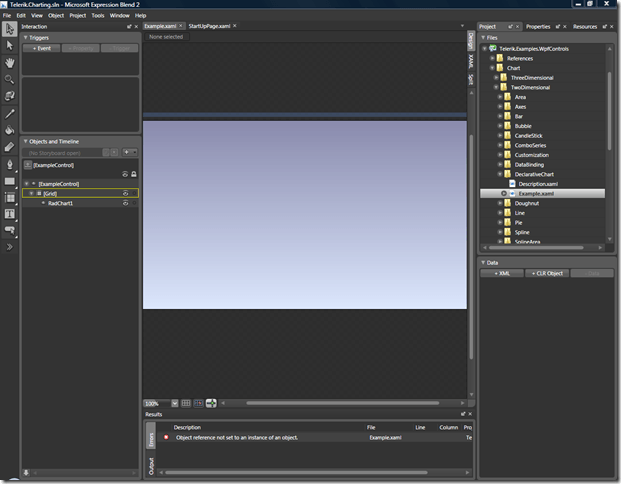

Although Expression Blend and Visual Studio can work on the same solution / project files, they remain two separate IDEs and it is not uncommon for certain functionality to work correctly in the Visual Studio design-time environment and throw an error in the Expression Blend one. The Blend error output does not always help much with identifying the reason for the erroneous behavior:

blend-exception

 This clearly does not give us enough information to track the problem down. Fortunately there is an easier way to detect the problem instead of wandering around the code in a manual “debugging” session – the Visual Studio debugger.

 Here is a step-by-step guide that explains how to identify Expression Blend exceptions through the Visual Studio 2008 IDE:

  • Open the same solution in both Expression Blend and Visual Studio 2008 (for the time being keep the offending xaml file closed).
  • Start the Visual Studio 2008 debugger.

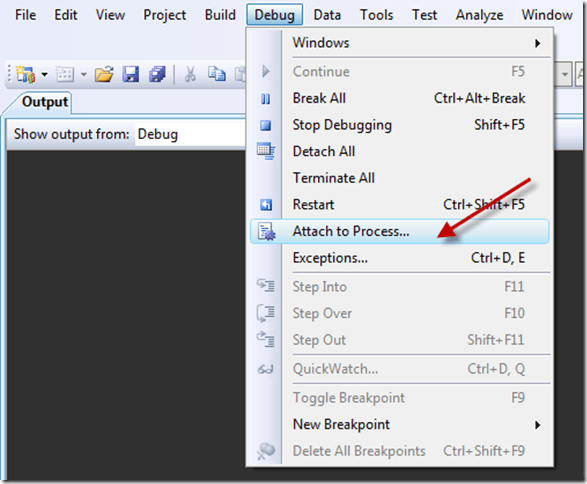

  • In Visual Studio go to Debug menu –> Attach to Process…

attach-to-process

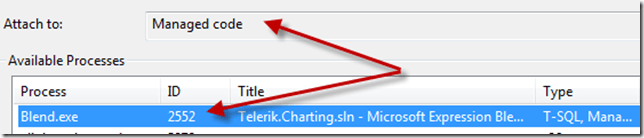

  • Find the “Blend.exe” process in the list of available processes and make sure you will be debugging the “Managed Code” option before clicking the “Attach” button:
blend-process
  • In Expression Blend open the problematic xaml file.

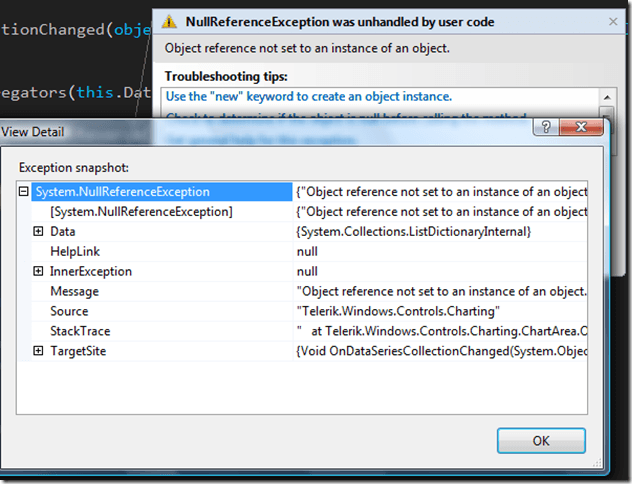

  • If everything is set up correctly, now you should be receiving the full stack trace and exception details in the Visual Studio 2008 IDE like this:

stack-trace



Hope this helps.
