Formatting Nodes
RadDataFilter is a virtualized control reusing its visual elements. It exposes a NodeFormatting event with which its nodes can be easily accessed and customized. The arguments of this event also return the associated data node providing information about the applied descriptor.
The UI of RadDataFilter is virtualized and its visual elements are reused. An 'else' clause is needed for each 'if' statement in the implementation of the NodeFormatting event. Skipping this operation will lead to an incorrect styling.
Formatting Group Nodes
Group nodes can be formatted to handle custom scenarios. The root node in the example below has its expander item hidden.

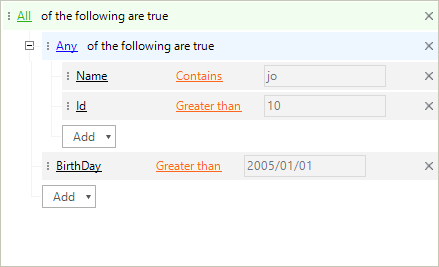

Figure 1: Hidden Expander Item
Group Nodes
private void radDataFilter1_NodeFormatting(object sender, TreeNodeFormattingEventArgs e)
{
DataFilterGroupElement dataGroupFilterElement = e.NodeElement as DataFilterGroupElement;
if (dataGroupFilterElement != null && dataGroupFilterElement.IsRootNode)
{
dataGroupFilterElement.ExpanderElement.Visibility = ElementVisibility.Collapsed;
}
else
{
e.NodeElement.ResetValue(LightVisualElement.VisibilityProperty, ValueResetFlags.Local);
}
}
Formatting Expression Nodes
The appearance of the expression nodes can also be modified to change their visual appearance.

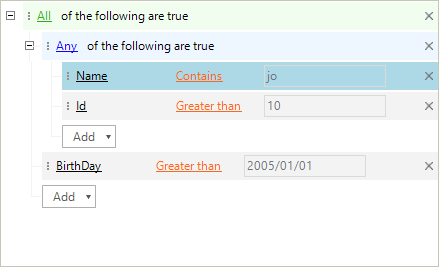

Figure 2: Changed Back Color
Expression Nodes
private void radDataFilter1_NodeFormatting1(object sender, TreeNodeFormattingEventArgs e)
{
DataFilterCriteriaElement dataExpressionFilterElement = e.NodeElement as DataFilterCriteriaElement;
if (dataExpressionFilterElement != null && dataExpressionFilterElement.CriteriaNode.Descriptor.PropertyName == "Name")
{
dataExpressionFilterElement.ContentElement.BackColor = Color.LightBlue;
}
else
{
e.NodeElement.ResetValue(LightVisualElement.BackColorProperty, ValueResetFlags.Local);
}
}
Formatting Button Nodes
The button responsible for adding a new expression can also be customized in a formatting event.

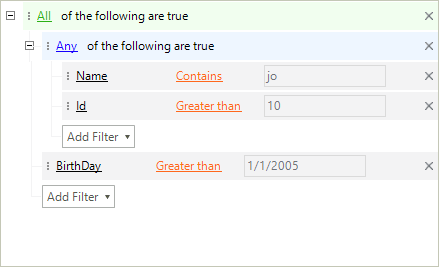

Figure 3: Add Button Text
Button Nodes
private void radDataFilter1_NodeFormatting2(object sender, TreeNodeFormattingEventArgs e)
{
DataFilterAddNodeElement dataAddNodeElement = e.NodeElement as DataFilterAddNodeElement;
if (dataAddNodeElement != null && dataAddNodeElement.DropDownButton.Text == "Add")
{
dataAddNodeElement.DropDownButton.Text = "Add Filter";
}
else
{
e.NodeElement.ResetValue(LightVisualElement.VisibilityProperty, ValueResetFlags.Local);
}
}
Formatting Child Expression Elements
Each of the nodes holding the expressions has three editor elements which can be accessed in the NodeFormatting and have their styles modified.

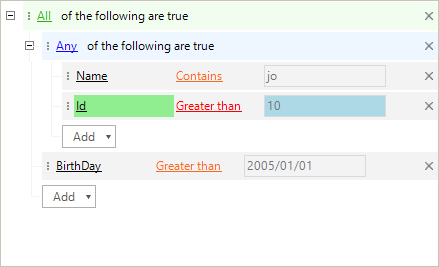

Figure 3: Add Button Text
Child Expression Elements
private void radDataFilter1_NodeFormatting3(object sender, TreeNodeFormattingEventArgs e)
{
DataFilterCriteriaElement dataExpressionFilterElement = e.NodeElement as DataFilterCriteriaElement;
if (dataExpressionFilterElement == null)
{
return;
}
if (dataExpressionFilterElement.CriteriaNode.Descriptor.PropertyName == "Id")
{
dataExpressionFilterElement.FieldElement.DrawFill = true;
dataExpressionFilterElement.FieldElement.GradientStyle = GradientStyles.Solid;
dataExpressionFilterElement.FieldElement.BackColor = Color.LightGreen;
dataExpressionFilterElement.OperatorElement.ForeColor = Color.Red;
dataExpressionFilterElement.ValueElement.DrawFill = true;
dataExpressionFilterElement.ValueElement.GradientStyle = GradientStyles.Solid;
dataExpressionFilterElement.ValueElement.BackColor = Color.LightBlue;
}
else
{
dataExpressionFilterElement.FieldElement.ResetValue(LightVisualElement.DrawFillProperty, ValueResetFlags.Local);
dataExpressionFilterElement.FieldElement.ResetValue(LightVisualElement.GradientStyleProperty, ValueResetFlags.Local);
dataExpressionFilterElement.FieldElement.ResetValue(LightVisualElement.BackColorProperty, ValueResetFlags.Local);
dataExpressionFilterElement.OperatorElement.ResetValue(LightVisualElement.ForeColorProperty, ValueResetFlags.Local);
dataExpressionFilterElement.ValueElement.ResetValue(LightVisualElement.DrawFillProperty, ValueResetFlags.Local);
dataExpressionFilterElement.ValueElement.ResetValue(LightVisualElement.GradientStyleProperty, ValueResetFlags.Local);
dataExpressionFilterElement.ValueElement.ResetValue(LightVisualElement.BackColorProperty, ValueResetFlags.Local);
}
}
