Customizing Appearance
Updated over 1 year ago
Accessing and customizing elements can be performed either at design time, or at run time. Before proceeding with this topic, it is recommended to get familiar with the visual structure of the RadDataEntry.
Design Time
You can access and modify the style for different elements in RadDataEntry by using the Element Hierarchy Editor.

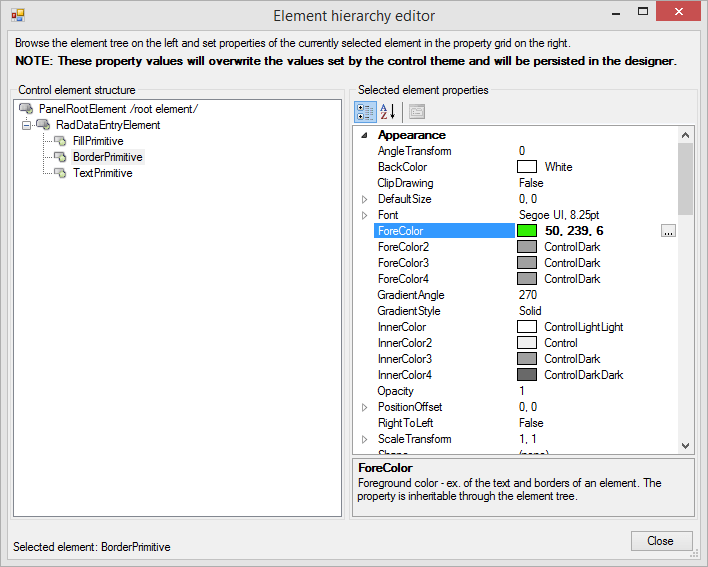

Figure 1: Element Hierarchy Editor
Programmatically
The following snippet show how you can customize the RadDataEntry styles at runtime.
Change Border Color
C#
radDataEntry1.DataEntryElement.Border.ForeColor = ColorTranslator.FromHtml("#e83737");
Figure 2: The changed border.
Changing The Styles Of The Underlying Controls.
The following snippet shows how you access the underlying controls and change the their styles:
Set Labels ForeColor
C#
foreach (RadPanel item in radDataEntry1.PanelContainer.Controls)
{
foreach (RadControl control in item.Controls)
{
if (control is RadLabel)
{
control.ForeColor = ColorTranslator.FromHtml("#e83737");
}
}
}
Figure 3: Set Labels ForeColor.
Changing Validation Panel BackColor
The following code snippets represent how to change the BackColor property of Validation Panel:
Change Back Color
C#
this.radDataEntry1.ValidationPanel.PanelElement.Fill.BackColor = Color.PapayaWhip;
Figure 4: Set Validaton Panel BackColor.
