Telerik RadWizard Example 1 not working

[Ricardo]

Hello,

I'm developing a new app using telerik radwizard, using the example found at

https://docs.telerik.com/devtools/wpf/controls/radwizard/features/pages

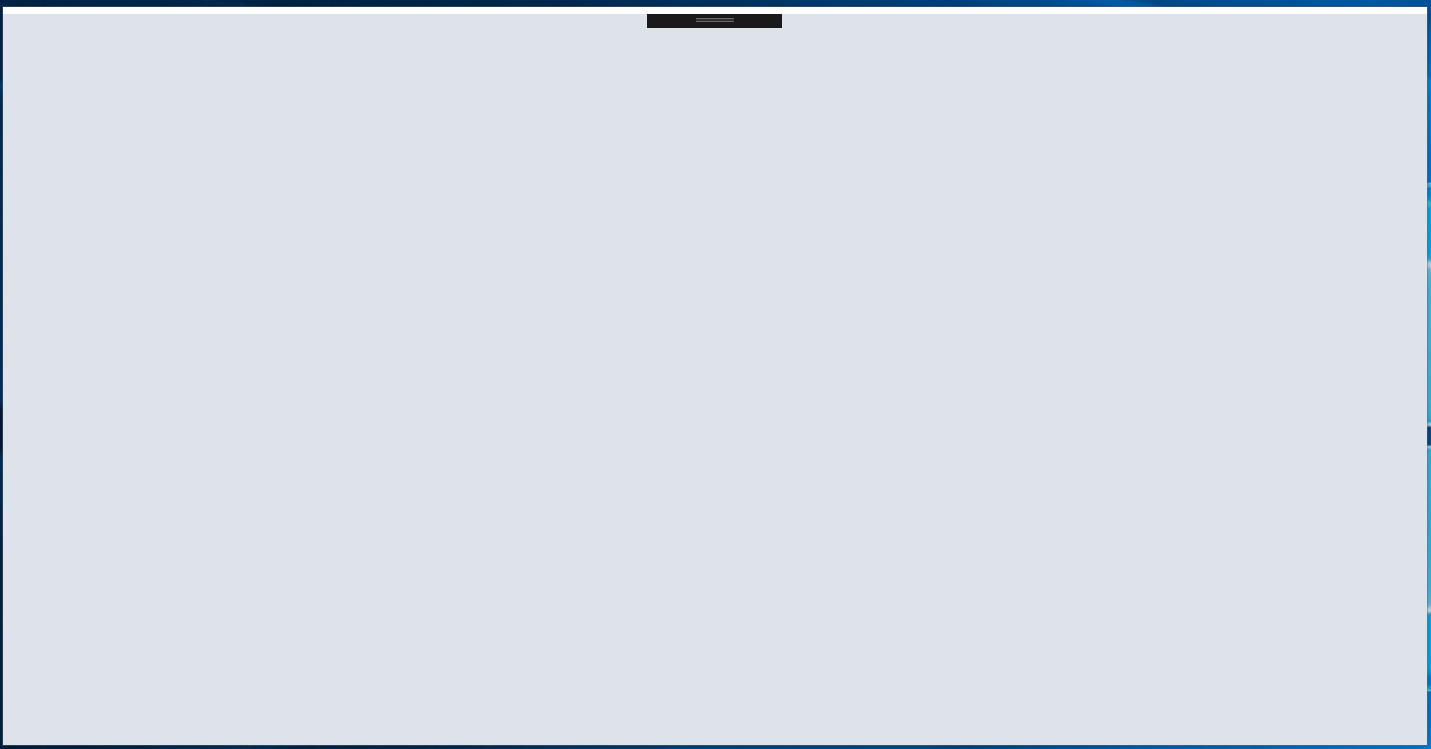

However, when i try to run my application, i get an empty window (see image in attached filed)


I don't know what I'm doing wrong, can someone help me?

Source code bellow:



<Window x:Class="MainWindow.MainWindow"
                xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                xmlns:wizard="clr-namespace:Telerik.Windows.Controls.Wizard assembly=Telerik.Windows.Controls.Navigation"
                Title="MainWindow"
                WindowState="Normal"
                WindowStartupLocation="CenterScreen"
                WindowStyle="None"
                Background="#dee3e9">
    <telerik:RadWizard x:Name="radWizard" >
        <telerik:RadWizard.WizardPages>
            <telerik:WizardPage Content="My Wizard Page Content" SideHeaderWidth="100" HeaderHeight="100">
                <telerik:WizardPage.HeaderTemplate>
                    <DataTemplate>
                       <Image Source="Images/BrandMark_Telerik_Black.png" Width="200" Height="100" />
                    </DataTemplate>
                </telerik:WizardPage.HeaderTemplate>
                <telerik:WizardPage.SideHeaderTemplate>
                    <DataTemplate>
                        <TextBlock Text="My Side Header" />
                    </DataTemplate>
                </telerik:WizardPage.SideHeaderTemplate>
                <telerik:WizardPage.FooterTemplate>
                    <DataTemplate>
                        <StackPanel Orientation="Horizontal">
                            <telerik:RadButton Content="Back"
                                               Width="70" Height="25"
                                               Command="wizard:RadWizardCommands.MoveCurrentToPrevious"
                                               CommandParameter="{Binding}" />
                            <telerik:RadButton Content="Next" Width="70" Height="25"
                                               Command="wizard:RadWizardCommands.MoveCurrentToNext"
                                               CommandParameter="{Binding}" />
                        </StackPanel>
                    </DataTemplate>
                </telerik:WizardPage.FooterTemplate>
            </telerik:WizardPage>
        </telerik:RadWizard.WizardPages>
    </telerik:RadWizard>
</Window>

[Martin]

Hi Ricardo,

This behavior is observed when the referenced binaries are NoXAML. May I ask you to check this?

We provide two types of DLL: XAML and NoXAML. The idea of the NoXAML assemblies is to use them with completely implicit styles instead of the current way of styling. In the normal assemblies, you have all the XAML for all components for all themes included in the DLL and the styling is done with explicitly set styles - you have a huge assembly, you have styles and resources not applicable for your application, etc. With the Binaries.NoXaml you will get completely clean assembly with absolutely no XAML included and you can add manually only needed resources for your application.

I am looking forward to your reply.

Regards,
Martin Vatev
Progress Telerik

[Ricardo]

Hi Martin,

Indeed i was using NoXaml, when i needed to use Xaml.

The project started working when i changed this.

Thanks for the information.

Regards



[hema]

Hi Martin ,

Can we put this radwizard in a datatemplate and assign it to the window Contentcontrol.contenttemplate?

Please let me know if this is possible?

Regards,

Hema.
