amulya asked on 05 Jun 2014, 06:53 AM
In Telerik RadCharts ,from Multiple series, when click on single series should take maximum point and minimum points and bind that data to another  chart .

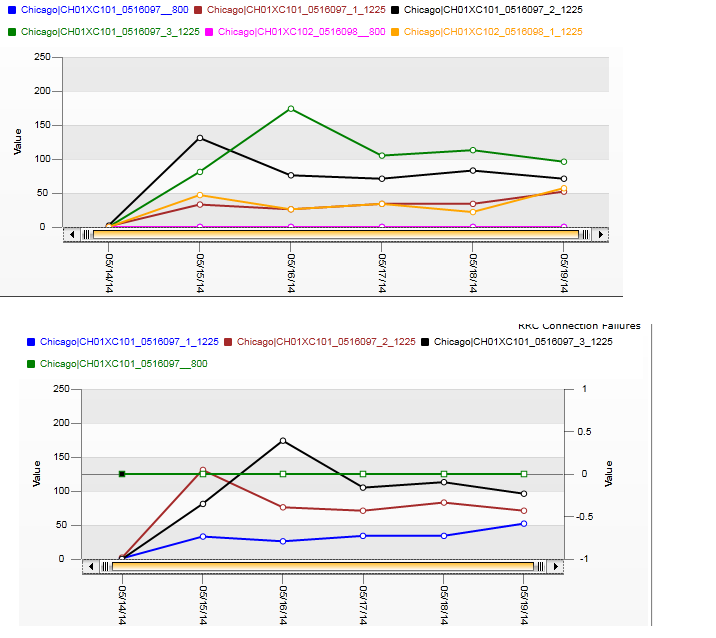

Approximate pictures:

when i take 1st chart and click on single series it should generate 2nd chart with the selected Single series

1 Answer, 1 is accepted

Sort by
0
Martin Ivanov
Telerik team
answered on 09 Jun 2014, 02:42 PM
Hello,

First I want to draw attention on our RadChartView components. The RadChartView is our new charting suit which was designed to replace the old RadChart. It has better implementation and performance, and also is very flexible and easy to set up. You can read about the advantages of the new components in the RadChartView vs. RadChart.

As for your requirement I am not completely sure that I can understand it from the provided picture. However, my guess is that you want when you click on a series from your first chart, this series to be added in the second chart. Can you confirm this is your case? If so, you can take a look at the ChartSelectionBehavior which is part of the RadCartesianChart. Basically you can subscribe for the SelectionChanged event of the behavior and then in the event handler add the series in the other chart.

Note that the SelectionChanged event will be fired only if you click on a DataPoint. If you click on the line between two points the event wont be invoked.

In addition I prepared a sample project.

Regards,
Martin
