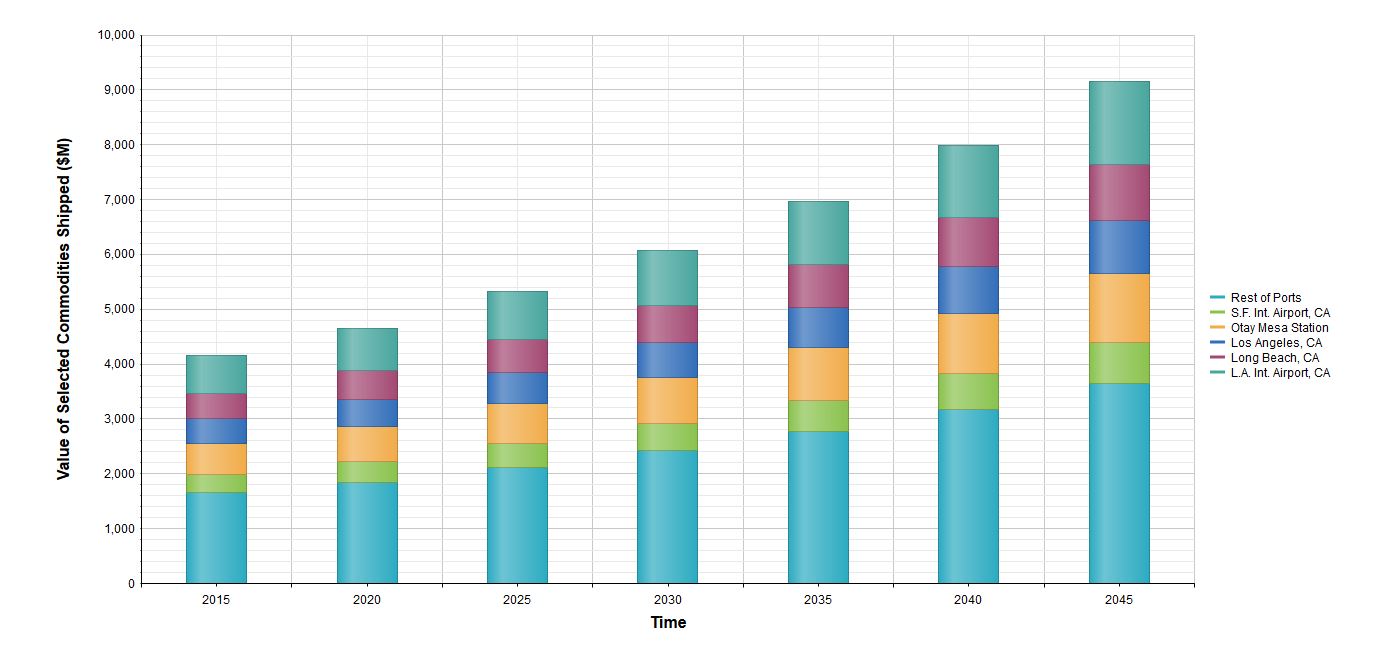

Legend order is reversed for some reason (see attached)
Any suggestions
4 Answers, 1 is accepted
0
Hi David,
The sereis names shown in the chart's legend are listed in the same order in which they are set in the chart. You can see this behavior demonstrated here here:
http://docs.telerik.com/devtools/aspnet-ajax/controls/htmlchart/functionality/stacked-series
If you want to order the items in the legend differently, you will simply need to change their order in the markup.
Regards,
Vessy
Progress Telerik
The sereis names shown in the chart's legend are listed in the same order in which they are set in the chart. You can see this behavior demonstrated here here:
http://docs.telerik.com/devtools/aspnet-ajax/controls/htmlchart/functionality/stacked-series
If you want to order the items in the legend differently, you will simply need to change their order in the markup.
Regards,
Vessy
Progress Telerik
Try our brand new, jQuery-free Angular 2 components built from ground-up which
deliver the business app essential building blocks - a grid component,
data visualization (charts) and form elements.
0
David
Top achievements
Rank 1
Iron
Iron
Veteran
answered on 02 Oct 2017, 12:52 PM
Hi Vessy,
It seems to me that if item is on top in chart it should be on top in legend.
Can you elaborate please on "If you want to order the items in the legend differently, you will simply need to change their order in the markup". I set up my items in code behind, not in the markup
Thank you
David
0
Hi David,
I am afraid that with the current implementation of the chart, the first series is rendered on the bottom of the column stack (first in stack) and on the top of the legend (firs in legend). Theire is an already logged feature request for adding ability to reverse the legend, so you can vote on its implementation here:
https://feedback.telerik.com/Project/108/Feedback/Details/140318
In the item above you can also see a way to reverse the legend through the Kendo widget of the control, namely:
Regards,
Vessy
Progress Telerik
I am afraid that with the current implementation of the chart, the first series is rendered on the bottom of the column stack (first in stack) and on the top of the legend (firs in legend). Theire is an already logged feature request for adding ability to reverse the legend, so you can vote on its implementation here:
https://feedback.telerik.com/Project/108/Feedback/Details/140318
In the item above you can also see a way to reverse the legend through the Kendo widget of the control, namely:
<
script
>
function OnLoad(sender, args) {
var kendoWidget = $find('<%=RadHtmlChart1.ClientID%>').get_kendoWidget();
kendoWidget.options.legend.reverse = true;
kendoWidget.redraw();
}
</
script
>
<
telerik:RadHtmlChart
ID
=
"RadHtmlChart1"
runat
=
"server"
Width
=
"600"
Height
=
"400"
>
<
ClientEvents
OnLoad
=
"OnLoad"
/>
...
</
telerik:RadHtmlChart
>
Regards,
Vessy
Progress Telerik
Try our brand new, jQuery-free Angular 2 components built from ground-up which
deliver the business app essential building blocks - a grid component,
data visualization (charts) and form elements.
0
David
Top achievements
Rank 1
Iron
Iron
Veteran
answered on 02 Oct 2017, 02:48 PM
Understood
Thank you
