XML Code Data binding

[Marshall]

I have a question about XML Data binding. I have this xml file:
<generateCoupons>
        <backend>
            <successful>
                <generateCouponsSuccessful>
                    <name>name</name>
                    <description>descr</description>
                    <disabled>false</disabled>
                    <validSince>27.10.2016</validSince>
                    <validUntil>20.11.2017</validUntil>
                    <minPriceOrder>1400</minPriceOrder>
                    <UsePercentForDiscount>false</UsePercentForDiscount>
                    <discountPrice>300</discountPrice>
                    <masks>
                        <mask>
                            <name>Letters</name>
                        </mask>
                        <mask>
                            <name>Random numbers</name>
                        </mask>
                    </masks>
                </generateCouponsSuccessful>
            </successful>
        </backend>
    </generateCoupons>

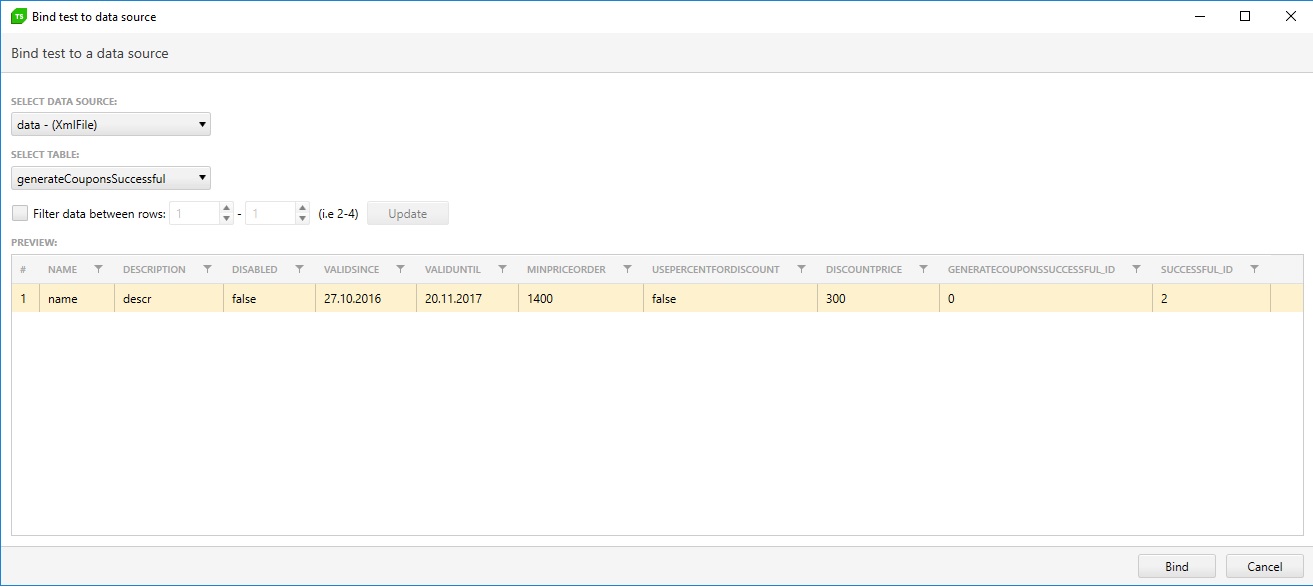

When I go to Telerik test studio and bind my test to the table "generateCouponsSuccessful", how can I get the values of the element "mask"?

[Boyan Boev]

Hello Marshal,

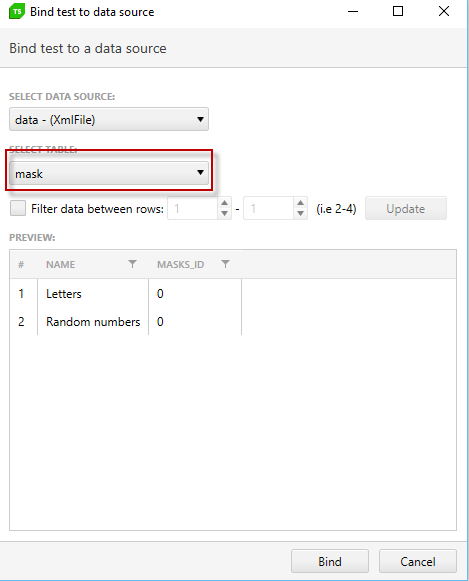

Since mask field is nested you should bind the test directly to it. See the attached screen shot.

Let me know if that helps.

Regards,
Boyan Boev
Telerik by Progress



[Marshall]

But I want to work with all these nested items under the element generateCouponsSuccessful in one test. My form on the web page need all these items.

<name>name</name>
                    <description>descr</description>
                    <disabled>false</disabled>
                    <validSince>27.10.2016</validSince>
                    <validUntil>20.11.2017</validUntil>
                    <minPriceOrder>1400</minPriceOrder>
                    <UsePercentForDiscount>false</UsePercentForDiscount>
                    <discountPrice>300</discountPrice>
                    <masks>
                        <mask>
                            <name>Letters</name>
                        </mask>
                        <mask>
                            <name>Random numbers</name>
                        </mask>
                    </masks>

Is it possible?

[Boyan Boev]

Hi Marshal,

Every tag is counted as a separate column, so no unfortunately this is not possible.

If it is possible to change the structure of the XML file so the mark is not nested then it should work as you expect.

Thank you for your understandings.

Regards,
Boyan Boev
Telerik by Progress
