X-Axis Label cut off on creating right vertical axis

4 posts, 0 answers
  1. N
    N avatar
    21 posts
    Member since:
    May 2012

    Posted 12 Jul 2013 Link to this post

    Tool used: WPF RadChartView

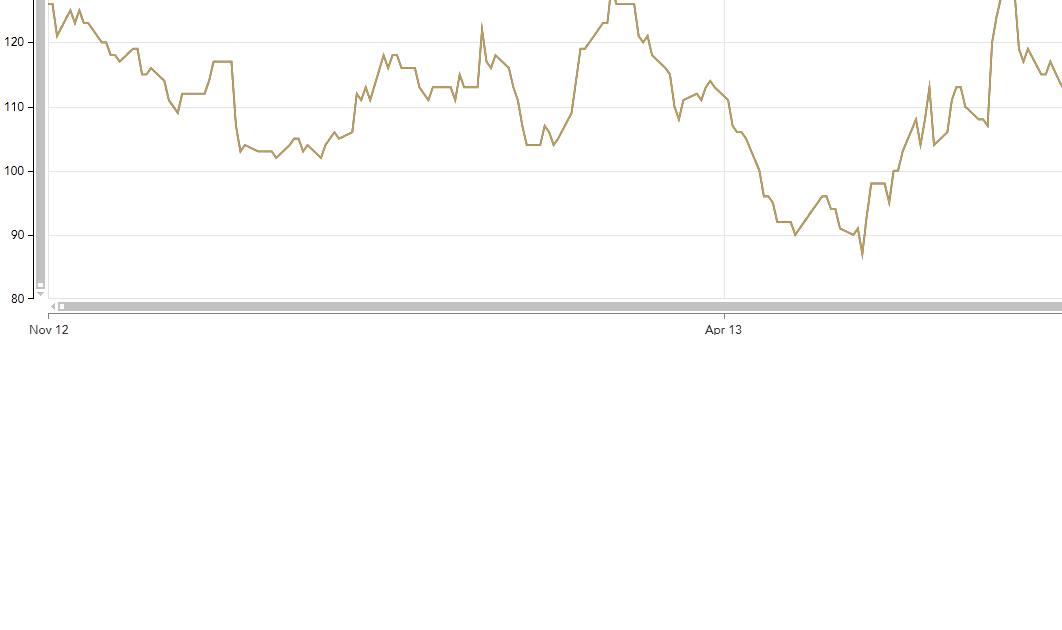

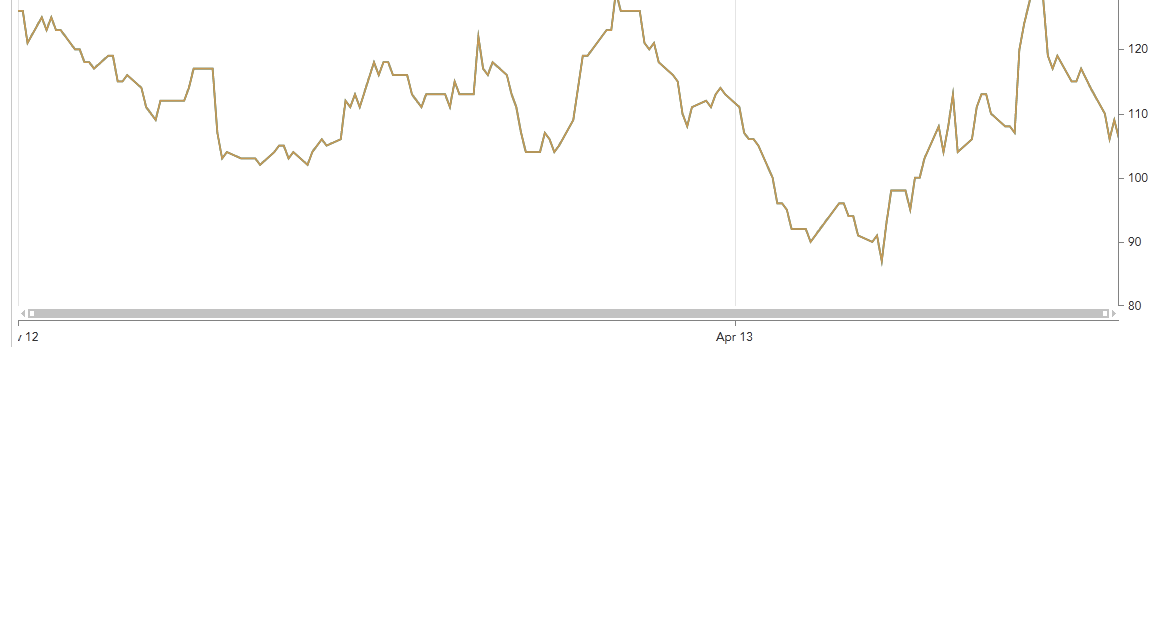

    using a chart with vertical left axis set. To switch to right, I create a new vertical linear axis (whose HorizontalLocation is set to right) and set the Series vertical axis to this new Right Linear Axis. On doing this I see a behavior where the first X-Axis label is cut off as you can see from the attached images.

    I tried to play around with the flow and setting margin, but it does not help. Is this a known issue?
    Any help is appreciated.

    Thanks,
    N D
  2. Petar Kirov
    Admin
    Petar Kirov avatar
    425 posts

    Posted 17 Jul 2013 Link to this post

    Hi N D,

    We have recently made some improvements in the chart elements arrangement mechanism, and I recommend that you download the latest internal build from your account to see if the you still experience this problem.
    In my local tests labels were no longer cut when the vertical axis was placed on the right side.


    Regards,
    Petar Kirov
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WPF.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. UI for WPF is Visual Studio 2017 Ready
  4. N
    N avatar
    21 posts
    Member since:
    May 2012

    Posted 15 Aug 2013 Link to this post

    Did you use the same steps that I did in order to replicate the issue?

  5. Ves
    Admin
    Ves avatar
    2879 posts

    Posted 20 Aug 2013 Link to this post

    Hi,

    Please, set appropriate value for left margin and set ClipToBounds property of RadCartesianChart to false. This will fix the problem.

    Best regards,
    Ves
    Telerik
