Working with Negative numbers

2 posts, 0 answers
  1. Kurt Kluth
    Kurt Kluth avatar
    144 posts
    Member since:
    Oct 2009

    Posted 19 Aug 2015 Link to this post

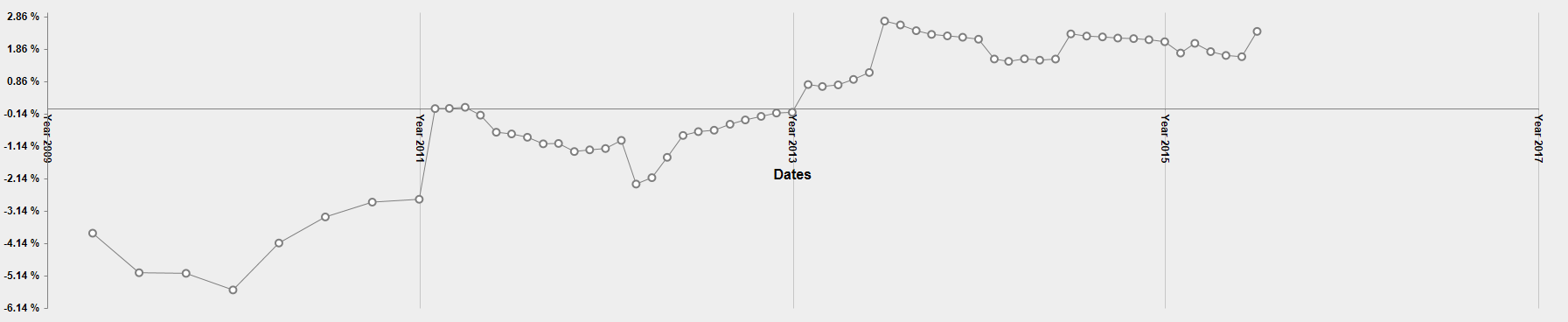

    I am trying to work with the HTMLChart negative numbers while setting the Min & Max values on the Y axis.  Logic works fine with all dollar/percentages whose values are greater than 0 (zero).  The X-axis is all the way in the middle and I have implemented the code suggested here

    Any other suggestions on how I can get the X-axis to remain at the bottom even for negative numbers?  I have included the code below

    <telerik:RadScriptBlock runat="server">
            <script>
                function BottomXAxisLabels() {
                    var chart = $find("<%=RadHtmlChart1.ClientID%>").get_kendoWidget();
                var axis = $telerik.$.extend(true, {}, chart.options.categoryAxis);
                axis.line.visible = false;
                chart.setOptions({ categoryAxis: [{}, axis] });
                chart.options.valueAxis.axisCrossingValues = [0, -99999999999];
                chart.redraw();
                }

                function onRequestStart(sender, args) {
                    if (args.get_eventTarget().indexOf("_btnXLSExport") >= 0) {
                        args.set_enableAjax(false);
                    }
                }
                function OnSeriesClick(args) {
                    var kendoWidget = args.sender;
                    alert("You clicked on a series item with value '" + args.value + "' from category '" + args.category + "'.");
                }

        </script>
        </telerik:RadScriptBlock>

                        <telerik:RadHtmlChart ID="RadHtmlChart1" runat="server" Visible="false" Legend-Appearance-Position="Top" Width="95%">
                            <ClientEvents OnLoad="BottomXAxisLabels" OnSeriesClick="OnSeriesClick" />
                            <PlotArea>
                                <Series>
                                    <telerik:ScatterLineSeries DataFieldY="ReturnedValue" DataFieldX="cycle_Date">
                                        <TooltipsAppearance Color="White" >
                                        </TooltipsAppearance>
                                        <LabelsAppearance Visible="false">
                                        </LabelsAppearance>
                                    </telerik:ScatterLineSeries>
                                </Series>
                                <YAxis>
                                    <LabelsAppearance>
                                        <TextStyle Bold="true" />
                                    </LabelsAppearance>
                                    <MinorGridLines Visible="false"></MinorGridLines>
                                    <MajorGridLines Visible="false"></MajorGridLines>
                                </YAxis>
                                <XAxis DataLabelsField="cycle_Date" BaseUnit="Years" MajorTickSize="1" >
                                    <LabelsAppearance Visible="true" RotationAngle="90" DataFormatString="Year {0:yyyy}">
                                        <TextStyle Bold="true" />
                                    </LabelsAppearance>
                                    <TitleAppearance Text="Dates">
                                        <TextStyle Bold="true" />
                                    </TitleAppearance>
                                    <MinorGridLines Visible="false"></MinorGridLines>
                                    <MajorGridLines Visible="true"></MajorGridLines>
                                </XAxis>
                            </PlotArea>
                            <ChartTitle>
                                <Appearance>
                                    <TextStyle Bold="true" />
                                </Appearance>
                            </ChartTitle>
                            <Legend>
                                <Appearance Visible="true" Position="Bottom"></Appearance>
                            </Legend>
                        </telerik:RadHtmlChart>



    The min value may be something like -0.0545423.  I am attempting to create a buffer to the min value and max value.

    Private Sub grdResults_SelectedIndexChanged(sender As Object, e As EventArgs) Handles grdResults.SelectedIndexChanged
         For Each item As GridDataItem In grdResults.SelectedItems
             Dim strID As String = TryCast(item.FindControl("lblRowField"), Label).Text
             Dim strID2 As String = TryCast(item.FindControl("lblRowText"), Label).Text
             Dim strID3 As String = TryCast(item.FindControl("lblRowNumber"), Label).Text
             Me.RadHtmlChart1.Visible = True
             GetData(strID, strID2, strID3)

         Next
     End Sub

    Private Sub GetData(InField As String, InColumnName As String, InRowCount As String)
         Try
             oConn.Open()

             Dim ocmd As New SqlCommand("sp_seTrendTracking", oConn)
             ocmd.CommandType = CommandType.StoredProcedure

             With ocmd.Parameters
                 .Add(New SqlParameter("@charter_num", Session("Charter_Num")))
                 '.Add(New SqlParameter("@charter_num", 95778))
                 .Add(New SqlParameter("@field", InField))
             End With

             reader = ocmd.ExecuteReader

             If reader.HasRows Then
                 Dim dt As DataTable = New DataTable()

                 dt.Load(reader)
                 RadHtmlChart1.DataSource = dt
                 RadHtmlChart1.ChartTitle.Text = InColumnName

                 Dim dr As DataRow
                 dr = dt.Rows(0)

                 Dim percentage As Double = 0.1D    '10%
                 Dim currentValue As Double

                 If InRowCount <= 6 Then
                     RadHtmlChart1.PlotArea.YAxis.LabelsAppearance.DataFormatString = "{0:c0}"
                     RadHtmlChart1.PlotArea.CommonTooltipsAppearance.DataFormatString = "{0:c0}"
                     'Grab the current value in TextBox1
                     If Double.TryParse(dr("Minvalue"), Globalization.NumberStyles.Number, Nothing, currentValue) Then
                         'Add 10% of the value to it
                         currentValue -= dr("Minvalue") * percentage
                         RadHtmlChart1.PlotArea.YAxis.MinValue = currentValue.ToString
                     End If

                     If Double.TryParse(dr("MaxValue"), Globalization.NumberStyles.Number, Nothing, currentValue) Then
                         'Add 10% of the value to it
                         currentValue += dr("MaxValue") * percentage
                         RadHtmlChart1.PlotArea.YAxis.MaxValue = currentValue.ToString
                     End If
                     RadHtmlChart1.PlotArea.CommonTooltipsAppearance.DataFormatString = "{1:c0}<br/>{0:MMM yyyy}"
                 Else
                     RadHtmlChart1.PlotArea.YAxis.LabelsAppearance.DataFormatString = "{0:p2}"
                     RadHtmlChart1.PlotArea.CommonTooltipsAppearance.DataFormatString = "{0:p2}"
                     If Double.TryParse(dr("Minvalue"), Globalization.NumberStyles.Number, Nothing, currentValue) Then
                         Dim MinValue As Decimal
                         MinValue = dr("Minvalue")
                         If dr("MinValue") < 0 Then
                             'percentage = -1.5D
                             currentValue += MinValue * percentage
                         Else
                             'Add 10% of the value to it
                             currentValue -= dr("Minvalue") * percentage
                         End If
                         RadHtmlChart1.PlotArea.YAxis.MinValue = currentValue
                     End If

                     If Double.TryParse(dr("MaxValue"), Globalization.NumberStyles.Number, Nothing, currentValue) Then
                         'Add 10% of the value to it
                         currentValue += dr("MaxValue") * percentage
                         RadHtmlChart1.PlotArea.YAxis.MaxValue = currentValue
                     End If
                     RadHtmlChart1.PlotArea.CommonTooltipsAppearance.DataFormatString = "{1:p2}<br/>{0:MMM yyyy}"
                 End If
                 RadHtmlChart1.DataBind()
             End If
         Catch ex As Exception
             MyLabel.Text = ex.Message
         Finally
             oConn.Close()
         End Try
     End Sub







  2. Danail Vasilev
    Admin
    Danail Vasilev avatar
    1492 posts

    Posted 25 Aug 2015 Link to this post

    Hi Kurt,

    You are using numeric series, so the client-side script should be modified a little bit. Also XAxis.DataLabelsField property is required only for category series (area, line, bar, column, etc.), so it is not required for numeric series like scatterline.

    Please examine the code below for details:

    <telerik:RadScriptBlock ID="RadScriptBlock1" runat="server">
        <script>
            function BottomXAxisLabels() {
                var chart = $find("<%=RadHtmlChart1.ClientID%>").get_kendoWidget();
                var axis = $telerik.$.extend(true, {}, chart.options.xAxis);
                axis.line.visible = false;

                chart.setOptions({ xAxis: [{}, axis] });
                chart.options.xAxis[0].labels.visible = false;
                chart.options.yAxis.axisCrossingValues = [0, -99999999999];
                chart.redraw();
            }

            function onRequestStart(sender, args) {
                if (args.get_eventTarget().indexOf("_btnXLSExport") >= 0) {
                    args.set_enableAjax(false);
                }
            }
            function OnSeriesClick(args) {
                var kendoWidget = args.sender;
                alert("You clicked on a series item with value '" + args.value + "' from category '" + args.category + "'.");
            }

        </script>
    </telerik:RadScriptBlock>

    <telerik:RadHtmlChart ID="RadHtmlChart1" runat="server" Visible="true" Legend-Appearance-Position="Top" Width="95%">
        <ClientEvents OnLoad="BottomXAxisLabels" OnSeriesClick="OnSeriesClick" />
        <PlotArea>
            <Series>
                <telerik:ScatterLineSeries DataFieldY="ReturnedValue" DataFieldX="cycle_Date">
                    <TooltipsAppearance Color="White">
                    </TooltipsAppearance>
                    <LabelsAppearance Visible="false">
                    </LabelsAppearance>
                </telerik:ScatterLineSeries>
            </Series>
            <YAxis>
                <LabelsAppearance>
                    <TextStyle Bold="true" />
                </LabelsAppearance>
                <MinorGridLines Visible="false"></MinorGridLines>
                <MajorGridLines Visible="false"></MajorGridLines>
            </YAxis>
            <XAxis BaseUnit="Years" MajorTickSize="1">
                <LabelsAppearance Visible="true" RotationAngle="90" DataFormatString="Year {0:yyyy}">
                    <TextStyle Bold="true" />
                </LabelsAppearance>
                <TitleAppearance Text="Dates">
                    <TextStyle Bold="true" />
                </TitleAppearance>
                <MinorGridLines Visible="false"></MinorGridLines>
                <MajorGridLines Visible="true"></MajorGridLines>
            </XAxis>
        </PlotArea>
        <ChartTitle>
            <Appearance>
                <TextStyle Bold="true" />
            </Appearance>
        </ChartTitle>
        <Legend>
            <Appearance Visible="true" Position="Bottom"></Appearance>
        </Legend>
    </telerik:RadHtmlChart>



    Regards,
    Danail Vasilev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
