What Series to use to get Category val for TrackBall

3 posts, 0 answers
  1. David
    David avatar
    22 posts
    Member since:
    Oct 2012

    Posted 18 Oct 2012 Link to this post

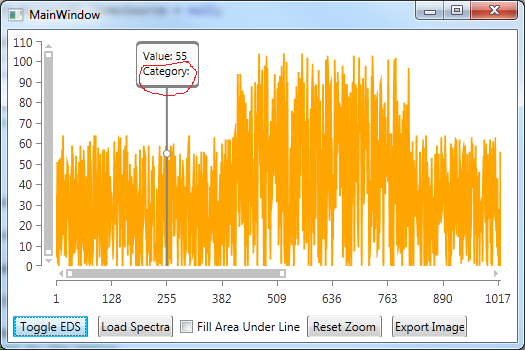

    I am using just a LineSeries and setting it's ItemSource to uint array and when I use the TrackBall I just get the Y-value and not the Category one.
    My guess is I need to use a different series type such as ScatterSpline, but I couldn't figure out how to specify data for that sort of series.  My array updates 30 times a sec so I'm constantly nulling out the series ItemSource and setting it back to the uint array
    Also, is it possible to change the "Category" label in the TrackInfo box to something else such as "Channel?"

    Thanks!

    My ChartView in XAML

    <telerik:RadCartesianChart Grid.Row="0"
                               Name="radCartesianChart1"
                               >

      <telerik:RadCartesianChart.HorizontalAxis>
        <telerik:CategoricalAxis
                                 MajorTickInterval="255"
                                 LabelInterval="1"
                                 ShowLabels="True"
                                 />
      </telerik:RadCartesianChart.HorizontalAxis>

      <telerik:RadCartesianChart.VerticalAxis>
        <telerik:LinearAxis />
      </telerik:RadCartesianChart.VerticalAxis>
      <telerik:RadCartesianChart.Behaviors>
        <telerik:ChartPanAndZoomBehavior ZoomMode="Both"
                                         PanMode="Both">
        </telerik:ChartPanAndZoomBehavior>
        <telerik:ChartTrackBallBehavior ShowIntersectionPoints="True"
                                        ShowTrackInfo="True"/>
      </telerik:RadCartesianChart.Behaviors>
      <telerik:RadCartesianChart.Series>
        <telerik:LineSeries Stroke="Orange"
                            StrokeThickness="2"/>
      </telerik:RadCartesianChart.Series>
    </telerik:RadCartesianChart>


    My CodeBehind where I set the ItemSource when my array upda

    void setData(uint[] data)
    {
      //may use with ScatterSplineSeries??
      //List<PlotInfo> dataList = new List<PlotInfo>();
      //for (int i = 0; i < _EDSData.Length; i++)
      //  dataList.Add(new PlotInfo() { XVal = i, YVal = _EDSData[i] });
      radCartesianChart1.Series[0].ItemsSource = null;
      radCartesianChart1.Series[0].ItemsSource = _EDSData;
    }


    Thanks!

  2. David
    David avatar
    22 posts
    Member since:
    Oct 2012

    Posted 19 Oct 2012 Link to this post

    To get the data to display all I needed to do was change my X-Axis to a LinearAxis.

    I'm still wondering if/how to customize the labels in the TrackInfo pop-up?
