Vertical seperator in Gantt chart?

Thread is closed for posting
4 posts, 0 answers
  1. Joel
    Joel avatar
    166 posts
    Member since:
    Oct 2006

    Posted 15 Dec 2010 Link to this post

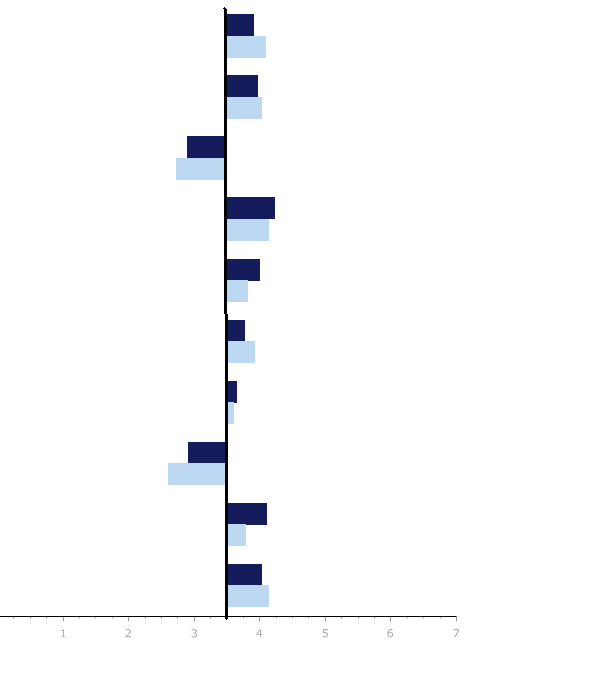

    I have created a dynamic Gantt chart that my customer likes (attached distribution.jpg), but they want a vertical line running down the midpoint to make it stand out better (x 3.5 in this case which the user enters via a textbox, along with min and max for x axis).  Any suggestions on how to accomplish this?  (attachment distribution_desired.png is what I am looking to do)
  2. Giuseppe
    Admin
    Giuseppe avatar
    2363 posts

    Posted 20 Dec 2010 Link to this post

    Hi Joel,

    Generally RadChart does not provide support for rendering custom gridlines like this but you can achieve similar visual effect by using really thin MarkedZone instance like this:

    <telerik:RadChart ID="RadChart1" runat="Server" SeriesOrientation="Horizontal">
        <Series>
            <telerik:ChartSeries Type="Gantt">
                <Items>
                    <telerik:ChartSeriesItem YValue="20" YValue2="30" XValue="1" />
                    <telerik:ChartSeriesItem YValue="10" YValue2="20" XValue="2" />
                </Items>
            </telerik:ChartSeries>
        </Series>
        <PlotArea>
            <MarkedZones>
                <telerik:ChartMarkedZone ValueStartY="20" ValueEndY="20"
                Appearance-Border-Width="2" Appearance-Border-Color="Red" />
            </MarkedZones>
        </PlotArea>
    </telerik:RadChart>

    Hope this helps.


    All the best,
    Freddie
    the Telerik team
