Values overlapping in 2D area chart

2 posts, 0 answers
  1. Ashna
    Ashna avatar
    5 posts
    Member since:
    Oct 2012

    Posted 18 Sep 2013 Link to this post

        Actually i am using 2D Area chart in my project. Problem with this chart is that values are getting overlapped when chart gets build.

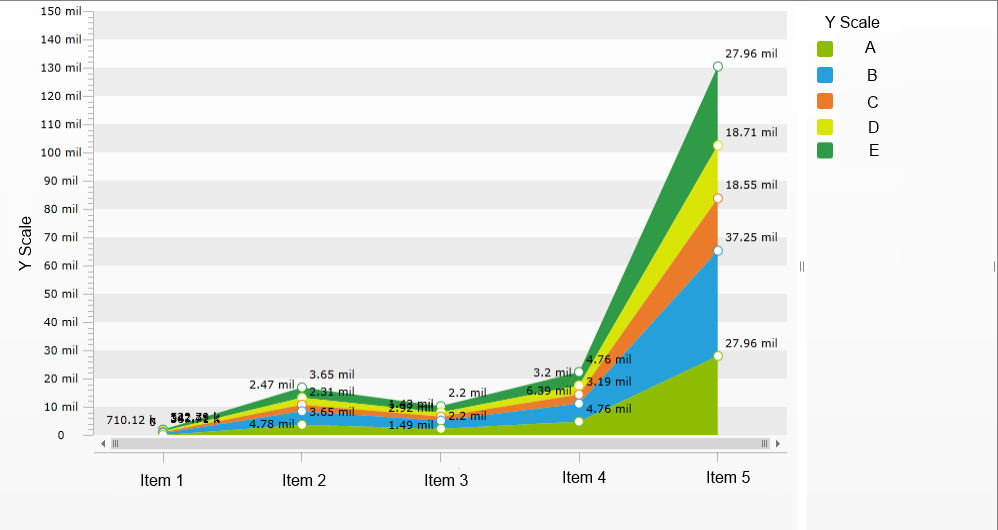

    I have attached an image for better understanding. Here Y scale has 4 parameters, but only 2 are being visible and the other 2 are getting overlapped. Is there any way to overcome this overlapping problem?

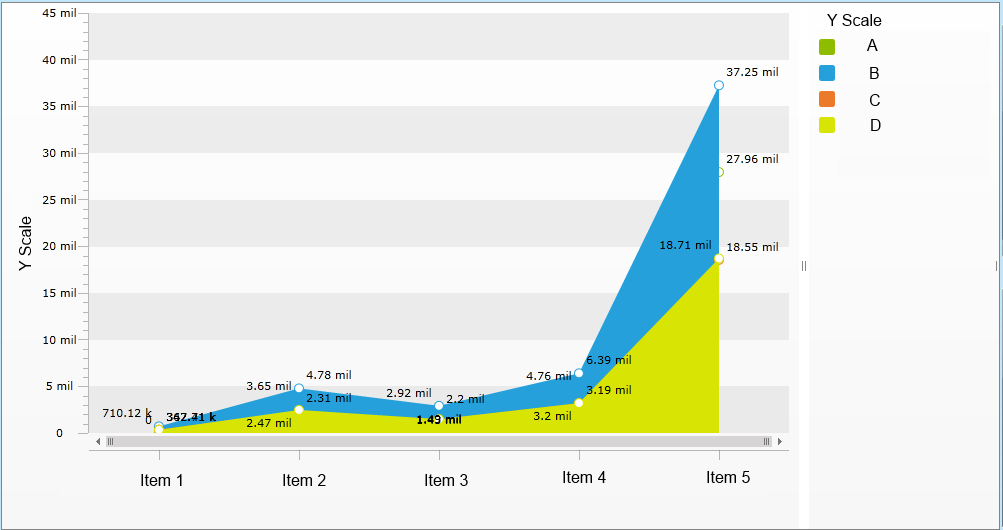

     I have also tried Stacked area instead of Area but it is giving weird values on Y-Scale as you can see in the image i have attached for stacked chart, so this also doesn't satisfy the need.

  2. Evgenia
    Evgenia avatar
    1396 posts

    Posted 20 Sep 2013 Link to this post

    Hello Ashna,

     From what I see on the image attached (area series) you populated the Chart with 4 area series but they are overlapping one another so that only 2 of them are visible. Since you have turned on the visibility for all series labels, you are observing this unwanted label overlapping. Are you sure that you need such visualization? Why don't you add 2 are series only?
    The stacked area series use different visualization strategy as you might read about here

    Still if you need to visualize all the 4 series of your stacked area with their labels, you might use our smart labels feature as demonstrated here with full source code provided. You'll find further details on the feature in our documentation.
