Using Blend to create tabs

13 posts, 0 answers
  1. Marina Levit
    Marina Levit avatar
    4 posts
    Member since:
    Sep 2009

    Posted 17 Sep 2009 Link to this post

    So I can drag a RadTabControl onto the form. And I can drag RadTabItems onto the form. But how do I get them inside the tab control? What is the proper procedure for creating and designing a tab control and its contents from within Blend without using XAML, but by using the design time capabilities of Blend?

    Thanks
  2. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 18 Sep 2009 Link to this post

    Hi Marina Levit,

    I must admit that the design-time experience in Blend is not to the expected standard yet. We will be improving this in the Q3 release of the controls.

    Currently you can add tabs to the TabControl by selecting the TabControl and then double-clicking the RadTabItem in the asset library.

    Another options is to click the RadTabItem in the asset library and then double click the RadTabContorl. Either way, the TabItem will be added with nor header, so it will be visible as a few pixels in the header of the TabControl. You need to select the item and set the Header property.

    If you want to add content to a TabItem you can click the TabItem and then double click on the content you want to add, say a Grid panel.

    Unfortunately the TabItems will not switch in design time yet, so you will need to set the SelectedIndex of the TabControl to change the currently selected item.

    Best wishes,
    Miroslav
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  3. DevCraft banner
  4. Marina Levit
    Marina Levit avatar
    4 posts
    Member since:
    Sep 2009

    Posted 18 Sep 2009 Link to this post

    Thanks for your response. I have been trying to follow your instructions, but no matter what I do the RadTabItem winds up outside the RadTabControl. That actually happens for all controls, no matter what is selected, if I double click on something the Asset library it becomes a sibling element, not a child element of the selected item.

    I'm using the latest beta - does it already have the new design time features, or will that only be in the final release?
  5. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 24 Sep 2009 Link to this post

    Hi Marina,

    I am sorry for the delayed reply.

    Which version of Expression Blend are you using?

    I was using Blend 3.0

    Below is a screencast of how double-clicking works for me and how I can add content inside the TabItem.

    http://screencast.com/t/ktt2dNt8Hyg0

    So it seems that when you select the RadTabControl in the visual tree on the left and then double-click the TabItem it goes outside the TabControl?

    Unfortunately the design-time improvements will be available with Q3 and not earlier. Also, they will be available for Blend 3.0 only because Blend 2 is quite inflexible as far as design-time support is concerned.

    Greetings,
    Miroslav
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  6. Riccardo
    Riccardo avatar
    36 posts
    Member since:
    Apr 2009

    Posted 25 Sep 2009 Link to this post

    I've these dev plat:
    Version Blend: 3.0.1927.0
    Version Telerik: 2009-02-0911

    RadTabControl on Blend doesn't work. The error is "Valore non compreso nell'intervallo previsto".
    I've tried to create tabcontrol and tabitem structure manually but errors persist.

    The XAML works correctly on browser :(
  7. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 30 Sep 2009 Link to this post

    Hi Riccardo,

    Could you please send me the project that does not work for you?

    You can email it to miroslav.paskov @ [telerik].com, if you cannot open a support ticket.

    Kind regards,
    Miroslav
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  8. Marina Levit
    Marina Levit avatar
    4 posts
    Member since:
    Sep 2009

    Posted 07 Oct 2009 Link to this post

    Regarding my original question. I am using Blend 3, I tried watching the screen capture and do what it is doing, but no matter what I do, the item is added after the control itself in the hierarchy, not inside.

    Speaking of the screen capture, I'm not quite sure if I am doing everything right, it is running 2-3 times faster then it's supposed to be, because I'm guessing no one was actually clicking that quickly.  It's very hard to follow, can't tell what the user is really doing.

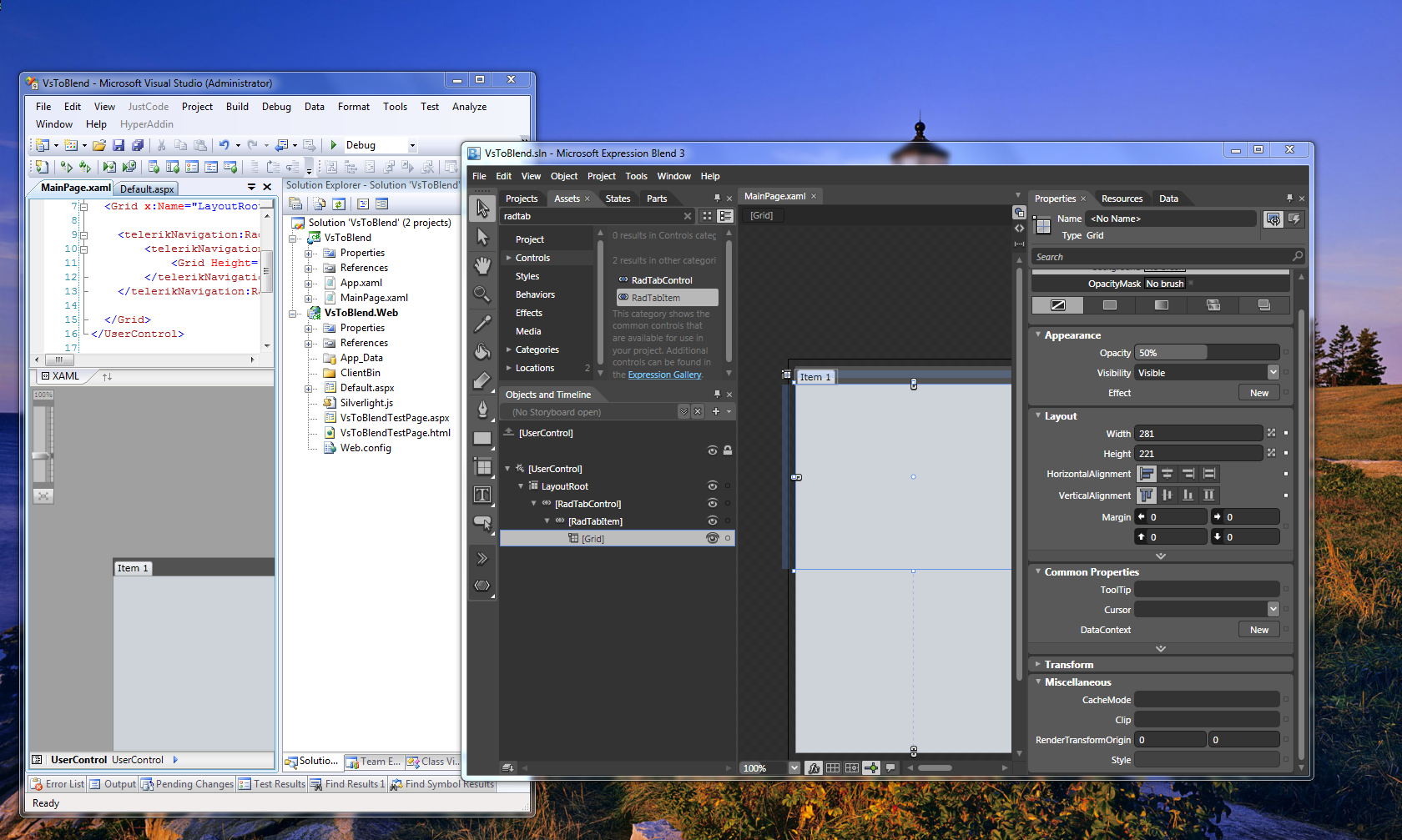

    Including a screen shot. You can see that even though the radtabcontrol is selective, the blue rectangular highlight is over layout root. No matter what I do, I can't get it to go on the tab control.
  9. Riccardo
    Riccardo avatar
    36 posts
    Member since:
    Apr 2009

    Posted 12 Oct 2009 Link to this post

    Sorry Miroslav for lately reply. I see your reply only now (losing notification...). There's something strange.
    I've just create a little void project for you with only simple radtabcontrol. But so it works.
    I don't understand what is wrong in my full project, unfortunaly I can't send it to you.

    In my full project I checked also "ItemsControl" by Telerik, and it doesn't work.

    Thanks.
  10. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 13 Oct 2009 Link to this post

    Hello Riccardo,

    You say that:

    "In my full project I checked also "ItemsControl" by Telerik, and it doesn't work."

    Are you seeing the same error?

    This is a base class and any problems there could be inherited by the controls.

    Do you see the error when you place the control on the design canvas or when you edit its template?

    Could you also try to translate the exception message for us if you see any?

    Greetings,
    Miroslav
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  11. Riccardo
    Riccardo avatar
    36 posts
    Member since:
    Apr 2009

    Posted 13 Oct 2009 Link to this post

    Creating new void XAML in Visual Studio. Then opening it on blend 3 and inserting a RadTabControl (or an ItemsControl by Telerik).
    If I add a ItemsControl (ms original) it works.
  12. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 16 Oct 2009 Link to this post

    Hi Riccardo,

    I thought that the important thing may be creating the project first from VisualStudio but it worked for me. Event the VS preview showed the TabCotnrol, so this must be something that I am missing. (I am attaching a screenshot if what I see)

    Would it be possible for you to attach  the VisualStudio debugger to Blend and send us the CallStack at the moment when the error in the ItemsControl appears?

    To do this:

    1. Go to Tools -> Options -> Debugging and uncheck Debug Just My Code Only (if it is checked)
    2. Go to Debug -> Exceptions and make sure all types of exceptions and are checked.
    3. Then run blend and go back to VS
    4. Go to Debug -> Attach to Process and select the Blend.exe.
    5. Break the design time by dropping the items control. At that time you should see the exception in blend as well. The CallStack of the exception could help us get to the issue.

    Thank you for helping us resolve this,

    Regards,
    Miroslav
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  13. Riccardo
    Riccardo avatar
    36 posts
    Member since:
    Apr 2009

    Posted 16 Oct 2009 Link to this post

    Error expeption detail
    {"Attribute /Telerik.Windows.Controls.Navigation;Component/Themes/Office/Black/CoverFlow.xaml value is out of range. [Line: 17 Position: 34]"}

    Call stack
    > System.Windows.dll!MS.Internal.XcpImports.CreateFromXaml(System.IO.UnmanagedMemoryStream stream, string sourceAssemblyName, bool createNamescope, bool requireDefaultNamespace, bool allowEventHandlers) + 0xf0 bytes
      System.Windows.dll!System.Windows.Controls.Control.GetBuiltInStyle(System.IntPtr nativeTarget, out System.IntPtr nativeStyle = 0) + 0x1df bytes
      [Native to Managed Transition]
      [Managed to Native Transition]
      System.Windows.dll!MS.Internal.XcpImports.MethodEx(System.IntPtr ptr, string name = "Insert", MS.Internal.CValue[] cvData) + 0x79 bytes
      System.Windows.dll!MS.Internal.XcpImports.MethodPack(System.IntPtr objectPtr, string methodName, object[] rawData) + 0x6d0 bytes
      System.Windows.dll!MS.Internal.XcpImports.Collection_Insert<System.__Canon>(System.Windows.PresentationFrameworkCollection<System.__Canon> collection, int index, object value) + 0x5b bytes
      System.Windows.dll!System.Windows.PresentationFrameworkCollection<System.__Canon>.InsertImpl(int index, object value) + 0x4c bytes
      System.Windows.dll!System.Windows.PresentationFrameworkCollection<System.__Canon>.System.Collections.IList.Insert(int index, object value) + 0xe bytes
      Microsoft.Expression.Platform.Silverlight.dll!Microsoft.Expression.Platform.Silverlight.InstanceBuilders.PresentationFrameworkCollectionInstanceBuilder.UpdateChild(Microsoft.Expression.DesignModel.Core.IInstanceBuilderContext context, Microsoft.Expression.DesignModel.Core.ViewNode viewNode, int childIndex, Microsoft.Expression.DesignModel.DocumentModel.DocumentNodeChangeAction action, Microsoft.Expression.DesignModel.DocumentModel.DocumentNode childNode) + 0x6d bytes
      Microsoft.Expression.DesignModel.dll!Microsoft.Expression.DesignModel.InstanceBuilders.ClrObjectInstanceBuilder.UpdateInstance(Microsoft.Expression.DesignModel.Core.IInstanceBuilderContext context = {Microsoft.Expression.DesignSurface.ViewModel.InstanceBuilderContext}, Microsoft.Expression.DesignModel.Core.ViewNode viewNode = {UIElementCollection PropertyOrChildInvalid Add,0}) + 0x8f bytes
      Microsoft.Expression.DesignModel.dll!Microsoft.Expression.DesignModel.Core.ViewNodeManager.UpdateInstance(Microsoft.Expression.DesignModel.Core.ViewNode viewNode = {UIElementCollection PropertyOrChildInvalid Add,0}) + 0x58 bytes
      Microsoft.Expression.DesignModel.dll!Microsoft.Expression.DesignModel.Core.ViewNodeManager.UpdateInternal(Microsoft.Expression.DesignModel.Core.ViewNode viewNode = {UIElementCollection PropertyOrChildInvalid Add,0}) + 0xa2 bytes
      Microsoft.Expression.DesignModel.dll!Microsoft.Expression.DesignModel.Core.ViewNodeManager.UpdateInternal(Microsoft.Expression.DesignModel.Core.ViewNode viewNode = {Grid Valid}) + 0x2f2 bytes
      Microsoft.Expression.DesignModel.dll!Microsoft.Expression.DesignModel.Core.ViewNodeManager.UpdateInternal(Microsoft.Expression.DesignModel.Core.ViewNode viewNode = {UserControl Valid}) + 0x2f2 bytes
      Microsoft.Expression.DesignModel.dll!Microsoft.Expression.DesignModel.Core.ViewNodeManager.Update(Microsoft.Expression.DesignModel.Core.IAttachViewRoot siteRoot = "DockTest:C:\\proj\\VS9\\Test\\Silverlight\\DockTest\\DockTest\\Tmp.xaml; Type: {Microsoft.Expression.DesignSurface.View.SilverlightSceneView}") + 0x88 bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.View.SceneView.Update() + 0x13d bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.View.SilverlightSceneView.Update() + 0x21 bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.View.SceneView.UpdateFromDamage(Microsoft.Expression.DesignSurface.ViewModel.SceneViewModel.ViewStateBits viewStateBits = None, Microsoft.Expression.DesignModel.DocumentModel.DocumentNodeChangeList damage, Microsoft.Expression.DesignSurface.ViewModel.SceneUpdateTypeFlags updateFlags) + 0x4cb bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.ViewModel.SceneViewModel.UpdateView(Microsoft.Expression.DesignSurface.ViewModel.SceneUpdateTypeFlags flags) + 0x1c bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.ViewModel.SceneViewModel.FirePipelineUpdate(Microsoft.Expression.DesignSurface.ViewModel.SceneUpdateTypeFlags flags = Updated) + 0x37 bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.ViewModel.SceneViewModel.SceneDocument_EditTransactionUpdated(object sender, System.EventArgs e) + 0xa bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.Documents.SceneDocument.OnUpdatedEditTransaction() + 0x29 bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.Tools.DefaultTypeInstantiator.CreateInstance(Microsoft.Expression.DesignModel.Metadata.ITypeId instanceType, Microsoft.Expression.DesignSurface.ViewModel.ISceneInsertionPoint insertionPoint = {UserControl:null->UserControl:Grid.Children}, System.Windows.Rect rect, Microsoft.Expression.DesignSurface.Tools.OnCreateInstanceAction action) + 0x3a4 bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.Tools.Assets.TypeAsset.InternalCreateInstance(Microsoft.Expression.DesignSurface.ViewModel.ISceneInsertionPoint insertionPoint, System.Windows.Rect rect, Microsoft.Expression.DesignSurface.Tools.OnCreateInstanceAction action) + 0x8c bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.Tools.Assets.Asset.CreateInstance(Microsoft.Expression.DesignSurface.ILicenseFileManager licenseManager = {Microsoft.Expression.DesignSurface.LicenseFileManager}, Microsoft.Expression.DesignSurface.ViewModel.ISceneInsertionPoint insertionPoint, System.Windows.Rect rect, Microsoft.Expression.DesignSurface.Tools.OnCreateInstanceAction action) + 0xb7 bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.Tools.AssetTool.OnDoubleClick() + 0x9b bytes
      Microsoft.Expression.DesignSurface.dll!Microsoft.Expression.DesignSurface.UserInterface.ToolGroupButton.OnMouseDoubleClick(System.Windows.Input.MouseButtonEventArgs e = {System.Windows.Input.MouseButtonEventArgs}) + 0x34 bytes
      PresentationFramework.dll!System.Windows.Controls.Control.HandleDoubleClick(object sender, System.Windows.Input.MouseButtonEventArgs e = {System.Windows.Input.MouseButtonEventArgs}) + 0x135 bytes
      PresentationCore.dll!System.Windows.Input.MouseButtonEventArgs.InvokeEventHandler(System.Delegate genericHandler, object genericTarget) + 0x31 bytes
      PresentationCore.dll!System.Windows.RoutedEventArgs.InvokeHandler(System.Delegate handler, object target) + 0x27 bytes
      PresentationCore.dll!System.Windows.RoutedEventHandlerInfo.InvokeHandler(object target, System.Windows.RoutedEventArgs routedEventArgs) + 0x3e bytes
      PresentationCore.dll!System.Windows.EventRoute.InvokeHandlersImpl(object source = {Microsoft.Expression.DesignSurface.UserInterface.ToolGroupButton Contenuto: IsChecked:True}, System.Windows.RoutedEventArgs args = {System.Windows.Input.MouseButtonEventArgs}, bool reRaised = true) + 0x1bf bytes
      PresentationCore.dll!System.Windows.UIElement.ReRaiseEventAs(System.Windows.DependencyObject sender = {Microsoft.Expression.DesignSurface.UserInterface.ToolGroupButton Contenuto: IsChecked:True}, System.Windows.RoutedEventArgs args = {System.Windows.Input.MouseButtonEventArgs}, System.Windows.RoutedEvent newEvent) + 0x10a bytes
      PresentationCore.dll!System.Windows.UIElement.CrackMouseButtonEventAndReRaiseEvent(System.Windows.DependencyObject sender, System.Windows.Input.MouseButtonEventArgs e) + 0x2e bytes
      PresentationCore.dll!System.Windows.UIElement.OnMouseDownThunk(object sender, System.Windows.Input.MouseButtonEventArgs e) + 0xde bytes
      PresentationCore.dll!System.Windows.Input.MouseButtonEventArgs.InvokeEventHandler(System.Delegate genericHandler, object genericTarget) + 0x31 bytes
      PresentationCore.dll!System.Windows.RoutedEventArgs.InvokeHandler(System.Delegate handler, object target) + 0x27 bytes
      PresentationCore.dll!System.Windows.RoutedEventHandlerInfo.InvokeHandler(object target, System.Windows.RoutedEventArgs routedEventArgs) + 0x3e bytes
      PresentationCore.dll!System.Windows.EventRoute.InvokeHandlersImpl(object source = {Microsoft.Expression.DesignSurface.UserInterface.ToolGroupButtonContent}, System.Windows.RoutedEventArgs args = {System.Windows.Input.MouseButtonEventArgs}, bool reRaised = false) + 0x1bf bytes
      PresentationCore.dll!System.Windows.UIElement.RaiseEventImpl(System.Windows.DependencyObject sender = {Microsoft.Expression.DesignSurface.UserInterface.ToolGroupButtonContent}, System.Windows.RoutedEventArgs args = {System.Windows.Input.MouseButtonEventArgs}) + 0x79 bytes
      PresentationCore.dll!System.Windows.UIElement.RaiseEvent(System.Windows.RoutedEventArgs args = {System.Windows.Input.MouseButtonEventArgs}, bool trusted) + 0x35 bytes
      PresentationCore.dll!System.Windows.Input.InputManager.ProcessStagingArea() + 0x311 bytes
      PresentationCore.dll!System.Windows.Input.InputManager.ProcessInput(System.Windows.Input.InputEventArgs input) + 0x42 bytes
      PresentationCore.dll!System.Windows.Input.InputProviderSite.ReportInput(System.Windows.Input.InputReport inputReport) + 0x62 bytes
      PresentationCore.dll!System.Windows.Interop.HwndMouseInputProvider.ReportInput(System.IntPtr hwnd, System.Windows.Input.InputMode mode, int timestamp, System.Windows.Input.RawMouseActions actions, int x, int y, int wheel) + 0x2e2 bytes
      PresentationCore.dll!System.Windows.Interop.HwndMouseInputProvider.FilterMessage(System.IntPtr hwnd = 2164084, int msg = 513, System.IntPtr wParam = 1, System.IntPtr lParam = 33226774, ref bool handled = false) + 0x4e1 bytes
      PresentationCore.dll!System.Windows.Interop.HwndSource.InputFilterMessage(System.IntPtr hwnd = 2164084, int msg = 513, System.IntPtr wParam = 1, System.IntPtr lParam = 33226774, ref bool handled = false) + 0x75 bytes
      WindowsBase.dll!MS.Win32.HwndWrapper.WndProc(System.IntPtr hwnd = 2164084, int msg = 513, System.IntPtr wParam = 1, System.IntPtr lParam = 33226774, ref bool handled = false) + 0xbe bytes
      WindowsBase.dll!MS.Win32.HwndSubclass.DispatcherCallbackOperation(object o) + 0x7a bytes
      WindowsBase.dll!System.Windows.Threading.ExceptionWrapper.InternalRealCall(System.Delegate callback = {Method = {System.Object DispatcherCallbackOperation(System.Object)}}, object args = {MS.Win32.HwndSubclass.DispatcherOperationCallbackParameter}, bool isSingleParameter = true) + 0x8a bytes
      WindowsBase.dll!System.Windows.Threading.ExceptionWrapper.TryCatchWhen(object source = {System.Windows.Threading.Dispatcher}, System.Delegate callback, object args, bool isSingleParameter, System.Delegate catchHandler = null) + 0x4a bytes
      WindowsBase.dll!System.Windows.Threading.Dispatcher.WrappedInvoke(System.Delegate callback, object args, bool isSingleParameter, System.Delegate catchHandler) + 0x44 bytes
      WindowsBase.dll!System.Windows.Threading.Dispatcher.InvokeImpl(System.Windows.Threading.DispatcherPriority priority, System.TimeSpan timeout, System.Delegate method, object args, bool isSingleParameter) + 0x91 bytes
      WindowsBase.dll!System.Windows.Threading.Dispatcher.Invoke(System.Windows.Threading.DispatcherPriority priority, System.Delegate method, object arg) + 0x40 bytes
      WindowsBase.dll!MS.Win32.HwndSubclass.SubclassWndProc(System.IntPtr hwnd = 2164084, int msg = 513, System.IntPtr wParam = 1, System.IntPtr lParam = 33226774) + 0xdc bytes
      [Native to Managed Transition]
      [Managed to Native Transition]
      WindowsBase.dll!System.Windows.Threading.Dispatcher.PushFrameImpl(System.Windows.Threading.DispatcherFrame frame = {System.Windows.Threading.DispatcherFrame}) + 0xc7 bytes
      WindowsBase.dll!System.Windows.Threading.Dispatcher.PushFrame(System.Windows.Threading.DispatcherFrame frame) + 0x49 bytes
      WindowsBase.dll!System.Windows.Threading.Dispatcher.Run() + 0x4c bytes
      PresentationFramework.dll!System.Windows.Application.RunDispatcher(object ignore) + 0x1e bytes
      PresentationFramework.dll!System.Windows.Application.RunInternal(System.Windows.Window window) + 0x6f bytes
      PresentationFramework.dll!System.Windows.Application.Run(System.Windows.Window window) + 0x26 bytes
      PresentationFramework.dll!System.Windows.Application.Run() + 0x19 bytes
      Microsoft.Expression.Framework.dll!Microsoft.Expression.Framework.ExpressionApplication.RunApplication() + 0x3e bytes
      Microsoft.Expression.Blend.dll!Microsoft.Expression.Blend.BlendApplication.BlendApplication(Microsoft.Expression.Framework.UserInterface.SplashScreen splashScreen) + 0x1f bytes
      Blend.exe!Microsoft.Expression.Application.Main(string[] args) + 0x257 bytes
