Unbound PivotGrid

4 posts, 0 answers
  1. Steve
    Steve avatar
    2 posts
    Member since:
    Feb 2013

    Posted 05 Feb 2013 Link to this post

    Hi,

    Are there any examples of a Unbound PivotGrid? I would like to have PivotGrid that looks like a Property Grid.
    I need to use PivotGrid because I need multiple rows.  I need to add my own rows.
    I would like to have a PivotGrid that has categories (groups) and images in the individual rows.

    I have not found any examples for adding rows manually.

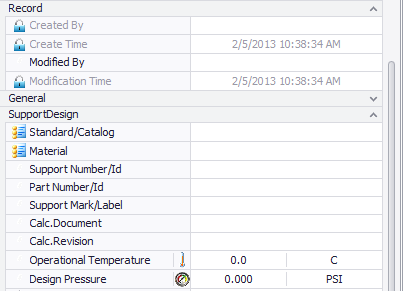

    Below is an example of what I want the grid to look like.

    Thanks
    Steve Morrow
  2. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 08 Feb 2013 Link to this post

    Hi Steve,

    By design RadPivotGrid is implemented for business intelligence purposes and it is a data summarization tool. It aggregates the data coming from a data table or a data cube (OLAP), and then this data is displayed to the end-user. Its UI can't be used outside the context of this scenario, hence it can't be used in unbound mode.

    You can either use our RadGridView applying a GroupDescriptor for the groups handling CellFormatting for the images, or RadPropertyGrid handling the ItemFormatting for the images.

    All the best,
    Peter
    the Telerik team
    Q3'12 SP1 of RadControls for WinForms is out now. See what's new.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Steve
    Steve avatar
    2 posts
    Member since:
    Feb 2013

    Posted 08 Feb 2013 Link to this post

    Can you please point to examples of using the RadGridView in this manner?
  5. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 13 Feb 2013 Link to this post

    Hello Steve,

    Thank you for writing back.

    You can refer to this Knowledge Base article:
    Change row and cell visual appearance using code.
    Please, refer to the sample code below:
    void gridView_CellFormatting(object sender, CellFormattingEventArgs e)
    {
        GridDataCellElement cell = e.CellElement as GridDataCellElement;
        if (cell != null)
        {
            if (cell.Value = ....)
            {
                cell.Image = myImage;
                cell.TextImageRelation = TextImageRelation.TextBeforeImage;
                cell.ImageAlignment = ContentAlignment.MiddleRight;
                cell.ImageLayout = ImageLayout.None;
            }
            else
            {
                cell.ResetValue(LightVisualElement.ImageProperty, ValueResetFlags.Local);
                cell.ResetValue(LightVisualElement.ImageAlignmentProperty, ValueResetFlags.Local);
                cell.ResetValue(LightVisualElement.TextImageRelationProperty, ValueResetFlags.Local);
            }
        }
    }

    I hope you find my answer useful.

    Regards,
    Peter
    the Telerik team
