tree context menu in sliding pane

4 posts, 0 answers
  1. Mohammad
    Mohammad avatar
    2 posts
    Member since:
    Dec 2013

    Posted 10 Dec 2013 Link to this post

    dear telerik,
    i have a situation like following:

      <telerik:RadSplitter EnableAjaxSkinRendering="true" Skin="Office2007"  ID="uxSplitter" runat="server" Width="100%" Height="100%" >
              <telerik:RadPane ID="uxLeftArea" runat="server" Width="22px" Scrolling="none" Height="100%">
                   <telerik:RadSlidingZone ClickToOpen="true" ID="uxLeftSlidingZone" runat="server" Width="22px" Height="100px">
                        <telerik:RadSlidingPane    ID="uxOCPane" Title="Organization Chart" runat="server" Width="200px" MinWidth="200">
                            <telerik:RadTreeView Skin="Office2007"  ID="uxOrganizationUnitTree" EnableDragAndDrop="True" MultipleSelect="false"  TabIndex="1" runat="server">
                                <ContextMenus>
                                 <telerik:RadTreeViewContextMenu ID="uxOrganizationUnitCtxtMnu" runat="server">
                                    <Items>
                                            <telerik:RadMenuItem Value="AddChild" Text="Add Child Unit ...">
                                            </telerik:RadMenuItem>
                                            <telerik:RadMenuItem Value="Delete" Text="Delete Unit ...">
                                            </telerik:RadMenuItem>
                                    </Items>
                                </telerik:RadTreeViewContextMenu>
                                </ContextMenus>
                            </telerik:RadTreeView>
                            </telerik:RadSlidingPane>
                       </telerik:RadSlidingZone>
                  </telerik:RadPane>
    </telerik:RadSplitter>

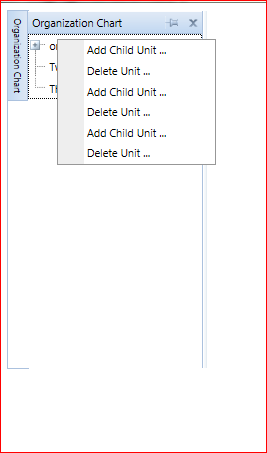

    i have a tree with context menu placed in a context pane, when i right click on the tree the context menu appears like the attached image.
  2. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 11 Dec 2013 Link to this post

    Hi Mohammad,

    Unfortunately I couldn't replicate the issue at my end. Please have a look into the sample code which works fine at my end.

    ASPX:
    <telerik:RadSplitter EnableAjaxSkinRendering="true" Skin="Office2007" ID="uxSplitter"
        runat="server" Width="100%" Height="100%">
        <telerik:RadPane ID="uxLeftArea" runat="server" Width="22px" Scrolling="none" Height="100%">
            <telerik:RadSlidingZone ClickToOpen="true" ID="uxLeftSlidingZone" runat="server"
                Width="22px" Height="100px">
                <telerik:RadSlidingPane ID="uxOCPane" Title="Organization Chart" runat="server" Width="200px"
                    MinWidth="200">
                    <telerik:RadTreeView Skin="Office2007" ID="uxOrganizationUnitTree" EnableDragAndDrop="True"
                        MultipleSelect="false" TabIndex="1" runat="server">
                        <ContextMenus>
                            <telerik:RadTreeViewContextMenu ID="uxOrganizationUnitCtxtMnu" runat="server">
                                <Items>
                                    <telerik:RadMenuItem Value="AddChild" Text="Add Child Unit ...">
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem Value="Delete" Text="Delete Unit ...">
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem Value="AddChild" Text="Add Child Unit ...">
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem Value="Delete" Text="Delete Unit ...">
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem Value="AddChild" Text="Add Child Unit ...">
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem Value="Delete" Text="Delete Unit ...">
                                    </telerik:RadMenuItem>
                                </Items>
                            </telerik:RadTreeViewContextMenu>
                        </ContextMenus>
                        <Nodes>
                            <telerik:RadTreeNode runat="server" Text="one" ContextMenuID="uxOrganizationUnitCtxtMnu">
                                <Nodes>
                                    <telerik:RadTreeNode runat="server" Text="one1.1" ContextMenuID="uxOrganizationUnitCtxtMnu">
                                    </telerik:RadTreeNode>
                                    <telerik:RadTreeNode runat="server" Text="one1.2" ContextMenuID="uxOrganizationUnitCtxtMnu">
                                    </telerik:RadTreeNode>
                                </Nodes>
                            </telerik:RadTreeNode>
                            <telerik:RadTreeNode runat="server" Text="Two" ContextMenuID="uxOrganizationUnitCtxtMnu">
                            </telerik:RadTreeNode>
                            <telerik:RadTreeNode runat="server" Text="Three" ContextMenuID="uxOrganizationUnitCtxtMnu">
                            </telerik:RadTreeNode>
                        </Nodes>
                    </telerik:RadTreeView>
                </telerik:RadSlidingPane>
            </telerik:RadSlidingZone>
        </telerik:RadPane>
    </telerik:RadSplitter>

    Please provide your full code if it doesn't help.
    Thanks,
    Shinu.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Mohammad
    Mohammad avatar
    2 posts
    Member since:
    Dec 2013

    Posted 16 Dec 2013 Link to this post

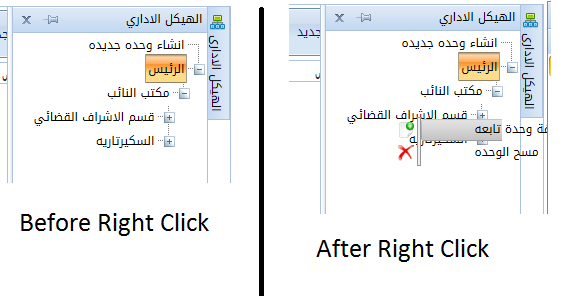

    sorry i forgot to mention that my page has direction (rtl) kindly try in this case the context menu appears incomplete in this state,
    try on your example to make the body direction (rtl) this will simulate my case,
    thank you for your help and interest
  5. Boyan Dimitrov
    Admin
    Boyan Dimitrov avatar
    1746 posts

    Posted 19 Dec 2013 Link to this post

    Hello,

    Please find a sample project that implements right to left direction for the RadSplitter, RadTreeView and the context menu. Please note that this is our recommended way of achieving such scenario so you can use that approach in your project.


    Regards,
    Boyan Dimitrov
    Telerik
