Too much space between chart title and chart area

4 posts, 0 answers
  1. Steve
    Steve avatar
    43 posts
    Member since:
    May 2014

    Posted 06 May Link to this post

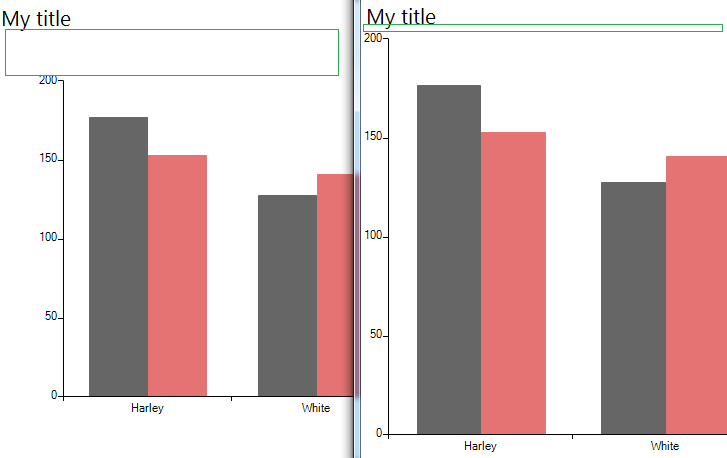

    There is a huge amount of space between the title of my charts and the actual data. Also if I have no title there is a similarly huge amount of space above the chart. How can I control this spacing? I looked at every margin and padding setting I could find but nothing seemed to be set or do anything.
  2. Dess
    Admin
    Dess avatar
    1601 posts

    Posted 09 May Link to this post

    Hello Steve,

    Thank you for writing.

    In order to remove the redundant space, you can specify the RadChartView.ChartElement.View.Margin property:
    this.radChartView1.Title = "My title";
    this.radChartView1.ShowTitle = true;
    this.radChartView1.ChartElement.View.Margin = new Padding(0);

    I hope this information helps. Should you have further questions I would be glad to help.

      Regards,
    Dess
    Telerik
    Do you need help with upgrading your AJAX, WPF or WinForms project? Check the Telerik API Analyzer and share your thoughts.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Steve
    Steve avatar
    43 posts
    Member since:
    May 2014

    Posted 09 May in reply to Dess Link to this post

    It would be nice if you guys actually had useful documentation.
  5. Dess
    Admin
    Dess avatar
    1601 posts

    Posted 10 May Link to this post

    Hello Steve,

    Thank you for writing back.

    We are constantly improving our online documentation in order to add as much useful information as possible. Besides the documentation, we provide other resources like Knowledge Base, Code Library, forum, etc.
    However, feel free to submit a support ticket or a forum post every time you experience any difficulties regarding your requirements. We will do our best to assist you.

    If you have any additional questions, please let me know.

    Regards,
    Dess
