Toggle Visibility - Display expanded

7 posts, 0 answers
  1. Carlos
    Carlos avatar
    13 posts
    Member since:
    Apr 2015

    Posted 26 Aug Link to this post

    Hi,

    I have a new problem when I apply the Expanded Display Toggle Visibility. The check box "Toggle mark initially expanded" is not working. As you can see in the attach images, the result in the Crosstab open always expanded whatever choice I make.

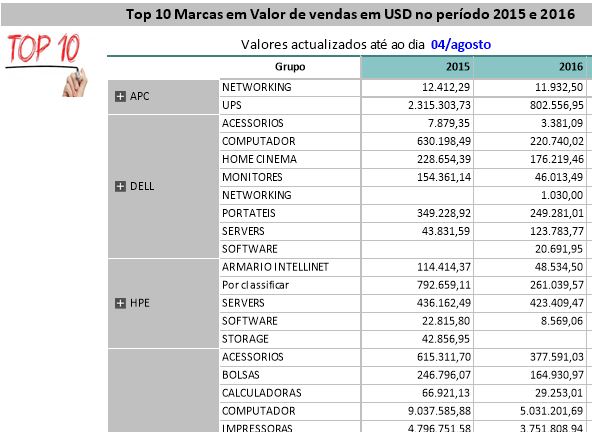

    As you can see in image "Im-Result" a plus signal (+) is showed next to brand. If I click in the plus signal the table collapse.

    Can please someone help?

    Thank you.

  2. Stef
    Admin
    Stef avatar
    3050 posts

    Posted 29 Aug Link to this post

    Hello Carlos,

    Please check if changes are saved in the report's designer.cs file and if the report's assembly is updated in the project with the viewer. Also test to refresh the page with Ctr+F5 in case the browser cached the content.

    If you need further help, please send us a demo project reproducing the problem in your support ticket on the same question.

    Regards,
    Stef
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. DevCraft banner
  4. Carlos
    Carlos avatar
    13 posts
    Member since:
    Apr 2015

    Posted 29 Aug in reply to Stef Link to this post

    Hi Stef, thank for your reply.

    The report Designer.cs is saved correctly. I already cleaned and rebuild the solution but the problem remains.

    Actually, the only diference I notice when I change the display expanded mark from true to false is the sinal (plus or minus) it shows in a different way. If I choose False in the option, the table will open expanded but with a + sinal. If I choose True in the option, the table will open expanded but with a - sinal.

    Best regards,



  5. Stef
    Admin
    Stef avatar
    3050 posts

    Posted 29 Aug Link to this post

    Hello Carlos,

    The check-box controls only the initial state of the collapse/expand marker. The action on its own controls the visibility of the target items/sections/groups. Thus you can set the state of the collapse/expand marker, and then set the initial visibility of the targets (their Visible properties).

    Properties of groups can be check through the Group Explorer. All items and sections' properties are listed directly in the Property grid.

    Regards,
    Stef
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  6. Carlos
    Carlos avatar
    13 posts
    Member since:
    Apr 2015

    Posted 31 Aug in reply to Stef Link to this post

    Hello Stef,

    Thank you for your reply, but I still need help.

    My main problem is that the initial state is always expanded, whatever is the option we chose in the check box. Please take a look at the attach images.

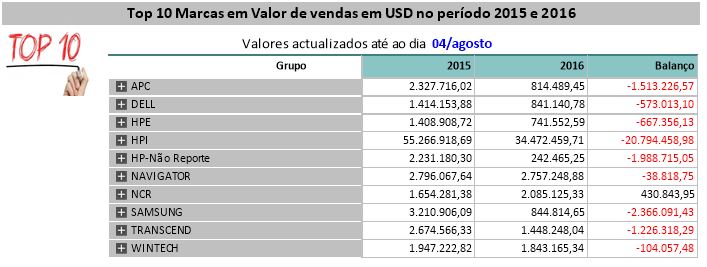

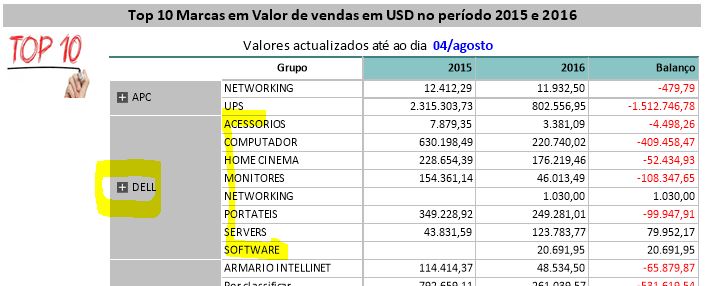

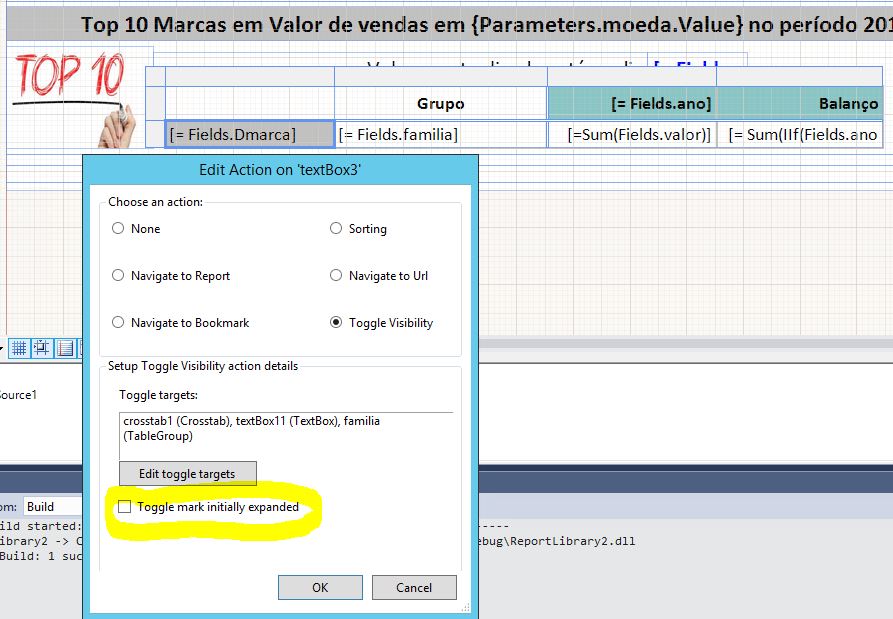

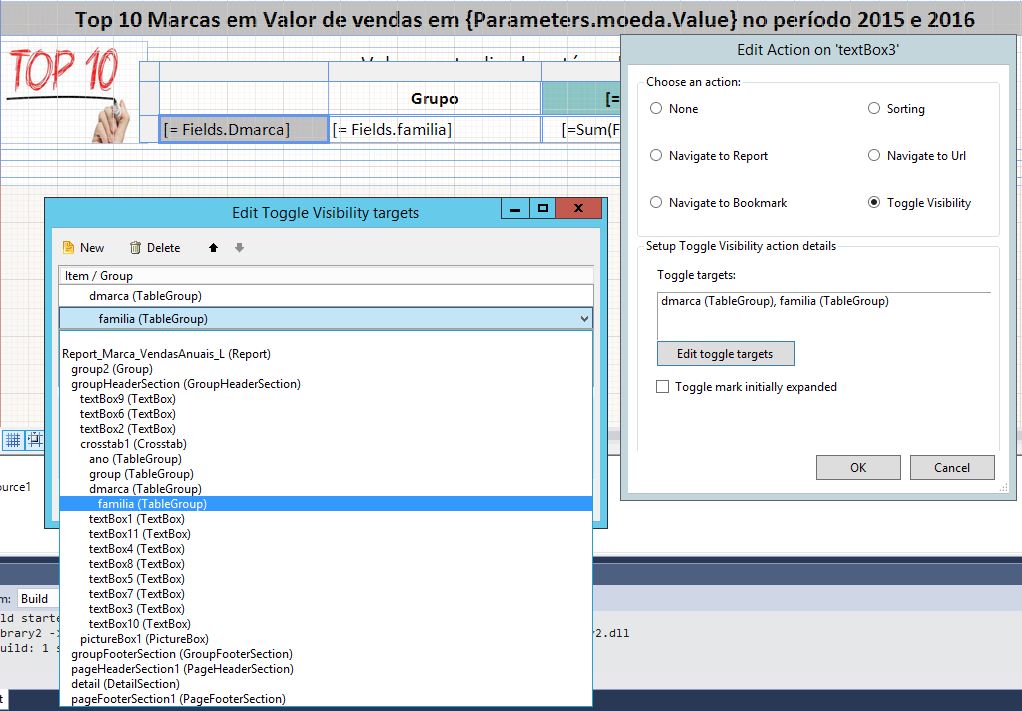

    The "FinalResultWanted" is the result I need as a initial state. The "Configuration" showed the setup I have now. The "ResultShowed" is the initial state. What am I doing wrong?

    Thank you.

  7. Stef
    Admin
    Stef avatar
    3050 posts

    Posted 31 Aug Link to this post

    Hi Carlos,

    Select the Table item and open the Group Explorer. Double-click each row/column group selected as a target of the ToggleVisibilityAction, and edit its Visible property depending on the collapse/expand mark state of the action.

    Please check the attached video illustrating the above suggestion. It is a SWF file that can be previewed in IE browser.

    Regards,
    Stef
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  8. Carlos
    Carlos avatar
    13 posts
    Member since:
    Apr 2015

    Posted 01 Sep in reply to Stef Link to this post

    Hi Stef,

    The problem is solve. Thank you very much.
