Tile Image Position

3 posts, 1 answers
  1. Brad
    Brad avatar
    30 posts
    Member since:
    Sep 2010

    Posted 02 Nov 2012 Link to this post

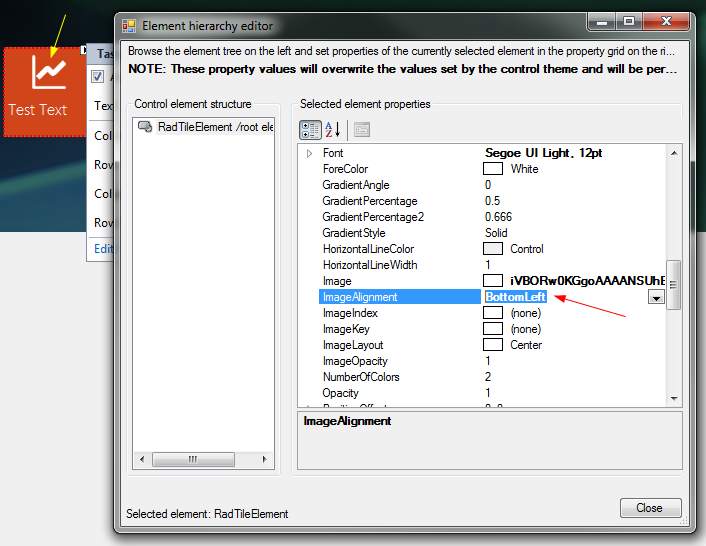

    I have the text aligned to Top Left and the image aligned to the Bottom Right.  However, the icon always seems to appear above the text and centered.Is this a bug or something I am doing incorrectly?

    Thanks,

    - Brad
  2. Brad
    Brad avatar
    30 posts
    Member since:
    Sep 2010

    Posted 02 Nov 2012 Link to this post

    I found a workaround for this, by making a transparent background image that positions the image in the correct place, but I'd still like to understand.

    Thanks
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Answer
    Stefan
    Admin
    Stefan avatar
    2890 posts

    Posted 07 Nov 2012 Link to this post

    Hi Brad,

    Thank you for writing.

    To achieve the desired look you have to set the following properties:
    ImageLayout - None (so you can use the alignment properties)
    TextImageRelation - TextBeforeImage (show the text before the image)
    TextAlignment - TopLeft
    ImageAlignment - BottomRight

    I hope this helps.

    All the best,
    Stefan
    the Telerik team
