Template Display Information

3 posts, 1 answers
  1. David
    David avatar
    16 posts
    Member since:
    Aug 2014

    Posted 24 Jul Link to this post

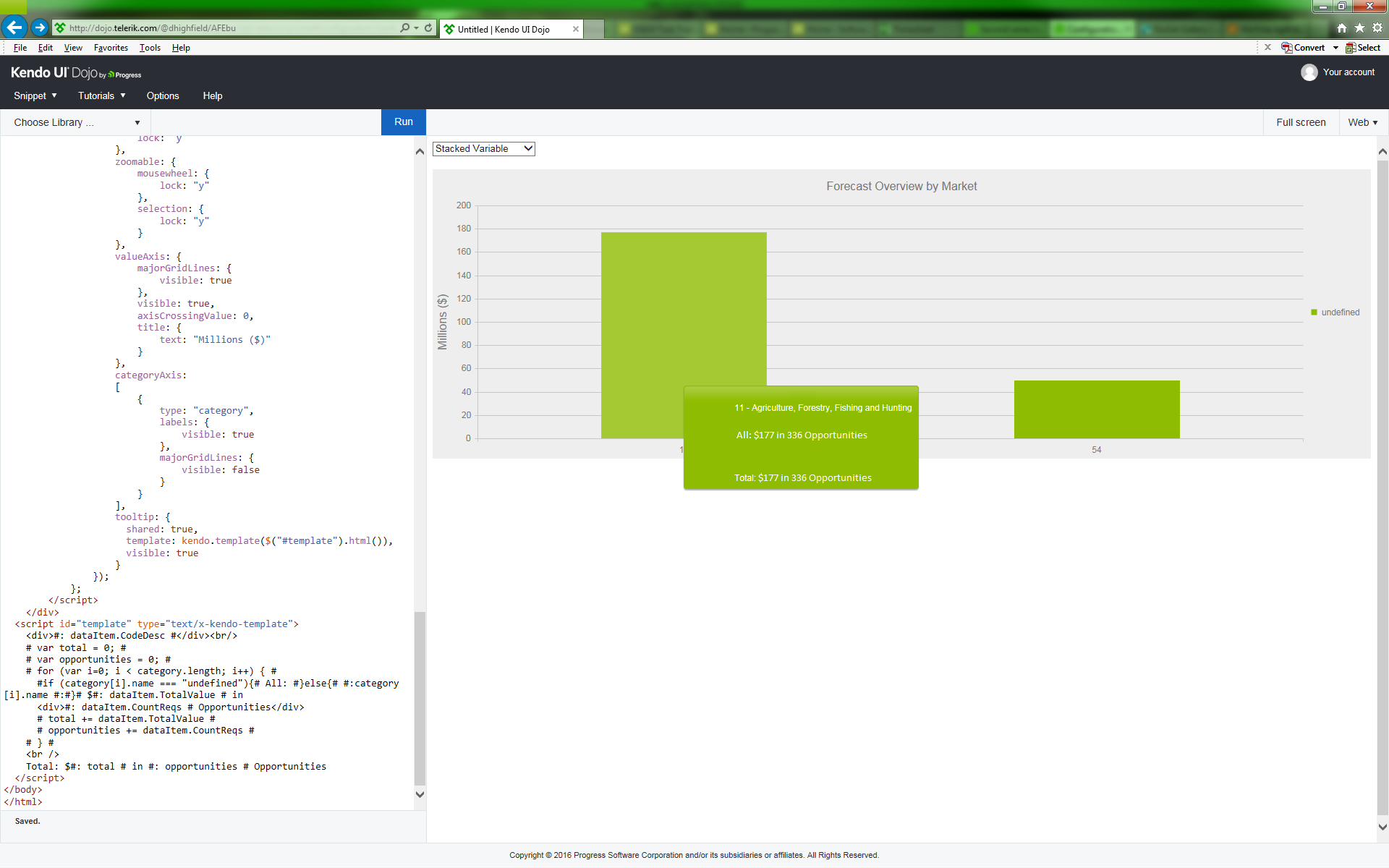

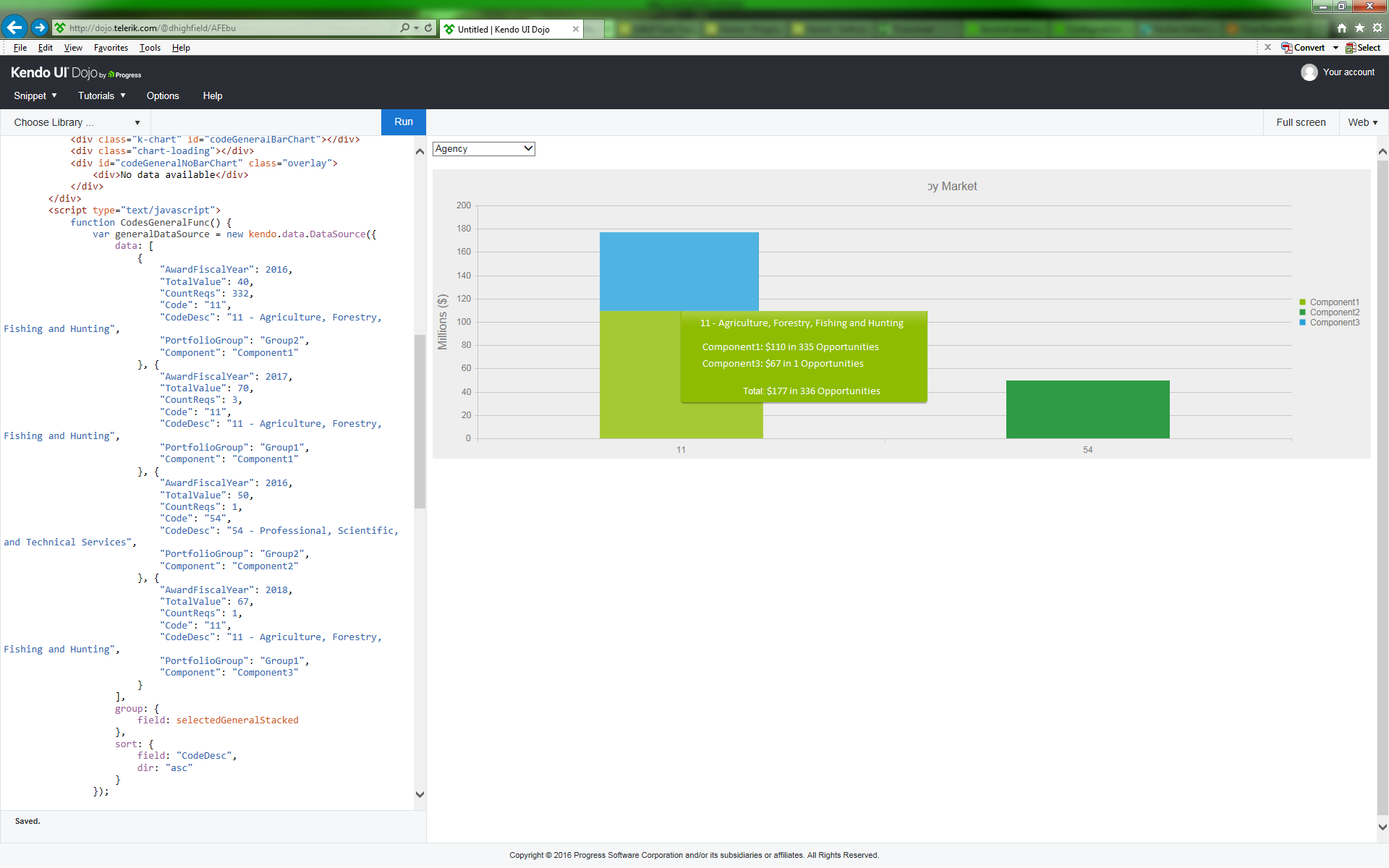

    I'm trying to streamline the template information on my barchart. It is just not displaying the information I would like it to relay to the user in a streamline fashion. I have a demo at http://dojo.telerik.com/@dhighfield/AFEbu/2. I'm trying to have it display something similar to the included png files. I do not want the template to display items that have zero values associated with it. I also am trying to remove that top Code information and replace it with the Code Description. I've tried series and category and other implementations and this is probably the closest I ever got to what I am looking for. Can this be accomplished?

    As always thank you for your time.

  2. Answer
    Alex Hajigeorgieva
    Admin
    Alex Hajigeorgieva avatar
    114 posts

    Posted 27 Jul Link to this post

    Hi David,

    Please accept my apology for the delay in responding.

    I have identified one way to achieve the desired outcome that may be suitable for your scenario. A runnable sample is available at:

    http://dojo.telerik.com/UZuNo

    To achieve the requirement of visualising aggregates of other value fields in the Kendo UI Chart, use the Kendo UI Chart tooltip sharedTemplate instead of the template configuration property. It allows better control and most importantly, it reveals the original dataItem from the Kendo UI Data Source,thus providing complete freedom for custom calculations.

    http://docs.telerik.com/kendo-ui/controls/charts/features/tooltip#templates

    Should this not be suitable for your scenario, please refer to my answer in the below forum thread:

    http://www.telerik.com/forums/second-series-summed-and-template-dataitem#hAf2eSqhAkSEXyAgwrCTKA

    Alternatively, you could take advantage of our tailor-made solution specialists by contacting them at:

    http://www.telerik.com/professional-services

    Regards,
    Alex
    Telerik by Progress

    Get started with Kendo UI in days. Online training courses help you quickly implement components into your apps.

  3. Kendo UI is VS 2017 Ready
  4. David
    David avatar
    16 posts
    Member since:
    Aug 2014

    Posted 29 Jul in reply to Alex Hajigeorgieva Link to this post

    Thank you. I was just stuck with going the template route.
