Telerik.Wincontrol.UI.RadForm with Desert Theme

7 posts, 1 answers
  1. Rob
    Rob avatar
    10 posts
    Member since:
    Oct 2004

    Posted 16 Jun 2011 Link to this post

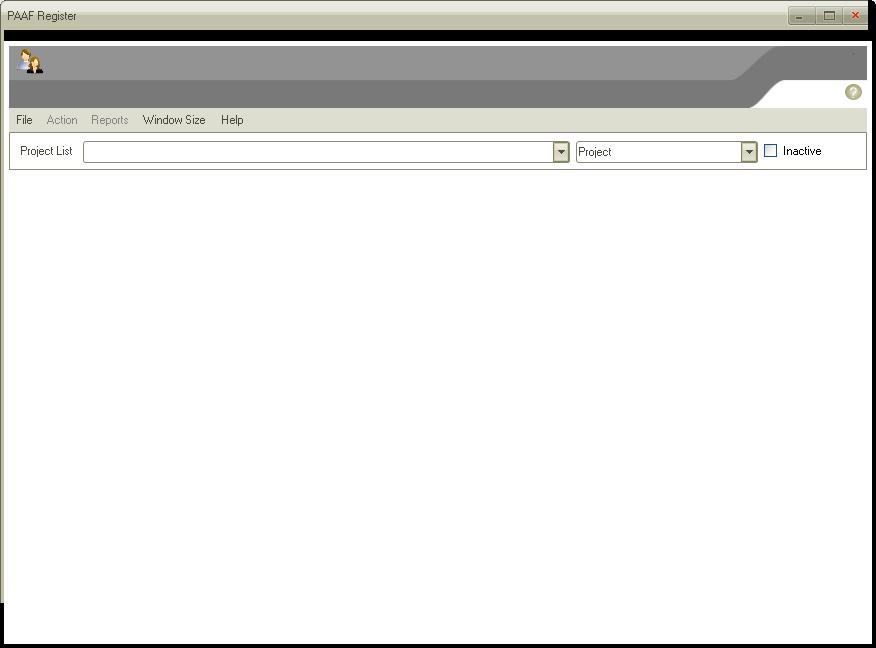

    Everytime I create a Form with the Telerik RadForm then assign the Desert theme to it, it looks partly loaded only when I launch the application (As per screenshot).
    If you look at the borders, they look blacked out.
    I use Telerik Winforms 2011.1.11.419
    It only seems to happen with Desert theme, and on all forms (even with no code in it).
  2. Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 21 Jun 2011 Link to this post

    Hello Peter Woodward,

    Thank you for writing and for the attached screen shot.

    In order to be able to help you I will need some more detailed information about the way you apply the theme. When do you apply it, what method do you use to apply it? If you are able to isolate and reproduce the behavior in a sample application, you will greatly reduce the time I need to investigate and identify the cause of the issue.

    Looking forward to your response.

    Regards,
    Ivan Petrov
    the Telerik team
    Q1’11 SP1 of RadControls for WinForms is available for download; also available is the Q2'11 Roadmap for Telerik Windows Forms controls.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Rob
    Rob avatar
    10 posts
    Member since:
    Oct 2004

    Posted 22 Jun 2011 Link to this post

    Hey, you know what, I know how to replicate it but not fix it.
    It is due to a timer that we use as a fader to the form. so the main form starts at 0 opacity, then using the code below it increases the fade to 100%


    ******************** Code ******************************


    Public Class Form1




        Private m_showing As Boolean = True




        Private Sub fadeTimer_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles fadeTimer.Tick
            Dim d As Double
            If m_showing Then
                d = (1000 / Me.fadeTimer.Interval) / 100
                If Me.Opacity + d >= 1.0 Then
                    Me.Opacity = 1.0
                    Me.fadeTimer.Stop()
                Else
                    Me.Opacity += d
                End If
            Else
                d = (1000.0 / Me.fadeTimer.Interval) / 100.0
                If Me.Opacity - d <= 0.0 Then
                    Me.Opacity = 0.0
                    Me.fadeTimer.Stop()
                Else
                    Me.Opacity -= d
                End If
            End If
        End Sub




        Private Sub MainWindow_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load




            Me.Opacity = 0
            Me.Activate()
            Me.Refresh()
            fadeTimer.Start()
            Me.Refresh()
        End Sub




    End Class






    ******************** Designer  *****************************


    <Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
    Partial Class Form1
        Inherits Telerik.WinControls.UI.RadForm




        'Form overrides dispose to clean up the component list.
        <System.Diagnostics.DebuggerNonUserCode()> _
        Protected Overrides Sub Dispose(ByVal disposing As Boolean)
            Try
                If disposing AndAlso components IsNot Nothing Then
                    components.Dispose()
                End If
            Finally
                MyBase.Dispose(disposing)
            End Try
        End Sub




        'Required by the Windows Form Designer
        Private components As System.ComponentModel.IContainer




        'NOTE: The following procedure is required by the Windows Form Designer
        'It can be modified using the Windows Form Designer.
        'Do not modify it using the code editor.
        <System.Diagnostics.DebuggerStepThrough()> _
        Private Sub InitializeComponent()
            Me.components = New System.ComponentModel.Container
            Me.DesertTheme1 = New Telerik.WinControls.Themes.DesertTheme
            Me.RadLabel1 = New Telerik.WinControls.UI.RadLabel
            Me.RadLabel2 = New Telerik.WinControls.UI.RadLabel
            Me.fadeTimer = New System.Windows.Forms.Timer(Me.components)
            CType(Me.RadLabel1, System.ComponentModel.ISupportInitialize).BeginInit()
            CType(Me.RadLabel2, System.ComponentModel.ISupportInitialize).BeginInit()
            CType(Me, System.ComponentModel.ISupportInitialize).BeginInit()
            Me.SuspendLayout()
            '
            'RadLabel1
            '
            Me.RadLabel1.Font = New System.Drawing.Font("Microsoft Sans Serif", 11.25!, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, CType(0, Byte))
            Me.RadLabel1.Location = New System.Drawing.Point(12, 54)
            Me.RadLabel1.Name = "RadLabel1"
            Me.RadLabel1.Size = New System.Drawing.Size(510, 21)
            Me.RadLabel1.TabIndex = 0
            Me.RadLabel1.Text = "all I did was add the telerik references then make the form's theme Desert"
            '
            'RadLabel2
            '
            Me.RadLabel2.Font = New System.Drawing.Font("Microsoft Sans Serif", 11.25!, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, CType(0, Byte))
            Me.RadLabel2.Location = New System.Drawing.Point(138, 98)
            Me.RadLabel2.Name = "RadLabel2"
            Me.RadLabel2.Size = New System.Drawing.Size(196, 21)
            Me.RadLabel2.TabIndex = 1
            Me.RadLabel2.Text = "Me.ThemeName = ""Desert"""
            '
            'fadeTimer
            '
            Me.fadeTimer.Interval = 50
            '
            'Form1
            '
            Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
            Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
            Me.ClientSize = New System.Drawing.Size(531, 331)
            Me.Controls.Add(Me.RadLabel2)
            Me.Controls.Add(Me.RadLabel1)
            Me.Name = "Form1"
            Me.Opacity = 0
            '
            '
            '
            Me.RootElement.ApplyShapeToControl = True
            Me.Text = "Form1"
            Me.ThemeName = "Desert"
            CType(Me.RadLabel1, System.ComponentModel.ISupportInitialize).EndInit()
            CType(Me.RadLabel2, System.ComponentModel.ISupportInitialize).EndInit()
            CType(Me, System.ComponentModel.ISupportInitialize).EndInit()
            Me.ResumeLayout(False)
            Me.PerformLayout()




        End Sub
        Friend WithEvents DesertTheme1 As Telerik.WinControls.Themes.DesertTheme
        Friend WithEvents RadLabel1 As Telerik.WinControls.UI.RadLabel
        Friend WithEvents RadLabel2 As Telerik.WinControls.UI.RadLabel
        Friend WithEvents fadeTimer As System.Windows.Forms.Timer




    End Class
  5. Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 27 Jun 2011 Link to this post

    Hello Peter,

    Thank you for writing back.

    I used your code in a project in a try to reproduce the issue, however I was unable to do so. In the project I apply the theme in the form Load event as you did not specify where in your code you are applying it. I have attached a video demonstrating the behavior on my side. I would kindly ask you to provide information on how you are applying the theme and when in order for me to find the case of the issue.

    I am looking forward to your reply.

    Greetings,
    Ivan Petrov
    the Telerik team

    Q1’11 SP1 of RadControls for WinForms is available for download; also available is the Q2'11 Roadmap for Telerik Windows Forms controls.
  6. Rob
    Rob avatar
    10 posts
    Member since:
    Oct 2004

    Posted 27 Jun 2011 Link to this post

    Thank you for the video.
    Very weird that it's not happening to you. However you didn't show the Designer so it could be coming from there.
    I sent you my code in the previous reply. I do apply the theme in the designer
    Me.ThemeName = "Desert"

    Now I ran my simple form again without any themes and I got the same error. So sorry for the lack of investigation but it's not theme related, it's to do with the Telerik.Wincontrols.UI.RadForm

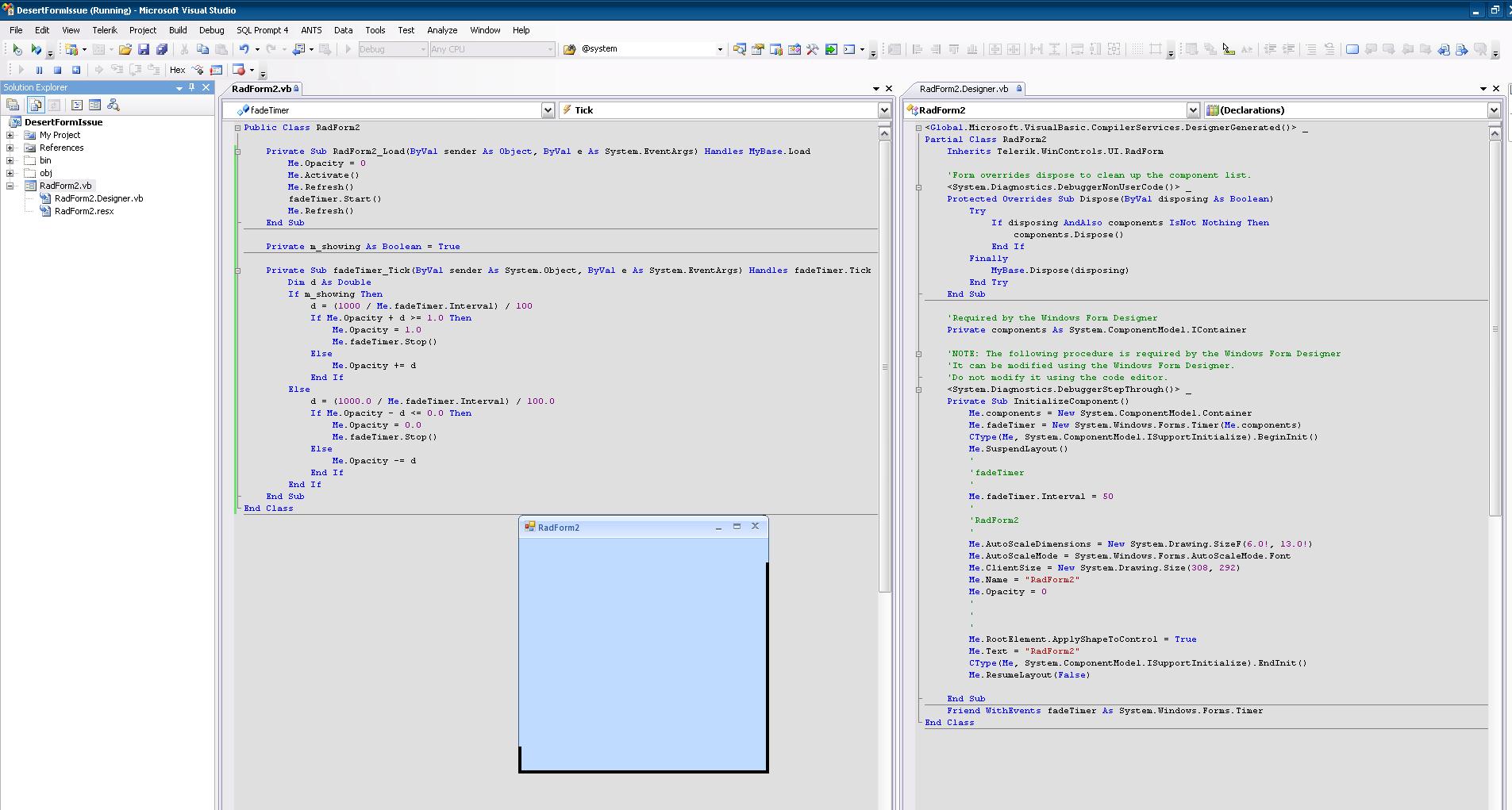

    I have attached a screen shot that shows you a brand new project, with only one form, and nothing in it apart from the fade in code. I ran it and it still shows darkened edges, even without a theme.
    I checked again, even on my users PC and it's still happening.
    OS: XP Pro

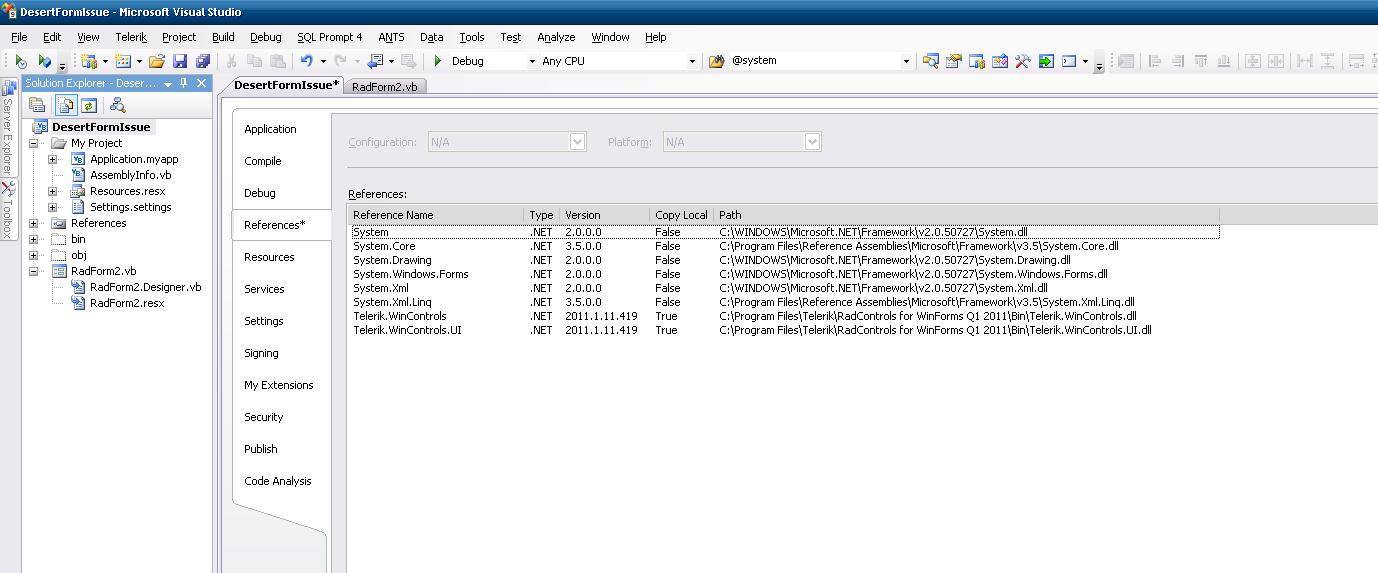

    Telerik: Q1 2011 (As per screenshot).

    If you still cannot reproduce it then please send me a designer screen shot as well just in case.

    Thank you.

    Anyone else with the same issue?
  7. Rob
    Rob avatar
    10 posts
    Member since:
    Oct 2004

    Posted 27 Jun 2011 Link to this post

    OK!!!
    I have another update.
    It doesn't work on XP but works fine on Windows 7!!!!

    So please can you re run your test app on a windows XP Pro PC?

    Thanks
  8. Answer
    Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 30 Jun 2011 Link to this post

    Hello Peter,

    Thank you for the additional info.

    I was able to reproduce the issue on an XP machine. The reason for the issue is that Windows XP does not invalidate the non-client area of the RadForm as Windows 7 does. The workaround to this is to use a RadShapedForm with a RadTitleBar. This way you will not experience this issue as the RadShapedForm does not have a non-client area.

    I hope this will help you. If you have further questions, I would be happy to help.

    Kind regards,
    Ivan Petrov
    the Telerik team
