telerik:GridCalculatedColumn problem

6 posts, 0 answers
  1. John Aghadiuno
    John Aghadiuno avatar
    9 posts
    Member since:
    Apr 2011

    Posted 31 Jan 2012 Link to this post

    Hello all,

    I am having trouble with the calculated column. everything works well until the calculated column is added then I get error message "Identifier expected".

    Have gone through the documentations and examples but cannot figure out what's wrong and why it's not working.
    Here is the code below. Any insight would be appreciated. Thanks!




    <telerik:RadGrid
         ID="ReportGrid"
         runat="server"
         DataSourceID="SearchResultDataSource"

             >


             <MasterTableView
             DataSourceID="SearchResultDataSource"
             AllowPaging="false"

             >


                 <Columns>


                     <telerik:GridBoundColumn
                     DataField="name_last_first"
                     HeaderText="Name"
                      SortExpression="name_last_first"
                       UniqueName="name_last_first"

                         Aggregate="CountDistinct"
                          FooterAggregateFormatString="<b>{0:d}</b>"

                          />


                     <telerik:GridNumericColumn
                     DataField="07" HeaderText="July"
                      SortExpression="07" UniqueName="07"

                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                       />



                     <telerik:GridNumericColumn
                     DataField="08"
                     HeaderText="Aug" SortExpression="08"
                     UniqueName="08"

                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                     />


                     <telerik:GridNumericColumn DataField="09" HeaderText="Sept" SortExpression="09" UniqueName="09"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />



                     <telerik:GridNumericColumn DataField="10" HeaderText="Oct" SortExpression="10" UniqueName="10"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />



                     <telerik:GridNumericColumn DataField="11" HeaderText="Nov" SortExpression="11" UniqueName="11"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />



                     <telerik:GridNumericColumn DataField="12" HeaderText="Dec" SortExpression="12" UniqueName="12"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />

                     <telerik:GridNumericColumn DataField="01" HeaderText="Jan" SortExpression="01" UniqueName="01"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />

                     <telerik:GridNumericColumn DataField="02" HeaderText="Feb" SortExpression="02" UniqueName="02"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />



                     <telerik:GridNumericColumn DataField="03" HeaderText="Mar" SortExpression="03" UniqueName="03"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />



                     <telerik:GridNumericColumn DataField="04" HeaderText="April" SortExpression="04" UniqueName="04"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />


                     <telerik:GridNumericColumn DataField="05" HeaderText="May" SortExpression="05" UniqueName="05"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />

                     <telerik:GridNumericColumn
                     DataField="06"
                     HeaderText="June"
                      SortExpression="06"
                      UniqueName="06"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
    />



              <telerik:GridCalculatedColumn
              HeaderText="Opened"
              UniqueName="Opened"
              Aggregate="Sum"
              FooterAggregateFormatString="<b>{0:d}</b>"
              DataFormatString="{0:d}"
              DataType="System.Int32"
              DataFields="01,02,03,04,05,06,07,08,09,10,11,12"
              Expression="{0}+{1}+{2}+{3}+{4}+{5}+{6}+{7}+{8}+{9}+{10}+{11}"
              />


                 </Columns>


                  <GroupByExpressions>

                     <telerik:GridGroupByExpression>
                         <GroupByFields>
                            <telerik:GridGroupByField FieldName="unit_type" HeaderText=" " SortOrder="Ascending"  />
                         </GroupByFields>

                         <SelectFields>
                             <telerik:GridGroupByField FieldName="unit_type" HeaderText=" " HeaderValueSeparator=" "  SortOrder="Ascending"  />
                         </SelectFields>
                     </telerik:GridGroupByExpression>




                     <telerik:GridGroupByExpression>
                         <GroupByFields>
                             <telerik:GridGroupByField FieldName="unit_name" HeaderText=" " SortOrder="Ascending"  />
                         </GroupByFields>

                         <SelectFields>
                             <telerik:GridGroupByField FieldName="unit_name" HeaderText=" " HeaderValueSeparator=" "  SortOrder="Ascending"  />
                         </SelectFields>
                     </telerik:GridGroupByExpression>


                 </GroupByExpressions>




             </MasterTableView>

         </telerik:RadGrid>


     <asp:SqlDataSource ID="SearchResultDataSource" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString %>"
         SelectCommand="rpt_getOpenAndAssignedByMonthForUnit" EnableCaching="False" SelectCommandType="StoredProcedure">

         <SelectParameters>
        <asp:ControlParameter
        Name="int_fy"
        Type="Int32"
        PropertyName="Text"
        ControlID="YearTxt"
        />
  2. John Aghadiuno
    John Aghadiuno avatar
    9 posts
    Member since:
    Apr 2011

    Posted 01 Feb 2012 Link to this post

    I set (EnableLinqExpressions="false" ) on the Grid and the error message has disappeared. Not sure why EnableLinqExpression would cause that error, or why it's even True by default rather than False.

    But now I get very odd and unexpected results. The values for the calculated columns are all the same for every row, and the numbers are not adding up (not sure where it's getting those numbers from).

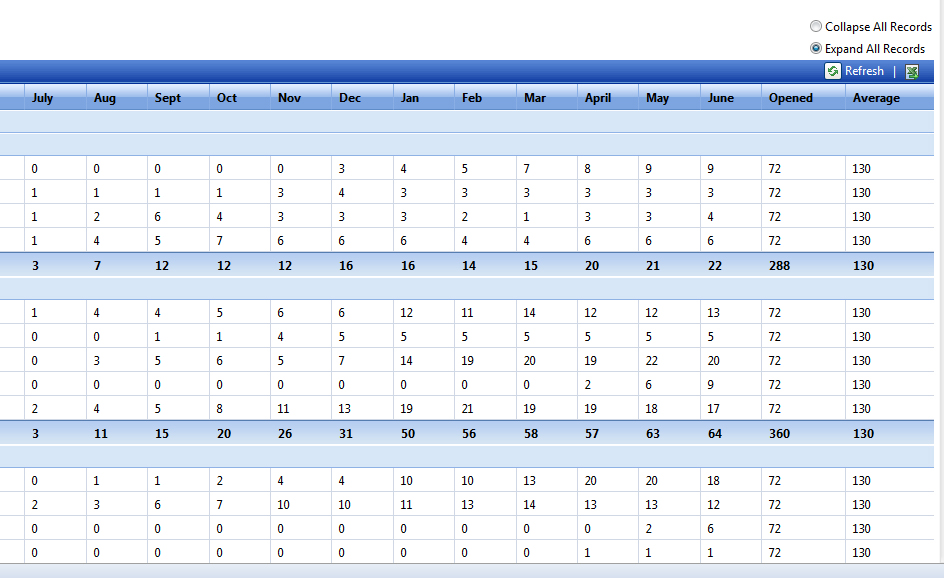

    Below is a screenshot of the page and the code used to generate that page. Any help or insight would be appreciated.

    Thank you.


         <telerik:RadGrid
         ID="ReportGrid"
         runat="server"
         DataSourceID="SearchResultDataSource"
             AllowSorting="True"
             BorderStyle="None"
             GridLines="None"
             ShowFooter="True"
             PageSize="1000"
             Width="100%"
             CellSpacing="2"
             CellPadding="2"
             ShowGroupPanel="False"
             EnableLinqExpressions="false"
             >


             <MasterTableView
             DataSourceID="SearchResultDataSource"
             AllowPaging="false"



                 DataKeyNames="user_id, name_last_first"

                 AdditionalDataFieldNames="07, 08, 09, 10, 11, 12, 01, 02, 03, 04, 05, 06, unit_type, unit_name"
                 HierarchyLoadMode="ServerBind"
                 HierarchyDefaultExpanded="True"
                 UseAllDataFields="False"



             GroupsDefaultExpanded="true"

                 AutoGenerateColumns="False"
                 AllowFilteringByColumn="false"

                 CanRetrieveAllData="false"
                 TableLayout="Auto"

                 ShowGroupFooter="true"
                 GroupLoadMode="Server"

                 EnableHeaderContextAggregatesMenu="True"
                 EnableHeaderContextFilterMenu="True"
                 EnableHeaderContextMenu="True"
                 ShowHeadersWhenNoRecords="True"

                 ShowFooter="True"
                 Frame="Border"
                 BorderStyle="None"
                 GridLines="None"
                 Width="100%"

                 AllowSorting="True"
                 ClientIDMode="AutoID"
                 PageSize="1000"


                 CommandItemDisplay="TopAndBottom"




                 >


                 <Columns>

                     <telerik:GridBoundColumn
                     DataField="name_last_first"
                     HeaderText="Name"
                     SortExpression="name_last_first"
                     UniqueName="name_last_first"

                     Aggregate="CountDistinct"
                     FooterAggregateFormatString="Totals: <b>{0:d}</b>"

                          />


                     <telerik:GridBoundColumn

                     DataField="07"
                     HeaderText="July"
                     SortExpression="07"
                     UniqueName="07"

                     Aggregate="Sum"
                     FooterAggregateFormatString="<b>{0:d}</b>"
                       />



                     <telerik:GridBoundColumn
                     DataField="08"
                     HeaderText="Aug" SortExpression="08"
                     UniqueName="08"

                     Aggregate="Sum"
                     FooterAggregateFormatString="<b>{0:d}</b>"
                     />




                     <telerik:GridBoundColumn
                     DataField="09"
                     HeaderText="Sept"
                     SortExpression="09"
                     UniqueName="09"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />





                     <telerik:GridBoundColumn
                     DataField="10"
                     HeaderText="Oct"
                     SortExpression="10"
                     UniqueName="10"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />



                     <telerik:GridBoundColumn
                     DataField="11"
                     HeaderText="Nov"
                     SortExpression="11"
                     UniqueName="11"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />



                     <telerik:GridBoundColumn
                     DataField="12"
                     HeaderText="Dec"
                     SortExpression="12"
                     UniqueName="12"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
                   />





                     <telerik:GridBoundColumn
                     DataField="01"
                     HeaderText="Jan"
                     SortExpression="01"
                     UniqueName="01"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />





                     <telerik:GridBoundColumn
                     DataField="02"
                     HeaderText="Feb"
                     SortExpression="02"
                     UniqueName="02"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />



                     <telerik:GridBoundColumn
                     DataField="03"
                     HeaderText="Mar"
                     SortExpression="03"
                     UniqueName="03"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />



                     <telerik:GridBoundColumn
                     DataField="04"
                     HeaderText="April"
                     SortExpression=
                     "04"
                     UniqueName="04"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />






                     <telerik:GridBoundColumn

                     DataField="05"
                     HeaderText="May"
                     SortExpression="05"
                     UniqueName="05"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"

                   />





                     <telerik:GridBoundColumn

                     DataField="06"
                     HeaderText="June"
                      SortExpression="06"
                      UniqueName="06"
                   Aggregate="Sum"
                   FooterAggregateFormatString="<b>{0:d}</b>"
    />




              <telerik:GridCalculatedColumn
              DataType="System.Int32"
              HeaderText="Opened"
              UniqueName="Opened"

              Aggregate="Sum"
              FooterAggregateFormatString="<b>{0:d}</b>"
              DataFormatString="{0:d}"

              DataFields="07, 08, 09, 10, 11, 12, 01, 02, 03, 04, 05, 06"
              Expression="{01}+{02}+{03}+{04}+{05}+{06}+{07}+{08}+{09}+{10}+{11}"
              />

                  <telerik:GridCalculatedColumn
                 DataType="System.Int32"
                 HeaderText="Average"
                 UniqueName="Average"

                 Aggregate="Avg"
                 FooterAggregateFormatString="<b>{0:d}</b>"
                 DataFormatString="{0:d}"

                 DataFields="07, 08, 09, 10, 11, 12, 01, 02, 03, 04, 05, 06"
                 Expression="({01}+{02}+{03}+{04}+{05}+{06}+{07}+{08}+{09}+{10}+{11})/12"
                 />



                 </Columns>


                  <GroupByExpressions>

                     <telerik:GridGroupByExpression>
                         <GroupByFields>
                            <telerik:GridGroupByField FieldName="unit_type" HeaderText=" " SortOrder="Ascending"  />
                         </GroupByFields>

                         <SelectFields>
                             <telerik:GridGroupByField FieldName="unit_type" HeaderText=" " HeaderValueSeparator=" "  SortOrder="Ascending"  />
                         </SelectFields>
                     </telerik:GridGroupByExpression>




                     <telerik:GridGroupByExpression>
                         <GroupByFields>
                             <telerik:GridGroupByField FieldName="unit_name" HeaderText=" " SortOrder="Ascending"  />
                         </GroupByFields>

                         <SelectFields>
                             <telerik:GridGroupByField FieldName="unit_name" HeaderText=" " HeaderValueSeparator=" "  SortOrder="Ascending"  />
                         </SelectFields>
                     </telerik:GridGroupByExpression>





                 </GroupByExpressions>






                 <RowIndicatorColumn Visible="True" FilterControlAltText="Filter RowIndicator column"
                     Groupable="True" Reorderable="True" Resizable="True">
                 </RowIndicatorColumn>


                 <ExpandCollapseColumn Groupable="True" Reorderable="True" Resizable="True" Visible="True">
                     <HeaderStyle Font-Size="20px" ForeColor="Black" HorizontalAlign="Center"></HeaderStyle>
                 </ExpandCollapseColumn>


             </MasterTableView>


             <HeaderStyle Font-Bold="True" Wrap="false" />
             <GroupHeaderItemStyle Font-Bold="True" Wrap="false" />


             <FooterStyle Font-Bold="True" Wrap="false" />


             <ClientSettings AllowDragToGroup="True" AllowGroupExpandCollapse="True" AllowColumnHide="True"
                 AllowExpandCollapse="True" AllowRowHide="True" AllowRowsDragDrop="True" ReorderColumnsOnClient="True"
                 AllowColumnsReorder="True">

                 <Selecting AllowRowSelect="True" />

                 <Scrolling AllowScroll="False" FrozenColumnsCount="2" UseStaticHeaders="True" SaveScrollPosition="True"
                     EnableVirtualScrollPaging="false" />

                 <Resizing AllowColumnResize="True" AllowRowResize="True" ResizeGridOnColumnResize="True"
                     EnableRealTimeResize="True" ClipCellContentOnResize="False" />

             </ClientSettings>

             <FilterMenu EnableImageSprites="False">
             </FilterMenu>




             <GroupingSettings ShowUnGroupButton="True" RetainGroupFootersVisibility="true" GroupByFieldsSeparator=" " />


         </telerik:RadGrid>












     <asp:SqlDataSource ID="SearchResultDataSource" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString %>"
         SelectCommand="rpt_getOpenAndAssignedByMonthForUnit" EnableCaching="False" SelectCommandType="StoredProcedure">

           </asp:SqlDataSource>




  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. John Aghadiuno
    John Aghadiuno avatar
    9 posts
    Member since:
    Apr 2011

    Posted 01 Feb 2012 Link to this post

    Solved the problem. It was taking the column names as literals. So changed the column names from "01 through 12" to "Jan through Dec" and now the column is doing what it was intended to do :) Duh!
  5. David
    David avatar
    159 posts
    Member since:
    Mar 2014

    Posted 29 Jul 2014 Link to this post

    I have the same problem and can't rename DataFields, so they are "numeric".
    What can i do to make the following work for me?

                              <telerik:GridCalculatedColumn DataFields="1001,5001"
                                                                  Expression="{0}+{1}"
                                                                  HeaderText="Total" DataType="System.Decimal"
                                                                  FilterControlWidth="60px"  ItemStyle-HorizontalAlign="Right"
                                                                  ItemStyle-Width="60px" ItemStyle-CssClass="label_SS_8" DataFormatString="{0:C0}"
                                                                  Aggregate="Sum" FooterStyle-Width="60px" FooterStyle-HorizontalAlign="Right"/>
  6. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 31 Jul 2014 in reply to David Link to this post

    Hi David,

    I'm afraid when you set numeric values as DataFields, these values get added and are not treated as column name. One suggestion is that you can try to add the contents of two columns and display it in a label using GridTemplateColumn as shown below:

    ASPX:
    <telerik:GridTemplateColumn HeaderText="Total">
        <ItemTemplate>
            <asp:Label ID="lblTotal" runat="server"></asp:Label>
        </ItemTemplate>
    </telerik:GridTemplateColumn>

    C#:
    protected void rgrdSample_ItemDataBound(object sender, GridItemEventArgs e)
    {
      if (e.Item is GridDataItem)
      {
       GridDataItem dataItem = (GridDataItem)e.Item;
       Label lblTotal = (Label)dataItem.FindControl("lblTotal");
       int total = (Convert.ToInt16(dataItem["1001"].Text) + Convert.ToInt16(dataItem["5001"].Text));
       lblTotal.Text = total.ToString();
      }
    }

    Thanks,
    Princy
  7. David
    David avatar
    159 posts
    Member since:
    Mar 2014

    Posted 31 Jul 2014 in reply to Princy Link to this post

    Thank you Princy.
    I ended up with similar, more generic solution. Here is the code that somebody might find useful:

                If (TypeOf e.Item Is GridDataItem) Then

                    Dim gridItem As GridDataItem = CType(e.Item, GridDataItem)

                    Dim FinalTotal As Decimal = 0
                    For Each column As GridColumn In grdAggregateSAM.MasterTableView.RenderColumns
                        If (TypeOf column Is GridBoundColumn) Then

                            If column.UniqueName.StartsWith("X") Then

                                Dim value As Decimal = 0
                                If IsNumeric(gridItem(column.UniqueName).Text.Replace("$", "")) Then

                                    If gridItem(column.UniqueName).Text.Contains("(") Then
                                        value = Convert.ToDecimal(gridItem(column.UniqueName).Text.Replace("$", "").Replace("(", "").Replace(")", "")) * (-1)
                                    Else
                                        value = Convert.ToDecimal(gridItem(column.UniqueName).Text.Replace("$", ""))
                                    End If

                                End If

                                FinalTotal = FinalTotal + value

                            End If

                            If column.UniqueName = "FinalTotal" Then
                                gridItem(column.UniqueName).Text = FinalTotal
                            End If

                        End If
                    Next
                End If
Back to Top
UI for ASP.NET Ajax is Ready for VS 2017
