Subtotal a field that occurs in a group total

4 posts, 0 answers
  1. Doug
    Doug avatar
    26 posts
    Member since:
    Feb 2011

    Posted 24 Feb 2013 Link to this post

    I have a report  that is using Q1 2013 (6.2.13.110).  This is a WINFORMS application written in VB.NET 2010

    I have 3 group sections on the report where group 2 ("CltName") has a few summary fields as well as a Last(xxx) field (lets call it "GroupEndBalance".  I would like to create a summary field for "GroupEndBalance" in the "CltMasterNameGroup" but reporting will not allow a Sum(Last(xxx)) or a Sum(GroupEndBalance).

    How can I get a summary of the "GroupEndBalance" field into the "CltMasterNameGroup".

    I think if I was able to create a global variable and store the sum of this value on group2 change that may work but I am unsure as to how to accomplish that.

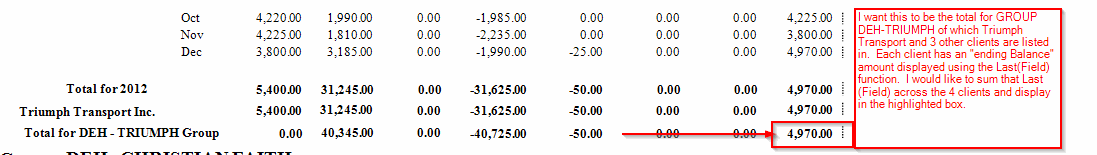

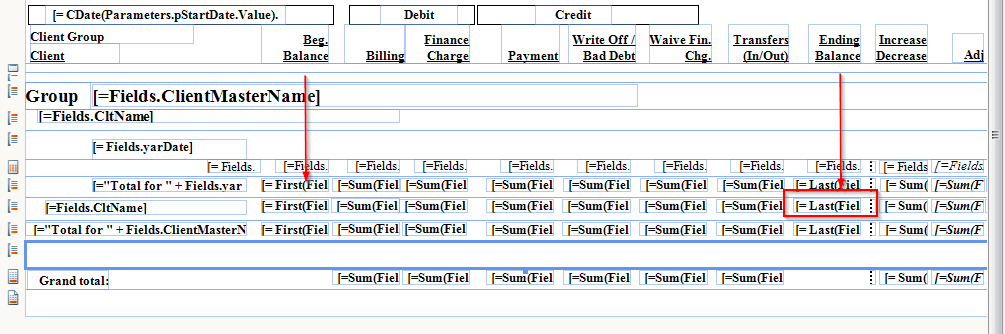

    I have attached a screen shot of what the design of the report is so you can get an idea of what it looks like.

    Any detailed ideas would be helpful.

    Doug

  2. Doug
    Doug avatar
    26 posts
    Member since:
    Feb 2011

    Posted 24 Feb 2013 Link to this post

    I was able to come up with a solution to my problem.  Hopefully this was the correct way to make what I wanted to happen happen.

    Inherits Telerik.Reporting.Report
    Dim gBegBal As Double
    Dim gEndBal As Double

    Public Sub New()
        InitializeComponent()
        gBegBal = 0
        gEndBal = 0
    End Sub

    Private Sub TextBox26_ItemDataBinding(ByVal sender As Object, ByVal e As System.EventArgs) Handles TextBox26.ItemDataBinding
        Dim txt As Telerik.Reporting.Processing.TextBox = DirectCast(sender, Telerik.Reporting.Processing.TextBox)
        Dim dataObject As Telerik.Reporting.Processing.IDataObject = DirectCast(txt.DataObject, Telerik.Reporting.Processing.IDataObject)
        gBegBal = gBegBal + DirectCast(dataObject("BegBal"), Decimal)
    End Sub

    Private Sub uiGroupBegBal_ItemDataBound(ByVal sender As Object, ByVal e As System.EventArgs) Handles uiGroupBegBal.ItemDataBound
        Dim txt As Telerik.Reporting.Processing.TextBox = DirectCast(sender, Telerik.Reporting.Processing.TextBox)
        txt.Value = gBegBal
        gBegBal = 0
    End Sub


    Private Sub uiGroupEndingBal_ItemDataBound(ByVal sender As Object, ByVal e As System.EventArgs) Handles uiGroupEndingBal.ItemDataBound
        Dim txt As Telerik.Reporting.Processing.TextBox = DirectCast(sender, Telerik.Reporting.Processing.TextBox)
        txt.Value = gEndBal
        gEndBal = 0
    End Sub


    Private Sub cltNameGroupFooter_ItemDataBound(ByVal sender As Object, ByVal e As System.EventArgs) Handles cltNameGroupFooter.ItemDataBound
        Dim gTextBox3 As Decimal = 0
        Dim section As Processing.GroupSection = DirectCast(sender, Processing.GroupSection)
        gTextBox3 = Convert.ToDecimal(DirectCast(Processing.ElementTreeHelper.GetChildByName(section, "TextBox3"), Telerik.Reporting.Processing.TextBox).Value)
        gEndBal = gEndBal + gTextBox3
    End Sub
  3. DevCraft banner
  4. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 25 Feb 2013 Link to this post

    Funny timing, your issue is more or less the same as one I was having and I'd thought up a similar fudge to resolve.  Hopefully someone at telerik can suggest a built in mechanism for this!
  5. Stef
    Admin
    Stef avatar
    3044 posts

    Posted 28 Feb 2013 Link to this post

    Hello everyone,

    Please note that this solution depends on the order in of the items in the report. If for some reason items change positions in the ReportItemBase.Items collection the events will appear in different order and the logic will fail.

    It is not very clear from the screenshots what is the scenario and which TextBox items values are meant to be summed, but proper data structure with or without applied data function for a given scope should get the desired values.

    If you send us more details about your scenario or even better a whole runnable sample project in a support ticket or via link to a shared document, it would be help us to provide you with more accurate suggestions.

    Kind regards,
    Stef
    the Telerik team
