Styling GridView (GridViewRow) - Implict themes

3 Answers 494 Views

GridView

This is a migrated thread and some comments may be shown as answers.

Evelyn asked on 17 Nov 2015, 05:54 PM

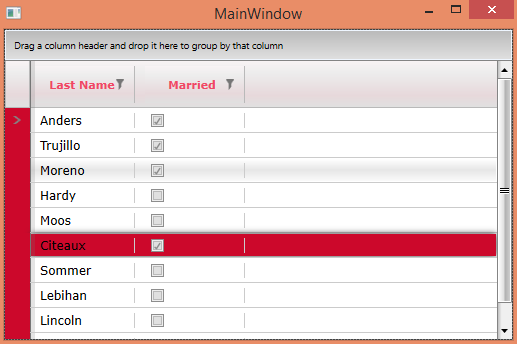

I am trying to style my grid, nothing too complex, just the colors. I could change some things, but I could not change the color of the row when it is selected. I can not understand why. I tried every single thread about styling RadGridView and also the documentation (http://docs.telerik.com/devtools/wpf/controls/radgridview/styles-and-templates/stylines-and-templates-overview.html).

What is wrong with my styling? Can someone help me?

Here is my code:

<ResourceDictionary

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"

xmlns:gi="clr-namespace:NL.GI.ComponentesWPF.Cliente"

xmlns:Telerik_Windows_Controls_Chromes="clr-namespace:Telerik.Windows.Controls.Chromes;assembly=Telerik.Windows.Controls"

xmlns:sys="clr-namespace:System;assembly=mscorlib">

<telerik:Windows8Theme x:Key="Theme"/>

<SolidColorBrush x:Key="GridView_HeaderInnerBorder" Color="Transparent"/>

<SolidColorBrush x:Key="GridView_HeaderOuterBorder" Color="#FFB9B9B9"/>

<SolidColorBrush x:Key="GridView_HeaderOuterBorder_Over" Color="Gray"/>

<SolidColorBrush x:Key="GridView_HeaderInnerBorder_Over" Color="Transparent"/>

<SolidColorBrush x:Key="GridView_HeaderOuterBorder_Selected" Color="Transparent"/>

<SolidColorBrush x:Key="GridView_HeaderInnerBorder_Selected" Color="Black"/>

<SolidColorBrush x:Key="GridView_HeaderRowOuterBorder" Color="#FFB9B9B9"/>

<SolidColorBrush x:Key="GridView_HeaderRowInnerBorder" Color="Transparent"/>

<LinearGradientBrush x:Key="GridView_HeaderBackground_Over" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFF8F3F4" Offset="0"/>

<GradientStop Color="#FFEDEDED" Offset="0.25"/>

<GradientStop Color="#FFE7D8DB" Offset="0.75"/>

<GradientStop Color="#FFE0E0E0" Offset="1"/>

</LinearGradientBrush>

<LinearGradientBrush x:Key="GridView_HeaderBackground_Selected" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFF8F3F4" Offset="0"/>

<GradientStop Color="#FFEDEDED" Offset="0.25"/>

<GradientStop Color="#FFE7D8DB" Offset="0.75"/>

<GradientStop Color="#FFE0E0E0" Offset="1"/>

</LinearGradientBrush>

<LinearGradientBrush x:Key="GridView_HeaderBackground" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFF8F3F4" Offset="0"/>

<GradientStop Color="#FFEDEDED" Offset="0.25"/>

<GradientStop Color="#FFE7D8DB" Offset="0.75"/>

<GradientStop Color="#FFE0E0E0" Offset="1"/>

</LinearGradientBrush>

<LinearGradientBrush x:Key="GridView_HeaderRowBackground" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFF8F3F4" Offset="0"/>

<GradientStop Color="#FFEDEDED" Offset="0.25"/>

<GradientStop Color="#FFE7D8DB" Offset="0.75"/>

<GradientStop Color="#FFE0E0E0" Offset="1"/>

</LinearGradientBrush>

<SolidColorBrush x:Key="GridViewCommonHeader_BorderBrush" Color="Pink"/>

<SolidColorBrush x:Key="GridViewCommonHeader_Background" Color="Yellow"/>

<SolidColorBrush x:Key="GridViewHeaderCellDropMarkerPenBrush" Color="Yellow"/>

<SolidColorBrush x:Key="GridView_SortIndicatorColor" Color="White"/>

<SolidColorBrush x:Key="GridView_HeaderForeground" Color="#FFF04765"/>

<SolidColorBrush x:Key="GridView_HeaderForeground_Selected" Color="#FFF04765"/>

<SolidColorBrush x:Key="GridView_HeaderForeground_Over" Color="#FFF04765"/>

<SolidColorBrush x:Key="GridView_HierarchyBackground" Color="#FFCC082B"/>

<!--<LinearGradientBrush x:Key="GridView_RowIndicatorCellBackground" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFf8f6f9" Offset="0"/>

<GradientStop Color="#FFf0f0f0" Offset="0.75"/>

<GradientStop Color="#FFE6E6E6" Offset="1"/>

</LinearGradientBrush>-->

<SolidColorBrush x:Key="GridView_RowIndicatorCellBackground" Color="#FFCC082B"/>

<SolidColorBrush x:Key="GridView_NavigatorIndicatorBackground" Color="#FF848484"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground1" Color="#7F848484"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground2" Color="#FFCBCBCB"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground3" Color="#FF848484"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground4" Color="White"/>

<LinearGradientBrush x:Key="GridView_ErrorIndicatorBackground1" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFFC9999" Offset="0"/>

<GradientStop Color="#FFC26666" Offset="1"/>

</LinearGradientBrush>

<SolidColorBrush x:Key="GridView_ErrorIndicatorBackground2" Color="White"/>

<LinearGradientBrush x:Key="GridView_ErrorIndicatorBackground3" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="Red" Offset="0"/>

<GradientStop Color="#FF990000" Offset="1"/>

</LinearGradientBrush>

<SolidColorBrush x:Key="GridView_GridLinesItemBorder" Color="#FFB9B9B9"/>

<LinearGradientBrush x:Key="GridView_GroupPanelBackground" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFDFDFDF" Offset="1"/>

<GradientStop Color="#FFBABABA"/>

</LinearGradientBrush>

<SolidColorBrush x:Key="GridView_GroupPanelForeground" Color="#FFcc082b"/>

<SolidColorBrush x:Key="GridView_GroupPanelOuterBorder" Color="#FF6A6A6A"/>

<LinearGradientBrush x:Key="Background_Disabled" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#E5000000"/>

<GradientStop Color="#E5000000" Offset="1"/>

<GradientStop Color="#4C000000" Offset="0.5"/>

</LinearGradientBrush>

<!--<LinearGradientBrush x:Key="GridView_RowIndicatorCellBackground_Selected" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="White"/>

<GradientStop Color="#FFE6E6E6" Offset="0.5"/>

<GradientStop Color="#FFFAFAFA" Offset="1"/>

</LinearGradientBrush>-->

<SolidColorBrush x:Key="GridView_RowIndicatorCellBackground_Selected" Color="#FFCC082B" />

<DataTemplate x:Key="GridViewHeaderIndentCellDataTemplate">

<telerik:GridViewHeaderIndentCell telerik:StyleManager.Theme="{StaticResource Theme}"/>

</DataTemplate>

<SolidColorBrush x:Key="GridView_CellBackground_Edited" Color="Transparent"/>

<SolidColorBrush x:Key="ControlOuterBorder" Color="#FFCC082B"/>

<SolidColorBrush x:Key="ControlForeground" Color="Black"/>

<SolidColorBrush x:Key="ControlBackground" Color="White"/>

<SolidColorBrush x:Key="ControlInnerBorder" Color="#FFCC082B"/>

<SolidColorBrush x:Key="ControlOuterBorder_Invalid" Color="#FFDB000C"/>

<SolidColorBrush x:Key="ControlInnerBorder_Invalid" Color="White"/>

<SolidColorBrush x:Key="ItemOuterBorder_Over" Color="Transparent"/>

<SolidColorBrush x:Key="ItemInnerBorder_Over" Color="White"/>

<LinearGradientBrush x:Key="ItemBackground_Over" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="White"/>

<GradientStop Color="#FFE6E6E6" Offset="0.5"/>

<GradientStop Color="#FFFAFAFA" Offset="1"/>

</LinearGradientBrush>

<SolidColorBrush x:Key="ItemOuterBorder_Selected" Color="#FFCC082B"/>

<SolidColorBrush x:Key="ItemInnerBorder_Selected" Color="#FFCC082B"/>

<!--<LinearGradientBrush x:Key="ItemBackground_Selected" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="White"/>

<GradientStop Color="#FFE6E6E6" Offset="0.5"/>

<GradientStop Color="#FFFAFAFA" Offset="1"/>

</LinearGradientBrush>-->

<SolidColorBrush x:Key="ItemBackground_Selected" Color="#FFCC082B" />

<SolidColorBrush x:Key="ItemOuterBorder_Invalid" Color="#FFCE7D7D"/>

<LinearGradientBrush x:Key="ItemInnerBorder_Invalid" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFEBF4FD"/>

<GradientStop Color="#FFDBEAFD" Offset="1"/>

</LinearGradientBrush>

<LinearGradientBrush x:Key="ItemBackground_Invalid" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFFCDCDC"/>

<GradientStop Color="#FFFCC1C1" Offset="1"/>

</LinearGradientBrush>

<SolidColorBrush x:Key="ItemOuterBorder_SelectedUnfocused" Color="#FFC8C8C8"/>

<SolidColorBrush x:Key="ItemBackground_SelectedUnfocused" Color="#FFF0F0F0"/>

<SolidColorBrush x:Key="ItemInnerBorder_SelectedUnfocused" Color="White"/>

<SolidColorBrush x:Key="Item_AlternateBackground" Color="#FFCAECEE"/>

<SolidColorBrush x:Key="ItemBackground" Color="White"/>

<SolidColorBrush x:Key="ItemInnerBorder_Disabled" Color="#FFF8F8F8"/>

<SolidColorBrush x:Key="ItemBackground_Disabled" Color="#FFE0E0E0"/>

<SolidColorBrush x:Key="GridView_ItemForeground_Selected" Color="White"/>

<sys:Double x:Key="DropShadowEffectBlurRadius">10</sys:Double>

<Color x:Key="DropShadowEffectColor">#FF6B6B6B</Color>

<telerik:BooleanToVisibilityConverter x:Key="BooleanToVisibilityConverter"/>

<telerik:BooleanToOpacityConverter x:Key="BooleanToOpacityConverter"/>

<telerik:GridLineWidthToThicknessConverter x:Key="GridLineWidthToThicknessConverter"/>

<Style x:Key="StretchedContentControl" TargetType="ContentControl">

<Setter Property="HorizontalContentAlignment" Value="Center"/>

<Setter Property="VerticalContentAlignment" Value="Center"/>

</Style>

<Style x:Key="ColumnHeaderGripperStyle" TargetType="Thumb">

<Setter Property="Width" Value="8"/>

<Setter Property="Background" Value="Transparent"/>

<Setter Property="BorderBrush" Value="Transparent"/>

<Setter Property="BorderThickness" Value="0"/>

<Setter Property="HorizontalContentAlignment" Value="Stretch"/>

<Setter Property="VerticalContentAlignment" Value="Stretch"/>

<Setter Property="Padding" Value="0"/>

<Setter Property="Cursor" Value="SizeWE"/>

<Setter Property="Template">

<Setter.Value>

<ControlTemplate TargetType="Thumb">

<Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" Padding="{TemplateBinding Padding}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

<ControlTemplate x:Key="GridViewHeaderRowTemplate" TargetType="telerik:GridViewHeaderRow">

<telerik:SelectiveScrollingGrid>

<telerik:SelectiveScrollingGrid.ColumnDefinitions>

<ColumnDefinition Width="Auto"/>

<ColumnDefinition Width="*"/>

</telerik:SelectiveScrollingGrid.ColumnDefinitions>

<telerik:SelectiveScrollingGrid.RowDefinitions>

<RowDefinition Height="Auto"/>

<RowDefinition/>

</telerik:SelectiveScrollingGrid.RowDefinitions>

<telerik:CommonHeaderPresenter x:Name="PART_CommonHeaderPresenter" Grid.Column="3" telerik:StyleManager.Theme="{StaticResource Theme}"/>

<Border x:Name="CommonHeaderIndent" BorderBrush="{StaticResource GridViewCommonHeader_BorderBrush}" BorderThickness="0 0 1 1" Background="{StaticResource GridViewCommonHeader_Background}" Grid.ColumnSpan="2" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{Binding Visibility, ElementName=PART_CommonHeaderPresenter}"/>

<Grid x:Name="PART_OuterGrid" Grid.ColumnSpan="4" Grid.Row="1">

<Grid.RowDefinitions>

<RowDefinition Height="*"/>

</Grid.RowDefinitions>

<Border x:Name="PART_GridViewHeaderRowBorder" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" Padding="{TemplateBinding Padding}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}">

<Border BorderBrush="{StaticResource GridView_HeaderRowInnerBorder}" BorderThickness="0" Background="{TemplateBinding Background}"/>

</Border>

<Border x:Name="PART_FieldFilterPlaceholder" BorderBrush="{StaticResource ControlOuterBorder}" BorderThickness="0 0 1 1" Background="{StaticResource GridViewCommonHeader_Background}" Grid.Row="1" Visibility="{TemplateBinding FieldFilterPlaceholderVisibility}"/>

</Grid>

<telerik:DataCellsPresenter x:Name="PART_DataCellsPresenter" Grid.Column="3" Grid.Row="1" telerik:StyleManager.Theme="{StaticResource Theme}"/>

<Border x:Name="PART_IndicatorPresenter" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0 0 1 1" Grid.Row="1" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{TemplateBinding RowIndicatorVisibility}" Width="25">

<Border BorderBrush="{StaticResource GridView_HeaderInnerBorder}" BorderThickness="1" Background="{StaticResource GridView_HeaderBackground}"/>

</Border>

<telerik:IndentPresenter x:Name="PART_IndentPresenter" Grid.Column="1" ItemTemplate="{StaticResource GridViewHeaderIndentCellDataTemplate}" IndentLevel="{TemplateBinding IndentLevel}" MinHeight="{TemplateBinding MinHeight}" Grid.Row="1" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" telerik:StyleManager.Theme="{StaticResource Theme}"/>

<Border x:Name="PART_CommonHeaderHierarchyIndentPresenterAllLevels" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0,0,1,1" Background="{StaticResource GridViewCommonHeader_Background}" Grid.Column="2" Grid.Row="0" Grid.RowSpan="10" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility=

"{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"

Width="25"/>

<Border x:Name="PART_CommonHeaderHierarchyIndentPresenterFirstLevel" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0,0,1,1" Background="{StaticResource GridViewCommonHeader_Background}" Grid.Column="2" Margin="0, -1, 0, 0" Grid.Row="0" Grid.RowSpan="1" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility=

"{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"

Width="25"/>

<Border x:Name="PART_HierarchyIndentPresenter" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0 0 1 1" Grid.Column="2" Grid.Row="1" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility=

"{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"

Width="25">

<Border BorderBrush="{StaticResource GridView_HeaderInnerBorder}" BorderThickness="1" Background="{StaticResource GridView_HeaderBackground}"/>

</Border>

</telerik:SelectiveScrollingGrid>

</ControlTemplate>

<ControlTemplate x:Key="GridViewHeaderCellTemplate" TargetType="telerik:GridViewHeaderCell">

<Grid x:Name="PART_OuterGrid">

<Grid.RowDefinitions>

<RowDefinition Height="*"/>

<RowDefinition Height="Auto"/>

</Grid.RowDefinitions>

<VisualStateManager.VisualStateGroups>

<VisualStateGroup x:Name="CommonStates">

<VisualStateGroup.Transitions>

<VisualTransition GeneratedDuration="00:00:00.2000000" To="Normal"/>

<VisualTransition GeneratedDuration="00:00:00.2000000" To="MouseOver"/>

</VisualStateGroup.Transitions>

<VisualState x:Name="Normal"/>

<VisualState x:Name="MouseOver">

<Storyboard>

<DoubleAnimationUsingKeyFrames BeginTime="00:00:00" Duration="00:00:00.0010000" Storyboard.TargetProperty="Opacity" Storyboard.TargetName="GridViewHeaderCell_Over">

<DiscreteDoubleKeyFrame KeyTime="0:0:0" Value="1"/>

</DoubleAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames BeginTime="00:00:00" Duration="00:00:00.0010000" Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentPresenter">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_HeaderForeground_Over}"/>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Ascending">

<Storyboard>

<ObjectAnimationUsingKeyFrames BeginTime="00:00:00" Duration="00:00:00.0010000" Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentPresenter">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_HeaderForeground_Selected}"/>

</ObjectAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="PART_SortIndicator">

<DiscreteDoubleKeyFrame KeyTime="0:0:0" Value="1"/>

</DoubleAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="GridViewHeaderCell_Selected">

<DiscreteDoubleKeyFrame KeyTime="0:0:0" Value="1"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Descending">

<Storyboard>

<ObjectAnimationUsingKeyFrames BeginTime="00:00:00" Duration="00:00:00.0010000" Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentPresenter">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_HeaderForeground_Selected}"/>

</ObjectAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="PART_SortIndicator">

<DiscreteDoubleKeyFrame KeyTime="0:0:0" Value="1"/>

</DoubleAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="RenderTransform" Storyboard.TargetName="PART_SortIndicator">

<DiscreteObjectKeyFrame KeyTime="0:0:0">

<DiscreteObjectKeyFrame.Value>

<ScaleTransform ScaleY="-1" ScaleX="1"/>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="GridViewHeaderCell_Selected">

<DiscreteDoubleKeyFrame KeyTime="0:0:0" Value="1"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<Grid x:Name="PART_HeaderCellGrid" MinHeight="26" Margin="5 5 5 5" MinWidth="100">

<Grid.ColumnDefinitions>

<ColumnDefinition Width="*"/>

<ColumnDefinition Width="Auto"/>

</Grid.ColumnDefinitions>

<Border x:Name="GridViewHeaderCell" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Grid.ColumnSpan="2">

<Border BorderBrush="{StaticResource GridView_HeaderInnerBorder}" BorderThickness="0" Background="{TemplateBinding Background}"/>

</Border>

<Border x:Name="GridViewHeaderCell_Over" BorderBrush="{StaticResource GridView_HeaderOuterBorder_Over}" BorderThickness="{TemplateBinding BorderThickness}" Grid.ColumnSpan="2" Opacity="0">

<Border BorderBrush="{StaticResource GridView_HeaderInnerBorder_Over}" BorderThickness="1" Background="{StaticResource GridView_HeaderBackground_Over}"/>

</Border>

<Border x:Name="GridViewHeaderCell_Selected" BorderBrush="{StaticResource GridView_HeaderOuterBorder_Selected}" BorderThickness="{TemplateBinding BorderThickness}" Grid.ColumnSpan="2" Opacity="0">

<Border BorderBrush="{StaticResource GridView_HeaderInnerBorder_Selected}" BorderThickness="1" Background="{StaticResource GridView_HeaderBackground_Selected}"/>

</Border>

<ContentControl x:Name="ContentPresenter" ContentTemplate="{TemplateBinding ContentTemplate}" Content="{TemplateBinding Content}" Grid.ColumnSpan="2" Foreground="{TemplateBinding Foreground}" HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" IsTabStop="{TemplateBinding IsTabStop}" Margin="{TemplateBinding Padding}" Style="{StaticResource StretchedContentControl}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>

<Path x:Name="PART_SortIndicator" Grid.ColumnSpan="2" Data="M256,328 L248,336 264,336" Fill="{StaticResource GridView_SortIndicatorColor}" HorizontalAlignment="Center" Height="3" Margin="0 3 0 0" Opacity="0" RenderTransformOrigin=".5,.5" Stretch="Fill" VerticalAlignment="Top" Width="5">

<Path.RenderTransform>

<TransformGroup>

<ScaleTransform ScaleY="1" ScaleX="1"/>

<SkewTransform AngleY="0" AngleX="0"/>

<RotateTransform Angle="0"/>

<TranslateTransform X="0" Y="0"/>

</TransformGroup>

</Path.RenderTransform>

</Path>

<telerik:FilteringDropDown x:Name="PART_DistinctFilterControl" Grid.Column="1" Margin="0 0 4 0" telerik:StyleManager.Theme="{StaticResource Theme}" Visibility="{TemplateBinding FilteringUIVisibility}"/>

<Thumb x:Name="PART_LeftHeaderGripper" Grid.ColumnSpan="2" HorizontalAlignment="Left" IsTabStop="{TemplateBinding IsTabStop}" Style="{StaticResource ColumnHeaderGripperStyle}"/>

<Thumb x:Name="PART_RightHeaderGripper" Grid.ColumnSpan="2" HorizontalAlignment="Right" IsTabStop="{TemplateBinding IsTabStop}" Style="{StaticResource ColumnHeaderGripperStyle}"/>

</Grid>

<telerik:FieldFilterControl x:Name="PART_FieldFilterControl" Grid.Row="1" telerik:StyleManager.Theme="{StaticResource Theme}" Visibility="{TemplateBinding FieldFilterControlVisibility}"/>

</Grid>

</ControlTemplate>

<ControlTemplate x:Key="GridViewRow_ValidationToolTipTemplate" TargetType="ToolTip">

<Grid x:Name="Root" Margin="5 0" Opacity="0" RenderTransformOrigin="0,0">

<Grid.RenderTransform>

<TranslateTransform x:Name="xform" X="-25"/>

</Grid.RenderTransform>

<VisualStateManager.VisualStateGroups>

<VisualStateGroup x:Name="OpenStates">

<VisualStateGroup.Transitions>

<VisualTransition GeneratedDuration="0"/>

<VisualTransition GeneratedDuration="0:0:0.2" To="Open">

<Storyboard>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="X" Storyboard.TargetName="xform">

<SplineDoubleKeyFrame KeyTime="0:0:0.2" Value="0"/>

</DoubleAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="Root">

<SplineDoubleKeyFrame KeyTime="0:0:0.2" Value="1"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualTransition>

</VisualStateGroup.Transitions>

<VisualState x:Name="Closed">

<Storyboard>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="Root">

<SplineDoubleKeyFrame KeyTime="0" Value="0"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Open">

<Storyboard>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="X" Storyboard.TargetName="xform">

<SplineDoubleKeyFrame KeyTime="0" Value="0"/>

</DoubleAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="Root">

<SplineDoubleKeyFrame KeyTime="0" Value="1"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<Border Background="#052A2E31" CornerRadius="5" Margin="4 4 -4 -4"/>

<Border Background="#152A2E31" CornerRadius="4" Margin="3 3 -3 -3"/>

<Border Background="#252A2E31" CornerRadius="3" Margin="2 2 -2 -2"/>

<Border Background="#352A2E31" CornerRadius="2" Margin="1 1 -1 -1"/>

<Border Background="#FFDC000C" CornerRadius="2"/>

<Border CornerRadius="2">

<ItemsControl ItemsSource="{TemplateBinding Content}">

<ItemsControl.ItemsPanel>

<ItemsPanelTemplate>

<StackPanel/>

</ItemsPanelTemplate>

</ItemsControl.ItemsPanel>

<ItemsControl.ItemTemplate>

<DataTemplate>

<TextBlock Foreground="White" MaxWidth="250" Margin="8 4 8 4" TextWrapping="Wrap" Text="{Binding}"/>

</DataTemplate>

</ItemsControl.ItemTemplate>

</ItemsControl>

</Border>

</Grid>

</ControlTemplate>

<ControlTemplate x:Key="GridViewRowTemplate" TargetType="telerik:GridViewRow">

<Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}">

<VisualStateManager.VisualStateGroups>

<VisualStateGroup x:Name="FocusStates">

<VisualState x:Name="Unfocused"/>

<VisualState x:Name="Focused">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="NavigatorIndicator">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="SelectionStates">

<VisualState x:Name="Unselected"/>

<VisualState x:Name="SelectedUnfocused">

<Storyboard>

<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Over">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="Background_Over">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource ItemOuterBorder_SelectedUnfocused}"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="BackgroundInner_Over">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource ItemBackground_SelectedUnfocused}"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="BackgroundInner_Over">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource ItemInnerBorder_SelectedUnfocused}"/>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="CommonStates">

<VisualState x:Name="Normal"/>

<VisualState x:Name="MouseOver">

<Storyboard>

<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Over">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Selected">

<Storyboard>

<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Selected">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="NavigatorIndicatorBackground">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_RowIndicatorCellBackground_Selected}"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetName="PART_DataCellsPresenter" Storyboard.TargetProperty="Foreground">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_ItemForeground_Selected}" />

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="ValueStates">

<VisualState x:Name="RowValid"/>

<VisualState x:Name="RowInvalid">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Invalid">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="ErrorIndicator">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="EditStates">

<VisualState x:Name="ReadOnlyMode"/>

<VisualState x:Name="EditMode">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="EditIndicator">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<telerik:SelectiveScrollingGrid x:Name="grid">

<telerik:SelectiveScrollingGrid.ColumnDefinitions>

<ColumnDefinition Width="Auto"/>

<ColumnDefinition Width="*"/>

</telerik:SelectiveScrollingGrid.ColumnDefinitions>

<telerik:SelectiveScrollingGrid.RowDefinitions>

<RowDefinition Height="*"/>

<RowDefinition Height="Auto"/>

</telerik:SelectiveScrollingGrid.RowDefinitions>

<Border x:Name="SelectionBackground" Background="{TemplateBinding Background}" Grid.ColumnSpan="2" Grid.Column="2" HorizontalAlignment="{Binding RenderHorizontalAlignment, RelativeSource={RelativeSource TemplatedParent}}" Margin="{TemplateBinding Margin}" MinWidth="{Binding RenderWidth, RelativeSource={RelativeSource TemplatedParent}}" Padding="{TemplateBinding Padding}" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>

<Border x:Name="Background_Over" BorderBrush="{StaticResource ItemOuterBorder_Over}" BorderThickness="0" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" HorizontalAlignment="{Binding RenderHorizontalAlignment, RelativeSource={RelativeSource TemplatedParent}}" Margin="1 1 1 2" MinWidth="{Binding RenderWidth, RelativeSource={RelativeSource TemplatedParent}}" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="Collapsed">

<Border x:Name="BackgroundInner_Over" BorderBrush="{StaticResource ItemInnerBorder_Over}" BorderThickness="0" Background="{StaticResource ItemBackground_Over}"/>

</Border>

<Border x:Name="Background_Selected" BorderBrush="{StaticResource ItemOuterBorder_Selected}" BorderThickness="0" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" HorizontalAlignment="{Binding RenderHorizontalAlignment, RelativeSource={RelativeSource TemplatedParent}}" Margin="1 1 1 2" MinWidth="{Binding RenderWidth, RelativeSource={RelativeSource TemplatedParent}}" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="Collapsed">

<Border.Effect>

<DropShadowEffect x:Name="Sombra" Direction="270" ShadowDepth="0" BlurRadius="10" Color="{StaticResource DropShadowEffectColor}"/>

</Border.Effect>

<Border BorderBrush="{StaticResource ItemInnerBorder_Selected}" BorderThickness="0" Background="{StaticResource ItemBackground_Selected}"/>

</Border>

<Border x:Name="Background_Invalid" BorderBrush="{StaticResource ItemOuterBorder_Invalid}" BorderThickness="0" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" HorizontalAlignment="{Binding RenderHorizontalAlignment, RelativeSource={RelativeSource TemplatedParent}}" Margin="1 1 1 2" MinWidth="{Binding RenderWidth, RelativeSource={RelativeSource TemplatedParent}}" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="Collapsed">

<Border BorderBrush="{StaticResource ItemInnerBorder_Invalid}" BorderThickness="0" Background="{StaticResource ItemBackground_Invalid}"/>

</Border>

<telerik:GridViewToggleButton x:Name="PART_HierarchyExpandButton" Grid.Column="2" IsHitTestVisible="{Binding IsExpandable, RelativeSource={RelativeSource TemplatedParent}}" IsTabStop="{TemplateBinding IsTabStop}" IsChecked="{Binding IsExpanded, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}" Opacity=

"{Binding IsExpandable, Converter={StaticResource BooleanToOpacityConverter}, RelativeSource={RelativeSource TemplatedParent}}"

telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" telerik:StyleManager.Theme="{StaticResource Theme}" Visibility=

"{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"

Width="25"/>

<Border Grid.Column="2" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility=

"{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"

/>

<telerik:DataCellsPresenter x:Name="PART_DataCellsPresenter" Grid.Column="3" telerik:StyleManager.Theme="{StaticResource Theme}"/>

<Border x:Name="PART_RowBorder" BorderBrush="{TemplateBinding HorizontalGridLinesBrush}" BorderThickness=

"{Binding HorizontalGridLinesWidth, ConverterParameter=Bottom, Converter={StaticResource GridLineWidthToThicknessConverter}, RelativeSource={RelativeSource TemplatedParent}}"

Grid.ColumnSpan="4" Grid.Column="1" HorizontalAlignment="{Binding RenderHorizontalAlignment, RelativeSource={RelativeSource TemplatedParent}}" MinWidth="{Binding RenderWidth, RelativeSource={RelativeSource TemplatedParent}}" Grid.RowSpan="4" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" VerticalAlignment="Bottom"/>

<Border BorderBrush="{StaticResource ControlOuterBorder}" BorderThickness="0,1" Background="{StaticResource GridView_HierarchyBackground}" Grid.ColumnSpan="2" Grid.Column="2" HorizontalAlignment="{Binding RenderHorizontalAlignment, RelativeSource={RelativeSource TemplatedParent}}" MaxWidth="30000" Padding="6" Grid.Row="2" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" Visibility=

"{Binding IsExpanded, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"

>

<ContentPresenter x:Name="PART_HierarchyChildPresenter" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True"/>

</Border>

<telerik:DetailsPresenter x:Name="PART_DetailsPresenter" Grid.ColumnSpan="2" Grid.Column="2" DetailsProvider="{TemplateBinding DetailsProvider}" HorizontalAlignment="{Binding RenderHorizontalAlignment, RelativeSource={RelativeSource TemplatedParent}}" MaxWidth="30000" Grid.Row="1" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" telerik:StyleManager.Theme="{StaticResource Theme}"/>

<telerik:IndentPresenter x:Name="PART_IndentPresenter" Grid.Column="1" IndentLevel="{TemplateBinding IndentLevel}" Grid.RowSpan="4" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" telerik:StyleManager.Theme="{StaticResource Theme}"/>

<Border x:Name="PART_IndicatorPresenter" BorderBrush="{StaticResource ControlOuterBorder}" BorderThickness="0 0 1 1" Grid.Column="0" Grid.RowSpan="3" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{TemplateBinding RowIndicatorVisibility}" VerticalAlignment="Stretch" Width="25">

<Border x:Name="NavigatorIndicatorBackground" BorderBrush="{StaticResource ControlInnerBorder}" BorderThickness="0" Background="{StaticResource GridView_RowIndicatorCellBackground}">

<Grid>

<Grid x:Name="NavigatorIndicator" HorizontalAlignment="Center" Height="11" Visibility="Collapsed" VerticalAlignment="Center" Width="11">

<Path Data=

"F1 M 32.0234,6.66669L 24.2923,0.0248413L 28.3697,0.0248413L 32,3.14362L 36.1492,6.70819L 32,10.2728L 28.4664,13.3085L 24.2923,13.3085L 32.0234,6.66669 Z "

Fill="{StaticResource GridView_NavigatorIndicatorBackground}" HorizontalAlignment="Center" Height="8" Margin="0" Stretch="Fill" VerticalAlignment="Center" Width="8"/>

</Grid>

<Grid x:Name="EditIndicator" HorizontalAlignment="Center" Height="10" Visibility="Collapsed" VerticalAlignment="Center" Width="16">

<Path Data=

"M14,9 L15,9 15,10 14,10 z M1,9 L2,9 2,10 1,10 z M15,8 L16,8 16,9 15,9 z M0,8 L1,8 1,9 0,9 z M15,1 L16,1 16,2 15,2 z M0,1 L1,1 1,2 0,2 z M14,0 L15,0 15,1 14,1 z M1,0 L2,0 2,1 1,1 z"

Fill="{StaticResource GridView_EditIndicatorBackground1}" Stretch="Fill"/>

<Path Data=

"M0.99999994,6.9999995 L2,6.9999995 3,6.9999995 4,6.9999995 5,6.9999995 6,6.9999995 7,6.9999995 8,6.9999995 9,6.9999995 10,6.9999995 11,6.9999995 12,6.9999995 13,6.9999995 13,7.9999995 12,7.9999995 11,7.9999995 10,7.9999995 9,7.9999995 8,7.9999995 7,7.9999995 6,7.9999995 5,7.9999995 4,7.9999995 3,7.9999995
2,7.9999995 0.99999994,7.9999995 z M13,0.99999994 L14,0.99999994 14,1.9999999 14,2.9999995 14,3.9999995 14,4.9999995 14,5.9999995 14,6.9999995 13,6.9999995 13,5.9999995 13,4.9999995 13,3.9999995 13,2.9999995 13,1.9999999 z M0,0.99999994 L0.99999994,0.99999994 0.99999994,1.9999999 0.99999994,2.9999995 0.99999994,3.9999995 0.99999994,4.9999995 0.99999994,5.9999995 0.99999994,6.9999995 0,6.9999995 0,5.9999995 0,4.9999995 0,3.9999995 0,2.9999995 0,1.9999999 z M11,0 L12,0 13,0 13,0.99999994 12,0.99999994 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 4,0.99999994 3,0.99999994 2,0.99999994 0.99999994,0.99999994 0.99999994,2.3841858E-07 2,2.3841858E-07 3,2.3841858E-07 4,2.3841858E-07 5,2.3841858E-07 6,2.3841858E-07 7,2.3841858E-07 8,2.3841858E-07
9,2.3841858E-07 10,2.3841858E-07 z"

Fill="{StaticResource GridView_EditIndicatorBackground2}" Margin="1" Stretch="Fill"/>

<Path Data=

"M2,9 L3,9 4,9 5,9 6,9 7,9 8,9 9,9 10,9 11,9 12,9 13,9 14,9 14,10 13,10 12,10 11,10 10,10 9,10 8,10 7,10 6,10 5,10 4,10
3,10 2,10 z M14,8 L15,8 15,9 14,9 z M1,8 L2,8 2,9 1,9 z M15,2 L16,2 16,3 16,4 16,5 16,6 16,7 16,8 15,8 15,7 15,6 15,5 15,4 15,3 z M3,2 L4,2 5,2 6,2 6,3 5,3 5,4 5,5 5,6 5,7 6,7 6,8 5,8 4,8 3,8 3,7 4,7 4,6 4,5 4,4 4,3 3,3 z M0,2 L1,2 1,3 1,4 1,5 1,6 1,7 1,8 0,8 0,7 0,6 0,5 0,4 0,3 z M14,1 L15,1 15,2 14,2 z M1,1 L2,1 2,2 1,2 z M2,0 L3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 14,1 13,1 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1
3,1 2,1 z"

Fill="{StaticResource GridView_EditIndicatorBackground3}" Stretch="Fill"/>

<Path Data=

"M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 12,2 12,3 12,4 12,5.0000001 12,6 11,6 10,6 9,6 8,6 7,6 6,6 5,6 4,6 4,5.0000001
3,5.0000001 3,4 3,3 3,2 3,1 4,1 z M0,0 L1,0 1,1 2,1 2,2 2,3 2,4 2,5.0000001 1,5.0000001 1,6 0,6 0,5.0000001 0,4 0,3 0,2 0,1 z"

Fill="{StaticResource GridView_EditIndicatorBackground4}" Margin="2" Stretch="Fill"/>

</Grid>

<Grid x:Name="ErrorIndicator" HorizontalAlignment="Center" Height="16" Visibility="Collapsed" VerticalAlignment="Center" Width="16">

<ToolTipService.ToolTip>

<ToolTip x:Name="validationTooltip" Content="{TemplateBinding Errors}" Placement="Bottom" Template="{StaticResource GridViewRow_ValidationToolTipTemplate}"/>

</ToolTipService.ToolTip>

<Path Data=

"M3,12.999999 L4,12.999999 5,12.999999 6,12.999999 7,12.999999 8,12.999999 9,12.999999 10,12.999999 11,12.999999 11,13.999999 10,13.999999 9,13.999999 8,13.999999 7,13.999999 6,13.999999 5,13.999999 4,13.999999 3,13.999999 z M11,11.999999 L12,11.999999 12,12.999999 11,12.999999 z M2.0000001,11.999999 L3,11.999999 3,12.999999 2.0000001,12.999999 z M12,10.999999 L13,10.999999 13,11.999999 12,11.999999 z M1,10.999999 L2.0000001,10.999999 2.0000001,11.999999 1,11.999999 z M13,2.9999992 L14,2.9999992 14,3.9999992 14,4.9999992 14,5.9999992 14,6.9999992 14,7.9999992 14,8.9999992 14,9.9999992 14,10.999999 13,10.999999 13,9.9999992 13,8.9999992 13,7.9999992 13,6.9999992 13,5.9999992 13,4.9999992 13,3.9999992 z M0,2.9999992 L1,2.9999992 1,3.9999992 1,4.9999992 1,5.9999992 1,6.9999992 1,7.9999992 1,8.9999992 1,9.9999992 1,10.999999 0,10.999999 0,9.9999992 0,8.9999992 0,7.9999992 0,6.9999992 0,5.9999992 0,4.9999992 0,3.9999992 z M12,1.9999999 L13,1.9999999 13,2.9999992 12,2.9999992 z M1,1.9999999 L2.0000001,1.9999999 2.0000001,2.9999992 1,2.9999992 z M11,0.99999994 L12,0.99999994 12,1.9999999 11,1.9999999 z M2.0000001,0.99999994 L2.9999998,0.99999994 2.9999998,1.9999999 2.0000001,1.9999999 z M2.9999998,0 L3.9999998,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 3.9999998,0.99999994 2.9999998,0.99999994 z"

Fill="{StaticResource GridView_ErrorIndicatorBackground1}" Margin="1" Stretch="Fill"/>

<Path Data=

"M1.4901161E-07,8 L1.0000001,8 2.0000002,8 2.0000002,9 2.0000002,10 1.0000003,10 1.0000003,9 1.0000001,10 1.4901161E-07,10 1.4901161E-07,9 z M1.4901161E-07,0 L1.0000001,0 2.0000002,0 2.0000002,1 2.0000002,2 2.0000002,3 2.0000002,4.0000001 2.0000002,5 2.0000002,5.9999999 2.0000002,7 1.0000001,7 1.4901161E-07,7 1.4901161E-07,5.9999999 1.4901161E-07,5 1.4901161E-07,4.0000001 1.4901161E-07,3 1.4901161E-07,2 0,1 z"

Fill="{StaticResource GridView_ErrorIndicatorBackground2}" Margin="7,3" Stretch="Fill"/>

<Path Data=

"M4,15 L5,15 6,15 7,15 8,15 9,15 10,15 11,15 12,15 12,16 11,16 10,16 9,16 8,16 7,16 6,16 5,16 4,16 z M12,14 L13,14 13,15 12,15 z M3,14 L4,14 4,15 3,15 z M13,13 L14,13 14,14 13,14 z M2,13 L3,13 3,14 2,14 z M14,12 L15,12 15,13 14,13 z M1,12 L2,12 2,13 1,13 z M7,11 L7,12 7,13 8,13 9,13 9,12 9,11 8,11 z M15,4 L16,4 16,5 16,6 16,7 16,8 16,9 16,10 16,11 16,12 15,12 15,11 15,10 15,9 15,8 15,7 15,6 15,5 z M0,4 L1,4 1,5 1,6 1,7 1,8 1,9 1,10 1,11 1,12 0,12 0,11 0,10 0,9 0,8 0,7 0,6 0,5 z M14,3 L15,3 15,4 14,4 z M7,3 L7,4 7,5 7,6 7,7 7,8 7,9 7,10 8,10 9,10 9,9 9,8 9,7 9,6 9,5 9,4 9,3 8,3 z M1,3 L2,3 2,4 1,4 z M13,2 L14,2 14,3 13,3 z M4,2 L5,2 6,2 7,2 8,2 9,2 10,2 11,2 12,2 12,3 13,3 13,4 14,4 14,5 14,6 14,7 14,8 14,9 14,10 14,11 14,12 13,12 13,13 12,13
12,14 11,14 10,14 9,14 8,14 7,14 6,14 5,14 4,14 4,13 3,13 3,12 2,12 2,11 2,10 2,9 2,8 2,7 2,6 2,5 2,4 3,4 3,3
4,3 z M2,2 L3,2 3,3 2,3 z M12,1 L13,1 13,2 12,2 z M3,1 L4,1 4,2 3,2 z M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 z"

Fill="{StaticResource GridView_ErrorIndicatorBackground3}" Stretch="Fill"/>

</Grid>

<Border x:Name="PART_RowResizer" Background="Transparent" Cursor="SizeNS" Height="2" VerticalAlignment="Bottom"/>

</Grid>

</Border>

</telerik:SelectiveScrollingGrid>

</Border>

</ControlTemplate>

<ControlTemplate x:Key="RadGridViewTemplate" TargetType="telerik:RadGridView">

<Border x:Name="PART_MasterGridContainer" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Padding="{TemplateBinding Padding}">

<VisualStateManager.VisualStateGroups>

<VisualStateGroup x:Name="GridViewActivity">

<VisualState x:Name="Idle">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_GridViewLoadingIndicator">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Collapsed</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Busy">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_GridViewLoadingIndicator">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="ColumnHeadersVisibility">

<VisualState x:Name="ColumnHeadersVisible">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_HeaderRow">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="ColumnHeadersCollapsed">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_HeaderRow">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Collapsed</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="ColumnFootersVisibility">

<VisualState x:Name="ColumnFootersVisible">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_FooterRow">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="ColumnFootersCollapsed">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_FooterRow">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Collapsed</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="GroupPanelVisibility">

<VisualState x:Name="GroupPanelVisible">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_GroupPanel">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="GroupPanelCollapsed">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_GroupPanel">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Collapsed</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="InsertRowVisibility">

<VisualState x:Name="InsertRowVisible">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_AddNewRow">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="InsertRowCollapsed">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="PART_AddNewRow">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Collapsed</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="DisabledStates">

<VisualState x:Name="Enabled"/>

<VisualState x:Name="Disabled">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="Background_Disabled">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<Grid x:Name="HierrarchyBackground" Background="{TemplateBinding Background}">

<Grid.ColumnDefinitions>

<ColumnDefinition/>

<ColumnDefinition x:Name="ScrollBarColumn" MinWidth="0" Width="0"/>

</Grid.ColumnDefinitions>

<Grid.RowDefinitions>

<RowDefinition Height="Auto"/>

<RowDefinition x:Name="PART_AttachedBehaviorRow" Height="Auto"/>

<RowDefinition/>

<RowDefinition x:Name="ScrollBarRow" Height="0" MinHeight="0"/>

<RowDefinition Height="Auto"/>

</Grid.RowDefinitions>

<telerik:GridViewGroupPanel x:Name="PART_GroupPanel" BorderBrush="{StaticResource GridView_GroupPanelOuterBorder}" Background="{TemplateBinding GroupPanelBackground}" Grid.ColumnSpan="2" Foreground="{TemplateBinding GroupPanelForeground}" Grid.Row="0" telerik:StyleManager.Theme="{StaticResource Theme}"/>

<telerik:GridViewScrollViewer x:Name="PART_ItemsScrollViewer" Background="Transparent" CanContentScroll="True" Grid.ColumnSpan="2" Grid.Row="2" Grid.RowSpan="2" telerik:StyleManager.Theme="{StaticResource Theme}">

<telerik:GridViewScrollViewer.FooterRow>

<telerik:GridViewFooterRow x:Name="PART_FooterRow" IndentLevel="{TemplateBinding GroupCount}" telerik:StyleManager.Theme="{StaticResource Theme}"/>

</telerik:GridViewScrollViewer.FooterRow>

<telerik:GridViewScrollViewer.HeaderRow>

<telerik:GridViewHeaderRow x:Name="PART_HeaderRow" IndentLevel="{TemplateBinding GroupCount}" telerik:StyleManager.Theme="{StaticResource Theme}"/>

</telerik:GridViewScrollViewer.HeaderRow>

<telerik:GridViewScrollViewer.NewRow>

<telerik:GridViewNewRow x:Name="PART_AddNewRow" IndentLevel="{TemplateBinding GroupCount}" telerik:StyleManager.Theme="{StaticResource Theme}" Visibility="Collapsed"/>

</telerik:GridViewScrollViewer.NewRow>

<telerik:GridViewVirtualizingPanel x:Name="PART_GridViewVirtualizingPanel"/>

</telerik:GridViewScrollViewer>

<telerik:ScrollPositionIndicator x:Name="PART_ScrollPositionIndicator" Grid.ColumnSpan="2" ContentTemplate="{TemplateBinding ScrollPositionIndicatorTemplate}" HorizontalAlignment="Right" IsHitTestVisible="False" Margin="0 0 28 0" Grid.Row="2" telerik:StyleManager.Theme="{StaticResource Theme}" Visibility=

"{Binding IsScrolling, Converter={StaticResource BooleanToVisibilityConverter}, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}"

/>

<Border x:Name="PART_FrozenColumnsPreview" HorizontalAlignment="Left" Grid.Row="1" Grid.RowSpan="4" Visibility="Collapsed" VerticalAlignment="Stretch" Width="6">

<Border.Background>

<LinearGradientBrush EndPoint="0.5,1" MappingMode="RelativeToBoundingBox" StartPoint="0.5,0">

<GradientStop Color="#7FE80A31" Offset="1"/>

<GradientStop Color="#7F970620" Offset="0.5"/>

<GradientStop Color="#7FE80A31"/>

</LinearGradientBrush>

</Border.Background>

</Border>

<telerik:GridViewLoadingIndicator x:Name="PART_GridViewLoadingIndicator" Grid.ColumnSpan="2" IsBusy="{Binding IsBusy, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}" Grid.RowSpan="4" telerik:StyleManager.Theme="{StaticResource Theme}" Visibility="Collapsed"/>

<Rectangle x:Name="Background_Disabled" Grid.ColumnSpan="2" Fill="{StaticResource Background_Disabled}" IsHitTestVisible="False" Grid.RowSpan="5" Visibility="Collapsed"/>

</Grid>

</Border>

</ControlTemplate>

<ControlTemplate x:Key="GridViewCell_ValidationToolTipTemplate" TargetType="ToolTip">

<Grid x:Name="Root" Margin="5 0" Opacity="0" RenderTransformOrigin="0,0">

<Grid.RenderTransform>

<TranslateTransform x:Name="xform" X="-25"/>

</Grid.RenderTransform>

<VisualStateManager.VisualStateGroups>

<VisualStateGroup x:Name="OpenStates">

<VisualStateGroup.Transitions>

<VisualTransition GeneratedDuration="0"/>

<VisualTransition GeneratedDuration="0:0:0.2" To="Open">

<Storyboard>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="X" Storyboard.TargetName="xform">

<SplineDoubleKeyFrame KeyTime="0:0:0.2" Value="0"/>

</DoubleAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="Root">

<SplineDoubleKeyFrame KeyTime="0:0:0.2" Value="1"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualTransition>

</VisualStateGroup.Transitions>

<VisualState x:Name="Closed">

<Storyboard>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="Root">

<SplineDoubleKeyFrame KeyTime="0" Value="0"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Open">

<Storyboard>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="X" Storyboard.TargetName="xform">

<SplineDoubleKeyFrame KeyTime="0" Value="0"/>

</DoubleAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="Root">

<SplineDoubleKeyFrame KeyTime="0" Value="1"/>

</DoubleAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<Border Background="#052A2E31" CornerRadius="5" Margin="4 4 -4 -4"/>

<Border Background="#152A2E31" CornerRadius="4" Margin="3 3 -3 -3"/>

<Border Background="#252A2E31" CornerRadius="3" Margin="2 2 -2 -2"/>

<Border Background="#352A2E31" CornerRadius="2" Margin="1 1 -1 -1"/>

<Border Background="#FFDC000C" CornerRadius="2"/>

<Border CornerRadius="2">

<ItemsControl ItemsSource="{TemplateBinding Content}">

<ItemsControl.ItemsPanel>

<ItemsPanelTemplate>

<StackPanel/>

</ItemsPanelTemplate>

</ItemsControl.ItemsPanel>

<ItemsControl.ItemTemplate>

<DataTemplate>

<TextBlock Foreground="White" MaxWidth="250" Margin="8 4 8 4" TextWrapping="Wrap" Text="{Binding}"/>

</DataTemplate>

</ItemsControl.ItemTemplate>

</ItemsControl>

</Border>

</Grid>

</ControlTemplate>

<ControlTemplate x:Key="GridViewCellTemplate" TargetType="telerik:GridViewCell">

<Grid Margin="5 5 5 5" MinWidth="100">

<VisualStateManager.VisualStateGroups>

<VisualStateGroup x:Name="SelectionStates">

<VisualState x:Name="Unselected"/>

<VisualState x:Name="Selected">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="Background_Selected">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetName="PART_DataCellsPresenter" Storyboard.TargetProperty="Foreground">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_ItemForeground_Selected}" />

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="CommonStates">

<VisualState x:Name="Normal"/>

<VisualState x:Name="Current">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="Background_Current">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="MouseOver">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="Background_Over">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="EditingStates">

<VisualState x:Name="Edited">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Margin" Storyboard.TargetName="PART_ContentPresenter">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Thickness>0</Thickness>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="VerticalAlignment" Storyboard.TargetName="PART_ContentPresenter">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<VerticalAlignment>Stretch</VerticalAlignment>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="PART_CellBorder">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_CellBackground_Edited}"/>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Display"/>

</VisualStateGroup>

<VisualStateGroup x:Name="DisabledStates">

<VisualState x:Name="Enabled"/>

<VisualState x:Name="Disabled">

<Storyboard>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="PART_CellBorder">

<DiscreteDoubleKeyFrame KeyTime="0:0:0" Value="0.4"/>

</DoubleAnimationUsingKeyFrames>

<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="PART_ContentPresenter">

<DiscreteDoubleKeyFrame KeyTime="0:0:0" Value="0.7"/>

</DoubleAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="Background_Disabled">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="ValueStates">

<VisualState x:Name="CellValid"/>

<VisualState x:Name="CellInvalid">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="Background_Invalid">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="InvalidUnfocused">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="Background_Invalid_Unfocused">

<DiscreteObjectKeyFrame KeyTime="0">

<DiscreteObjectKeyFrame.Value>

<Visibility>Visible</Visibility>

</DiscreteObjectKeyFrame.Value>

</DiscreteObjectKeyFrame>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<Border x:Name="PART_CellBorder" BorderBrush="{TemplateBinding VerticalGridLinesBrush}" BorderThickness=

"{Binding VerticalGridLinesWidth, ConverterParameter=Right, Converter={StaticResource GridLineWidthToThicknessConverter}, RelativeSource={RelativeSource TemplatedParent}}"

Background="{Binding Background, RelativeSource={RelativeSource TemplatedParent}}" Margin="1 0 0 0"/>

<Border x:Name="Background_Over" BorderBrush="{StaticResource ItemOuterBorder_Over}" BorderThickness="1" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="0" Margin="1 1 2 2" Visibility="Collapsed">

<Border BorderBrush="{StaticResource ItemInnerBorder_Over}" BorderThickness="1" Background="{StaticResource ItemBackground_Over}"/>

</Border>

<Border x:Name="Background_Selected" BorderBrush="{StaticResource ItemOuterBorder_Selected}" BorderThickness="1" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" Margin="1 1 2 2" Visibility="Collapsed">

<Border BorderBrush="{StaticResource ItemInnerBorder_Selected}" BorderThickness="1" Background="{StaticResource ItemBackground_Selected}"/>

</Border>

<Border x:Name="Background_Current" BorderBrush="{StaticResource ControlOuterBorder}" BorderThickness="1" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" Margin="1 1 2 2" Visibility="Collapsed"/>

<Border x:Name="Background_Invalid" BorderBrush="{StaticResource ControlOuterBorder_Invalid}" BorderThickness="1" Background="{StaticResource ItemBackground}" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" Margin="1 1 2 2" Visibility="Collapsed">

<ToolTipService.ToolTip>

<ToolTip x:Name="validationTooltip" Content="{TemplateBinding Errors}" Placement="Right" Template="{StaticResource GridViewCell_ValidationToolTipTemplate}"/>

</ToolTipService.ToolTip>

<Grid Background="Transparent" HorizontalAlignment="Right" Height="12" Margin="1 -4 -4 0" VerticalAlignment="Top" Width="12">

<Path Data="M 1,0 L6,0 A 2,2 90 0 1 8,2 L8,7 z" Fill="{StaticResource ControlOuterBorder_Invalid}" Margin="1 3 0 0"/>

<Path Data="M 0,0 L2,0 L 8,6 L8,8" Fill="{StaticResource ControlInnerBorder_Invalid}" Margin="1 3 0 0"/>

</Grid>

</Border>

<Border x:Name="Background_Invalid_Unfocused" BorderBrush="{StaticResource ItemOuterBorder_Invalid}" BorderThickness="1" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" Margin="1 1 1 2" Opacity="1" Visibility="Collapsed">

<Border BorderBrush="{StaticResource ItemInnerBorder_Invalid}" BorderThickness="1" Background="{StaticResource ItemBackground_Invalid}"/>

</Border>

<Border x:Name="Background_Disabled" BorderBrush="{StaticResource ItemInnerBorder_Disabled}" BorderThickness="1" Background="{StaticResource ItemBackground_Disabled}" Grid.ColumnSpan="2" Grid.Column="2" Margin="0 0 1 1" Visibility="Collapsed"/>

<ContentPresenter x:Name="PART_ContentPresenter" ContentTemplate="{TemplateBinding ContentTemplate}" Content="{TemplateBinding Content}" HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" Margin="{TemplateBinding Padding}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>

</Grid>

</ControlTemplate>

<Style TargetType="telerik:GridViewHeaderCell">

<Setter Property="Template" Value="{StaticResource GridViewHeaderCellTemplate}"/>

<Setter Property="Background" Value="{StaticResource GridView_HeaderBackground}"/>

<Setter Property="BorderBrush" Value="{StaticResource GridView_HeaderOuterBorder}"/>

<Setter Property="BorderThickness" Value="0 0 1 0"/>

<Setter Property="VerticalContentAlignment" Value="Center"/>

<Setter Property="HorizontalContentAlignment" Value="Center"/>

<Setter Property="Padding" Value="0,0,6,0"/>

<Setter Property="DropIndicatorBrush" Value="{StaticResource GridViewHeaderCellDropMarkerPenBrush}"/>

<Setter Property="DropIndicatorThickness" Value="2"/>

<Setter Property="Foreground" Value="{StaticResource GridView_HeaderForeground}"/>

<Setter Property="FontFamily" Value="Verdana"></Setter>

<Setter Property="FontWeight" Value="Bold" />

<Setter Property="FontSize" Value="11"></Setter>

<Setter Property="Cursor" Value="Hand"></Setter>

</Style>

<Style TargetType="telerik:GridViewHeaderRow">

<Setter Property="Template" Value="{StaticResource GridViewHeaderRowTemplate}"/>

<Setter Property="Background" Value="{StaticResource GridView_HeaderRowBackground}"/>

<Setter Property="MinHeight" Value="27"/>

<Setter Property="BorderBrush" Value="{StaticResource GridView_HeaderRowOuterBorder}"/>

<Setter Property="BorderThickness" Value="1 0 0 1"/>

<Setter Property="VerticalContentAlignment" Value="Stretch"/>

<Setter Property="HorizontalContentAlignment" Value="Stretch"/>

<Setter Property="Padding" Value="0"/>

</Style>

<Style TargetType="telerik:GridViewRow">

<Setter Property="IsTabStop" Value="False"/>

<Setter Property="Template" Value="{StaticResource GridViewRowTemplate}"/>

<Setter Property="Background" Value="{StaticResource ItemBackground}"/>

<Setter Property="BorderBrush" Value="{StaticResource GridView_GridLinesItemBorder}"/>

<Setter Property="BorderThickness" Value="0"/>

<Setter Property="AllowDrop" Value="True"/>

<Setter Property="VerticalContentAlignment" Value="Stretch"/>

<Setter Property="HorizontalContentAlignment" Value="Stretch"/>

<Setter Property="Padding" Value="0"/>

<Setter Property="Cursor" Value="Hand"></Setter>

</Style>

<Style TargetType="telerik:GridViewCell">

<Setter Property="Template" Value="{StaticResource GridViewCellTemplate}"/>

<Setter Property="Padding" Value="5 0 5 0"/>

<Setter Property="BorderBrush" Value="{StaticResource GridView_GridLinesItemBorder}"/>

<Setter Property="BorderThickness" Value="0"/>

<Setter Property="VerticalContentAlignment" Value="Center"/>

<Setter Property="HorizontalContentAlignment" Value="Stretch"/>

<Setter Property="Background" Value="Transparent"/>

<Setter Property="FontFamily" Value="Verdana"></Setter>

<Setter Property="FontSize" Value="12"></Setter>

<Setter Property="Foreground" Value="Black"></Setter>

</Style>

<Style x:Key="GIGridStyle" TargetType="{x:Type gi:GIGrid}" >

<Setter Property="Template" Value="{StaticResource RadGridViewTemplate}"/>

<Setter Property="EditTriggers" Value="CurrentCellClick"/>

<Setter Property="Background" Value="{StaticResource ControlBackground}"/>

<Setter Property="BorderBrush" Value="{StaticResource ControlOuterBorder}"/>

<Setter Property="Foreground" Value="{StaticResource ControlForeground}"/>

<Setter Property="BorderThickness" Value="1"/>

<Setter Property="AlternateRowBackground" Value="#FFFAEBEE"/>

<Setter Property="VerticalGridLinesBrush" Value="{StaticResource GridView_GridLinesItemBorder}"/>

<Setter Property="HorizontalGridLinesBrush" Value="{StaticResource GridView_GridLinesItemBorder}"/>

<Setter Property="GroupPanelBackground" Value="{StaticResource GridView_GroupPanelBackground}"/>

<Setter Property="GroupPanelForeground" Value="{StaticResource GridView_GroupPanelForeground}"/>

<Setter Property="ScrollViewer.HorizontalScrollBarVisibility" Value="Auto"/>

<Setter Property="ScrollViewer.VerticalScrollBarVisibility" Value="Auto"/>

<Setter Property="VerticalAlignment" Value="Stretch"/>

<Setter Property="HorizontalAlignment" Value="Stretch"/>

<Setter Property="Cursor" Value="Hand"></Setter>

<Setter Property="GridLinesVisibility" Value="Both"></Setter>

<Setter Property="IsFilteringAllowed" Value="False"></Setter>

<Setter Property="RowIndicatorVisibility" Value="Collapsed"></Setter>

<Setter Property="IsLocalizationLanguageRespected" Value="False"></Setter>

<Setter Property="AlternationCount" Value="2" />

</Style>

</ResourceDictionary>

3 Answers, 1 is accepted

answered on 18 Nov 2015, 01:00 PM

Hello Evil,

Can you send a photo of the GridView, because it seems to be working properly on my side:

Is this how you want it to look, or did I misunderstand you?

I did, however, remove the style for to make the project build. Maybe that had some effect.
But I can't be sure. Maybe you can provide a sample project as explained in this blog post?

I would also recommend reading this helpful blog post explaining why you're better off Using Implicit Styles.

Regards,
Dilyan Traykov
Telerik

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items

answered on 18 Nov 2015, 01:22 PM


I am sending a photo of my grid.

I am styling a lot of components, so I use "gi:GISomething" to specify that this component is mine. The style works just fine in other components, such as the RadListBox and RadButton. The only ones with problems are the Grid and the ComboBox, but I am trying to style the Grid first.

I want my Grid to look exactly as yours.

answered on 19 Nov 2015, 04:51 PM

StyleGridViewSelectedRow.zip

Hello Evil,

I've attached a project to show you how I've set up the grid with the desired style.
Please have a look at it and maybe modify any differences between it and your implementation in order to make it work.

Let me know how that goes.

Regards,
Dilyan Traykov
Telerik

Product Bundles

DevCraft

Web

Mobile

Document Management

Desktop

Reporting & Mocking

Automated Testing

CMS

UI/UX Tools

Debugging

Free Tools

Support and Learning

Productivity and Design Tools

Styling GridView (GridViewRow) - Implict themes

3 Answers, 1 is accepted
