Styling Drag&Drop Feedback

6 posts, 0 answers
  1. Matthias
    Matthias avatar
    6 posts
    Member since:
    Feb 2009

    Posted 02 Mar 2010 Link to this post

    I need to style the drag&drop feedback of the TreeView ("Drop before, Drop in, Drop after, ..."). In an older version of the control this could be done inside the tree view's control template. The latest version of the control only contains the separation line between items inside its template.
    Where can I find the other templates to style the feedback?
    Thanks in advance.
  2. Kiril Stanoev
    Admin
    Kiril Stanoev avatar
    1512 posts

    Posted 02 Mar 2010 Link to this post

    Hi Matthias,

    To edit the DragCue, you can listen for the DragInfo event and redefine the drag cue in there:

    public MainPage()
    {
        InitializeComponent();

        this.AddHandler(RadDragAndDropManager.DragInfoEvent, new EventHandler<DragDropEventArgs>(OnDragInfo), true);
    }

    private void OnDragInfo(object sender, DragDropEventArgs e)
    {
        if (e.Options.Status == DragStatus.DragInProgress)
        {
            ContentControl dragCue = new ContentControl();
            dragCue.ContentTemplate = Resources["DragCueTemplate"] as DataTemplate;
            var payload = (e.Options.Payload as IList)[0];
            dragCue.Content = payload;
            e.Options.DragCue = dragCue;
        }
    }

    If you want to change the text displayed while dragging ("Drop before, Drop in, Drop after, ..."), you can set these properties: TextDropAfter, TextDropBefore, TextDropIn and TextDropRoot.

    Please find attached a sample project that demonstrates the first approach I described. If this does not answer your questions, let us know as soon as possible, so we can further assist you.

    All the best,
    Kiril Stanoev
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  3. Matthias
    Matthias avatar
    6 posts
    Member since:
    Feb 2009

    Posted 02 Mar 2010 Link to this post

    Thanks for your response. Basically I just want to adjust the colors of the feedback-popups to fit them to my theme.
    Is there no other way  than setting a new template by code? If so, could you please post a copy of the default-template as I don't know how to write it from scratch.
    Thanks for your help.
  4. Kiril Stanoev
    Admin
    Kiril Stanoev avatar
    1512 posts

    Posted 04 Mar 2010 Link to this post

    Hello Matthias,

    I have modified the previous project and I included the default style for the drag cue. Have a look at it and let me know how it works for you.

    Kind regards,
    Kiril Stanoev
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  5. Leslie
    Leslie avatar
    17 posts
    Member since:
    Jul 2010

    Posted 28 Jul 2010 Link to this post

    I still don't understand how to change the text color of the item being dragged.  It is currently white and I can barely see it.  I believe what I am interested in is the following:

    <ContentPresenter Content="{TemplateBinding DragTooltipContent}"
               ContentTemplate="{TemplateBinding DragTooltipContentTemplate}"
               Margin="0,0,5,0" VerticalAlignment="Center" />

    Where is the DragTooltipContentTemplate defined so that I can modify that?

    Thank you,

    Leslie
  6. Kiril Stanoev
    Admin
    Kiril Stanoev avatar
    1512 posts

    Posted 02 Aug 2010 Link to this post

    Hi Leslie,

    If you open the attached project (id-286125.zip), you can see that in UserControl.Resources in MainPage.xaml there is a style called TreeViewDragCue.



    This style gets applied to the drag cue in the DragInfo event handler:

    public partial class MainPage : UserControl
    {
        public MainPage()
        {
            InitializeComponent();

            this.AddHandler(RadDragAndDropManager.DragInfoEvent, new EventHandler<DragDropEventArgs>(OnDragInfo), true);
        }

        private void OnDragInfo(object sender, DragDropEventArgs e)
        {
            if (e.Options.Status == DragStatus.DragInProgress)
            {
                (e.Options.DragCue as TreeViewDragCue).Style = Resources["TreeViewDragCue"] as Style;
            }
        }
    }

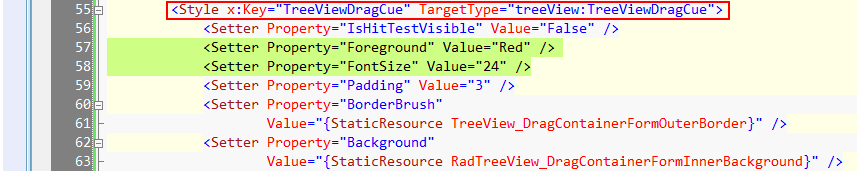

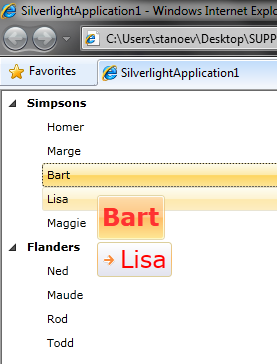

    If you apply the setter, as shown on the first image, the end result should be something like:



    Therefore, by editing TreeViewDragCue you can alter the way the drag cue looks.

    Regards,
    Kiril Stanoev
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
