Styling a radpane

3 posts, 1 answers
  1. Zamel
    Zamel avatar
    20 posts
    Member since:
    Aug 2012

    Posted 14 Nov 2012 Link to this post

    Hi,

    I was trying to implement a custom style in our radpanes but without success. These radpanes are created dynamically and we are using Windows 7 as the theme.

    I found this one: Styling the RadPane Header from the forum but when I used the same style, there was no effect on my radpanes. I've also tried to just simply set the radpane's background color to something else but I still cannot see any changes.

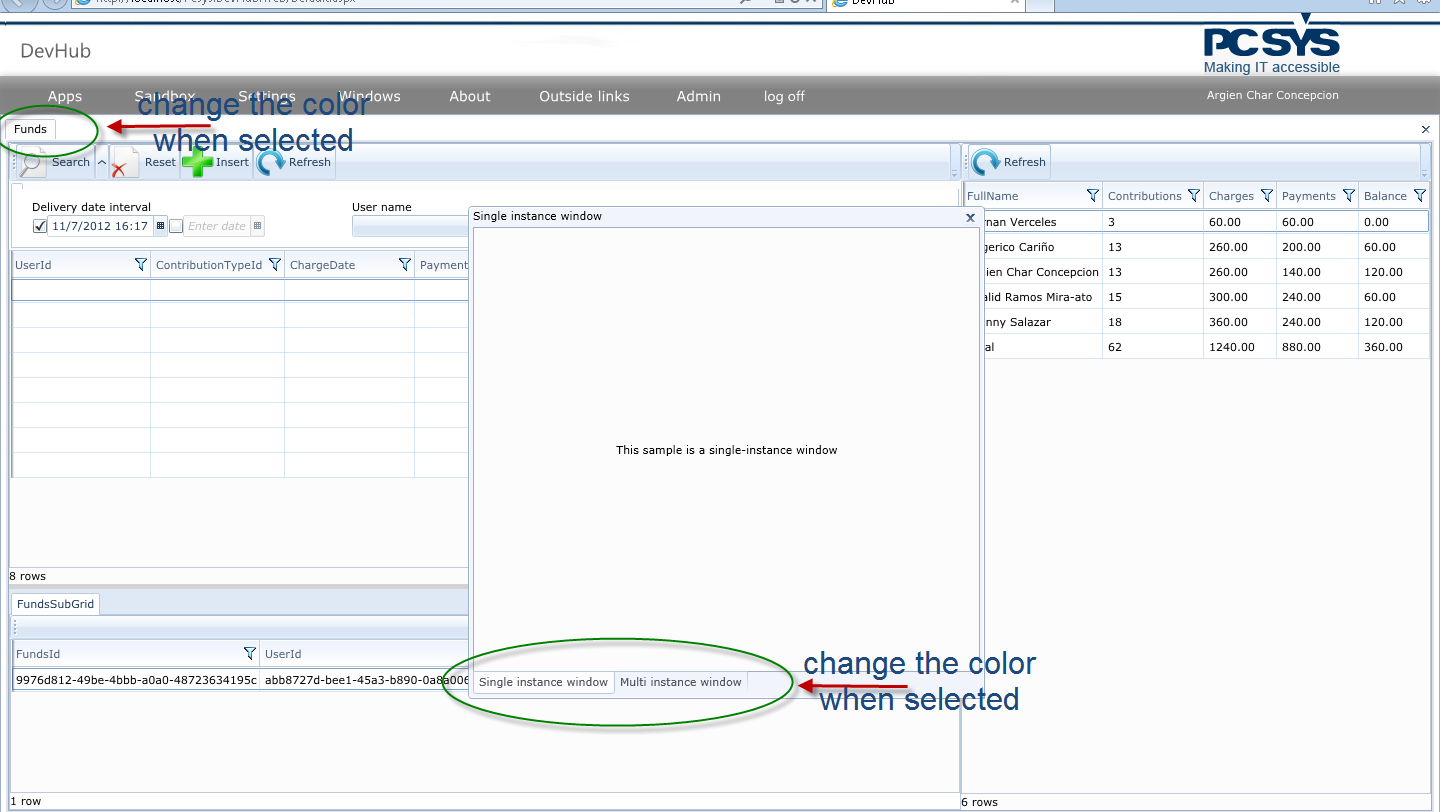

    This is what our radpanes look like:



    What I'm trying to achieve is that I only want to color the radpane header when selected, change the background to blue and the text to white. I've already tried different ways to fix this but cannot see any effect!!  Why? :(

    I'm pasting the xaml code as well so you can check if there's anything wrong with it.

    <Border Grid.Row="2"
                    Style="{StaticResource ContentBorderStyle}">
                <telerik:RadDocking x:Name="radDocking"
                                    Background="Transparent">
                    <telerik:RadDocking.DocumentHost>
                        <telerik:RadSplitContainer x:Name="radSplitContainer"
                                                   InitialPosition="FloatingDockable">
                            <telerik:RadPaneGroup x:Name="radCenterPaneGroup"
                                                  BorderBrush="Transparent"
                                                  BorderThickness="0">
                                <telerik:RadPane CanUserClose="False"
                                                 Visibility="Collapsed"
                                                 CanFloat="False">
                                    <navigation:Frame x:Name="ContentFrame"
                                                      Style="{StaticResource ContentFrameStyle}" />
                                </telerik:RadPane>
                            </telerik:RadPaneGroup>
                        </telerik:RadSplitContainer>
                    </telerik:RadDocking.DocumentHost>
                </telerik:RadDocking>
            </Border>

    Also, the code behind how we create the radpanes dynamically:

    var window = AppBase.Current.NavigationWindows
                        .FirstOrDefault(w => w.NavigationCode == menuItem.NavigationCode);
                    if (window != null)
                    {
                        var windowInfo = (this.Windows ?? Enumerable.Empty<PcsysFxWindow>())
                            .FirstOrDefault(w => w.NavigationCode == menuItem.NavigationCode);
                        if (windowInfo != null && windowInfo.IsSingleInstance)
                        {
                            var existingPane = this.radDocking.Panes
                                .FirstOrDefault(s => s.DataContext == windowInfo);
                            if (existingPane != null)
                            {
                                existingPane.IsHidden = false;
                                existingPane.IsSelected = true;
                                return;
                            }
                        }

                        var paneGroup = ResolvePaneGroup(windowInfo);
                        var pane = new RadPane();

                        pane.Content = window.CreateWindowContent();
                        if (windowInfo != null)
                        {
                            pane.DataContext = windowInfo;
                            pane.Header = LocalizationManager.GetString(windowInfo.Header);
                            if (windowInfo.InitialPosition < 0)
                            {
                                paneGroup.AddItem(pane, Telerik.Windows.Controls.Docking.DockPosition.Top);
                                pane.MakeFloatingDockable();
                            }
                            else
                            {
                                if (paneGroup.Items.Count() > 0)
                                {
                                    paneGroup.Items.Add(pane);
                                }
                                else
                                {
                                    paneGroup.AddItem(pane, (Telerik.Windows.Controls.Docking.DockPosition)windowInfo.InitialPosition);
                                }
                            }
                        }
                        else
                        {
                            paneGroup.AddItem(pane, Telerik.Windows.Controls.Docking.DockPosition.Center);
                        }

                        return;

    I'm quite a newbie to silverlight, please help me.

    Thanks.
  2. Zamel
    Zamel avatar
    20 posts
    Member since:
    Aug 2012

    Posted 14 Nov 2012 Link to this post

    Hi again,

    It seems that the style is overriden by the default theme. I found this line of code:
    StyleManager.ApplicationTheme = new Windows7Theme();

    When I tried to comment that out, then I see the effect of my custom style. Is there any way how can I use my style instead of the defined one?? Please.

    Thanks!
  3. DevCraft banner
  4. Answer
    Masha
    Admin
    Masha avatar
    355 posts

    Posted 19 Nov 2012 Link to this post

    Hello Zamel,

    We recommend using Implicit Styles in the project. This way you can easily apply modifications on RadPane, based on the default style. You can read more about implicit styles in our online documentation.

    Another solution is to copy RadDocking Style for Windows7 Theme in App.xaml and apply modifications there. You can get the style for RadDocking for Windows7 theme from your RadControls installation folder. You will find there a Themes folder, which contains resources for all themes.

    Hope this helps.

    Kind regards,
    Maria
    the Telerik team
