Style/Template RadStacked100DataBar

2 posts, 0 answers
  1. Paul
    Paul avatar
    2 posts
    Member since:
    Mar 2015

    Posted 16 Mar 2015 Link to this post

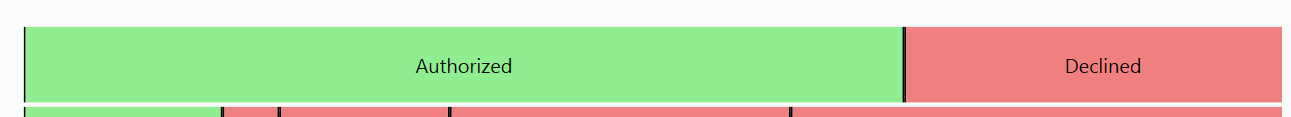

    I need to style a RadStacked100DataBar similar to the attached picture, or I need to use a different control.  Do you guys have an example of the templates used for the RadStacked100DataBar and how best to re-template them to put a label in the center of each "section".

    Thank You
    Paul
  2. Evgenia
    Admin
    Evgenia avatar
    1407 posts

    Posted 19 Mar 2015 Link to this post

    Hello Paul,

    Please mind that RadDataBar control purpose by definition is to represent numeric values that should be compared cell-by-cell integrated in grid. So you should ask yourself - are you using RadGridView in your application?
    If that is the case then you might find 1-st suggestion useful. If you are not using RadGridView to wrap these bars then please refer to suggestion 2.

    1. By design only RadDataBar has Labels and LabelPosition property that lets you choose from predefined enum of positions. You may read more about it in our documentation. You can still have labels and position them on RadStacked100DataBar with custom element as demonstrated in the attached project.

    2. You might use our RadChartView control and more specifically its Bar series with Stack100 Combine Mode as demonstrated in our online demo. To be able to position them in the Center of the Bar you might use the approach shown in this help topic.

    Let me know if you need any further assistance with this.

    Regards,
    Evgenia
