Stop grid auto-scroll asynchronous threading

4 posts, 1 answers
  1. Shakti SIngh Dulawat
    Shakti SIngh Dulawat avatar
    89 posts
    Member since:
    Oct 2009

    Posted 30 Sep 2014 Link to this post

    Hey Admin,

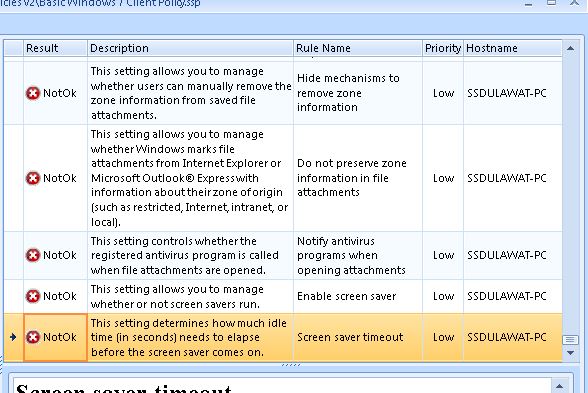

    I have once scenario I am binding records via asynchronous threading

    delegate void RuleResultParameterDelegate(string value);  // this delegate is used to allow the code to call back to itself, as needed in the UI thread
            private void RuleExecuted(string ruleResult)
            {
                // if this is not the main UI thread, then call this function via a delegate
                if (InvokeRequired)
                {
                    BeginInvoke(new RuleResultParameterDelegate(RuleExecuted), new object[] { ruleResult });
                    return;
                }

                    GridViewRowInfo row = new GridViewRowInfo(radGridView_EnvResults.MasterView);
                    row.Cells["colTargetHost"].Value = “abc”;
                    row.Cells["colRuleName"].Value = “efg”;

                        var selectedRow = radGridView_EnvResults.CurrentRow;
                        radGridView_EnvResults.Rows.Add(row);
                        if (selectedRow != null)
                        {
                               radGridView_EnvResults.GridBehavior = new MyBehavior();
                        }



            } public class MyBehavior : BaseGridBehavior
        {
            public override bool ProcessKey(KeyEventArgs keys)
            {
                if (this.GridControl.CurrentRow is GridViewNewRowInfo)
                {
                    if (keys.KeyData == Keys.Enter || keys.KeyData == Keys.Down || keys.KeyData == Keys.Up)
                    {
                        this.GridControl.EndEdit();
                        this.GridControl.GridNavigator.SelectPreviousRow(1);
                        this.GridControl.GridNavigator.SelectFirstColumn();
                        this.GridControl.BeginEdit();
                    }
                    else if (this.GridControl.GridNavigator.IsLastColumn(this.GridControl.CurrentColumn) && keys.KeyData == Keys.Tab)
                    {
                        this.GridControl.EndEdit();
                        this.GridControl.GridNavigator.SelectPreviousRow(1);
                        this.GridControl.GridNavigator.SelectFirstColumn();
                        this.GridControl.BeginEdit();
                    }
                    else if (keys.KeyData == Keys.Tab)
                    {
                        this.GridControl.GridNavigator.SelectNextColumn();
                    }
                    return true;
                }
                else
                {
                    return base.ProcessKey(keys);
                }

            }
        }

    Is there a way to not have the grid auto-scroll as data is going into it?

    Thanks,
    Shakti
  2. Answer
    Dess
    Admin
    Dess avatar
    1609 posts

    Posted 02 Oct 2014 Link to this post

    Hello Shakti,

    Thank you for writing.

    Firstly, I would like to note that all UI controls are not thread safe controls in the whole Windows Forms platform (not just Telerik controls, but all controls out there). Here is an article on MSDN, describing how to make thread-safe Winforms UI application. This means that any control from the Telerik UI for WinForms suite is not thread safe as well and cannot be used outside the main UI thread. You should use an Invoke to update the controls in cross threading scenario.

    I have prepared a sample project following the provided code and I was unable to reproduce the auto-scroll behavior if the MasterTemplate.SelectLastAddedRow property is set to false. However, the scroll bar is updated after adding of each new row which is normal behavior.

    If it is not the exact scenario, feel free to modify the provided project on a way to reproduce the experienced issue and get back to me with it so I can investigate the precise case. Thank you in advance.

    I hope this information helps. Should you have further questions, I would be glad to help.

    Regards,
    Desislava
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.

  3. UI for WinForms is Visual Studio 2017 Ready
  4. Shakti SIngh Dulawat
    Shakti SIngh Dulawat avatar
    89 posts
    Member since:
    Oct 2009

    Posted 03 Oct 2014 Link to this post

    Thanks for your time although I fixed it by using  below code.

    // cache the currently selected row so that when adding rows to the grid, it doesn't automatically select the next one
                        RadScrollBarElement vScrollbar = radGridView_EnvResults.TableElement.VScrollBar;
                        int scrollBarValue = vScrollbar.Value;

                        // Make sure we cache the currently selected row, as needed.
                        int selectedRowIndex = -1;
                        if (radGridView_EnvResults.SelectedRows.Count == 1)
                        {
                            // cache the selected row and disable the selection changed handler
                            selectedRowIndex = ((GridViewRowInfo)radGridView_EnvResults.SelectedRows[0]).Index;
                            radGridView_EnvResults.SelectionChanged -= new System.EventHandler(this.radGridView_EnvResults_SelectionChanged);
                        }

                        // add the data to the grid
                        radGridView_EnvResults.Rows.Add(row);

                        // now re-select the currently selected row, as needed and re-enable the selection changed handler
                        if (selectedRowIndex >= 0)
                        {
                            radGridView_EnvResults.Rows[selectedRowIndex].IsSelected = true;
                            radGridView_EnvResults.SelectionChanged += new System.EventHandler(this.radGridView_EnvResults_SelectionChanged);
                        }

                        // update the table elements and lock the grid in place where it is
                        radGridView_EnvResults.TableElement.Update(GridUINotifyAction.DataChanged);
                        radGridView_EnvResults.TableElement.Update(GridUINotifyAction.StateChanged);
                        radGridView_EnvResults.TableElement.RowScroller.UpdateScrollRange();
                        radGridView_EnvResults.TableElement.VScrollBar.Value = this.ClampValue(scrollBarValue, vScrollbar.Minimum, vScrollbar.Maximum - vScrollbar.LargeChange + 1);
  5. Dess
    Admin
    Dess avatar
    1609 posts

    Posted 08 Oct 2014 Link to this post

    Hello Shakti,

    Thank you for writing back.

    I am glad that you have found another solution which is suitable for your specific case. If you have any additional questions, please let me know.

    Regards,
    Desislava
    Telerik
