Start the line from starting point of Y-Axis in RadHTMLchart

2 posts, 0 answers
  1. Sankar
    Sankar avatar
    1 posts
    Member since:
    Jan 2016

    Posted 07 Apr Link to this post

    Hi Team,

    I am using RadHTMLChart,

    I am able to find the Layout mode property in Radchat which is used for Start the line from starting point of Y-Axis, The same equivalent property of x-axis in RadHTMLChart I am not able to find.

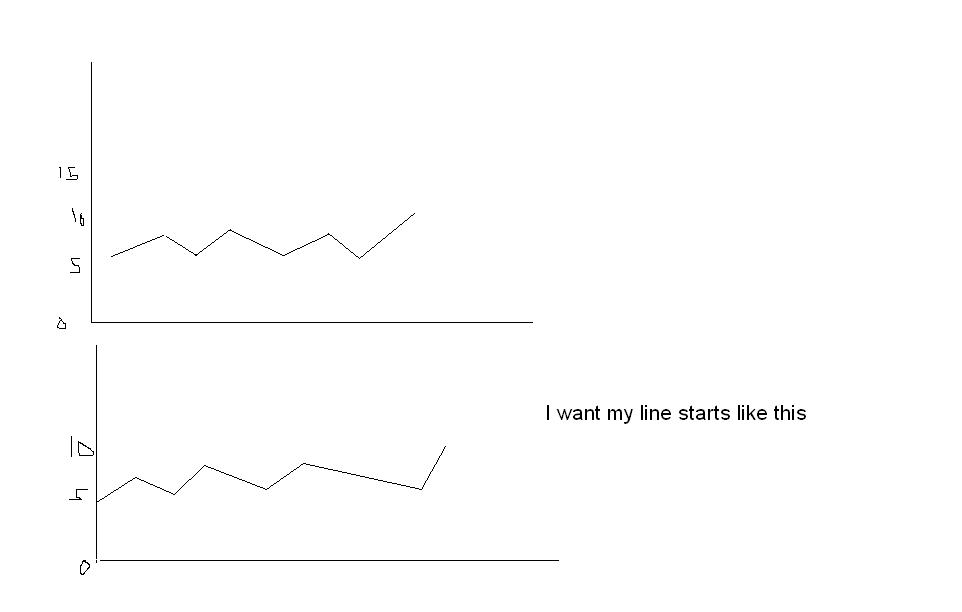

    Please help me, Also please refer the screen shot which explain my requirement


  2. Vessy
    Vessy avatar
    1351 posts

    Posted 11 Apr Link to this post

    Hi Sankar,

    The ScatterLineChart allows configuring both the X and Y coordinates of the series item, so you can achieved the demonstrated layout by using it in a similar way:
    <telerik:RadHtmlChart runat="server" ID="ChartWithScatterSeries" Height="400px" Width="500px">
        <ChartTitle Text="Chart with Scatter and ScatterLine series">
                        <telerik:ScatterSeriesItem X="0" Y="20" />
                        <telerik:ScatterSeriesItem X="25" Y="10" />
                        <telerik:ScatterSeriesItem X="40" Y="40" />
                        <telerik:ScatterSeriesItem X="64" Y="20" />
                        <telerik:ScatterSeriesItem X="90" Y="30" />
                    <TooltipsAppearance Color="White" />
            <Appearance Visible="false" />

    I hope this helps.
