SPRadEditor: In ImageManager Files are not loading and No Upload button visible

10 posts, 0 answers
  1. Deepika
    Deepika avatar
    1 posts
    Member since:
    Oct 2012

    Posted 26 Dec 2012 Link to this post

    Hi,

    I am using SPRadEditor in my ascx in visual webpart.





    <RadEditorSharePoint:SPRadEditor ID="teletxtBody" ContentAreaMode="Div" runat="server" TabIndex="1" ToolbarMode="Default" BorderStyle="Solid" AllowExternalUrls="true" BorderColor="Black" AllowScripts="True" ContentFilters="encodescripts">







    <ImageManager UploadPaths="~/MyPics" DeletePaths="~/MyPics" ViewPaths="~/MyPics" />









    </RadEditorSharePoint:SPRadEditor>




    On Click of ImageManager Icon, telerek Dialgohandler popus up with Correct Document Library "MyPics" but no files are being loaded in it evn onclick of LoadFiles button.
    Also Upload button is not visible on the dialog handler.

    Loggedin User has full control rights and is a farm admin.

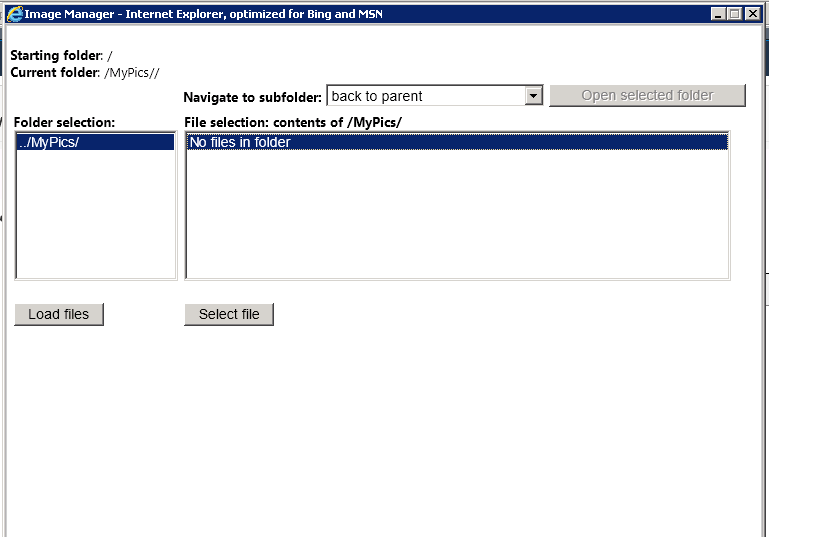

    Find attached the Screen shot of the dialog handler.

    Regards,
    Deepika

  2. Stanimir
    Admin
    Stanimir avatar
    1653 posts

    Posted 27 Dec 2012 Link to this post

    Hello,

    By default SPRadEditor uses specially designed content provide, which has access to SharePoint's libraries. If you want to use the default file system content provide I suggest you to use the default RadEditor for AJAX control. Just make sure that you register the handlers in the web.config with axd extension and not aspx.


    Kind regards,
    Stanimir
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.

  3. Ace
    Ace avatar
    6 posts
    Member since:
    Dec 2013

    Posted 11 Dec 2013 Link to this post

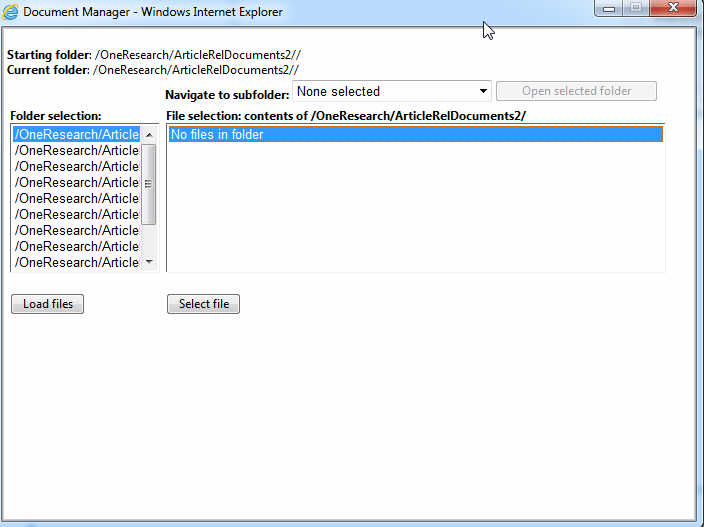

    Hi, am also facing the same issue, have recently did an upgrade from 4.5.1.0 to 6.8.0.0, where I had to change the mossradeditor to spradeditor,  my image manager and document manager is not showing any upload option, I'm actually trying to configure it to hit my sharepoint library and am using the spradeditor.
  4. Ace
    Ace avatar
    6 posts
    Member since:
    Dec 2013

    Posted 11 Dec 2013 Link to this post

    Hi, am also facing the same issue, have recently did an upgrade from 4.5.1.0 to 6.8.0.0, where I had to change the mossradeditor to spradeditor,  my image manager and document manager is not showing any upload option, I'm actually trying to configure it to hit my sharepoint library and am using the spradeditor.
  5. Stanimir
    Admin
    Stanimir avatar
    1653 posts

    Posted 12 Dec 2013 Link to this post

    Hi Ace,

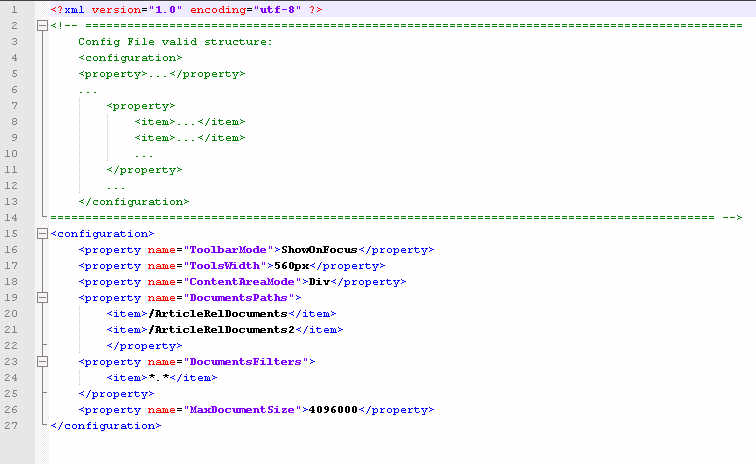

    Could you send me the web.config file of your SharePoint site. I also will need the ConfigFile.xml and ListConfigFile.xml, ToolsFile.xml, ListToolsFile.xml files, which are located in the c:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\wpresources\RadEditorSharePoint\6.8.0.0__1f131a624888eeed folder.

    In addition you should know that the upload functionality of RadEditor for SharePoint 2010 is automatically enabled if the currently logged user has permissions to upload files in the corresponding libraries.


    Regards,
    Stanimir
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  6. Ace
    Ace avatar
    6 posts
    Member since:
    Dec 2013

    Posted 15 Dec 2013 Link to this post

    Hi Stanimir,

    My SPRadEditor is written as such

    <telerikSP:SPradeditor id="radContent" skin="Vista" width="500px" runat="server" toolsfile="/_layouts/OneCollaboration/ToolsFile.xml"></telerikSP:SPradeditor>

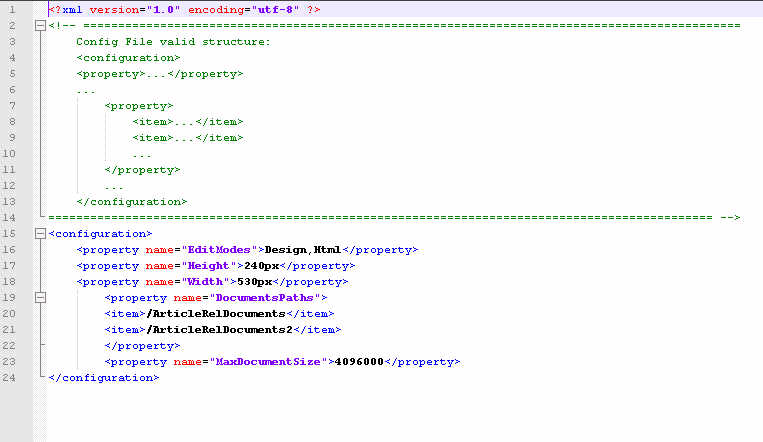

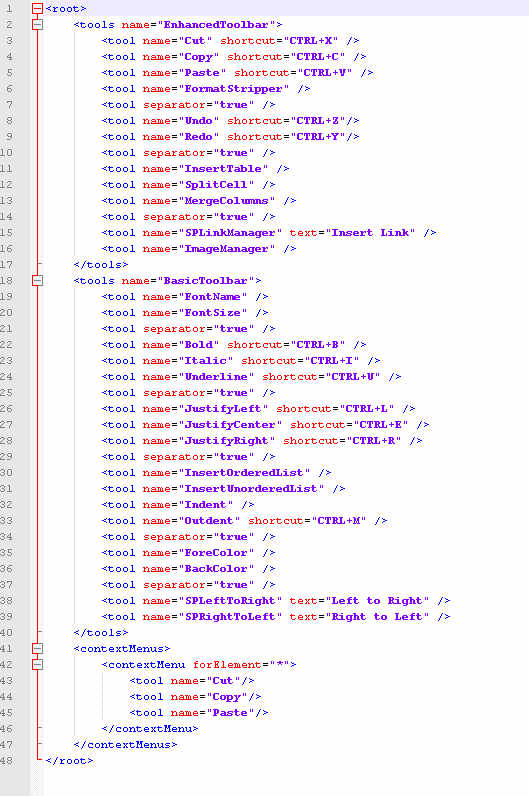

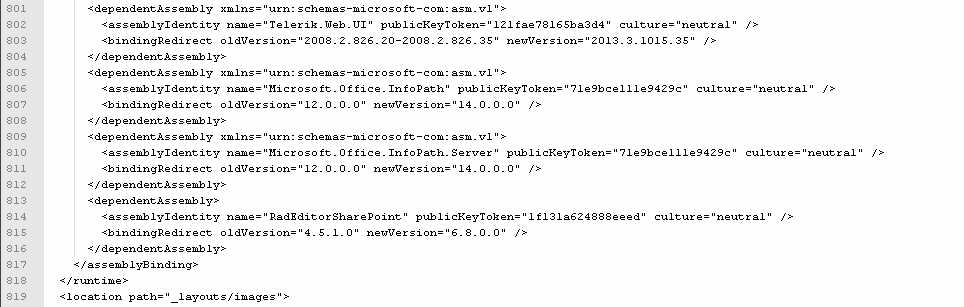

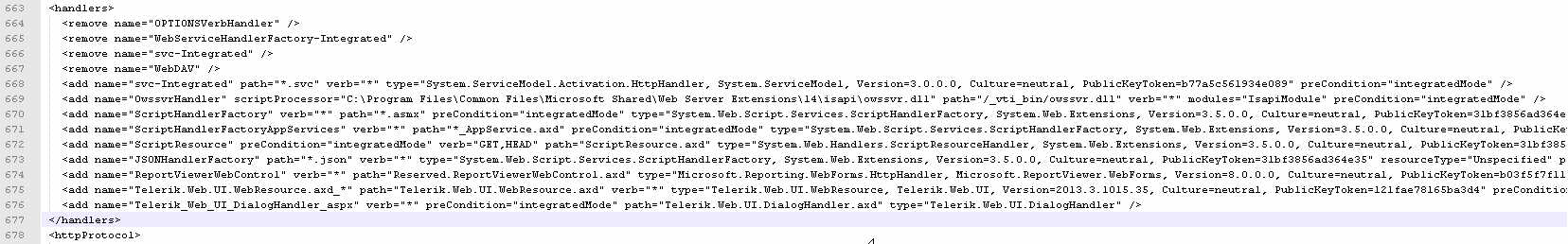

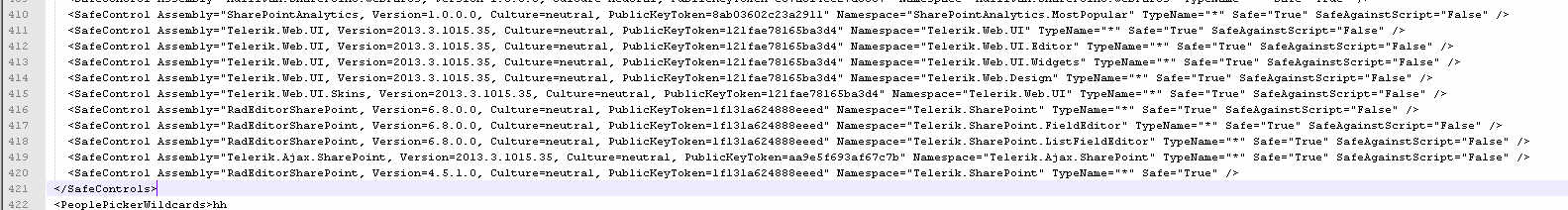

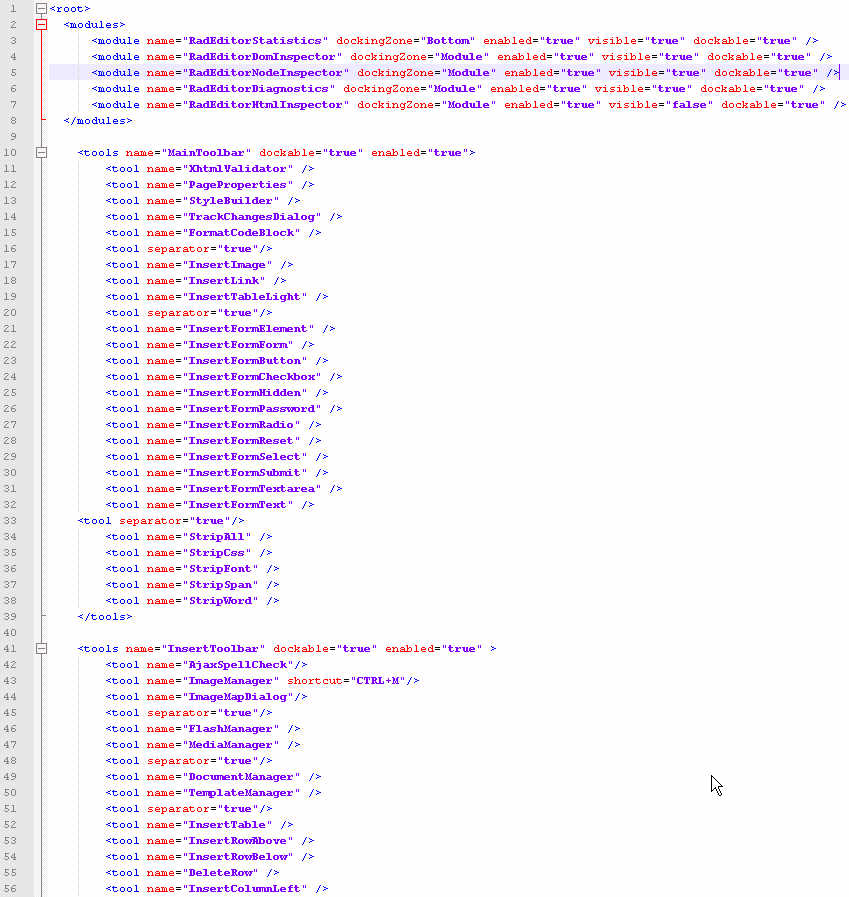

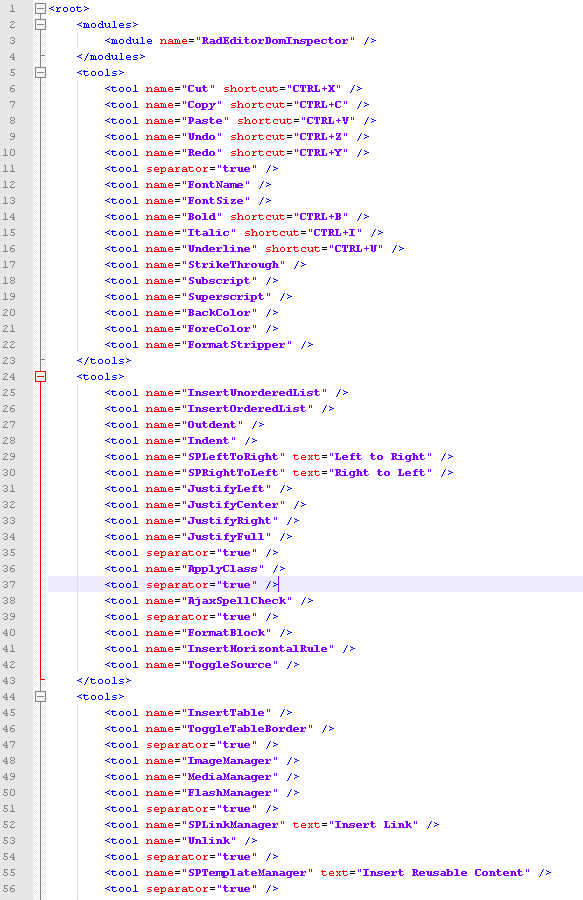

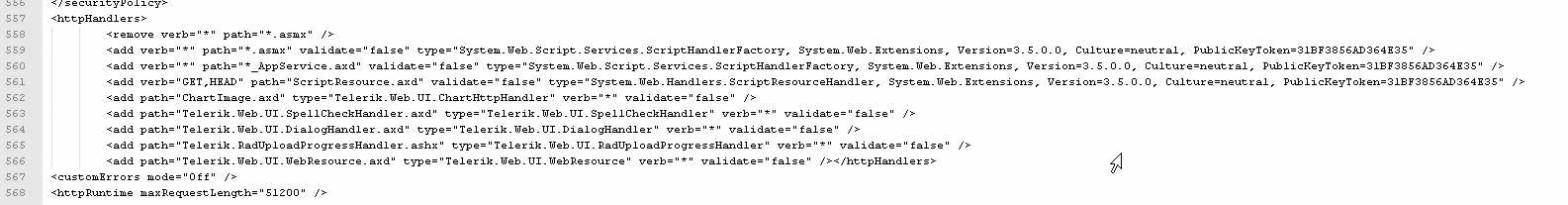

    which i assume it will use the toolsfile of that custom location (not sure if it will cause any complications or even the cause of my issue). Have attached both the toolsfile in wpresource/RadEditorSharePoint and the one from my layouts/OneCollaboration (ToolsFileInUse.xml). Have also put in relevant sections of web.config.

    And yes, the credential I'm testing on has site collection admin rights to the site.

    Thanks!
  7. Stanimir
    Admin
    Stanimir avatar
    1653 posts

    Posted 16 Dec 2013 Link to this post

    Hello Ace,

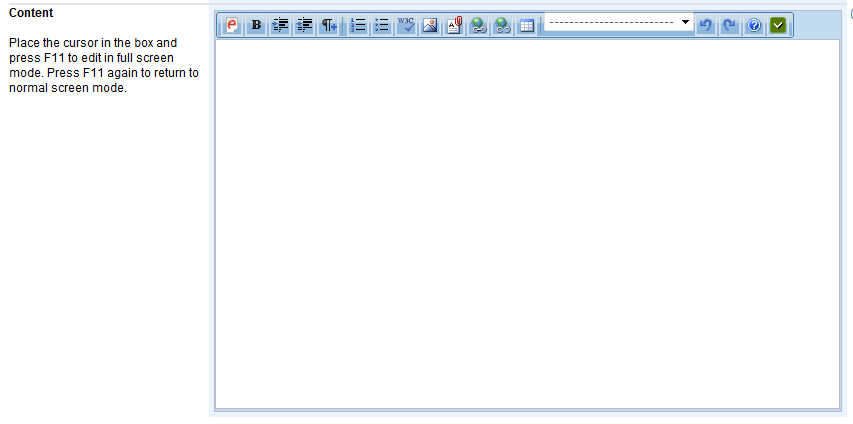

    From Editor.jpg image I can tell that the Use an accessible UI in RadEditor feature is activated. Could you deactivate this feature (http://screencast.com/t/lfFYfqRf4lf7) and test the ImageManager again?



    Regards,
    Stanimir
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  8. Ace
    Ace avatar
    6 posts
    Member since:
    Dec 2013

    Posted 16 Dec 2013 Link to this post

    Hi Stanimir,

    Have deactivated that feature and the image manager and document managers are ok now, thanks! Appreciate your help! :)
  9. Ace
    Ace avatar
    6 posts
    Member since:
    Dec 2013

    Posted 16 Jan 2014 Link to this post

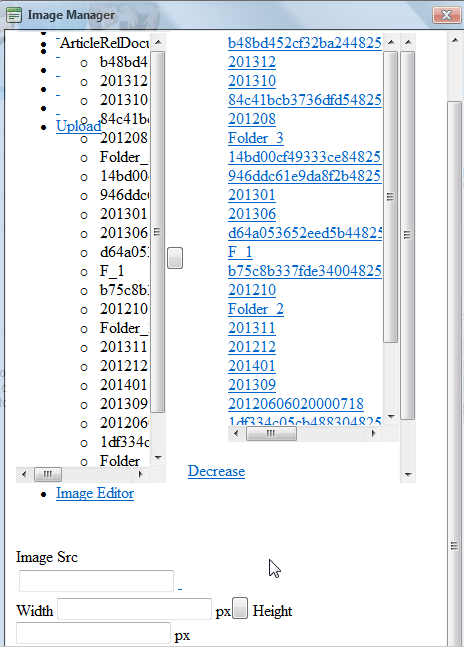

    Hi, have tried to perform the upgrade on our intermediate test environment, am facing some skinning issues with the document / image manager as shown in the attached image.
  10. Ace
    Ace avatar
    6 posts
    Member since:
    Dec 2013

    Posted 17 Jan 2014 Link to this post

    Hi, managed to fix the issue by specifying the handler in the web.config


    <system.webserver>
        <handlers>
            ...
            <add name="Telerik_Web_UI_DialogHandler_aspx" verb="*" preCondition="integratedMode" path="Telerik.Web.UI.DialogHandler.aspx" type="Telerik.Web.UI.DialogHandler" />
        </handlers>
    </system.webserver>
