Splitter bars between RadPaneGroups

3 posts, 1 answers
  1. Dodd
    Dodd avatar
    44 posts
    Member since:
    Dec 2012

    Posted 07 May 2013 Link to this post

    Hello,

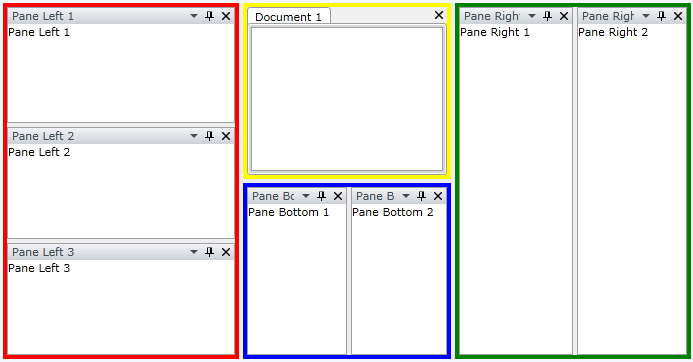

    In the attached image, I want to have splitter bars between Pane Left 1, Pane Left 2, and Pane Left 3, for example.
    I understand that the splitters can only be obtained through placing RadPaneGroups in RadSplitContainers.
    Is there any way that I can create splitter bars between RadPaneGroups, or place multiple vertical RadSplitContainers in the same 'DockedLeft' initial position?
  2. Answer
    Alek
    Admin
    Alek avatar
    78 posts

    Posted 10 May 2013 Link to this post

    Hello Dodd,

    Thank you for writing to us.

    There are splitters between Pane Left 1, Pane Left 2, Pane Left 3 (see the attachment).

    You can place multiple RadSplitContainers in a RadSplitContainer. To make the Container vertical you should use its Orientation property and set it to Vertical in the main RadSplitContainer.

    If we missed something do not hesitate to contact us again.

    Regards,
    Alek
    the Telerik team

    Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

  3. UI for WPF is Visual Studio 2017 Ready
  4. Dodd
    Dodd avatar
    44 posts
    Member since:
    Dec 2012

    Posted 12 May 2013 Link to this post

    I've placed RadSplitContainers in a RadSplitContainer and it worked!
    Thanks very much!
