Show current point after mouce hover

4 posts, 0 answers
  1. Rinno
    Rinno avatar
    6 posts
    Member since:
    Sep 2014

    Posted 28 Sep 2014 Link to this post

    I have RadChartView that receive real time data and i want to add the option after the mouse is over specific point to see it's value so i added this property:

    radChartView1.ShowTrackBall = true;

    And now i can see an empty rectangle with no text (see my attach file).
    Another thing that i have notice is now after right click on my chart i have an new option called Palette that change my series color and in this case i can see the point value inside the rectangle.

    Now i have 3 questions:

    1. What is this new option ?
    2. how can i see my point value without change this color ?
    3. is it possible to add some text inside this rectangle ?

    Thanks !
  2. Dess
    Admin
    Dess avatar
    1609 posts

    Posted 01 Oct 2014 Link to this post

    Hello Rinno,

    Thank you for writing.

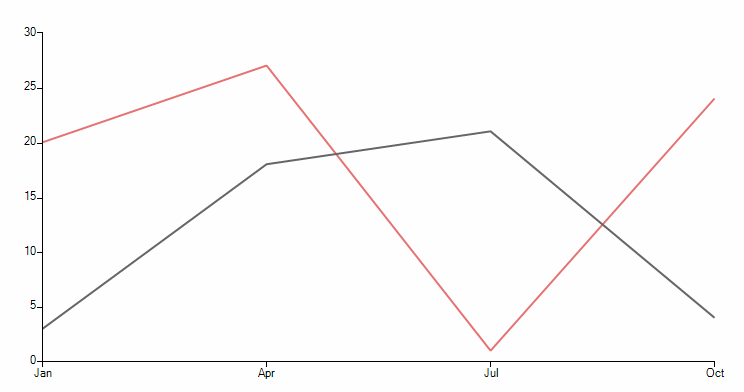

    I am not sure how exactly you re-populate the RadChartView with data. However, please refer to the following code snippet, demonstrating a sample approach. The chart data is refreshed at each second and the track ball displays the respective value in a specific format defined in the ChartTrackballController.TextNeeded event:
    public Form1()
    {
        InitializeComponent();

        PopulateChart();
        this.timer1.Start();
    }

    Random rand = new Random();

    private void PopulateChart()
    {
        this.radChartView1.Series.Clear();
        this.radChartView1.Axes.Clear();
        LineSeries lineSeries = new LineSeries();
        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Jan"));
        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Apr"));
        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Jul"));
        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Oct"));
        this.radChartView1.Series.Add(lineSeries);

        LineSeries lineSeries2 = new LineSeries();
        lineSeries2.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Jan"));
        lineSeries2.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Apr"));
        lineSeries2.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Jul"));
        lineSeries2.DataPoints.Add(new CategoricalDataPoint(rand.Next(0, 30), "Oct"));
        this.radChartView1.Series.Add(lineSeries2);
    }

    private void timer1_Tick(object sender, EventArgs e)
    {
        UnwireEvents();

        this.radChartView1.ShowTrackBall = false;

        PopulateChart();

        this.radChartView1.ShowTrackBall = true;
        WireEvents();
    }

    private void WireEvents()
    {
        ChartTrackballController trackBall;
        foreach (var c in this.radChartView1.Controllers)
        {
            trackBall = c as ChartTrackballController;
            if (trackBall != null)
            {
                trackBall.TextNeeded += trackBall_TextNeeded;
                break;
            }
        }
    }

    private void UnwireEvents()
    {
        ChartTrackballController trackBall;
        foreach (var c in this.radChartView1.Controllers)
        {
            trackBall = c as ChartTrackballController;
            if (trackBall != null)
            {
                trackBall.TextNeeded -= trackBall_TextNeeded;
                break;
            }
        }
    }

    private void trackBall_TextNeeded(object sender, TextNeededEventArgs e)
    {
        StringBuilder sb = new StringBuilder();
        foreach (DataPointInfo p in e.Points)
        {
            CategoricalDataPoint cdp = p.DataPoint as CategoricalDataPoint;
            if (cdp != null)
            {
                sb.AppendLine("Value:" + cdp.Value + "");
            }
        }
        e.Text = sb.ToString();
    }

    As to the "Palette" option, please refer to our Palettes help article which is quite useful on this topic.

    I hope this information helps. Should you have further questions, I would be glad to help.

    Regards,
    Desislava
    Telerik
