Shortcuts and Accelerator keys For RadMenuItem Issue

5 posts, 0 answers
  1. Yongxiu
    Yongxiu avatar
    3 posts
    Member since:
    May 2013

    Posted 27 May 2013 Link to this post

    Hi:
        I hope I can explain my problem clearly.

        When I add shortcuts and accelerator keys for RadMenuItem, I find some bugs or issues.

    Step1: Add RadMenuItem "File". (Parent)
    Step2: Add RadMenuItem "Open" (accelerator key is : O;  shortcut is : Ctrl + Shift + G)
    Step3: Add RadMenuItem "Add"  (accelerator key is : A;  shortcut is : Alt + O)
    Step4: Set "Add" is disabled.

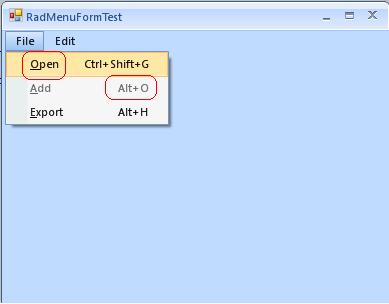

    Run the program, you can see the scene as the attachment below. Now, please enter "Alt + O",
    the issues comes.....you can see it execute the "Open" function. Who can tell me why!!!!!
    Is it mixed the shortcuts and accelerator keys ? is this a bug?

  2. Yongxiu
    Yongxiu avatar
    3 posts
    Member since:
    May 2013

    Posted 27 May 2013 Link to this post

    BTW, I am using Telerik Winform Q2 2012 SP2.

    Thanks a lot!
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 29 May 2013 Link to this post

    Hi Yongxiu,

    Thank you for writing.

    In your case you are mixing two concepts which are working simultaneously. One is mnemonics and the other one is shortcuts. When you place an & before a letter it will appear underlined in the menu item e.g. "&Open" appears as  "Open". When you press Alt + that letter the corresponding menu item will be executed. Shortcuts are another system which allows for fast execution of commands. As a general rule shortcuts do not include Alt + letter combinations. The Alt key is always accompanied by another modifier key e.g. Ctrl + Alt + F. This is exactly because mnemonics use the Alt key automatically. My suggestion would be that you follow this rule and change your shortcuts accordingly.

    I hope this clears things up. Should you have further questions, I would be glad to help.

    Regards,
    Ivan Petrov
    Telerik
    RadChart for WinForms is obsolete. Now what?
  5. Yongxiu
    Yongxiu avatar
    3 posts
    Member since:
    May 2013

    Posted 29 May 2013 Link to this post

    I am glad to see your feedback. I just do another test following your suggestion, but the problem still exists. I will make a more detailed explanation to the problem here.

    Under the "File" menu, two menu items are added, "&Open" without any shortcuts, and "&Add" with shortcuts "Ctrl + Shift + O".
    Now the problem can be replicated by the flowing steps:
    1. Click on "File" menu to popup the submenu.
    2. Press "Ctrl + Shift + O"
    In this case, you will see the procedure of  the "Open" menu is executed. This is very confused.
    How can I avoid or walk around of the problem?

    The code and the test program are attached for you to duplicate the problem.

    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Drawing;
    using System.Linq;
    using System.Text;
    using System.Windows.Forms;
    using Telerik.WinControls.UI;
    using Telerik.WinControls;
    using System.Diagnostics;

    namespace WindowsFormsApplication1
    {
        public partial class Form1 : RadForm
        {
            private bool marked = true;

            public Form1()
            {
                InitializeComponent();

                this.radMenuItem1.DropDownOpening += new CancelEventHandler(radMenuItem1_DropDownOpening);
                this.radMenuItem1.DropDownClosing += new RadPopupClosingEventHandler(radMenuItem1_DropDownClosing);

                this.radMenuItem2.Click += new EventHandler(radMenuItem_Click);

                this.radMenuItem3.Shortcuts.Add(BuildRadShortcut(Keys.Control | Keys.Shift | Keys.O));
                this.radMenuItem3.Click += new EventHandler(radMenuItem_Click);
            }

            void radMenuItem1_DropDownClosing(object sender, RadPopupClosingEventArgs args)
            {
                Debug.WriteLine("closing enter");

                marked = true;

                Debug.WriteLine(String.Format("marked value: {0}", marked));

                Debug.WriteLine("closing execution");
            }

            void radMenuItem1_DropDownOpening(object sender, CancelEventArgs e)
            {
                Debug.WriteLine("opening enter");

                marked = false;

                Debug.WriteLine(String.Format("marked value: {0}", marked));

                Debug.WriteLine("opening execution");
            }

            void radMenuItem_Click(object sender, EventArgs e)
            {
                Debug.WriteLine("clicked enter");
                var item = (RadMenuItem)sender;
                if (!item.Enabled)
                {
                    return;
                }

                Debug.WriteLine(String.Format("marked value: {0}", marked));

                if (!marked)
                {
                    Debug.WriteLine("clicked execution canceled");

                    return;
                }

                Debug.WriteLine("click executed");

                MessageBox.Show("click " + ((RadMenuItem)(sender)).Text);
            }

            private static RadShortcut BuildRadShortcut(Keys shortcutKeys)
            {
                Keys modifiers = GetModifies(shortcutKeys);
                Keys letter = shortcutKeys ^ modifiers;

                return new RadShortcut(modifiers, letter);
            }

            private static Keys GetModifies(Keys combination)
            {
                // Set the actually assigned shortcut. The shortcut is a
                // combination of different Keys so they're bit-masked:
                bool ctrl = (combination & Keys.Control) == Keys.Control;
                bool alt = (combination & Keys.Alt) == Keys.Alt;
                bool shift = (combination & Keys.Shift) == Keys.Shift;

                Keys modifiers = Keys.None;
                if (ctrl) modifiers |= Keys.Control;
                if (alt) modifiers |= Keys.Alt;
                if (shift) modifiers |= Keys.Shift;

                return modifiers;
            }
        }
    }

  6. Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 31 May 2013 Link to this post

    Hello Yongxiu,

    Thank you for writing back.

    I was able to reproduce the issue you have described. There is an issue with the handling of the windows keyboard messages which is duplicating some of them. I have logged this case in our Public Issue Tracking System - PITS. You can track its progress, subscribe for status change alert and add your vote/comment to it on the following link - PITS Issue. Unfortunately I am not able to provide you with a workaround due to the nature of the issue.

    I have updated your Telerik Points for bringing this case to our attention.

    Should you have further questions, I would be glad to help.

    Regards,
    Ivan Petrov
    Telerik
    RadChart for WinForms is obsolete. Now what?
