Setting the Visible Period For more Years (30-40Yrs) Not setting Properly

2 posts, 0 answers
  1. Balaji
    Balaji avatar
    19 posts
    Member since:
    Jul 2011

    Posted 28 Nov 2011 Link to this post

    Hi ,



    We are using the Rad Controls for Silver light Q1 2011 SP1 (Version 11.1.419.0) in our application.



    In RADTimeBar , if we provide more years(30-40yrs eg.1980-2020) and setting the Visible period to certain Year (in design or runtime eg 1-Jan-2011 to 31-Dec-2011).

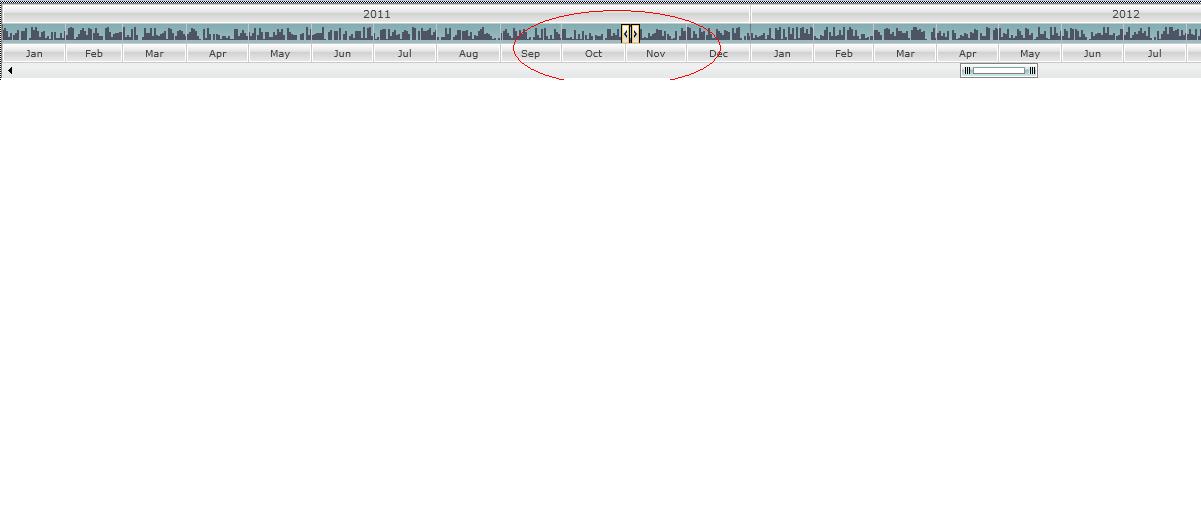

    It is displaying extra year in the Display. (See the attachment pic).



    Is it because of older version we are using?



    Code :

    <





    UserControl.DataContext>









    <example:ExampleViewModel StartDate="1-Jan-1980" EndDate="1-Jan-2020" />









    </UserControl.DataContext>





    <





    Grid x:Name="LayoutRoot" Background="White">









    <telerik:RadTimeBar x:Name="NotesHistoryRtb" Height="75" VerticalAlignment="Top" PeriodStart="1-Jan-1980" PeriodEnd="1-Jan-2020"







    VisiblePeriodStart="1-Jan-2011" VisiblePeriodEnd="31-Dec-2011"







    SelectionStart="1-Nov-2011" SelectionEnd="30-Nov-2011" BorderThickness="1,1,1,0" MaxSelectionRange="5" MinSelectionRange="1" Style="{StaticResource RadTimeBarStyle1}">









    <telerik:RadTimeBar.Intervals>









    <telerik:DecadeInterval/>









    <telerik:YearInterval/>









    <telerik:MonthInterval/>









    <telerik:WeekInterval/>









    <telerik:DayInterval/>











    </telerik:RadTimeBar.Intervals>









    <telerik:RadColumnSparkline Margin="0,3" ItemsSource="{Binding ColumnData}" XValuePath="Date" YValuePath="Value" ColumnWidthPercent=".8" Foreground="Red" />









    </telerik:RadTimeBar>









    </Grid>



  2. Tsvetie
    Admin
    Tsvetie avatar
    1517 posts

    Posted 29 Nov 2011 Link to this post

    Hi Balaji,
    No, this is not something specific to the version you use. This behavior will not change if you upgrade your version to the latest.

    Due to a limitation in Silverlight framework, we have enforced a constraint for zoom-in to maximum of 30 000 pixels. As the period range of your timebar is large, when you try to zoom in to a single year, you hit the 30 000 pixel limit. The constraint is applied in both the Silverlight and WPF versions of the control and currently, there is no way to influence this, with the exception of modifying the source code, of course.

    Best wishes,
    Tsvetie
    the Telerik team
