Set the width of the Y-axis

2 posts, 0 answers
  1. bouh
    bouh avatar
    1 posts
    Member since:
    Mar 2011

    Posted 30 Dec 2015 Link to this post



    I have a scenario with a RadCartesianChart showing N series and so 3 Y-Axis (dynamically).

    I need to align my chart (the 0,0 point) with some others component and to do so I need to fix the width for the sum of all Y-Axis.

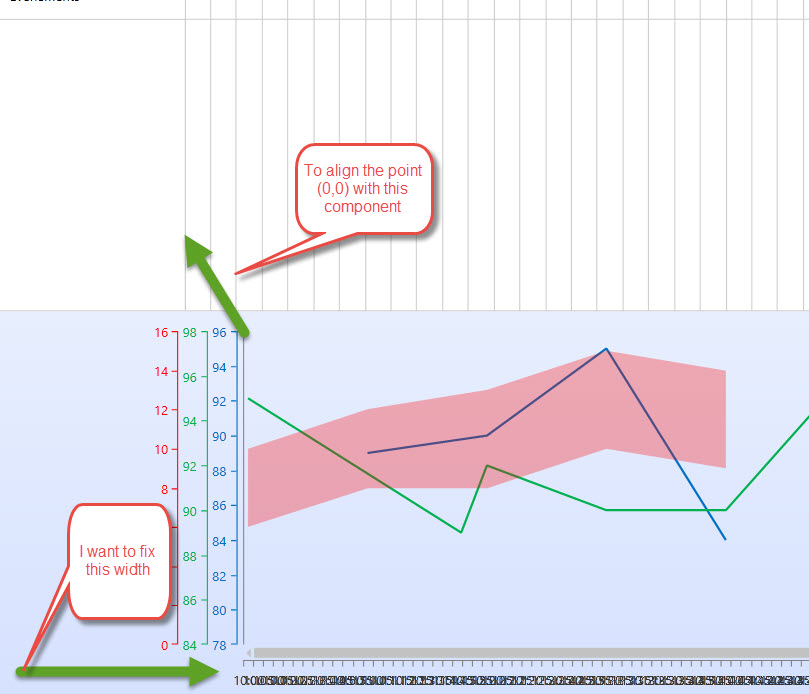

    Is this possible to do (like the screenshot) ?





  2. Martin
    Martin avatar
    1047 posts

    Posted 31 Dec 2015 Link to this post

    Hi bouh,

    The chart's axis doesn't provide a single property that can control its size. To make it smaller you can use combination of few properties. For example, you can set the FontSize of the labels through the axis' LabelStyle property. This way the space required by the axis to draw its element will be different. Also, you can try the TickThickness and LineThickness properties of the axis.
