Self Referencing Treeview loses children in RadDock

2 posts, 0 answers
  1. Robert
    Robert avatar
    7 posts
    Member since:
    Jun 2012

    Posted 13 Oct 2012 Link to this post

    Hello all

    I've got a strange one. I've got a treeview with check boxes in a tool window in a RadDock.

    When I change the docking on the window, the treeview loses its children. The parents stay, but the children are gone - there are no children at all and the parent node doesn't expand.

    As a work around I tried reloading the treeview after the dock state changes, but then the children get reloaded, so that every time I dock I get a new set of children nested inside the existing children. I've tried clearing the treeview and setting the data source to nothing before reloading. Here's the code:

    Private Sub DockMain_DockStateChanged(sender As System.Object, e As Telerik.WinControls.UI.Docking.DockWindowEventArgs) Handles DockMain.DockStateChanged
        Filter_Equipment.BeginUpdate()
        Filter_Equipment.DataSource = Nothing
        Filter_Equipment.Nodes.Clear()
        'Filter_Equipment.Nodes.Refresh()

        LoadEquipmentTreeView()
        Filter_Equipment.EndUpdate()
    End Sub


    Private Sub LoadEquipmentTreeView()
        Filter_Equipment.DataSource = _Context.FindEquipmentType(Nothing, Nothing, Nothing)
        Filter_Equipment.DisplayMember = "EquipmentTypeName"
        Filter_Equipment.ValueMember = "EquipmentTypeID"
        Filter_Equipment.RelationBindings.Add(New RelationBinding(_Context.FindEquipment(Nothing, Nothing, Nothing, Nothing, Nothing, Nothing), "EquipmentShortName", "EquipmentTypeID", "EquipmentTypeID", "EquipmentID"))
        Filter_Equipment.Nodes.Refresh()
    End Sub

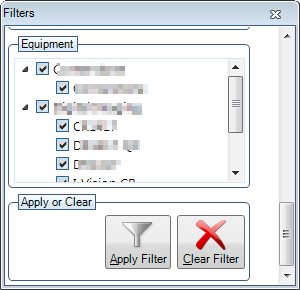

    Some screenshots attached - I have blocked out the values displayed in the nodes because it's client data, but hopefully you can see.

    Any suggestions?

    Thanks in advance....
  2. Julian Benkov
    Admin
    Julian Benkov avatar
    1135 posts

    Posted 17 Oct 2012 Link to this post

    Hi Robert,

    The issue is related to the rebind operation after the Parent of RadTreeView is changed during the dock operation. The process in this situation is absolutely valid. We will continue researching how to suspend/resume the binding in this case to save the state of RadTreeView control without changing the functionality in the general case. Currently, you can save and restore the Checkbox state of the RadTreeView control using a HashSet collection. Here is an example:

    Imports System.Collections.Generic
    Imports System.Data
    Imports System.Windows.Forms
    Imports Telerik.WinControls.UI
    Imports Telerik.WinControls.UI.Docking

    Namespace Lab.Tree
        Public Partial Class TreeToolWindowBindForm
            Inherits Form
            Private radDock As New RadDock()
            Private treeView As New RadTreeView()
            Private checkedNodes As New HashSet(Of Integer)()

            Public Sub New()
                InitializeComponent()

                radDock.Dock = DockStyle.Fill
                radDock.Parent = Me
                radDock.DockStateChanged += radDock_DockStateChanged

                Dim window As New ToolWindow()
                treeView.Dock = DockStyle.Fill
                treeView.CheckBoxes = True
                treeView.NodeCheckedChanged += treeView_NodeCheckedChanged
                window.Controls.Add(treeView)
                radDock.DockWindow(window, DockPosition.Left)

                Dim table As New DataTable()
                table.Columns.Add("Id", GetType(Integer))
                table.Columns.Add("ParentId", GetType(Integer))
                table.Columns.Add("Name", GetType(String))
                table.Columns.Add("Valid", GetType(Boolean))

                table.Rows.Add(1, 0, "Node1", True)
                table.Rows.Add(2, 0, "Node2", False)
                table.Rows.Add(3, 1, "Node3", True)
                table.Rows.Add(4, 1, "Node4", True)
                table.Rows.Add(5, 0, "Node5", True)
                table.Rows.Add(6, 5, "Node6", False)
                table.Rows.Add(7, 3, "Node7", True)
                table.Rows.Add(8, 3, "Node8", True)
                table.Rows.Add(9, 2, "Node9", False)
                table.Rows.Add(10, 0, "Node10", True)

                treeView.ChildMember = "Id"
                treeView.ParentMember = "ParentId"
                treeView.ValueMember = "Valid"
                treeView.DisplayMember = "Name"

                treeView.DataSource = table
                treeView.ExpandAll()
            End Sub

            Private Sub radDock_DockStateChanged(sender As Object, e As DockWindowEventArgs)
                Dim nodesStack As New Stack(Of RadTreeNodeCollection)()
                nodesStack.Push(treeView.Nodes)

                While nodesStack.Count > 0
                    Dim nodes As RadTreeNodeCollection = nodesStack.Pop()
                    For i As Integer = 0 To nodes.Count - 1
                        Dim id As Integer = CInt(TryCast(nodes(i).DataBoundItem, DataRowView)("Id"))
                        nodes(i).Checked = checkedNodes.Contains(id)
                        If nodes(i).Nodes.Count > 0 Then
                            nodesStack.Push(nodes(i).Nodes)
                        End If
                    Next
                End While

                checkedNodes.Clear()
            End Sub

            Private Sub treeView_NodeCheckedChanged(sender As Object, e As RadTreeViewEventArgs)
                Dim id As Integer = CInt(TryCast(e.Node.DataBoundItem, DataRowView)("Id"))
                If e.Node.Checked Then
                    checkedNodes.Add(id)
                Else
                    checkedNodes.Remove(id)
                End If
            End Sub
        End Class
    End Namespace

    I hope this helps.

    Regards,
    Julian Benkov
    the Telerik team
