ScheduleView not rendering contents?

2 posts, 0 answers
  1. Guga
    Guga avatar
    29 posts
    Member since:
    May 2012

    Posted 29 May 2012 Link to this post

    Hi guys,

    Maybe I am just doing something wrong, but I have lost a lot of time on this already and have no idea what is going on.

    I basically have a RadScheduleView Control inside of a Grid on a UserControl. This control is then placed inside of a Grid on a Window. Pretty simple and working perfectly.

    My UserControl:

    <UserControl x:Class="MonitoringRounds"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
                 xmlns:local="clr-namespace:EScIS.Win.Controls.MonitoringRounds"
                 xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                 mc:Ignorable="d"
                 d:DesignHeight="600" d:DesignWidth="1000" >
        <UserControl.DataContext>
            <local:MonitoringRoundsViewModel/>
        </UserControl.DataContext>
        <Grid>
            <Grid.RowDefinitions>
                <RowDefinition Height="0.05*" />
                <RowDefinition />
            </Grid.RowDefinitions>
            <TextBlock Grid.Row="0">Monitoring Rounds</TextBlock>
            <telerik:RadScheduleView Grid.Row="1" Name="radsvMonitoringRounds" Padding="5" MaxHeight="400" MaxWidth="600" AppointmentsSource="{Binding Appointments}" ResourceTypesSource="{Binding ResourcesTypes}">
                <telerik:RadScheduleView.ViewDefinitions>
                    <telerik:MonthViewDefinition />
                    <telerik:TimelineViewDefinition />
                </telerik:RadScheduleView.ViewDefinitions>
            </telerik:RadScheduleView>
        </Grid>
    </UserControl>

    My Window:

    <Window x:Class="LSpecs"
        xmlns:menu="clr-namespace:EScIS.Win.LSpecs.UI.Controls.Menu;assembly=EScIS.Win.LSpecs.UI.Controls.Menu"
        xmlns:ma ="clr-namespace:EScIS.Win.Controls.MonitoringAssignees;assembly=EScIS.Win.Controls.MonitoringAssignees"
        xmlns:mp ="clr-namespace:EScIS.Win.Controls.MonitoringPrograms;assembly=EScIS.Win.Controls.MonitoringPrograms"
        xmlns:mr ="clr-namespace:EScIS.Win.Controls.MonitoringRounds;assembly=EScIS.Win.Controls.MonitoringRounds"
        Title="Desktop" Height="1200" Width="1900" WindowState="Maximized">
        <Grid>
            <Grid.RowDefinitions>
                <RowDefinition Height="40" />
                <RowDefinition />
                <RowDefinition Height="20"/>
            </Grid.RowDefinitions>
            <Border Grid.Row="0" Name="borderMainToolBar" BorderThickness="0,0,0,2" BorderBrush="Gray">
                <menu:MainToolbar Name="ctrlMainToolBar" menu:MainToolbar.Button_Click_WorkflowMenu="ctrlDesktop_Button_Click_WorkflowMenu"/>
            </Border>
            <menu:Desktop Grid.Row="1" Name="ctrlDesktop"
                          menu:WorkflowFieldPreparation.Button_Click_MonitoringAssignees="Desktop_Button_Click_MonitoringAssignees"
                          menu:WorkflowFieldPreparation.Button_Click_MonitoringPrograms="ctrlDesktop_Button_Click_MonitoringPrograms"
                          menu:WorkflowFieldPreparation.Button_Click_MonitoringRounds="ctrlDesktop_Button_Click_MonitoringRounds"
                          />
            <ma:MonitoringAssignees  Grid.Row="1" Name="ctrlMonitoringAssignees" Visibility="Hidden"/>
            <mp:MonitoringPrograms  Grid.Row="1" Name="ctrlMonitoringPrograms" Visibility="Hidden"/>
            <mr:MonitoringRounds  Grid.Row="1" Name="ctrlMonitoringRounds" Visibility="Hidden"/>
        </Grid>
    </Window>


    On the code side of the story I am using a simplified MVVM pattern with a ViewModel supporting my control:

    Imports EScIS.Database
    Imports EScIS.MVVM.Base
    Imports System.ComponentModel
    Imports System.Collections.ObjectModel
    Imports System.Windows.Data
    Imports Telerik.Windows.Controls
    Imports Telerik.Windows.Controls.ScheduleView

    Public Class MonitoringRoundsViewModel
        Inherits EScIS.MVVM.Base.ViewModelBase

        Private _context As ESdatEntities
        Private _monitoringRounds As ObservableCollection(Of Monitoring_Rounds)
        Private _monitoringRoundsView As ICollectionView
        Private _monitoringPrograms As ObservableCollection(Of LSPECS_Monitoring_Programs)
        Private _monitoringProgramsView As ICollectionView
        Private _monitoringRoundsAssignedMonitoringPrograms As ObservableCollection(Of LSPECS_Monitoring_Round_Assigned_Monitoring_Programs)
        Private _monitoringRoundsAssignedMonitoringProgramsView As ICollectionView

        Private _appointments As ObservableCollection(Of Appointment)
        Private _resourcesTypes As ObservableCollection(Of ResourceType)

        Public Property MonitoringRoundsList() As ObservableCollection(Of Monitoring_Rounds)
            Get
                Return Me._monitoringRounds
            End Get
            Set(value As ObservableCollection(Of Monitoring_Rounds))
                Me._monitoringRounds = value
                Me.OnPropertyChanged("MonitoringRoundsList")
            End Set
        End Property

        Public Property MonitoringProgramsList() As ObservableCollection(Of LSPECS_Monitoring_Programs)
            Get
                Return Me._monitoringPrograms
            End Get
            Set(value As ObservableCollection(Of LSPECS_Monitoring_Programs))
                Me._monitoringPrograms = value
                Me.OnPropertyChanged("MonitoringProgramsList")
            End Set
        End Property

        Public Property MonitoringRoundsAssignedMonitoringProgramsList() As ObservableCollection(Of LSPECS_Monitoring_Round_Assigned_Monitoring_Programs)
            Get
                Return Me._monitoringRoundsAssignedMonitoringPrograms
            End Get
            Set(value As ObservableCollection(Of LSPECS_Monitoring_Round_Assigned_Monitoring_Programs))
                Me._monitoringRoundsAssignedMonitoringPrograms = value
                Me.OnPropertyChanged("MonitoringRoundsAssignedMonitoringProgramsList")
            End Set
        End Property

        Public Property Appointments() As ObservableCollection(Of Appointment)
            Get
                Return Me._appointments
            End Get
            Set(value As ObservableCollection(Of Appointment))
                Me._appointments = value
                Me.OnPropertyChanged("Appointments")
            End Set
        End Property

        Public Property ResourcesTypes() As ObservableCollection(Of ResourceType)
            Get
                Return Me._resourcesTypes
            End Get
            Set(value As ObservableCollection(Of ResourceType))
                Me._resourcesTypes = value
                Me.OnPropertyChanged("ResourcesTypes")
            End Set
        End Property

        Public Sub New()
            Me.Load(Nothing)
        End Sub

        Protected Overrides Sub Add(action As Object)

        End Sub

        Protected Overrides Sub Delete(action As Object)

        End Sub

        Protected Overrides Sub Edit(action As Object)

        End Sub

        Protected Overrides Sub Load(action As Object)
            LoadData()
            LoadCalendarData()
        End Sub

        Public Sub LoadControlData()
            Me.Load(Nothing)
        End Sub

        Private Sub LoadData()
            Try
                With Me._context

                    Me._context = New ESdatEntities()

                    Me.MonitoringRoundsList = New ObservableCollection(Of Monitoring_Rounds)(
                                            From mr In Me._context.Monitoring_Rounds
                                            Select mr)
                    Me.MonitoringProgramsList = New ObservableCollection(Of LSPECS_Monitoring_Programs)(
                                            From mp In Me._context.LSPECS_Monitoring_Programs
                                            Select mp)
                    Me.MonitoringRoundsAssignedMonitoringProgramsList = New ObservableCollection(Of LSPECS_Monitoring_Round_Assigned_Monitoring_Programs)(
                                            From mramp In Me._context.LSPECS_Monitoring_Round_Assigned_Monitoring_Programs
                                            Select mramp)

                End With
            Catch ex As Exception
                Debug.WriteLine(ex.Message)
                Throw New ApplicationException("Database Error: " & ex.Message)
            End Try

            Me._monitoringRoundsView = CollectionViewSource.GetDefaultView(Me.MonitoringRoundsList)
            Me._monitoringProgramsView = CollectionViewSource.GetDefaultView(Me.MonitoringProgramsList)
            Me._monitoringRoundsAssignedMonitoringProgramsView = CollectionViewSource.GetDefaultView(Me.MonitoringRoundsAssignedMonitoringProgramsList)

            Me.OnPropertyChanged("MonitoringRoundsList")
            Me.OnPropertyChanged("MonitoringProgramsList")
            Me.OnPropertyChanged("MonitoringRoundsAssignedMonitoringProgramsList")
        End Sub

        Private Sub LoadCalendarData()
            'GenerateResourcesFromMonitoringPrograms()
            'GenerateAppointmentsFromMonitoringPrograms()
            'GenerateAppointmentsFromMonitoringRounds()
            Me.ResourcesTypes = New ObservableCollection(Of ResourceType)
            Me.Appointments = New ObservableCollection(Of Appointment)
        End Sub

        Private Sub GenerateResourcesFromMonitoringPrograms()
            Me.ResourcesTypes = New ObservableCollection(Of ResourceType)

            'Add monitoring program resource type
            Dim mpType As New ResourceType("Monitoring Program")

            'Add monitoring programs as resources
            If Me._monitoringPrograms Is Nothing Then
                Return
            End If

            For Each mp In _monitoringPrograms
                Dim res As New Resource(mp.Monitoring_Program)
                mpType.Resources.Add(res)
            Next

            Me.ResourcesTypes.Add(mpType)
            Me.OnPropertyChanged("ResourcesTypes")
        End Sub

        Private Sub GenerateAppointmentsFromMonitoringPrograms()
            Me.Appointments = New ObservableCollection(Of Appointment)

            'Add monitoring programs as appointments
            If Me._monitoringPrograms Is Nothing Then
                Return
            End If

            For Each mp In _monitoringPrograms
                Dim app As New Appointment()
                app.Subject = mp.Monitoring_Program
                app.Start = mp.Start_Date
                app.End = If(mp.End_Date.HasValue, mp.End_Date, mp.Start_Date)

                Me.Appointments.Add(app)
            Next

            Me.OnPropertyChanged("Appointments")
        End Sub

        Private Sub GenerateAppointmentsFromMonitoringRounds()
            If Me.Appointments Is Nothing Then
                Me.Appointments = New ObservableCollection(Of Appointment)
            End If

            'Add MonitoringRounds as appointments
            If Me._monitoringRounds Is Nothing Then
                Return
            End If

            For Each mr In _monitoringRounds
                Dim app As New Appointment()
                app.Subject = mr.Monitoring_Round
                app.Start = mr.Start_Date
                app.End = If(mr.End_Date.HasValue, mr.End_Date, mr.Start_Date)

                Me.Appointments.Add(app)
            Next

            Me.OnPropertyChanged("Appointments")
        End Sub

        Public Overrides Sub Dispose()
            If Not Me.disposed Then
                Me._context.Dispose()
                Me.disposed = True
            End If
            MyBase.Dispose()
        End Sub

    End Class

    On the ViewModel behind the window I basically set the visibility of the control to visible when a user clicks on a button. All this works fine.

    Also at the moment I am not even trying to add any Appointments. I commented that bit of the code out to eliminate sources of problems. All I want is the control to display properly with the default view and no appointments.

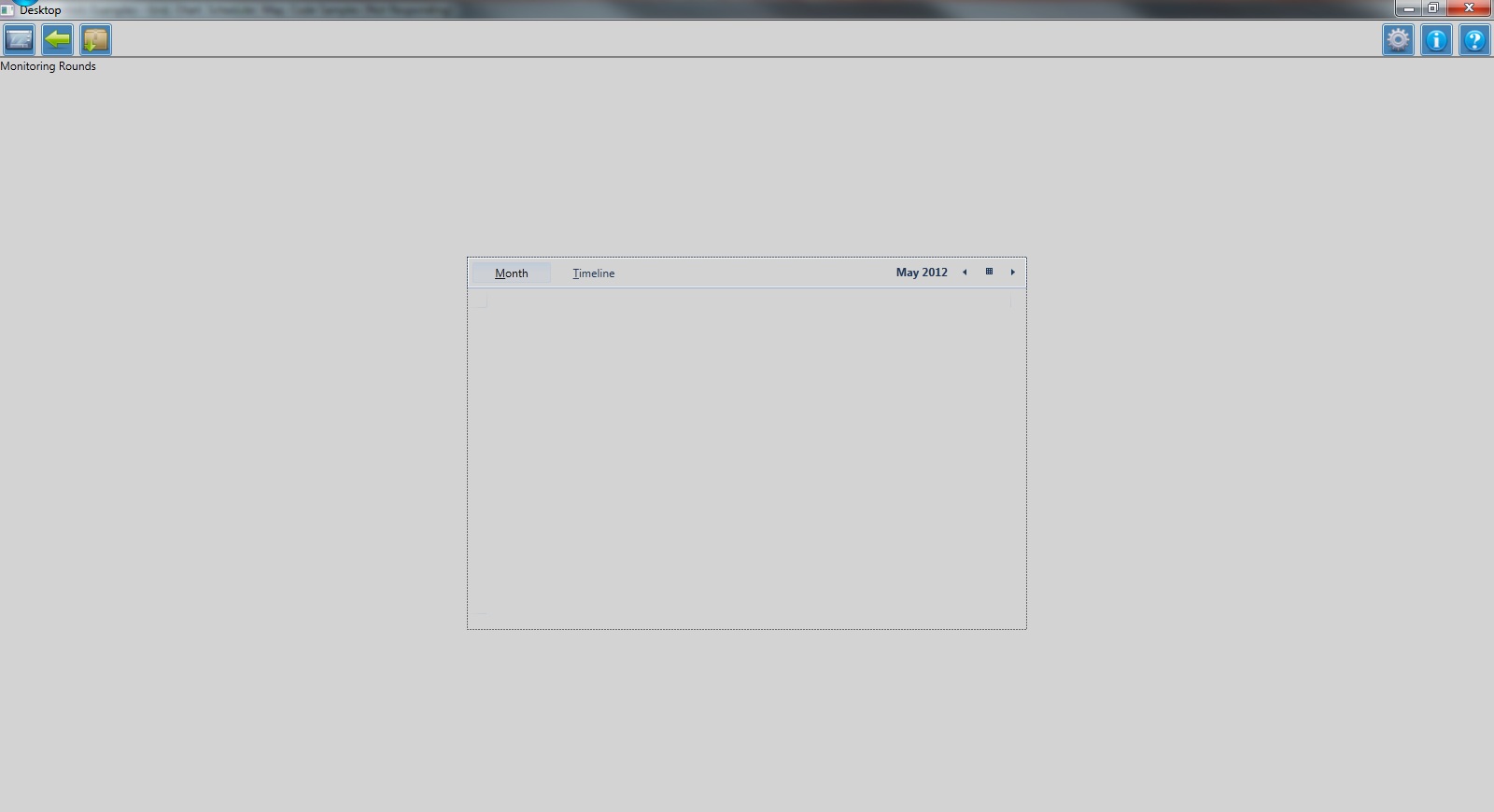

    When the control is rendered in run time all the header/menu structure renders fine, but the content area is blank. See attached photo for image of this.

    At design time it appears to be fine since it displays the usual "Please set an Appointments Source" message.

    Any idea what might be causing this?

    Using:
    Visual Studio 2010
    Targeting .NET Framework 4.0
    Windows 7
    Telerik.Windows.Controls.ScheduleView vs. 2012.1.326.40

    Thanks for your help in advance.

  2. Guga
    Guga avatar
    29 posts
    Member since:
    May 2012

    Posted 29 May 2012 Link to this post

    Found the issue finally.

    All because of a style defined somewhere in the resources:

    <Style TargetType="{x:Type Grid}">
        <Setter Property="Background" Value="LightGray"/>
    </Style>
