Scheduler not correctly displayed

6 posts, 0 answers
  1. Nikolay
    Nikolay avatar
    2 posts
    Member since:
    Apr 2014

    Posted 16 Apr 2014 Link to this post

    Hi,

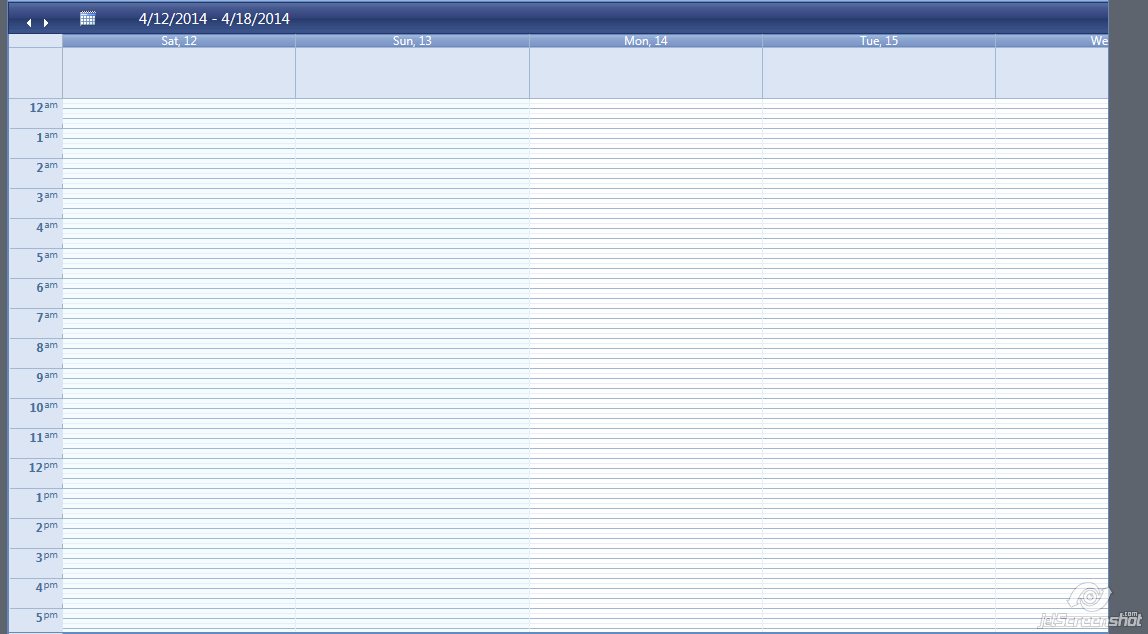

    I have display problem with scheduler (file attached). Teleric.dll  is 2009.1.311.20)
  2. Nikolay
    Nikolay avatar
    2 posts
    Member since:
    Apr 2014

    Posted 16 Apr 2014 in reply to Nikolay Link to this post

    Scheduler declare like this

    <asp:Panel ID="pnlTimeCard" runat="server">
            <telerik:RadScheduler ID="rsEmployeeTimecard"
              runat="server"
              Skin="Web20"
              OverflowBehavior="Scroll"
              Width="100%"
              Height="0"
              Style="margin:0; padding:0;"
              AllowDelete="False"
              AllowEdit="true"
              AllowInsert="true"
              ReadOnly="True"
              OnClientAppointmentEditing="HideTotals"
              OnClientAppointmentInserting="HideTotals"
              OnClientAppointmentMoveStart="ClientMoveStart"
              OnClientAppointmentResizeStart="ClientResizeStart"
              CustomAttributeNames="*"
              DataSubjectField="UniqueID"
              DataKeyField="UniqueID"
              DataStartField="PunchIn"
              DataEndField="PunchOut"
              ShowFooter="False"
              StartInsertingInAdvancedForm="true"
              SelectedView="WeekView"
              DayStartTime="00:00:00"
              WorkDayStartTime="00:00:00"
              DayEndTime="23:59:59"
              WorkDayEndTime="23:59:59"
              MonthView-UserSelectable="false"
              DayView-UserSelectable="false"
              WeekView-UserSelectable="false" >
                <AdvancedEditTemplate>
                    <scheduler:EditForm runat="server" ID="editShift"  />
                </AdvancedEditTemplate>
                <AdvancedInsertTemplate>
                    <scheduler:EditForm runat="server" ID="addShift" />
                </AdvancedInsertTemplate>
                <AppointmentTemplate>
                    <asp:Label runat="server" ID="lblInfo" />
                </AppointmentTemplate>
                <TimelineView UserSelectable="False" />
                    <WeekView DayEndTime="00:00:00" DayStartTime="00:00:00" WorkDayEndTime="00:00:00" WorkDayStartTime="00:00:00" />
                </telerik:RadScheduler>
        </asp:Panel>

    in script set up width for panel, but scheduler display only 4 days out of the week
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Harish
    Harish avatar
    11 posts
    Member since:
    Mar 2012

    Posted 16 Apr 2014 Link to this post

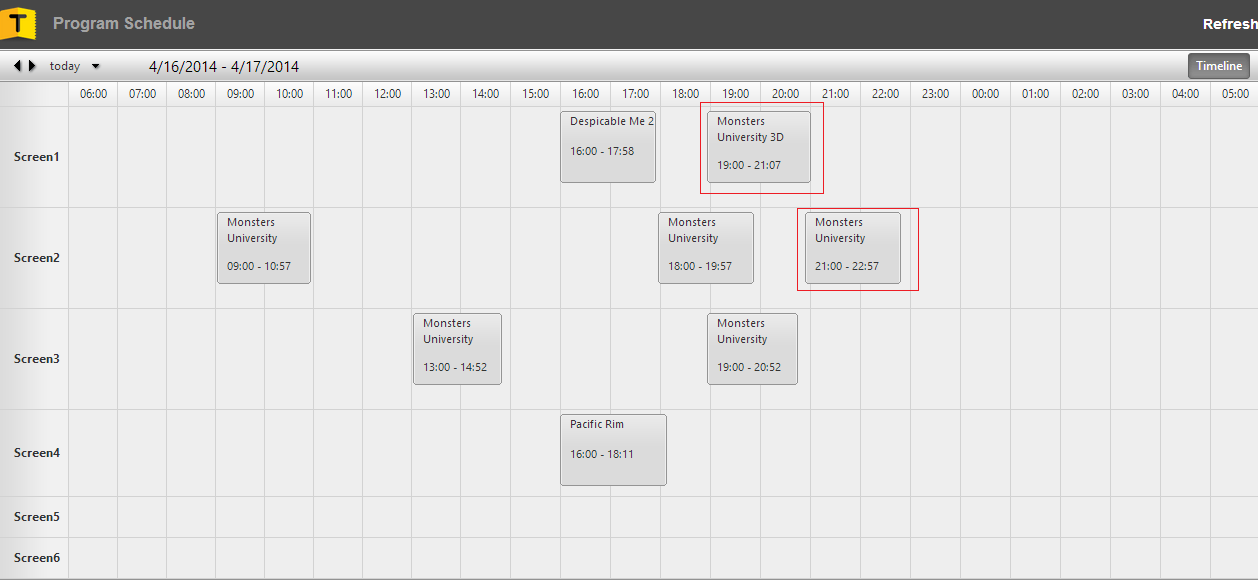

    I have a problem displaying radscheduler with timeline view. In google chrome the appointment is not displaying properly.
    Please check screenshot i have attached.
  5. Plamen
    Admin
    Plamen avatar
    2734 posts

    Posted 17 Apr 2014 Link to this post

    Hi Nikolay,

    I have tested provided mark up but could not replicate the described behavior. It looks like an issue that is already fixed in the latest version of the control. Height="0" is not a recommended setting so you may try to remove it from the mark up of the control. That is why I will recommend you to test with a newer version and if you still observe the issue please share all the CSS that you are using so we could test it too.

    @Harish The described behavior is not a know issue and does not seems to be related with the other issue in this thread. That is why I will recommend you to elaborate it and share the mark up used in a new thread so that it could be inspected separately.

    Regards,
    Plamen
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  6. Harish
    Harish avatar
    11 posts
    Member since:
    Mar 2012

    Posted 18 Apr 2014 in reply to Plamen Link to this post

    Hi Plamen,

    I got this issue when i added Resource Header Template... Please find the below code.

    <ResourceHeaderTemplate>
                        <div>
                            <%# Eval("Text") %><br />
                            <asp:ImageButton runat="server" ID="btnResScreen" sid='<%# Eval("Key") %>' ImageUrl="~/static/img/common/delete.gif" />
                        </div>
                    </ResourceHeaderTemplate>
  7. Plamen
    Admin
    Plamen avatar
    2734 posts

    Posted 21 Apr 2014 Link to this post

    Hello Harish,

    I have tested the issue described and it was fixed at my side after removing the <div> tag from the template.

    Hope this will be helpful.

    Regards,
    Plamen
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.
