Save pivot Grid cell Item

6 posts, 0 answers
  1. Syed
    Syed avatar
    36 posts
    Member since:
    Sep 2013

    Posted 11 Nov 2013 Link to this post

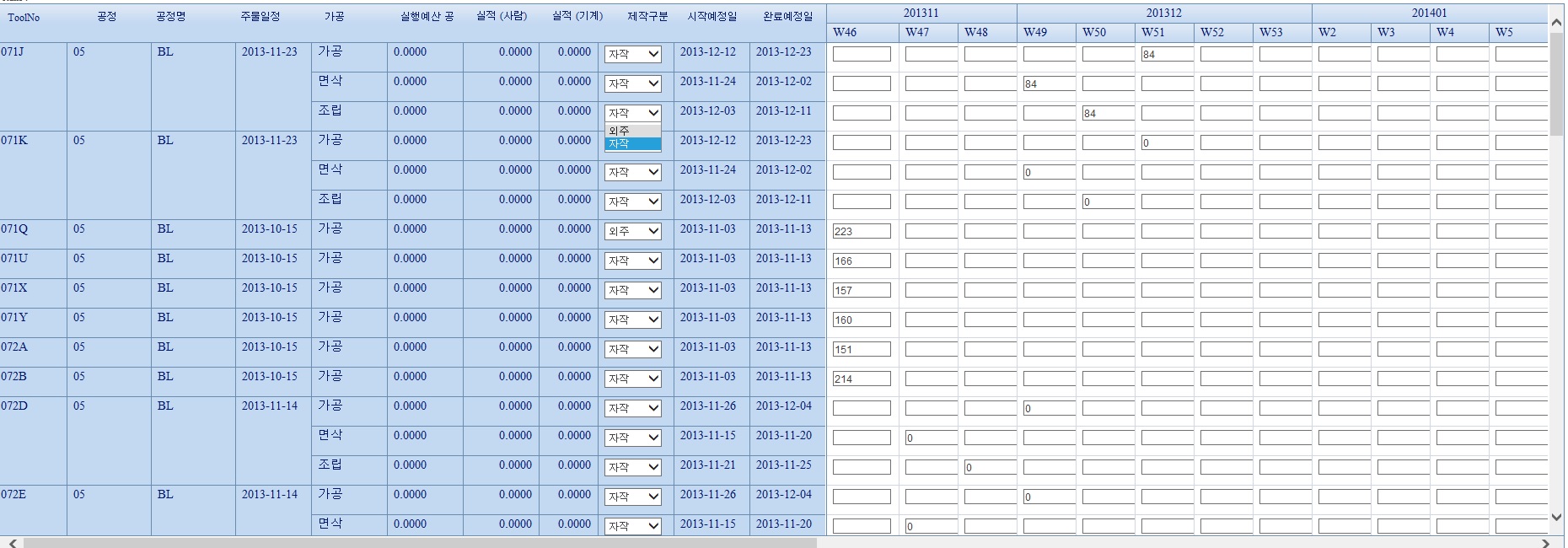

    I have a Pivot grid and in Aggregate file i have placed the Textbox.
    When user click on Save button i want to use looping to get all pivot grid item
    In design

     <telerik:PivotGridRowField DataField="SERVICName" Caption="SERVICName" CellStyle-Width="80px">
                          <celltemplate >
                                <asp:DropDownList ID="ddlService" runat="server" AutoPostBack="false">
                                </asp:DropDownList>
                            </celltemplate>
                    </telerik:PivotGridRowField>
                     <telerik:PivotGridRowField DataField="StartDate" Caption="StartDate" CellStyle-Width="80px">
                    </telerik:PivotGridRowField>
                     <telerik:PivotGridRowField DataField="EndDate" Caption="EndDate" CellStyle-Width="80px">
                    </telerik:PivotGridRowField>
                    <telerik:PivotGridAggregateField DataField="LoadHours"  CellStyle-Width="60px">
                    <celltemplate >
                    <asp:TextBox ID='txtloadhours' runat="server" Width="46" Text='<%# Container.DataItem%>' ></asp:TextBox>
                                              </celltemplate>
                    </telerik:PivotGridAggregateField>

    Save Button Click :
       for (int i = 0; i < RadPivotGrid1.Items.Count; i++)
            {
    }
    here i want to get all the items of both Rowfield items and DataCell Items.

    Guide me to get all the items from save button click.
  2. Daniel
    Admin
    Daniel avatar
    4946 posts

    Posted 13 Nov 2013 Link to this post

    Hello Syed,

    Can you please provide some more details about what you'd like to achieve? This way I will be able to provide more to the point information. Normally it would be easier for you to traverse the Items collection using foreach instead of for.
    foreach (PivotGridItem item in RadPivotGrid1.Items)
    {
       ...
    }

    Looking forward to hearing from you

    Regards,
    Daniel
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Syed
    Syed avatar
    36 posts
    Member since:
    Sep 2013

    Posted 13 Nov 2013 Link to this post

    Hi,
    Thanks for your replay,
    Iam waiting for this reply for past two days,
    In my Pivot grid AggregateFiled i have placed Textbox.
    In text box i bind the LoadHours data .End user can change the hours and finaly need to save the data
    And in my PivotgridRow field i have placed Combo box.
    User can select value from combobox and need to save the data.
    I have a Save Button.From my save button Click I want check each Item of Pivot Grid Aggregate Field Textbox.
    If the Textbox value is greater then 0 then i want to save that textbox value and need to get the row values and column values of that Item cell.

    In radgrid we have option for looping the grid and get all the cell value from the grid .

    Same like that i need for the Pivotgrid to get all the row cell value using loop.
    i have searched a lot but for pivot grid there is no example for the looping the grid.
    so kindly give me some sample which has looping to get all the cell value of each row in pivot grid.

    My pivotgrid design:

     <telerik:PivotGridColumnField DataField="YDATE" Caption="YDATE"    >
                    </telerik:PivotGridColumnField>
    telerik:PivotGridRowField DataField="SERVICName" Caption="SERVICName" CellStyle-Width="80px">
                          <celltemplate >
                                <asp:DropDownList ID="ddlService" runat="server" AutoPostBack="false">
                                </asp:DropDownList>
                            </celltemplate>
                    </telerik:PivotGridRowField>
                     <telerik:PivotGridRowField DataField="StartDate" Caption="StartDate" CellStyle-Width="80px">
                    </telerik:PivotGridRowField>
                     <telerik:PivotGridRowField DataField="EndDate" Caption="EndDate" CellStyle-Width="80px">
                    </telerik:PivotGridRowField>
                    <telerik:PivotGridAggregateField DataField="LoadHours"  CellStyle-Width="60px">
                    <celltemplate >
                    <asp:TextBox ID='txtloadhours' runat="server" Width="46" Text='<%# Container.DataItem%>' ></asp:TextBox>
                                              </celltemplate>
                    </telerik:PivotGridAggregateField>

    In Pivot grid cell data Bound we get the pivotgriddatacell value and each cell parent row and column values.is there any option in Save button click using loop to get the value.

    for example in Pivot grid CellDataBound we use like this:

        if (e.Cell is PivotGridDataCell)
            {

                e.Cell.HorizontalAlign = HorizontalAlign.Right;
                PivotGridDataCell cell = e.Cell as PivotGridDataCell;
                if ((cell.Field as PivotGridAggregateField).DataField == "TotalHours")
                {
                    string s = cell.ParentRowIndexes[0].ToString();

                }
          }
    Same like this From Button click using pivotgrid looping  i want to get all datacell value and its parent Row and Column Values
  5. Daniel
    Admin
    Daniel avatar
    4946 posts

    Posted 18 Nov 2013 Link to this post

    Hello Syed,

    You can try something like this:
    protected override void OnPreRender(EventArgs e)
    {
        base.OnPreRender(e);
        PivotGridDataCell dataCell;

        foreach (PivotGridItem item in RadPivotGrid1.Items)
            foreach (PivotGridCell cell in item.Cells)
            {
                dataCell = cell as PivotGridDataCell;
                if (dataCell != null && !dataCell.IsTotalCell && !dataCell.IsGrandTotalCell)
                    string s = (dataCell.FindControl("txtloadhours") as TextBox).Text;
            }
    }

    Regards,
    Daniel
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
  6. Syed
    Syed avatar
    36 posts
    Member since:
    Sep 2013

    Posted 19 Nov 2013 Link to this post

    Hi,
    Thanks for your response,
    I tried your code but i get error as "System.InvalidCastException: 'Telerik.Web.UI.PivotGridTableCell' " .
    Here why we need to use prerender .AS i want to read all row cell value by some button click event.
    Can you give me simple code to read all aggregate field cell data and its parent row and column field cell data by each row.

    Thanks
    Waiting for yourt early response.
  7. Daniel
    Admin
    Daniel avatar
    4946 posts

    Posted 22 Nov 2013 Link to this post

    Hello Syed,

    Please try modifying the following line:
    foreach (TableCell cell in item.Cells)  //TableCell instead of PivotGridCell
    ...

    Regards,
    Daniel
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
