Remove background item from 3d chart

4 posts, 0 answers
  1. victor
    victor avatar
    6 posts
    Member since:
    Nov 2010

    Posted 21 Apr Link to this post

    Hi Telerik Team

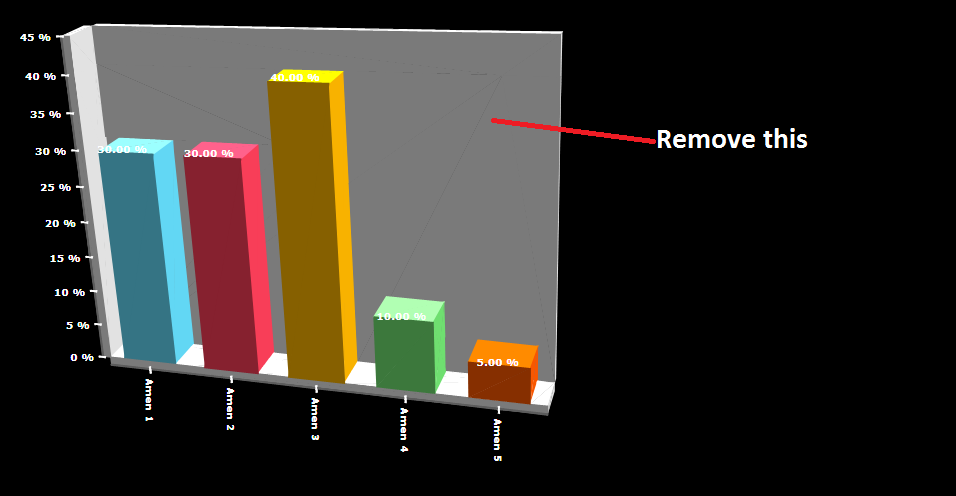

    I´m working with 3d chart, but some of my requeriments is to hide or remove the backgroud of the 3d chart, please check the attached image to understand what I need.

    Thanks in advance

  2. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 25 Apr Link to this post

    Hello,

    One way to go is to hide the PlaneXY when the chart loads:
    private void chart1_Loaded(object sender, RoutedEventArgs e)
    {
      PlaneXY planeXY = Telerik.Windows.Controls.ChildrenOfTypeExtensions.ChildrenOfType<PlaneXY>((RadChart)sender).First();
      planeXY.Visibility = Visibility.Collapsed;
    }

    Regards,
    Petar Marchev
    Telerik
    Do you need help with upgrading your AJAX, WPF or WinForms project? Check the Telerik API Analyzer and share your thoughts.
  3. DevCraft banner
  4. victor
    victor avatar
    6 posts
    Member since:
    Nov 2010

    Posted 25 Apr in reply to Petar Marchev Link to this post

    Hello, thanks for your reply.

    Unfortunately your code is giving me a crash, I guess is because planeXY is null and I don't know why.
    My telerik version is 2016.1.112.1050, Below I have posted my xaml, so could you please check it.

    Thanks in advance



    <UserControl x:Class="_3dchart.MainPage"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
        mc:Ignorable="d"
        d:DesignHeight="300" d:DesignWidth="400">

        <Grid x:Name="LayoutRoot" Background="White">
            <telerik:RadChart x:Name="chart1"  Grid.Column="0" Grid.Row="1" Margin="10 0 20 0" Loaded="chart1_Loaded"   Background="Transparent"  ItemsSource="{Binding Hazards}">
                <telerik:RadChart.DefaultView>
                    <telerik:ChartDefaultView  >
                        <telerik:ChartDefaultView.ChartArea>
                            <telerik:ChartArea >
                                <telerik:ChartArea.Extensions>
                                    <telerik:CameraExtension  x:Name="Camara" />
                                </telerik:ChartArea.Extensions>
                                <telerik:ChartArea.AxisX>
                                    <telerik:AxisX TicksDistance="0"   LabelRotationAngle="90" >
                                    </telerik:AxisX>
                                </telerik:ChartArea.AxisX>

                                <telerik:ChartArea.AxisY>
                                    <telerik:AxisY  DefaultLabelFormat="P0">
                                    </telerik:AxisY>

                                </telerik:ChartArea.AxisY>
                                <telerik:ChartArea.Legend>
                                    <telerik:ChartLegend Visibility="Collapsed" />
                                </telerik:ChartArea.Legend>
                            </telerik:ChartArea>
                        </telerik:ChartDefaultView.ChartArea>
                    </telerik:ChartDefaultView>


                </telerik:RadChart.DefaultView>

                <telerik:RadChart.SeriesMappings>
                    <telerik:SeriesMapping ChartAreaName="chartArea">
                        <telerik:SeriesMapping.SeriesDefinition>
                            <telerik:Bar3DSeriesDefinition ItemLabelFormat="#VAL{P2}"  LegendDisplayMode="DataPointLabel"  />
                        </telerik:SeriesMapping.SeriesDefinition>


                        <telerik:SeriesMapping.ItemMappings>
                            <telerik:ItemMapping FieldName="PoF" DataPointMember="YValue" />
                            <telerik:ItemMapping FieldName="HazardName" DataPointMember="XCategory" />
                        </telerik:SeriesMapping.ItemMappings>
                    </telerik:SeriesMapping>
                </telerik:RadChart.SeriesMappings>
            </telerik:RadChart>

        </Grid>
    </UserControl>

  5. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 27 Apr Link to this post

    Hello,

    What do you mean that the code is giving you a crash? Is it indeed a null reference exception? Perhaps in this case you can do the same in a LayoutUpdated.

    private void chart1_Loaded(object sender, RoutedEventArgs e)
    {
     this.chart1.LayoutUpdated += this.chart1_LayoutUpdated;
    }

    private void chart1_LayoutUpdated(object sender, System.EventArgs e)
    {
     PlaneXY planeXY = Telerik.Windows.Controls.ChildrenOfTypeExtensions.ChildrenOfType<PlaneXY>(this.chart1).FirstOrDefault();
     if (planeXY != null)
     {
      planeXY.Visibility = Visibility.Collapsed;
      this.chart1.LayoutUpdated -= this.chart1_LayoutUpdated;
     }
    }


    Regards,
    Petar Marchev
    Telerik
    Do you need help with upgrading your AJAX, WPF or WinForms project? Check the Telerik API Analyzer and share your thoughts.
