ReadOnly Filter descriptor?

3 posts, 0 answers
  1. Pete
    Pete avatar
    67 posts
    Member since:
    Sep 2012

    Posted 15 May 2012 Link to this post

    We are pre-populating the RadDataFilter in some places in our application with some filters; e.g. "Customer ID" Is EqualTo "12345". Is there any way to make filters read-only so that they are visible to the user but not editable/removable?
    Thanks
  2. Rossen Hristov
    Admin
    Rossen Hristov avatar
    2478 posts

    Posted 15 May 2012 Link to this post

    Hi,

    I am afraid that RadDataFilter does not have such a feature.

    Kind regards,
    Ross
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  3. DevCraft banner
  4. Pete
    Pete avatar
    67 posts
    Member since:
    Sep 2012

    Posted 10 Jul 2012 Link to this post

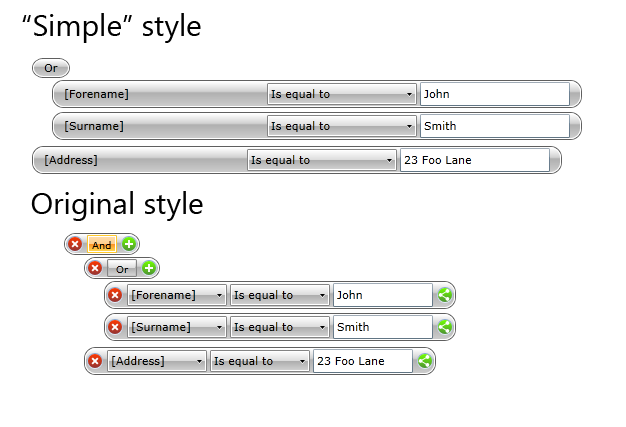

    It is possible by extracting the templates from the Telerik.Windows.Controls.Data.dll file. I have created a "locked down" version of the datafilter so that the user can only change the operators and search values and nothing else. I post the result here for others:

                        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                        xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                        xmlns:telerikData="clr-namespace:Telerik.Windows.Data;assembly=Telerik.Windows.Data"
                        xmlns:dataFilter="clr-namespace:Telerik.Windows.Controls.Data.DataFilter;assembly=Telerik.Windows.Controls.Data"
                        xmlns:Model="clr-namespace:SimpleSearchRadDataFilterTest.Model"
                        xmlns:filteringEditors="clr-namespace:Telerik.Windows.Controls.Filtering.Editors;assembly=Telerik.Windows.Controls">
        <Model:IsNotCompositeFilterConverter x:Name="IsNotCompositeFilterConverter" />
        <telerikData:FilterOperatorConverter x:Key="FilterOperatorConverter" />
        <SolidColorBrush x:Key="FilterControl_InnerBorder" Color="White" />
        <telerik:BooleanToVisibilityConverter x:Key="BooleanToVisibilityConverter" />
        <dataFilter:LogicalOperatorToCheckedConverter x:Key="LogicalOperatorToCheckedConverter" />
        <telerikData:FilterCompositionLogicalOperatorConverter x:Key="LogicalOperatorConverter" />
        <telerik:InvertedBooleanToVisibilityConverter x:Key="InvertedBooleanToVisibilityConverter" />
        <SolidColorBrush x:Key="SeparatorBorder" Color="Transparent" />
        <dataFilter:FilterOperatorToSelectedItemConverter x:Key="FilterOperatorToSelectedItemConverter" />
        <dataFilter:FilterMemberToEnabledConverter x:Key="FilterMemberToEnabledConverter" />
        <DataTemplate x:Key="FilterOperatorTemplate">
            <TextBlock Text="{Binding Converter={StaticResource FilterOperatorConverter}}" />
        </DataTemplate>
        <!--Styles-->
        <!--FilterControl-->
        <ControlTemplate x:Key="FilterControlTemplate" TargetType="dataFilter:FilterControl">
            <Border x:Name="OuterBorder" Visibility="{Binding Converter={StaticResource IsNotCompositeFilterConverter}}"
                    BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" CornerRadius="11">
                <Border.OpacityMask>
                    <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
                        <GradientStop Offset="0" Color="Black" />
                        <GradientStop Offset="0.3" />
                    </LinearGradientBrush>
                </Border.OpacityMask>
                <Border.Triggers>
                    <EventTrigger RoutedEvent="Canvas.Loaded">
                        <BeginStoryboard>
                            <Storyboard>
                                <DoubleAnimation Duration="0:0:0.2" To="1"
                                                 Storyboard.TargetProperty="(UIElement.OpacityMask).(GradientBrush.GradientStops)[0].(GradientStop.Offset)"
                                                 Storyboard.TargetName="OuterBorder" />
                                <DoubleAnimation Duration="0:0:0.2" To="1"
                                                 Storyboard.TargetProperty="(UIElement.OpacityMask).(GradientBrush.GradientStops)[1].(GradientStop.Offset)"
                                                 Storyboard.TargetName="OuterBorder" />
                                <ColorAnimation Duration="0" BeginTime="0:0:0.2" To="Black"
                                                Storyboard.TargetProperty="(UIElement.OpacityMask).(GradientBrush.GradientStops)[1].(GradientStop.Color)"
                                                Storyboard.TargetName="OuterBorder" />
                            </Storyboard>
                        </BeginStoryboard>
                    </EventTrigger>
                </Border.Triggers>
                <Border x:Name="InnerBorder" Background="{TemplateBinding Background}"
                        BorderBrush="{StaticResource FilterControl_InnerBorder}" BorderThickness="{TemplateBinding BorderThickness}"
                        CornerRadius="10">
                    <StackPanel Orientation="Horizontal" Margin="10,0,10,0">
                        <StackPanel Orientation="Horizontal"
                                    Visibility="{Binding IsComposite, Converter={StaticResource BooleanToVisibilityConverter}}">
                            <TextBlock
    Text="{Binding CompositeFilter.LogicalOperator, Converter={StaticResource LogicalOperatorConverter}}"></TextBlock>
                            <telerik:RadToggleButton Visibility="Collapsed" Name="PART_CompositeFilterLogicalOperatorToggleButton"
                                                     Height="18" FontSize="10" MinWidth="30"
                                                     IsChecked="{Binding CompositeFilter.LogicalOperator, Mode=TwoWay, Converter={StaticResource LogicalOperatorToCheckedConverter}}"
                                                     Content="{Binding CompositeFilter.LogicalOperator, Converter={StaticResource LogicalOperatorConverter}}" />

                        </StackPanel>
                        <StackPanel Orientation="Horizontal"
                                    Visibility="{Binding IsComposite, Converter={StaticResource InvertedBooleanToVisibilityConverter}}">
                            <TextBlock x:Name="IRISSimpleFilterMemberLabel"
                                       VerticalAlignment="Center" Margin="0,0,3,0" Text="{Binding SimpleFilter.SelectedMember}" Width="200" />
                            <telerik:RadComboBox Name="PART_SimpleFilterOperatorComboBox"
                                                 Margin="0,0,3,0" Width="150" VerticalAlignment="Center"
                                                 ItemsSource="{Binding SimpleFilter.AvailableOperators}"
                                                 SelectedItem="{Binding SimpleFilter.Operator, Mode=TwoWay, Converter={StaticResource FilterOperatorToSelectedItemConverter}}"
                                                 IsEnabled="{Binding SimpleFilter.Member, Converter={StaticResource FilterMemberToEnabledConverter}}"
                                                 ItemTemplate="{StaticResource FilterOperatorTemplate}" />
                            <dataFilter:FilterEditor DataContext="{Binding SimpleFilter}" ItemPropertyDefinition="{Binding SelectedMember}"
                                                     FilterOperator="{Binding Operator}" Width="150" IsEnabled="{Binding IsFilterEditorEnabled}"
                                                     HorizontalContentAlignment="Stretch" VerticalContentAlignment="Stretch" />
                        </StackPanel>
                    </StackPanel>
                </Border>
            </Border>
        </ControlTemplate>
        <Style x:Key="FilterControlStyle" TargetType="dataFilter:FilterControl">
            <Setter Property="Template" Value="{StaticResource FilterControlTemplate}" />
        </Style>
        <!--DataFilterPresenter-->
        <ControlTemplate x:Key="DataFilterPresenterTemplate" TargetType="dataFilter:DataFilterPresenter">
            <Border Padding="20, 2, 0, 2">
                <Grid x:Name="Root">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="Auto" />
                        <RowDefinition Height="*" />
                    </Grid.RowDefinitions>
                    <ContentControl x:Name="HeaderContent" Grid.Row="0" Content="{TemplateBinding Header}"
                                    ContentTemplate="{TemplateBinding HeaderTemplate}" IsTabStop="False" />
                    <ItemsPresenter x:Name="Items" Grid.Row="1" />
                </Grid>
            </Border>
        </ControlTemplate>
        <telerik:HierarchicalDataTemplate x:Key="DataFilterPresenterItemTemplate"
                                          ItemsSource="{Binding CompositeFilter.Filters}">
            <dataFilter:FilterControl Style="{StaticResource FilterControlStyle}" />
        </telerik:HierarchicalDataTemplate>
        <DataTemplate x:Key="DataFilterPresenterHeaderTemplate">
            <dataFilter:FilterControl Style="{StaticResource FilterControlStyle}"/>
        </DataTemplate>
        <Style x:Key="DataFilterPresenterStyle" TargetType="dataFilter:DataFilterPresenter">
            <Setter Property="Template" Value="{StaticResource DataFilterPresenterTemplate}" />
            <Setter Property="ItemTemplate" Value="{StaticResource DataFilterPresenterItemTemplate}" />
            <Setter Property="HeaderTemplate" Value="{StaticResource DataFilterPresenterHeaderTemplate}" />
            <Setter Property="IsTabStop" Value="False" />
        </Style>
        <!--RadDataFilter-->
        <ControlTemplate x:Key="RadDataFilterTemplateSimple" TargetType="telerik:RadDataFilter">
            <ScrollViewer  ScrollViewer.HorizontalScrollBarVisibility="Auto"
                          ScrollViewer.VerticalScrollBarVisibility="Auto">
                <dataFilter:DataFilterPresenter DataContext="{TemplateBinding ViewModel}" Header="{Binding .}"
                                                ItemsSource="{Binding CompositeFilter.Filters}"
                                                Style="{StaticResource DataFilterPresenterStyle}"
                                                />
            </ScrollViewer>
        </ControlTemplate>
        <!--StringFilterEditor-->
        <ControlTemplate x:Key="StringFilterEditorTemplate" TargetType="filteringEditors:StringFilterEditor">
            <Grid MinWidth="100">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="Auto" />
                </Grid.ColumnDefinitions>
                <TextBox Grid.Column="0" Text="{Binding Text, RelativeSource={RelativeSource TemplatedParent}, Mode=TwoWay}"
                         VerticalAlignment="Stretch"
                         telerik:TextBoxBehavior.UpdateTextOnEnter="True" telerik:TextBoxBehavior.SelectAllOnGotFocus="True" />
            </Grid>
        </ControlTemplate>
        <Style x:Key="StringFilterEditorStyle" TargetType="filteringEditors:StringFilterEditor">
            <Setter Property="Template" Value="{StaticResource StringFilterEditorTemplate}" />
            <Setter Property="IsTabStop" Value="False" />
        </Style>
        <Style TargetType="filteringEditors:StringFilterEditor" BasedOn="{StaticResource StringFilterEditorStyle}" />
    </ResourceDictionary>

    The IsNotCompositeFilterConverter is used to remove the very top level logical operator:

    public class IsNotCompositeFilterConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            var root = value as Telerik.Windows.Controls.Data.DataFilter.RootFilterViewModel;
            if (root == null)
            {
                return Visibility.Visible;
            }

            return Visibility.Collapsed;
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
        {
            return value;
        }
    }

    To use, just set the template on the RadDataFilter:

    <telerik:RadDataFilter Template="{StaticResource RadDataFilterTemplateSimple}" />
