RadWindow - WindowStartupLocation

7 posts, 1 answers
  1. Andreas
    Andreas avatar
    14 posts
    Member since:
    Feb 2011

    Posted 08 Feb 2012 Link to this post

    Hi!

    I use your RadWindow for all our modal dialogs and I want to display all those dialogs in the center of the screen.

    Therefore I use the following things
     - SL5
     - 2011.3.1323

    and the following RadWindow properties:

    this.WindowStartupLocation = Telerik.Windows.Controls.WindowStartupLocation.CenterScreen;
    this.CanMove = false;
    this.ResizeMode = ResizeMode.NoResize;
    this.SizeToContent = true;

    Unfortunately it seems that, if there is no width or height specified (or only a maxheight), that the radwindow is not rendered in the center of the screen....

    Do you have any explanations for this strange behaviour?

    Thanks in advance!
  2. Boyan
    Admin
    Boyan avatar
    758 posts

    Posted 13 Feb 2012 Link to this post

    Hello,

    I tested the issue with the code you provided and the RadWindow appeared in the center of the browser. Could you please provide some more info, are you doing something in order to achieve the bad behavior? Note that if you change the size of the browser after you have shown the RadWindow it will not change its position.


    Kind regards,
    Boyan
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  3. DevCraft banner
  4. Andreas
    Andreas avatar
    14 posts
    Member since:
    Feb 2011

    Posted 17 Feb 2012 Link to this post

    Actually we derive from Radwindow because we need some custom datatemplate in some parts of our application.

    Our derived class looks like this:
    /// <summary>
    /// Provides a base class for Windows
    /// </summary>
    public class CustomWindow : RadWindow
    {
        /// <summary>
        /// Initializes a new instance of the <see cref="CustomWindow"/> class.
        /// </summary>
        public CustomWindow()
        {
            this.Width = 400;
            this.MaxHeight = 750;
            this.WindowStartupLocation = Telerik.Windows.Controls.WindowStartupLocation.CenterOwner;
            this.CanMove = false;
            this.ResizeMode = ResizeMode.NoResize;

            this.ContentTemplate = (Application.Current.Resources["RadWindowDataTemplate"]) as DataTemplate;
            this.Style = (Application.Current.Resources["RadWindowStyle"]) as Style;

            //Needed in order to assign the correct format
            this.Language = XmlLanguage.GetLanguage(Thread.CurrentThread.CurrentCulture.Name);
        }
    }

    Furthermore this is our DataTemplate:
    <DataTemplate x:Key="RadWindowDataTemplate">
            <Grid x:Name="LayoutRoot"
                  Margin="2">
                <Grid.RowDefinitions>
                    <RowDefinition />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <ScrollViewer Grid.Row="0"
                              HorizontalScrollBarVisibility="Disabled"
                              VerticalScrollBarVisibility="Auto"
                              BorderThickness="0">
                    <ContentPresenter Grid.Row="0"
                                      Margin="10"
                                      Content="{Binding Content, RelativeSource={RelativeSource TemplatedParent}}" />
                </ScrollViewer>
                <StackPanel Grid.Row="1"
                            Orientation="Horizontal"
                            HorizontalAlignment="Right"
                            Margin="25,0,15,5">
                    <telerik:RadButton x:Name="OKButton"
                                       Content="{Binding Path=SaveButtonText}"
                                       Width="75"
                                       Height="23"
                                       Margin="10,0"
                                       HorizontalAlignment="Right"
                                       Command="{Binding SaveCommand}"
                                       Visibility="{Binding ReadOnlyMode, Converter={StaticResource CustomAntiBooleanToVisibilityConverter}}" />
                    <telerik:RadButton x:Name="CancelButton"
                                       Content="{Binding ApplicationStrings.Label_Cancel, Source={StaticResource ResourceWrapper}}"
                                       Width="75"
                                       Height="23"
                                       HorizontalAlignment="Right"
                                       Command="{Binding CancelCommand}" />
                </StackPanel>
            </Grid>
        </DataTemplate

    This is the Style:
    <Style x:Key="RadWindowStyle"
               TargetType="telerik:RadWindow"
               telerik:StyleManager.BasedOn="Metro">
            <Setter Property="ModalBackground"
                    Value="{StaticResource WindowModalBackground}" />


    Thanks for your help!
    Andi
  5. Ivo
    Admin
    Ivo avatar
    390 posts

    Posted 21 Feb 2012 Link to this post

    Hi,

    I tried to reproduce this using your sample code without any success. You can find my project attached. Could you please examine this and check if I missed something?

    Greetings,
    Ivo
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  6. Andreas
    Andreas avatar
    14 posts
    Member since:
    Feb 2011

    Posted 23 Feb 2012 Link to this post

    I found out that the described issue only appears, if the Dialog contains a dynamic content.

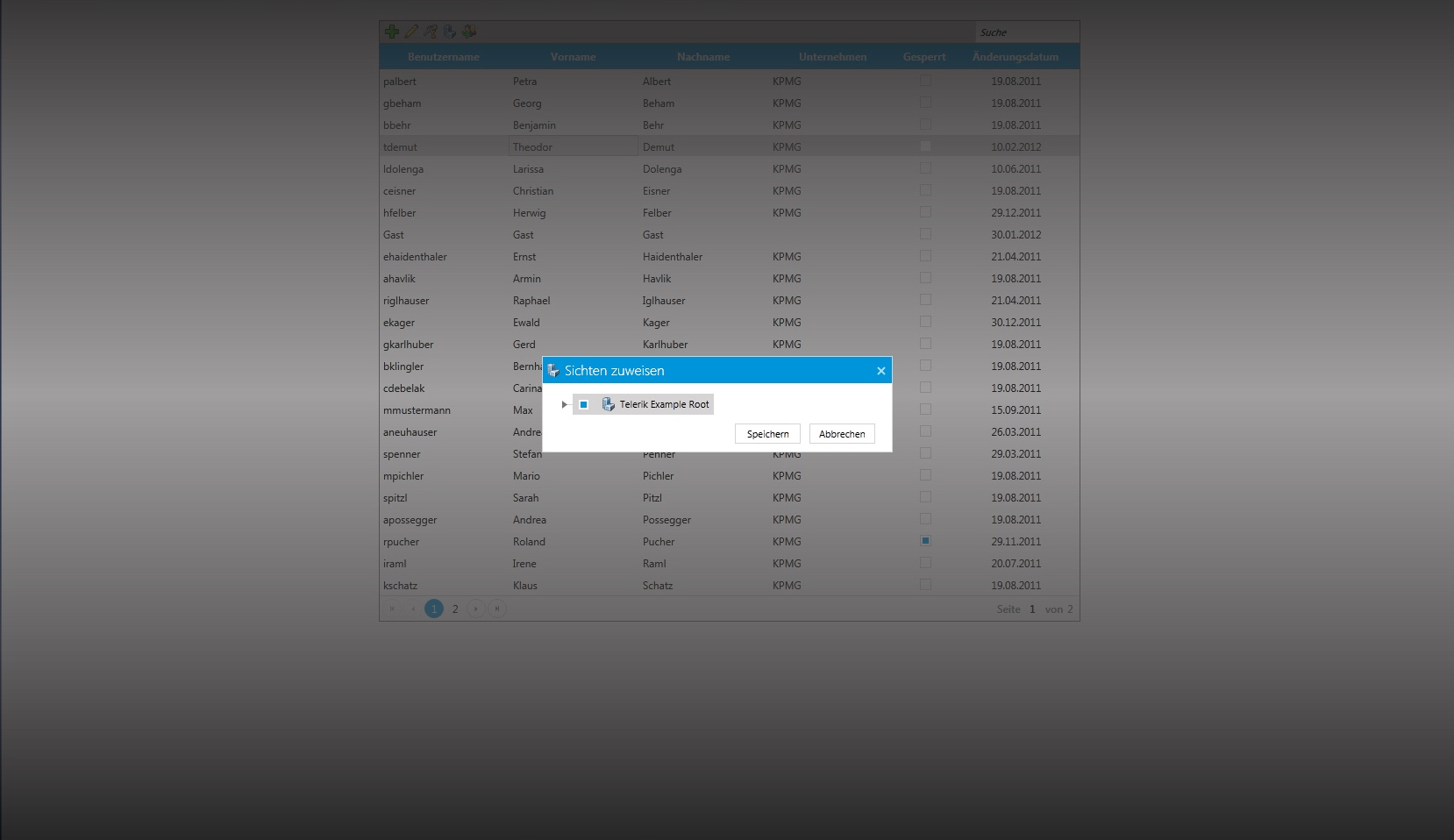

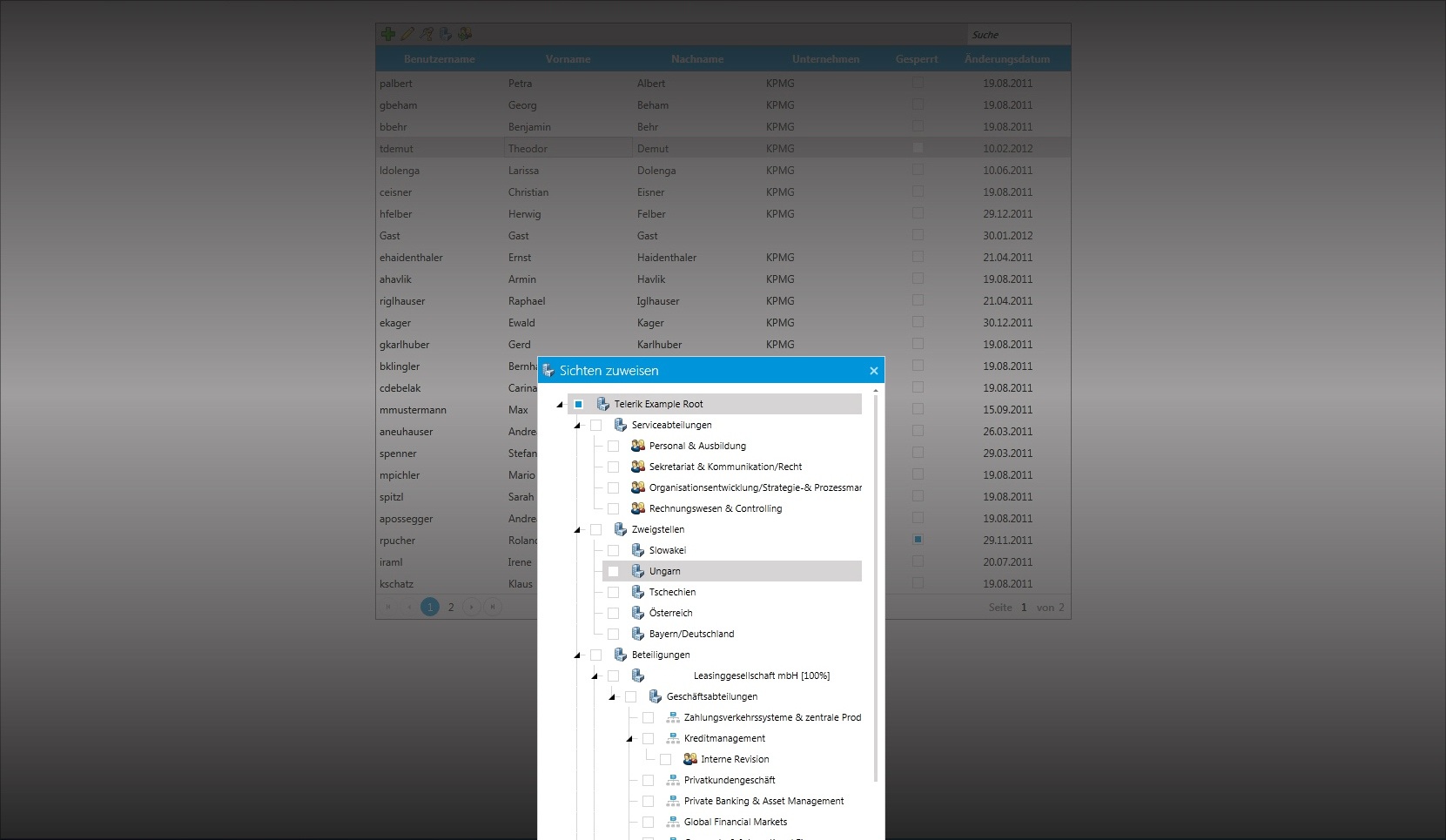

    For example, if you populate a tree with hierarchical data (e.g. 100 items) from the database!, it seems as if the window is centered if there would be no data in it (or only 1 item - see the screenshot radwindow_tree_collapsed). After the data are loaded and expanded, of course you'll get problems because of the position of the radwindow. I got the same behaviour with a listbox.
    I provided some screenshots for you attached to this post for further explanation.

    Is there a way to "re-arrange" the position of the RadWindow after the data have been loaded? Because of the async call I think that the problem is that the RadWindow is already "adjusted" in the center before the data are even requested - but of course with the wrong height at the end.

    Thanks for you help!
  7. Andreas
    Andreas avatar
    14 posts
    Member since:
    Feb 2011

    Posted 23 Feb 2012 Link to this post

    Would you be so kind as to delete my attached files from the following post.
    Unfortunately I uploaded the wrong files and can't change them.
    Thanks
  8. Answer
    Ivo
    Admin
    Ivo avatar
    390 posts

    Posted 23 Feb 2012 Link to this post

    Hello Andreas,

    You are absolutely right that the reason for this behavior is the asynchronous call that fills the items into your RadTreeView. We believe that this is the expected behavior for the property WindowStartupLocation. The easiest way to achieve the desired functionality into your scenario is to handle the SizeChanged event of RadWindow and change its Top and Left properties. Here is sample code:
    private void window_SizeChanged(object sender, SizeChangedEventArgs e)
    {
        var window = (RadWindow)sender;
        window.Left = (this.ActualWidth - window.ActualWidth) / 2;
        window.Top = (this.ActualHeight - window.ActualHeight) / 2;
    }

    Regards,
    Ivo
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
