In attempting to make use of this control there are a number of series issues with it.

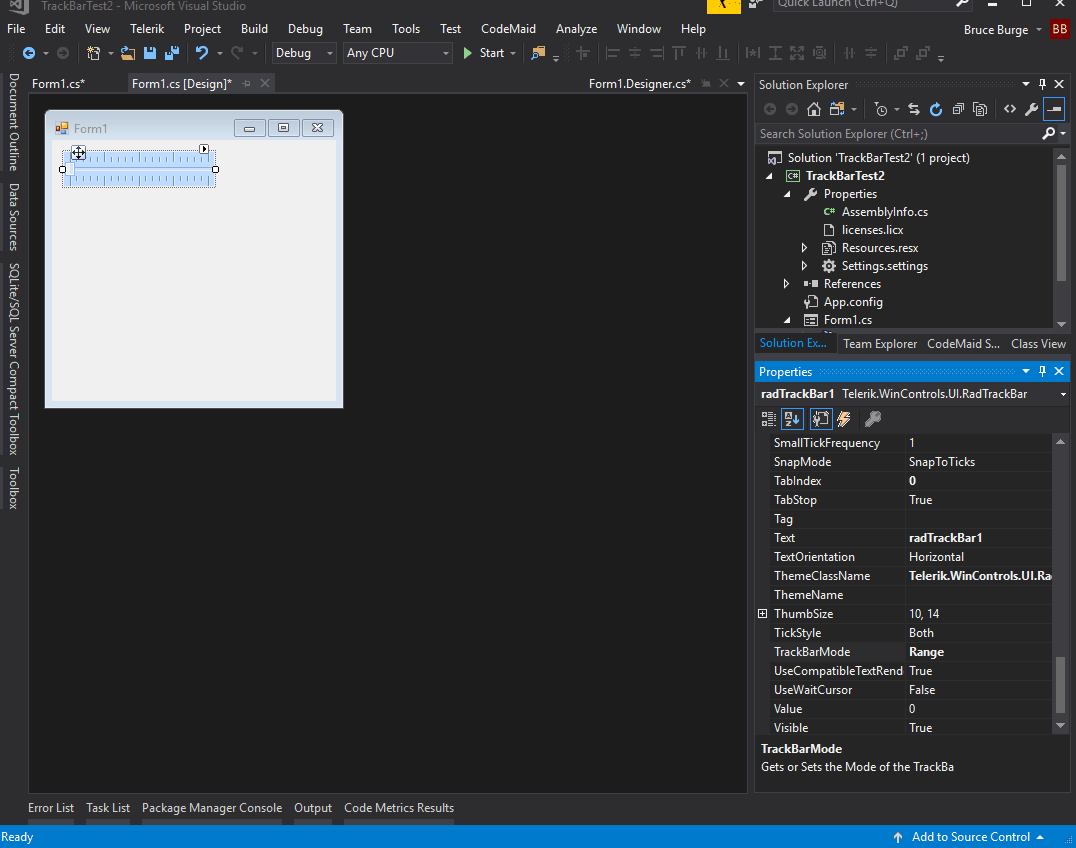

Firstly, when attempting to add ranges to the range collection via the properties in visual studio 2017, this doesn't work.

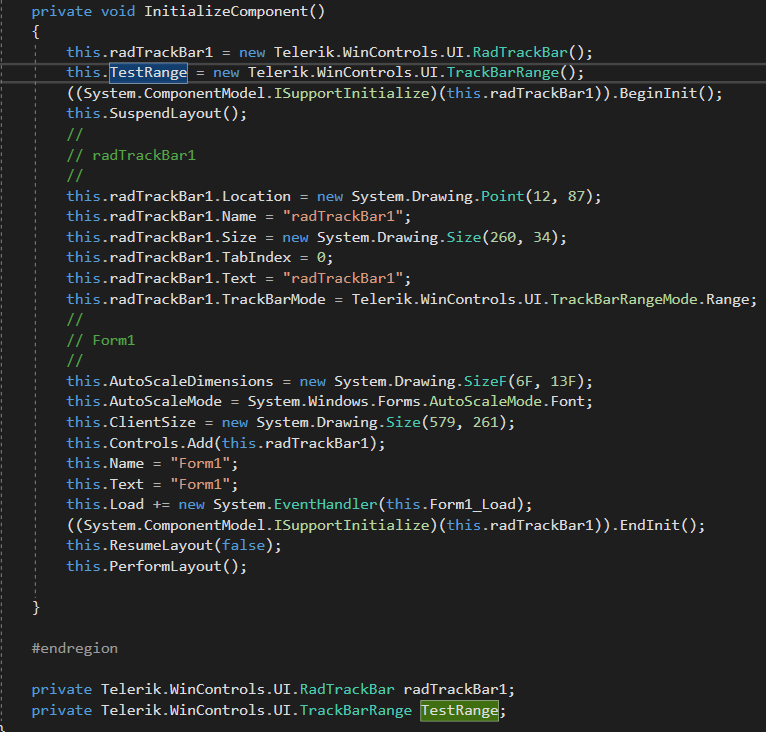

What happens is the ranges you add are created in the Designer.cs of the form you are working on, but are not associated with the TrackBar you created them from. (see attachment 1.) If you click the ranges collection again after adding one of the ranges, it naturally shows up empty. So currently the only way to add ranges is to do so programmatically.
Secondly, performance issues, setting the maximum of of the trackbar to 1000+ and it becomes unreasonably slow, and unresponsive.

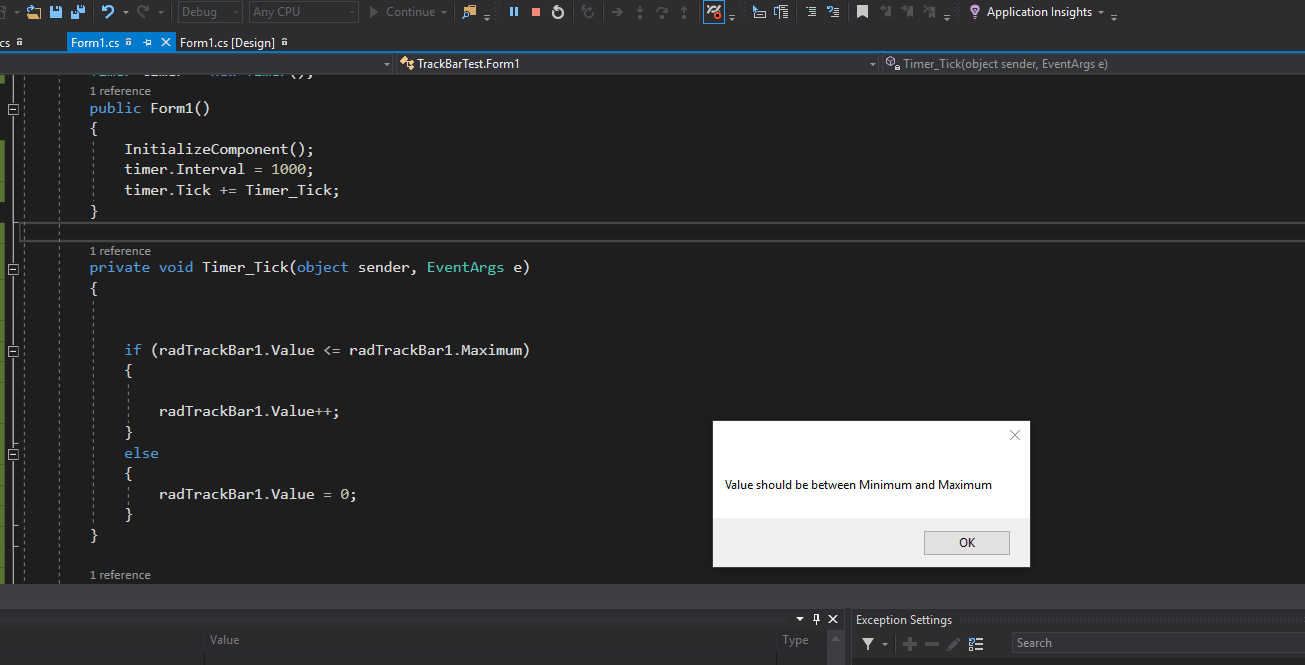

Thirdly, Assigning a value that exceeds ranges of the minimum or maximum, results in a popup message stating "The Value should be between minimum and maximum" no exception is thrown. (this looks like it was supposed to be a design time response)

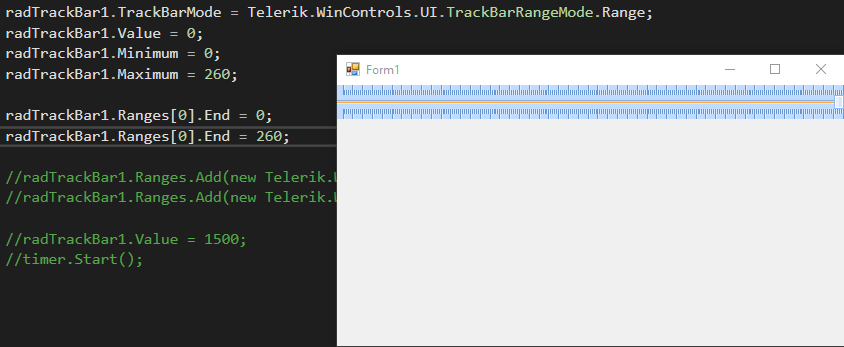

Setting a range to the start and end points to the minimum and maximum values of the trackbar, often results in one of the thumbs not being visible on the screen after loading. (see second attachment)
I've seen elsewhere on the forum that the suggested performance fix was to apply basically scaling to the trackbar to reduce the number of elements that it needs to render, but when using the control to say track the position of media in seconds, scaling doesn't really work.
