RadTooltipmanager inside the radgrid problem

2 posts, 0 answers
  1. Suneetha
    Suneetha avatar
    5 posts
    Member since:
    Apr 2012

    Posted 19 Jul 2012 Link to this post

    Hi,

    I have the radgrid in a main page with link button column.I want to open  a radtooltip in the linkbutton mousehover event.Every thing is working fine but i am getting error message like in the attached file.I did everything as the forum replies.But still no luck.Please chekc the below code and give me the solution.


    Default.Aspx:

                            <telerik:RadGrid ID="RadGrid1" runat="server" AllowPaging="true" OnClientResized="ClientResized"

                                AutoGenerateColumns="False" AllowMultiRowSelection="true" OnNeedDataSource="RadGrid1_NeedDataSource"

                                PageSize="15" ShowStatusBar="True" AlternatingItemStyle-BackColor="LightBlue"

                                Skin="WebBlue" Width="100%" Height="650px" OnItemCreated="RadGrid1_ItemCreated"

                                OnItemDataBound="RadGrid1_ItemDataBound" Style="margin-top: 0px" OnDataBound="RadGrid1_DataBound"

                                OnItemCommand="RadGrid1_ItemCommand">

                                <AlternatingItemStyle BackColor="LightBlue" />

                                <MasterTableView ClientDataKeyNames="PUR_CAT,CAT_TOT,FTMC,TOT_PUR_CAT,Dependent_PO,Dependent_RM"

                                    TableLayout="Fixed" Width="100%">

                                    <EditFormSettings>

                                        <EditColumn FilterControlAltText="Filter EditCommandColumn column">

                                        </EditColumn>

                                    </EditFormSettings>

                                    <ItemStyle Height="5px" />

                                    <CommandItemSettings ExportToPdfText="Export to PDF" />

                                    <RowIndicatorColumn FilterControlAltText="Filter RowIndicator column" Visible="True">

                                    </RowIndicatorColumn>

                                    <ExpandCollapseColumn FilterControlAltText="Filter ExpandColumn column" Visible="True">

                                    </ExpandCollapseColumn>

                                    <Columns>

                                        <telerik:GridClientSelectColumn HeaderStyle-Font-Bold="true" UniqueName="ClientSelectColumn">

                                            <HeaderStyle Font-Bold="True" Width="3%" />

                                        </telerik:GridClientSelectColumn>

                                        <telerik:GridBoundColumn DataField="PUR_CAT" FooterText="Total:" HeaderStyle-Font-Bold="true"

                                            HeaderStyle-Width="9%" HeaderText="Purchase Category">

                                            <HeaderStyle Font-Bold="True" />

                                        </telerik:GridBoundColumn>

                                        <telerik:GridBoundColumn DataField="TOT_EXT_QTY" DataType="System.Double" HeaderStyle-Font-Bold="true"

                                            HeaderStyle-Width="7%" HeaderText="Total Qty" ItemStyle-HorizontalAlign="Right"

                                            UniqueName="TOT_EXT_QTY">

                                            <HeaderStyle Font-Bold="True" />

                                            <ItemStyle HorizontalAlign="Left" Width="7%" />

                                        </telerik:GridBoundColumn>

                                        <telerik:GridTemplateColumn DataField="TOT_PUR_CAT,Dependent_PO" HeaderStyle-Font-Bold="true"

                                            HeaderStyle-Width="40%" ItemStyle-HorizontalAlign="Left" UniqueName="TOT_PUR_CAT,Dependent_PO">

                                            <HeaderTemplate>

                                                <table width="100%" style="table-layout: fixed;">

                                                    <tr>

                                                        <td colspan="5" class="style17">

                                                            <div style="float: left;">

                                                                -100</div>

                                                            <div style="float: right;">

                                                                100</div>

                                                            <telerik:RadSlider ID="RadSliderPOCAT" runat="server" MaximumValue="100" MinimumValue="-100"

                                                                OnClientSlideEnd="CalculateNewProductCostPO" OnClientSlideStart="ClientSlideStart"

                                                                OnClientValueChanged="ClientValueChangedPO" SelectionEnd="<%# POEndSlider %>"

                                                                SelectionStart="<%# POStartSlider %>" ShowDecreaseHandle="true" ShowIncreaseHandle="true"

                                                                Skin="Forest" SmallChange="1" Style="float: left" Value="0" Width="385px" CssClass="ApplyPosition" />

                                                        </td>

                                                    </tr>

                                                    <caption>

                                                        PO Price

                                                        <tr>

                                                            <td align="justify" style="border-style: solid; border-color: #455F77; border-width: 1px;

                                                                width: 20%;">

                                                                Total PO Price

                                                            </td>

                                                            <td align="justify" style="border-color: #455F77; border-width: 1px; width: 20%;

                                                                border-right-style: solid; border-bottom-style: solid; border-top-style: solid;">

                                                                Future PO Price

                                                            </td>

                                                            <td align="center" style="border-color: #455F77; border-width: 1px; width: 20%; border-right-style: solid;

                                                                border-bottom-style: solid;">

                                                                Current Selection

                                                            </td>

                                                            <td align="justify" style="border-color: #455F77; border-width: 1px; width: 20%;

                                                                border-right-style: solid; border-top-style: solid; border-bottom-style: solid;">

                                                                Other Affected PO

                                                            </td>

                                                            <td align="justify" style="border-color: #455F77; border-width: 1px; width: 20%;

                                                                border-right-style: solid; border-bottom-style: solid; border-top-style: solid;">

                                                                Future Other Affected PO

                                                            </td>

                                                        </tr>

                                                    </caption>

                                                </table>

                                            </HeaderTemplate>

                                            <ItemTemplate>

                                                <table border="1" width="100%" style="table-layout: fixed; ">

                                                    <tr>

                                                        <td align="justify" style="width: 20%">

                                                            <asp:Label ID="lbl_tot_putcat" runat="server" Text='<%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem,"TOT_PUR_CAT","{0:#,###0}"))%>'></asp:Label>

                                                            <%--<asp:Label ID="lbl_tot_putcat" runat="server" Text='<%#DataBinder.Eval(Container.DataItem, "TOT_PUR_CAT", "{0:C}")%>'></asp:Label>--%>

                                                            <%--  <%#DataBinder.Eval(Container.DataItem, "TOT_PUR_CAT", "{0:C}")%>--%>

                                                        </td>

                                                        <td align="justify" style="width: 20%">

                                                            <asp:Label ID="lbl_FUT_TOT_PUR_CAT" ForeColor="#3C0000" runat="server" Text='<%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem, "FUT_TOT_PUR_CAT", "{0:#,###0}"))%>'></asp:Label>

                                                            <%-- <%#DataBinder.Eval(Container.DataItem, "FUT_TOT_PUR_CAT", "{0:C}")%>--%>

                                                        </td>

                                                        <td align="center" style="width: 20%">

                                                            <asp:Label ID="lblCurSelPO" runat="server" Text="Current Selection: 0" />

                                                        </td>

                                                        <td align="justify" style="width: 20%">

                                                            <%-- <%#CheckEmpty(DataBinder.Eval(Container.DataItem, "Dependent_PO", "{0:C}"))%>--%>

                                                            <asp:LinkButton ID="lnk_totpo" runat="server" ForeColor="Blue" Text=' <%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem, "Dependent_PO","{0:#,###0}"))%>'></asp:LinkButton>

                                                        </td>

                                                        <td align="justify" style="width: 20%">

                                                            <%-- <%#CheckEmpty(DataBinder.Eval(Container.DataItem, "FUT_Dependent_PO", "{0:C}"))%>--%>

                                                            <asp:Label ID="lnk_effpo" runat="server" Text='<%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem, "FUT_Dependent_PO", "{0:#,###0}"))%>'></asp:Label>

                                                        </td>

                                                    </tr>

                                                    <%-- <tr>



                                                    </tr>--%>

                                                </table>

                                            </ItemTemplate>

                                            <HeaderStyle Font-Bold="True" />

                                            <ItemStyle HorizontalAlign="Left" />

                                        </telerik:GridTemplateColumn>

                                        <telerik:GridTemplateColumn DataField="CAT_TOT,Dependent_RM" HeaderStyle-Font-Bold="true"

                                            HeaderStyle-Width="40%" ItemStyle-HorizontalAlign="Left" UniqueName="CAT_TOT,Dependent_RM">

                                            <HeaderTemplate>

                                                <table width="100%" style="table-layout: fixed;">

                                                    <tr>

                                                        <td colspan="5">

                                                            <div style="float: left;">

                                                                -100</div>

                                                            <div style="float: right;">

                                                                100</div>

                                                            <telerik:RadSlider ID="RadSlider1" runat="server" MaximumValue="100" MinimumValue="-100"

                                                                OnClientSlideEnd="CalculateNewProductCost" OnClientSlideStart="ClientSlideStart"

                                                                OnClientValueChanged="ClientValueChanged" SelectionEnd="<%# endSlider %>" SelectionStart="<%# startSlider %>"

                                                                ShowDecreaseHandle="true" ShowIncreaseHandle="true" Skin="Forest" SmallChange="1"

                                                                Value="0" Width="385px" Style="float: left" CssClass="ApplyPosition" />

                                                        </td>

                                                    </tr>

                                                    <caption>

                                                        Material Cost

                                                        <tr>

                                                            <td align="justify" style="border-style: solid; border-color: #455F77; border-width: 1px;

                                                                width: 20%;">

                                                                Total Material Cost

                                                            </td>

                                                            <td align="justify" style="border-color: #455F77; border-width: 1px; width: 20%;

                                                                border-right-style: solid; border-bottom-style: solid; border-top-style: solid;">

                                                                Future Total Material Cost

                                                            </td>

                                                            <td align="center" style="border-color: #455F77; border-width: 1px; width: 20%; border-right-style: solid;

                                                                border-bottom-style: solid;">

                                                                Current Selection

                                                            </td>

                                                            <td align="justify" style="border-color: #455F77; border-width: 1px; width: 20%;

                                                                border-right-style: solid; border-top-style: solid; border-bottom-style: solid;">

                                                                Other Affected RM

                                                            </td>

                                                            <td align="justify" style="border-color: #455F77; border-width: 1px; width: 20%;

                                                                border-right-style: solid; border-bottom-style: solid; border-top-style: solid;">

                                                                Future Other Affected RM

                                                            </td>

                                                        </tr>

                                                    </caption>

                                                </table>

                                            </HeaderTemplate>

                                            <ItemTemplate>

                                                <table border="1" width="100%" style="table-layout: fixed;">

                                                    <tr>

                                                        <td align="justify" style="width: 20%">

                                                            <asp:Label ID="lbl_CAT_TOT" runat="server" Text='<%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem, "CAT_TOT", "{0:#,###0}"))%>'></asp:Label>

                                                            <%--<%#DataBinder.Eval(Container.DataItem, "CAT_TOT", "{0:C}")%> <%#Eval("CAT_TOT") %>--%>

                                                        </td>

                                                        <td align="justify" style="width: 20%">

                                                            <asp:Label ID="lbl_FTMC" runat="server" Text='<%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem, "FTMC", "{0:#,###0}"))%>'></asp:Label>

                                                            <%--   <%#DataBinder.Eval(Container.DataItem, "FTMC", "{0:C}")%>--%>

                                                        </td>

                                                        <td align="center" style="width: 20%">

                                                            <asp:Label ID="lblCurSel" runat="server" Text="Current Selection: 0" />

                                                        </td>

                                                        <td align="justify" style="width: 20%">

                                                            <asp:LinkButton ID="lnk_rm" runat="server" ForeColor="Blue" Text='<%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem, "Dependent_RM", "{0:#,###0}"))%>'></asp:LinkButton>

                                                            <%--<%#CheckEmpty(DataBinder.Eval(Container.DataItem, "Dependent_RM", "{0:C}"))%>--%>

                                                        </td>

                                                        <td align="justify" style="width: 20%">

                                                            <asp:Label ID="lnk_effrm" runat="server" Text='<%#"$"+CheckEmpty(DataBinder.Eval(Container.DataItem, "Future_Dependent_RM", "{0:#,###0}"))%>'></asp:Label>

                                                            <%--<%#CheckEmpty(DataBinder.Eval(Container.DataItem, "Future_Dependent_RM", "{0:C}"))%>--%>

                                                        </td>

                                                    </tr>

                                                </table>

                                            </ItemTemplate>

                                            <HeaderStyle Font-Bold="True" />

                                            <ItemStyle HorizontalAlign="Left" />

                                        </telerik:GridTemplateColumn>

                                    </Columns>

                                </MasterTableView>

                                <ClientSettings Scrolling-AllowScroll="true">

                                    <ClientEvents OnRowDeselected="RowSelected" OnRowSelected="RowSelected" />

                                    <Scrolling AllowScroll="True" UseStaticHeaders="True" ScrollHeight="50"></Scrolling>

                                    <Selecting AllowRowSelect="true" />

                                </ClientSettings>

                                <FilterMenu EnableImageSprites="False">

                                </FilterMenu>

                            </telerik:RadGrid>

    <telerik:RadToolTipManager ID="RadToolTipManager1" runat="server" OffsetY="-1" EnableShadow="true"

            Position="BottomRight" Animation="Fade" OnAjaxUpdate="OnAjaxUpdate" RelativeTo="Mouse"

            Width="500px" Height="250px" Style="font-size: 18px; text-align: center; font-family: Arial;"

            RenderInPageRoot="true" Skin="Forest" AutoCloseDelay="2000" HideDelay="0" ShowDelay="0"

            ContentScrolling="Auto" ShowEvent="OnMouseOver" AnimationDuration="1" HideEvent="ManualClose">

        </telerik:RadToolTipManager>





    ASpx.CS:



    protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)

            {





                    if (e.Item.ItemType == GridItemType.Item || e.Item.ItemType == GridItemType.AlternatingItem)

                    {

                        LinkButton lnk_rm1 = item.FindControl("lnk_rm") as LinkButton;

                        if (!Object.Equals(lnk_rm1, null))

                        {

                            if (!Object.Equals(this.RadToolTipManager1, null))

                            {

                                //Add the button (target) id to the tooltip manager

                                string str = (e.Item as GridDataItem).GetDataKeyValue("PUR_CAT").ToString().Replace("<br/>", "/");

                                string[] ariba_cat2 = str.Split('.');

                                string last = ariba_cat2[2];

                                this.RadToolTipManager1.TargetControls.Add(lnk_rm1.ClientID, last, true);



                            }

                        }



                    }







                }



    protected void OnAjaxUpdate(object sender, ToolTipUpdateEventArgs args)

            {

                this.UpdateToolTip(args.Value, args.UpdatePanel);



            }



            private void UpdateToolTip(string elementID, UpdatePanel panel)

            {

                Control ctrl = Page.LoadControl("CategoryDetailsfromIndex.ascx");

                panel.ContentTemplateContainer.Controls.Add(ctrl);

                CategoryDetailsfromIndex details = (CategoryDetailsfromIndex)ctrl;

                details.Ariba21 = elementID;

            }

    protected void RadGrid1_ItemCommand(object sender, GridCommandEventArgs e)

            {

                if (e.CommandName == "Sort" || e.CommandName == "Page")

                {

                    RadToolTipManager1.TargetControls.Clear();

                }





            }

    CategoryDetailsfromIndex.Ascx



    <telerik:RadGrid ID="RadGrid_det" runat="server" Skin="Forest">

    </telerik:RadGrid>





    CategoryDetailsfromIndex.Ascx.cs:

    using System;

    using System.Collections.Generic;

    using System.Linq;

    using System.Web;

    using System.Web.UI;

    using System.Web.UI.WebControls;

    using System.Data;



    namespace CPT_NEW

    {

        public partial class CategoryDetailsfromIndex : System.Web.UI.UserControl

        {

            Home obj = new Home();

            private string Ariba2;



            public string Ariba21

            {

                get { return Ariba2; }

                set { Ariba2 = value; }

            }

            protected override void OnPreRender(EventArgs e)

            {

                base.OnPreRender(e);

                RadGrid_det.DataSource = obj.Get_DetailsfromIndexMapping(Ariba21);

                RadGrid_det.DataBind();

            }

            protected void Page_Load(object sender, EventArgs e)

            {



            }





        }

    }
















    Thanks.
  2. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3602 posts

    Posted 23 Jul 2012 Link to this post

    Hello Suneetha,

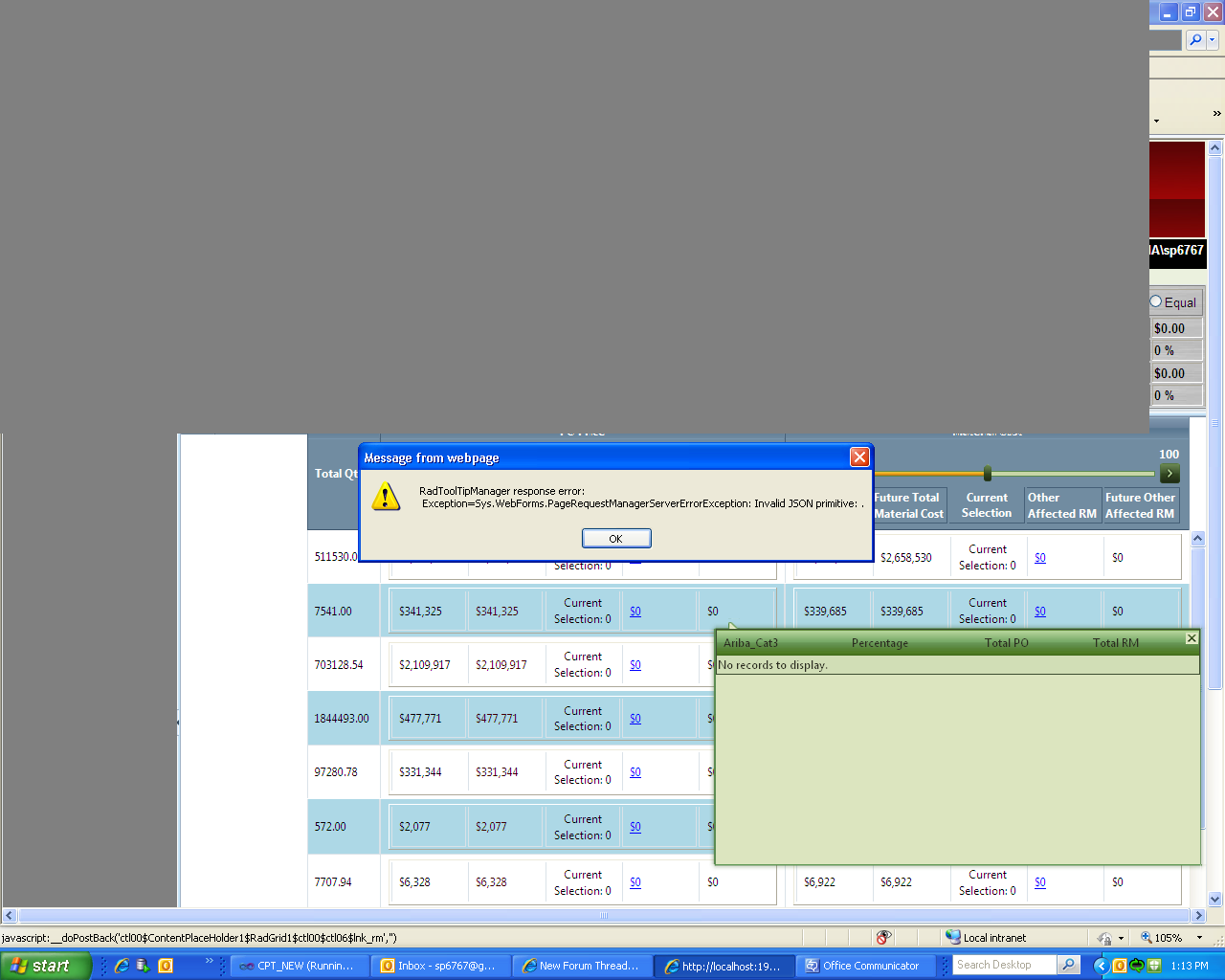

    This alert box indicates a server error during the processing of the AJAX request the tooltip manager invokes to get its content. When AJAX is used the server errors get trapped like this. I, therefore, advise that you place a breakpoint in your code and step through it to see where it originates in order to fix it.

    Another possible issue may be from the strings you pass as the value of the tooltips - if they contain special symbols it is possible that a coma (',') or a curly bracket ('{' or '}'), for example, can break the serialization of the data, so I would advise that you test with a different datasource or at least remove the value.

    I also advise that you check your AJAX settings and especially avoid nested update panels. This online demo show the basic scenario and setup that work well, so you can use it as base to extend the logic.

    Kind regards,
    Marin Bratanov
    the Telerik team
