RadTimeSelector nested in a RadModalWindow fires an ArgumentException

6 posts, 0 answers
  1. MM
    MM avatar
    8 posts
    Member since:
    Oct 2009

    Posted 25 Feb 2014 Link to this post

    I'm trying to put a RadTimeSelector in a RadModalWindow where I manipulate the IsOpen property via DataBinding.

    Like this:
    <telerikPrimitives:RadWindow Grid.Row="1" IsOpen="{Binding PickReminderTime, Mode=TwoWay}" Placement="CenterCenter">
        <telerikInput:RadTimeSelector SelectorFormat="h/m" SelectedValue="{Binding ReminderEditTime,Mode=TwoWay}"/>
    </telerikPrimitives:RadWindow>


    Important I've got this RadWindow (tried RadModalWindow as well) in a second page. And when I navigate to this second page the first time it seems to work. Even manipulating the IsOpen property multiple times, it's still working. However when I navigate back, and navigate to this secondpage again (with a different uri parameter). I'm getting an ArgumentException when I manipulate the IsOpen property to be true, with the following stacktrace.

    System.ArgumentException: Value does not fall within the expected range.
       at MS.Internal.XcpImports.CheckHResult(UInt32 hr)
       at MS.Internal.XcpImports.Collection_AddValue[T](PresentationFrameworkCollection`1 collection, CValue value)
       at MS.Internal.XcpImports.Collection_AddDependencyObject[T](PresentationFrameworkCollection`1 collection, DependencyObject value)
       at System.Windows.PresentationFrameworkCollection`1.AddDependencyObject(DependencyObject value)
       at System.Windows.Controls.UIElementCollection.AddInternal(UIElement value)
       at System.Windows.PresentationFrameworkCollection`1.Add(T value)
       at Telerik.Windows.Controls.RadWindow.AddCanvas(Panel parent)
       at Telerik.Windows.Controls.RadWindow.OpenCore(Panel ancestor)
       at Telerik.Windows.Controls.RadWindow.Open()
       at Telerik.Windows.Controls.RadWindow.SyncOpenState()
       at Telerik.Windows.Controls.RadWindow.OnIsOpenChanged(Boolean newValue, Boolean oldValue)
       at Telerik.Windows.Controls.RadWindow.OnIsOpenChanged(Object sender, DependencyPropertyChangedEventArgs args)
       at System.Windows.DependencyObject.RaisePropertyChangeNotifications(DependencyProperty dp, Object oldValue, Object newValue)
       at System.Windows.DependencyObject.UpdateEffectiveValue(DependencyProperty property, EffectiveValueEntry oldEntry, EffectiveValueEntry& newEntry, ValueOperation operation)
       at System.Windows.DependencyObject.RefreshExpression(DependencyProperty dp)
       at System.Windows.Data.BindingExpression.SendDataToTarget()
       at System.Windows.Data.BindingExpression.SourcePropertyChanged(PropertyPathListener sender, PropertyPathChangedEventArgs args)
       at System.Windows.PropertyPathListener.RaisePropertyPathStepChanged(PropertyPathStep source)
       at System.Windows.PropertyAccessPathStep.RaisePropertyPathStepChanged(PropertyListener source)
       at System.Windows.CLRPropertyListener.SourcePropertyChanged(Object sender, PropertyChangedEventArgs args)
       at System.Windows.Data.WeakPropertyChangedListener.PropertyChangedCallback(Object sender, PropertyChangedEventArgs args)
       at System.ComponentModel.PropertyChangedEventHandler.Invoke(Object sender, PropertyChangedEventArgs e)
       at GalaSoft.MvvmLight.ObservableObject.RaisePropertyChanged(String propertyName)
       at MC.Chain.WPUI.ViewModel.ViewModelBase.RaisePropertyChanged(String propertyName)
       at MC.Chain.WPUI.ViewModel.EditGoalViewModel.set_PickReminderTime(Boolean value)
       at MC.Chain.WPUI.ViewModel.EditGoalViewModel.PickReminder()
       at GalaSoft.MvvmLight.Helpers.WeakAction.Execute()
       at GalaSoft.MvvmLight.Command.RelayCommand.Execute(Object parameter)
       at System.Windows.Controls.Primitives.ButtonBase.ExecuteCommand()
       at System.Windows.Controls.Primitives.ButtonBase.OnClick()
       at System.Windows.Controls.Button.OnClick()
       at System.Windows.Controls.Primitives.ButtonBase.OnMouseLeftButtonUp(MouseButtonEventArgs e)
       at System.Windows.Controls.Control.OnMouseLeftButtonUp(Control ctrl, EventArgs e)
       at MS.Internal.JoltHelper.FireEvent(IntPtr unmanagedObj, IntPtr unmanagedObjArgs, Int32 argsTypeIndex, Int32 actualArgsTypeIndex, String eventName)


    I tried using the RadWindow with different content first, and Isolated that the RadTimeSelector doesn't like being displayed a second time.

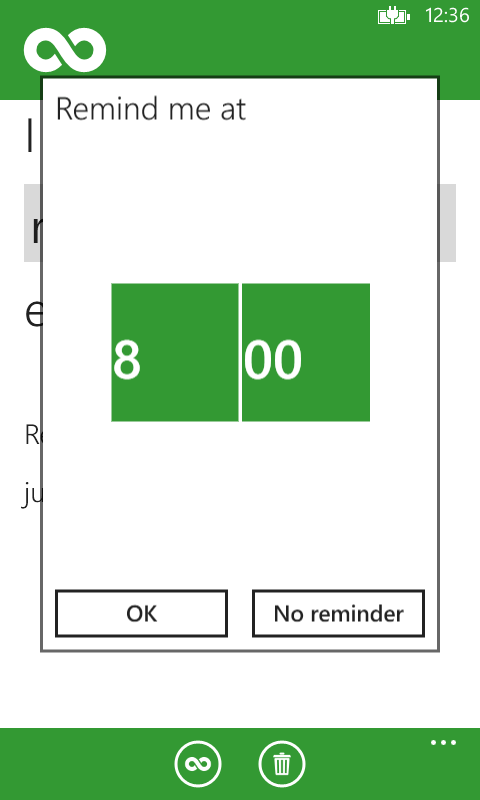

    Is there a workaround? I want to achieve a UI like the attached screenshot.
  2. Deyan
    Admin
    Deyan avatar
    2039 posts

    Posted 28 Feb 2014 Link to this post

    Hi Mark,

    Based on your description I guess the second time your app goes into an invalid state where the content of the windows is inserted into the frame without being removed before that.

    However, without being able to directly debug your code I cannot be sure that this is the reason for the exception. Can you please share with us your project in a separate support thread and we will make sure to see what goes wrong?

    Regards,
    Deyan
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peek previews directly from the developers working on the UI for Windows Phone, subscribe to the blog feed now.
  3. DevCraft banner
  4. MM
    MM avatar
    8 posts
    Member since:
    Oct 2009

    Posted 28 Feb 2014 in reply to Deyan Link to this post

    Hi Deyan,

    I've added the code to the ticket I created: 792882

    Hope this helps.

    Best,

    Mark Monster
  5. Deyan
    Admin
    Deyan avatar
    2039 posts

    Posted 28 Feb 2014 Link to this post

    Hi Mark,

    Thanks for writing.

    The reason for the exception is the binding to the IsOpen property. The static MainViewModel keeps a reference to the RadWindow instance and thus it can never be garbage collected. RadWindow itself contains a static Canvas object which is used to represent the content of the window when it's opened. Once RadWindow is shown, the Canvas becomes part of the visual tree. This creates a given state which later, when showing the window for a second time causes the ArgumentException.

    The quick fix for this is to omit the binding of the IsOpen property until we find out the exact reason for the undesired behavior and see what we can do about it.

    Regards,
    Deyan
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peek previews directly from the developers working on the UI for Windows Phone, subscribe to the blog feed now.
  6. MM
    MM avatar
    8 posts
    Member since:
    Oct 2009

    Posted 28 Feb 2014 in reply to Deyan Link to this post

    Interesting, but what happens when any of the content in the Window gets databound. Will that also cause the same problem? I'm willing to do some parts inside the Code Behind as an alternative.
  7. Deyan
    Admin
    Deyan avatar
    2039 posts

    Posted 04 Mar 2014 Link to this post

    Hello Mark,

    After performing some further investigations, I think the reason for the undesired behavior is that you are directly putting visual elements within the Content property of the Window. Can you please try using the standard Silverlight pattern by binding the Content property of the Window to your data context and defining a ContentTemplate where your visual elements will reside. There you can bind them to your data context accordingly.

    Let us know how this approach works for you.

    Regards,
    Deyan
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peek previews directly from the developers working on the UI for Windows Phone, subscribe to the blog feed now.
